Interruptores DIP
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito | Número de posições | Classificação de Corrente (Amps) | Classificação de Tensão | Tipo de Atuador | Nível do Atuador | Material de Contato | Acabamento de Contato | Altura Acima da Placa | Tipo de montagem | Estilo de Terminação | Passo | Lavável | Recursos | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KT04EHSWITCH SLIDE DIP SPST 0.025A 24V |
484 |
|
Ficha técnica |
KT | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KT01RHSWITCH SLIDE DIP SPST 0.025A 24V |
126 |
|
Ficha técnica |
KT | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KR02RSWITCH SLIDE DIP SPST 0.025A 24V |
609 |
|
Ficha técnica |
KR | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ09RTTSWITCH SLIDE DIP SPST 0.025A 24V |
330 |
|
Ficha técnica |
KJ | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

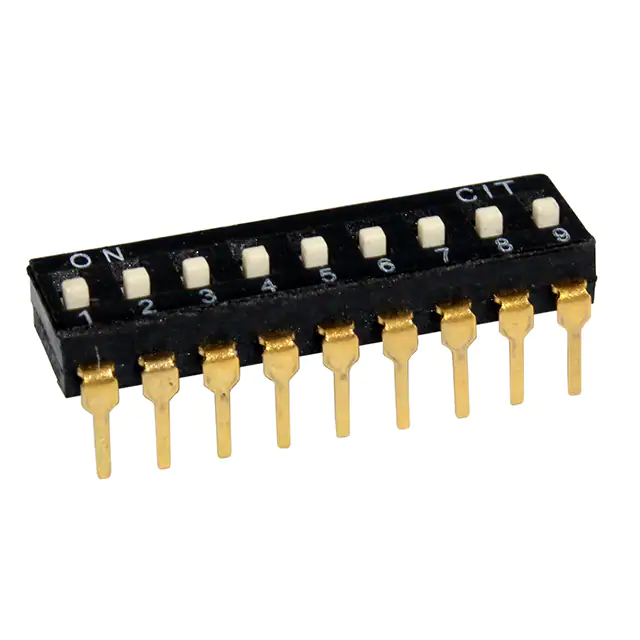

KT09EHSWITCH SLIDE DIP SPST 0.025A 24V |
301 |
|
Ficha técnica |
KT | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ10RTTSWITCH SLIDE DIP SPST 0.025A 24V |
273 |
|
Ficha técnica |
KJ | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

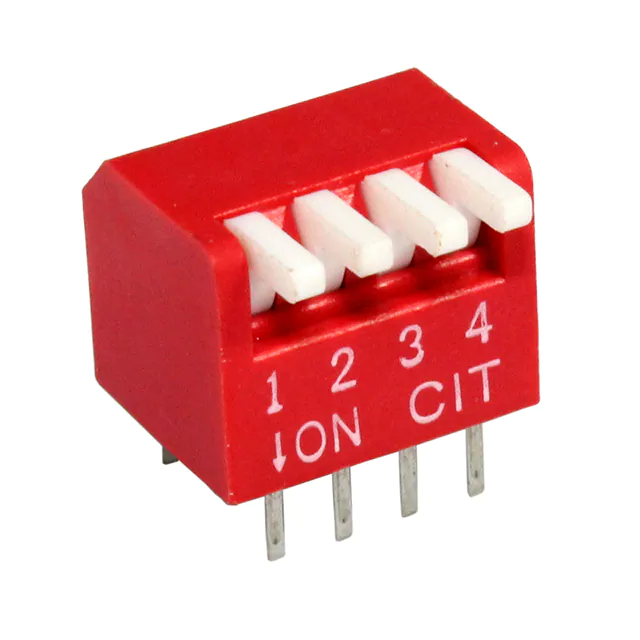

KP04ESWITCH PIANO DIP SPST 0.025A 24V |
483 |
|
Ficha técnica |
KP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KT10RHSWITCH SLIDE DIP SPST 0.025A 24V |
307 |
|
Ficha técnica |
KT | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
219-7LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
1,000 |
|
Ficha técnica |
219 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
KT05EHSWITCH SLIDE DIP SPST 0.025A 24V |
131 |
|
Ficha técnica |
KT | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-2L-07BKSWITCH SLIDE DIP SPST 0.025A 24V |
907 |
|
Ficha técnica |
DS04-254 | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDA12H0BSWITCH SLIDE DIP SPST 0.025A 24V |
300 |
|
Ficha técnica |
SDA | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
DS01C-254-S-12BESWITCH SLIDE DIP SPST 0.025A 24V |
437 |
|
Ficha técnica |
DS01-254 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KT08RHSWITCH SLIDE DIP SPST 0.025A 24V |
206 |
|
Ficha técnica |
KT | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KR07ESWITCH SLIDE DIP SPST 0.025A 24V |
1,296 |
|
Ficha técnica |
KR | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0800TASWITCH SLIDE DIP SPST 0.1A 6V |
897 |
|
Ficha técnica |
CFS | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KT07EHSWITCH SLIDE DIP SPST 0.025A 24V |
296 |
|
Ficha técnica |
KT | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0100MCSWITCH SLIDE DIP SPST 0.1A 6V |
437 |
|
Ficha técnica |
CFS | Tube | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
DS04-254-2L-12BKSWITCH SLIDE DIP SPST 0.025A 24V |
394 |
|
Ficha técnica |
DS04-254 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ12RTTSWITCH SLIDE DIP SPST 0.025A 24V |
255 |
|
Ficha técnica |
KJ | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
