Placas de Avaliação SMPS CC/CC e CA/CC (Off-Line)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Objetivo principal | Saídas e tipo | Tensão - Saída | Corrente - Saída | Voltagem - Entrada | Topologia do regulador | Frequência - Comutação | Conteúdo | CI/peça utilizada | Potência - Saída |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

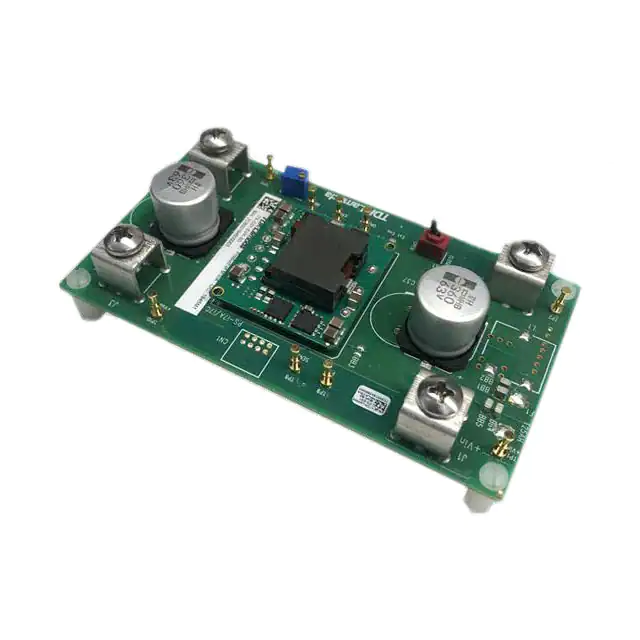

I3A08A-C01-EVK-S1EVAL BOARD FOR I3A4W008A033V |
9 |
|
Ficha técnica |
i3A | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 100 W | 3.3V ~ 16.5V | 8A | 9V ~ 53V | Buck | 450kHz | Board(s) | i3A4W008A033V |
|
I7C08A-C03-EVK-S1EVAL BOARD FOR I7C4W008A120V003R |
5 |
|
Ficha técnica |
I7c (300W) | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 300 W | 9.6V ~ 48V | 8A | 9V ~ 53V | Buck-Boost | 250kHz | Board(s) | i7C4W008A120V-003-R |
|

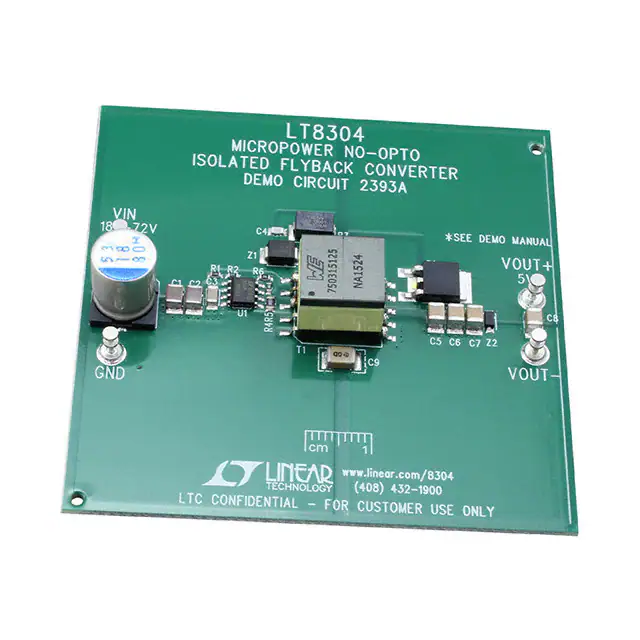

DC2393AEVAL BOARD FOR LT8304 |
18 |
|
Ficha técnica |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 4.2A | 18V ~ 72V | Flyback | 11kHz | Board(s) | LT8304 |
|
MAX25240EVKIT#EVAL BOARD FOR MAX25240 |
0 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 10A | 4.5V ~ 40V | Buck-Boost | 400kHz | Board(s) | MAX25240 |
|

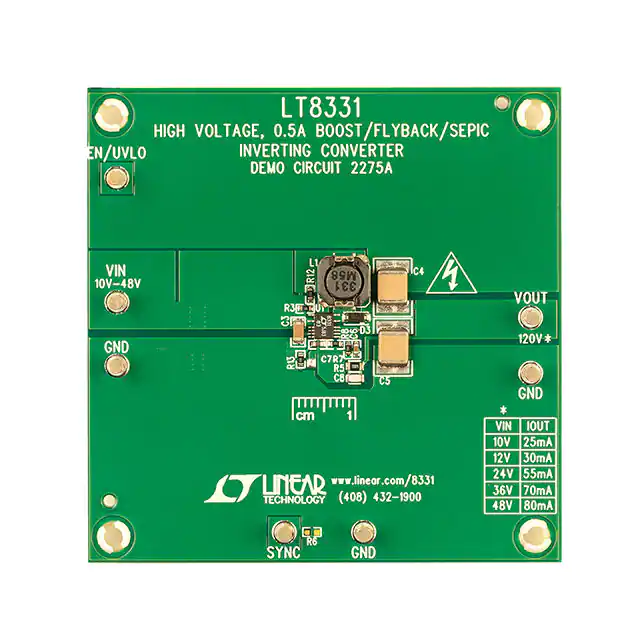

DC2275AEVAL BOARD FOR LT8331 |
13 |
|
Ficha técnica |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 120V | 80mA | 10V ~ 48V | Boost | 200kHz | Board(s) | LT8331 |
|

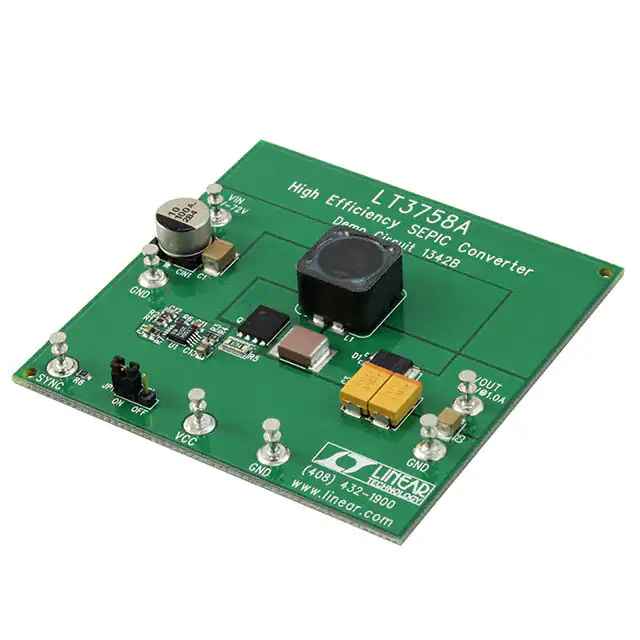

DC1342BEVAL BOARD FOR LT3758A |
8 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 1A | 18V ~ 72V | - | 300kHz | Board(s) | LT3758A |
|

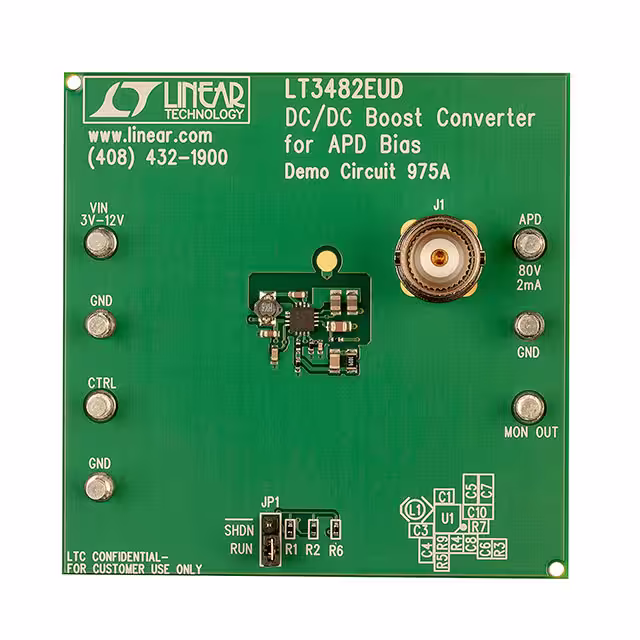

DC975AEVAL BOARD FOR LT3482 |
5 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 80V | 2mA | 3V ~ 12V | Boost | 650kHz | Board(s) | LT3482 |
|

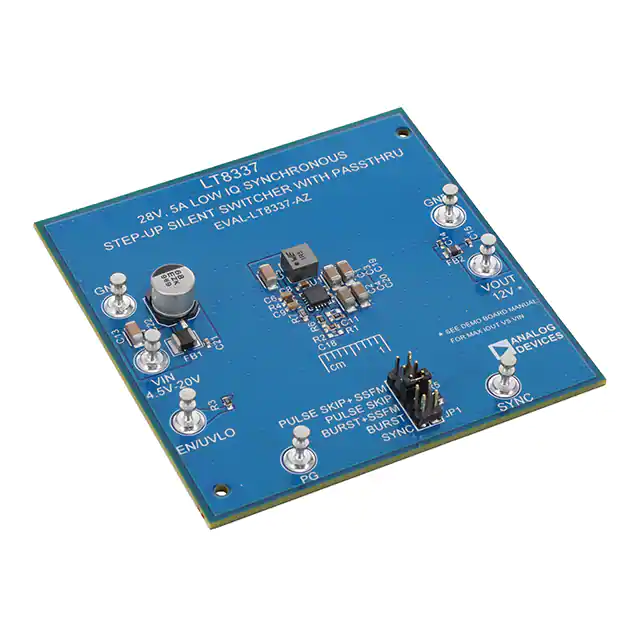

EVAL-LT8337-AZEVAL BOARD FOR LT8337 |
2 |
|
Ficha técnica |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2.5A | 4V ~ 12V | Boost | 2MHz | Board(s) | LT8337 |
|
DC2173AEVAL BOARD FOR LTC3769 |
11 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 6A | 6V ~ 60V | Boost | 150kHz | Board(s) | LTC3769 |
|

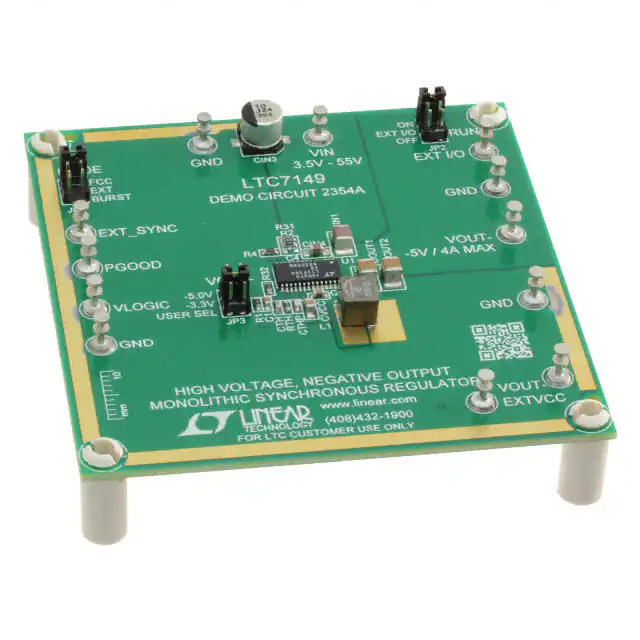

DC2354AEVAL BOARD FOR LTC7149 |
8 |
|
Ficha técnica |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -3.3V or -5V | 4A | 3.5V ~ 55V | Inverting | 500kHz | Board(s) | LTC7149 |
|

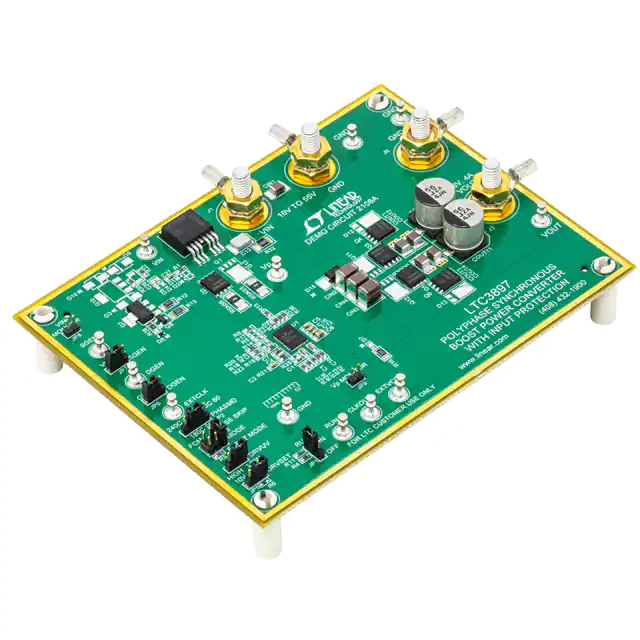

DC2108AEVAL BOARD FOR LTC3897 |
7 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 12A | 16V ~ 55V | Boost | 160kHz | Board(s) | LTC3897 |
|

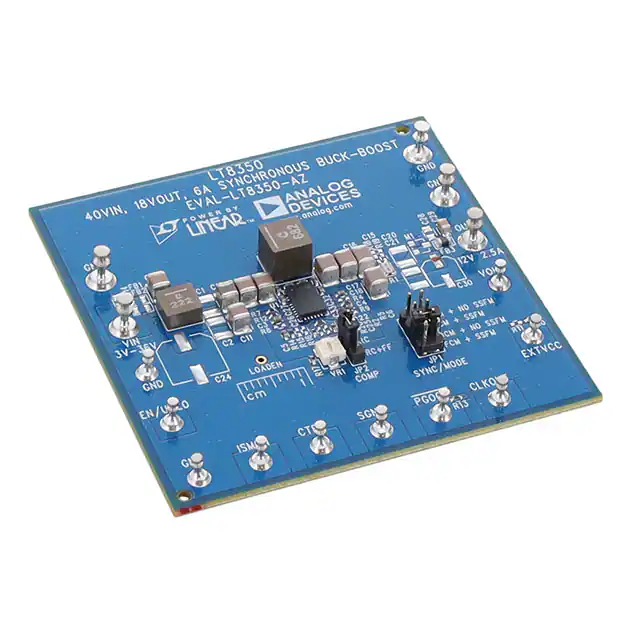

EVAL-LT8350-AZEVAL BOARD FOR LT8350 |
5 |
|
Ficha técnica |
Silent Switcher® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 2.5A | 3V ~ 40V | Buck-Boost | 350kHz | Board(s) | LT8350 |
|

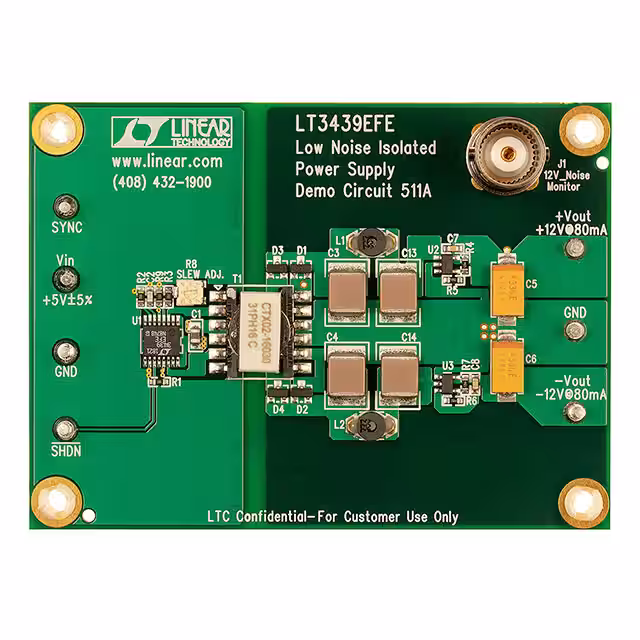

DC511AEVAL BOARD FOR LT3439 |
4 |
|
Ficha técnica |
- | Box | Active | DC/DC, Positive and Negative | 2 Isolated Outputs | - | 12V, -12V | 80mA | 5V | - | - | Board(s) | LT3439 |
|

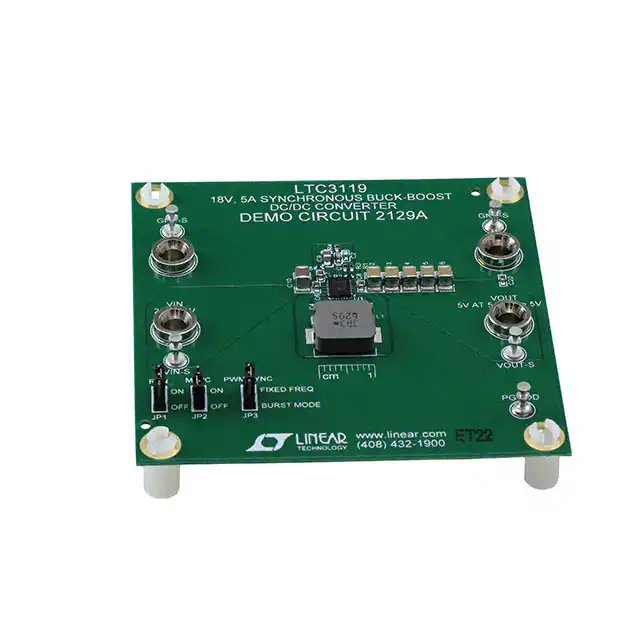

DC2129AEVAL BOARD FOR LTC3119 |
9 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 5A | 2.5V ~ 18V | Buck-Boost | - | Board(s) | LTC3119 |
|

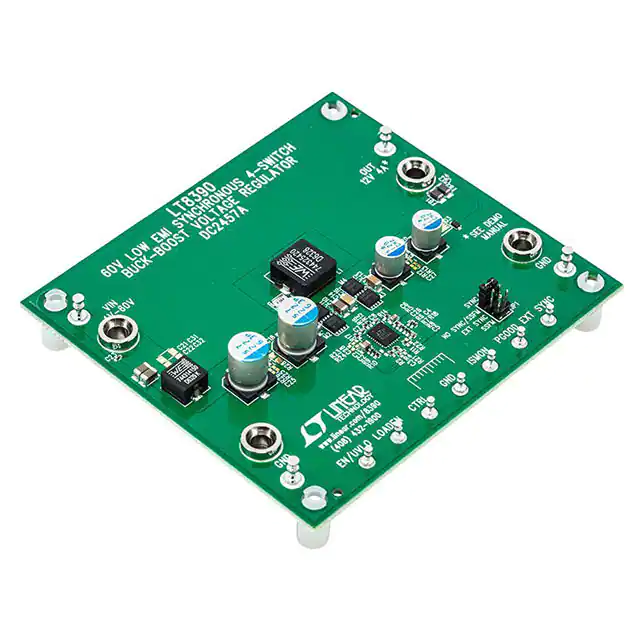

DC2457AEVAL BOARD FOR LT8390 |
8 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 4A | 4V ~ 60V | Buck-Boost | 400kHz | Board(s) | LT8390 |
|

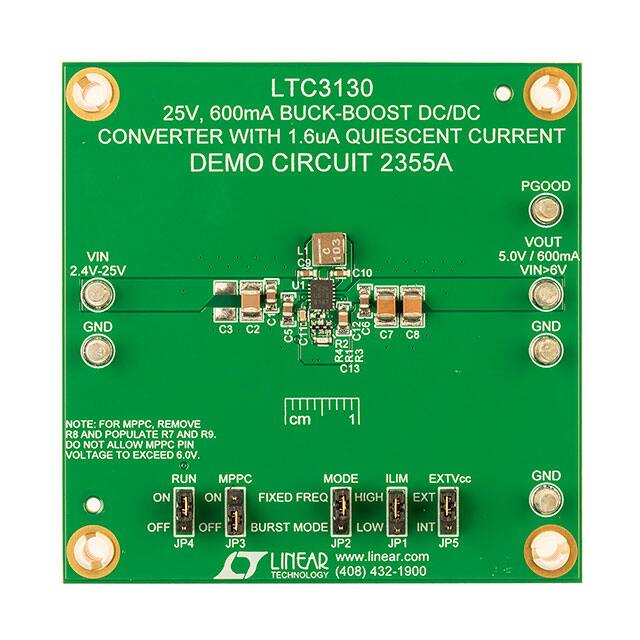

DC2355AEVAL BOARD FOR LTC3130 |
7 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 600mA | 2.4V ~ 25V | Buck-Boost | - | Board(s) | LTC3130 |
|

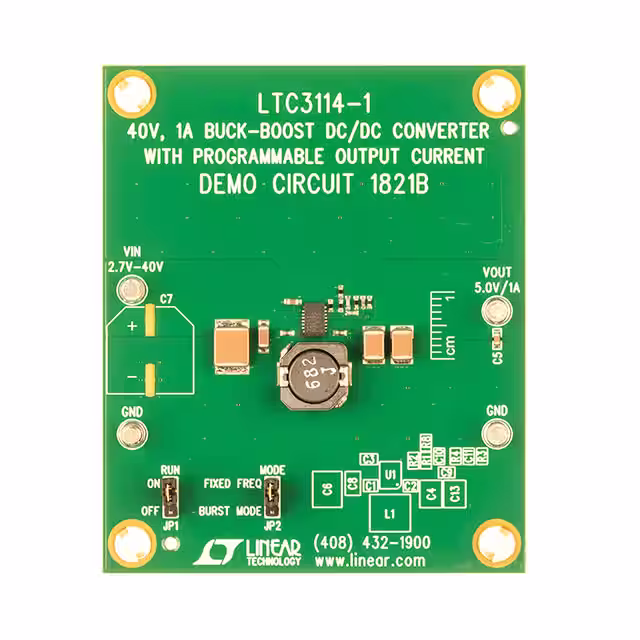

DC1821BEVAL BOARD FOR LTC31141 |
7 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 1A | 2.7V ~ 40V | Buck-Boost | 1.2MHz | Board(s) | LTC3114-1 |
|

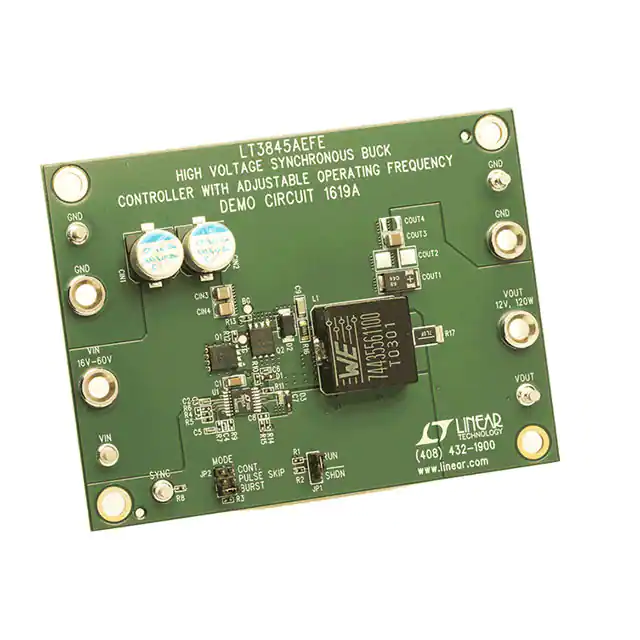

DC1619AEVAL BOARD FOR LT3845A |
4 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 10A | 16V ~ 60V | Buck | 300kHz | Board(s) | LT3845A |
|

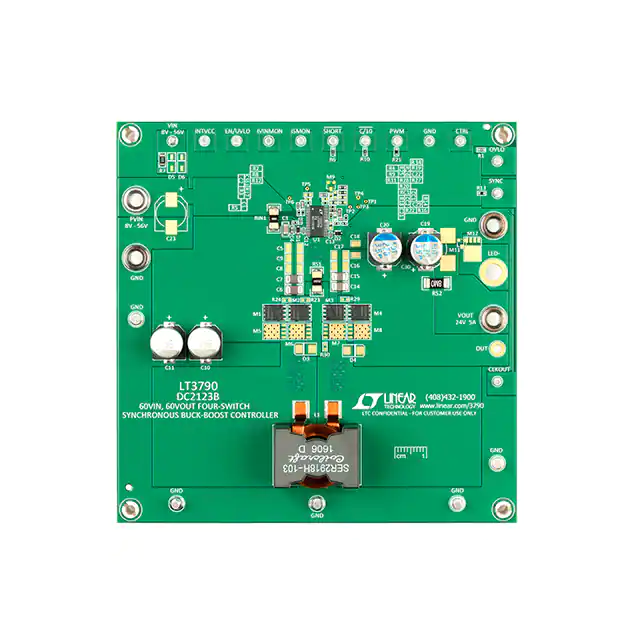

DC2123BEVAL BOARD FOR LT3790 |
4 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 5A | 8V ~ 56V | Buck-Boost | 200kHz | Board(s) | LT3790 |
|

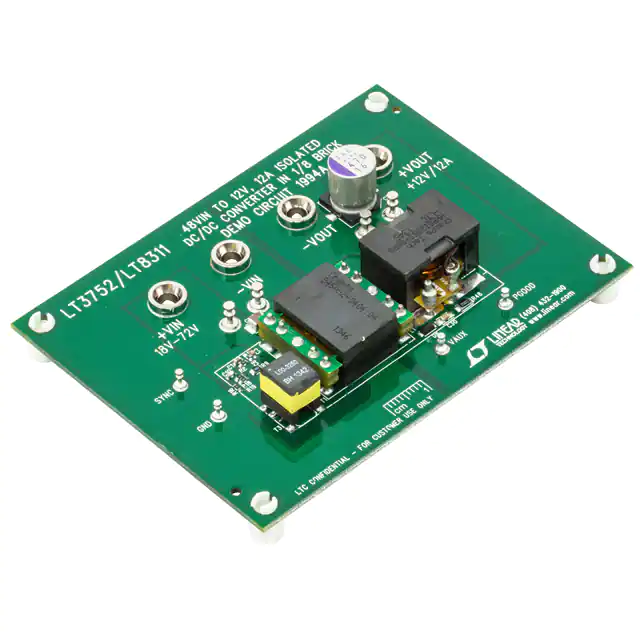

DC1994AEVAL BOARD FOR LT3752 LT8311 |
4 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 12V | 12A | 18V ~ 72V | Forward Converter | 240Hz | Board(s) | LT3752, LT8311 |
