Placas de Avaliação SMPS CC/CC e CA/CC (Off-Line)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Objetivo principal | Saídas e tipo | Tensão - Saída | Corrente - Saída | Voltagem - Entrada | Topologia do regulador | Frequência - Comutação | Conteúdo | CI/peça utilizada | Potência - Saída |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVM3610-QV-00AEVAL BOARD FOR MPM3610 |
0 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 4.5V ~ 21V | Buck | 2MHz | Board(s) | MPM3610 |
|
|
EVM3805-QB-01AEVAL BOARD FOR MPM3805 |
0 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.5V ~ 6V | Buck | 3.5MHz | Board(s) | MPM3805 |
|
|
EV020A-5-S-00AEVAL BOARD FOR MP020A5 |
0 |
|
Ficha técnica |
- | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 5 W | 5V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | MP020A-5 |
|
|
EV5610-QG-00AEVAL BOARD FOR MP5610 |
0 |
|
Ficha técnica |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 2 Non-Isolated Outputs | - | ±5.4V | 40mA | 2.7V ~ 5V | Boost | - | Board(s) | MP5610 |
|
|
EVQ4487-U-00AEVAL BOARD FOR MPQ4487 |
0 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5.17V | 3A, 3A | 12V | Buck | 450kHz | Board(s) | MPQ4487 |
|
|
EV8714-LE-00AEVAL BOARD FOR MP8714 |
0 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 10A | 4.5V ~ 17V | Buck | - | Board(s) | MP8714 |
|

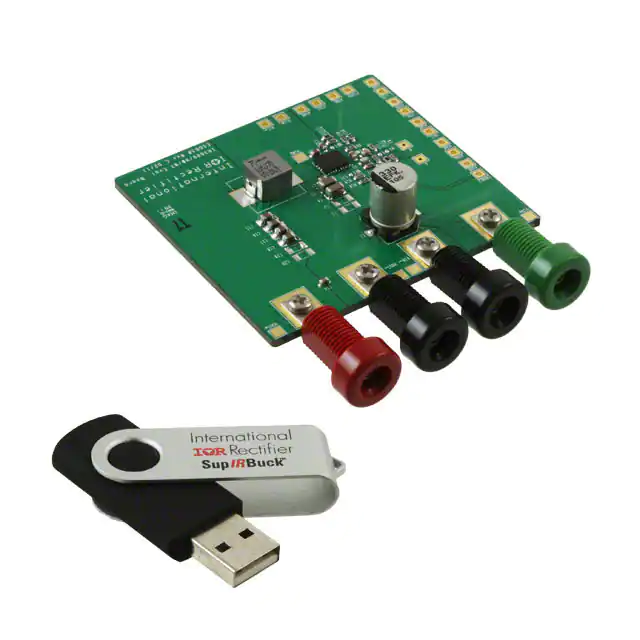

IRDC3898EVAL BOARD FOR IR3898 |
1 |
|
Ficha técnica |
SupIRBuck® | Box | Discontinued | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 12V | Buck | 600kHz | Board(s) | IR3898 |
|

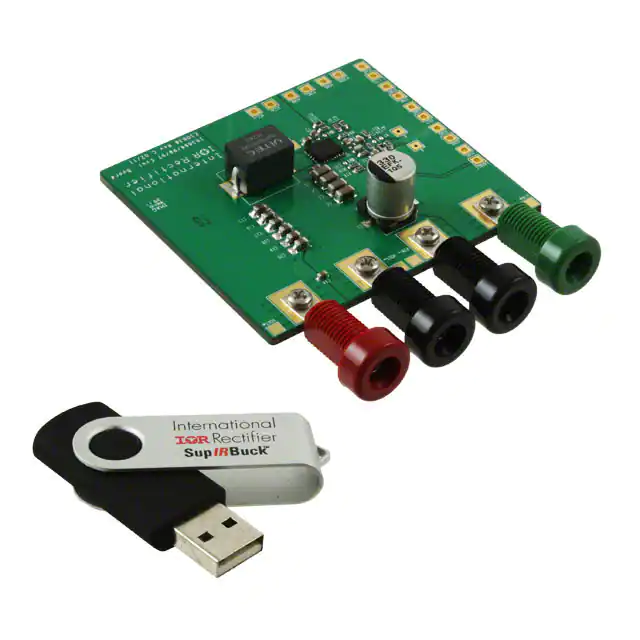

IRDC3899EVAL BOARD FOR IR3899 |
0 |
|
Ficha técnica |
SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 9A | 12V | Buck | 600kHz | Board(s) | IR3899 |
|

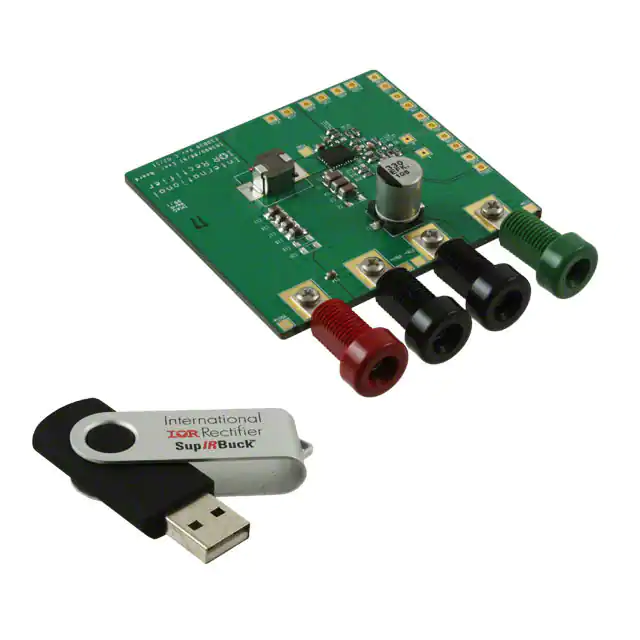

IRDC3897EVAL BOARD FOR IR3897 |
0 |
|
Ficha técnica |
SupIRBuck® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 4A | 12V | Buck | 600kHz | Board(s) | IR3897 |
|

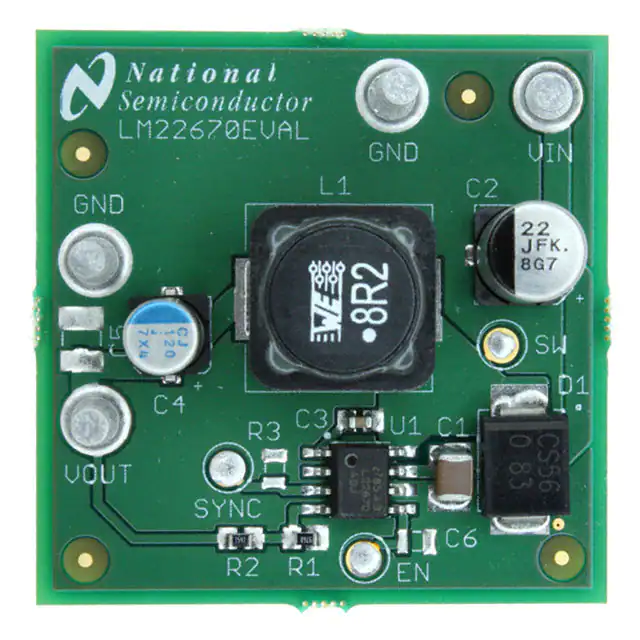

LM22670EVALEVAL BOARD FOR LM22670 |
0 |
|
Ficha técnica |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LM22670 |
|

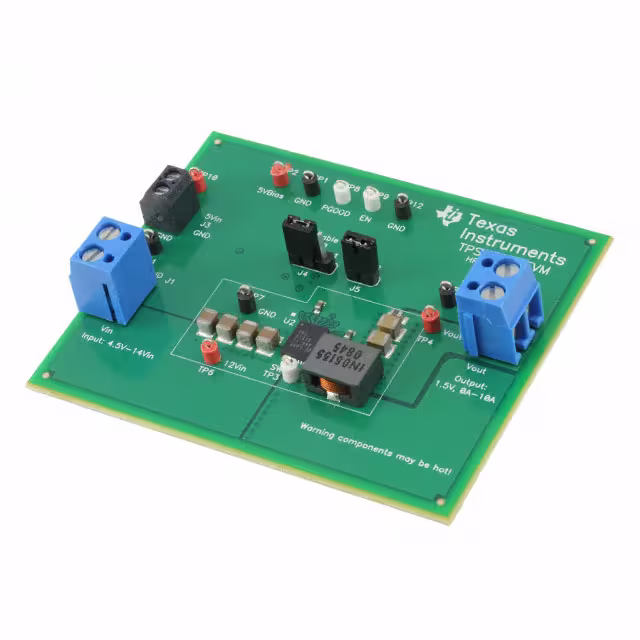

TPS51315EVMEVAL BOARD FOR TPS51315 |
0 |
|
Ficha técnica |
D-CAP™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 10A | 4.5V ~ 14V | Buck | 300kHz | Board(s) | TPS51315 |
|

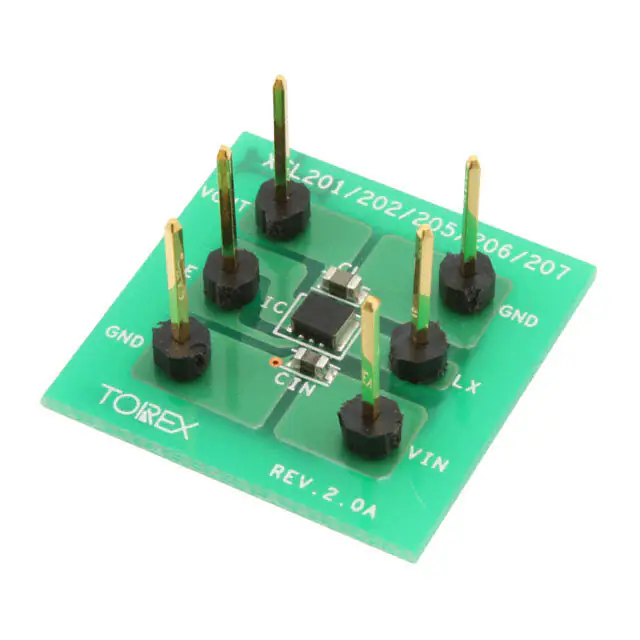

XCL206B283-EVBEVAL BOARD FOR XCL206B283ARG |
0 |
|
Ficha técnica |
XCL206 | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.8V | 600mA | 2V ~ 6V | Buck | - | Board(s) | XCL206B283AR-G |
|

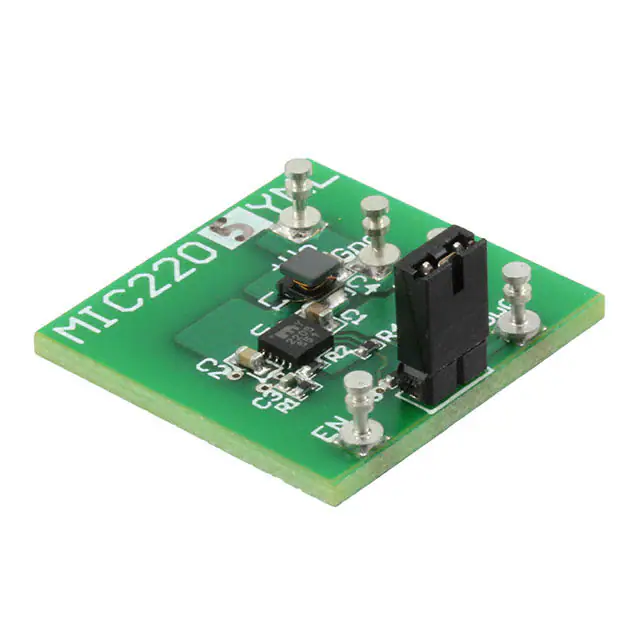

MIC2205YML-EVEVAL BOARD FOR MIC2205 |
3 |
|
Ficha técnica |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | MIC2205 |
|

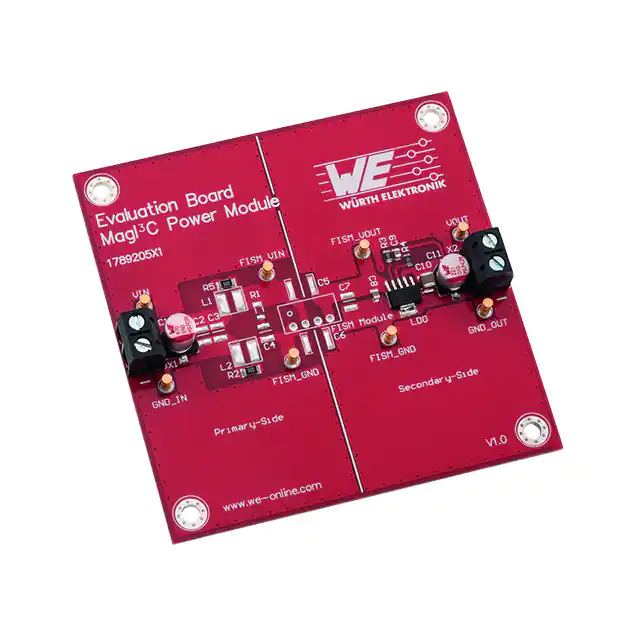

1789205X1EVAL BOARD FOR FISM |
0 |
|
Ficha técnica |
MagI3C | Box | Obsolete | DC/DC, Step Up or Down | 1 Isolated Output | - | 5V | - | - | Boost, Buck | - | Partially Populated Board(s) | FISM |
|
IRDC3894EVAL BOARD FOR IR3894 |
1 |
|
Ficha técnica |
SupIRBuck® | Bulk | Discontinued | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 12V | Buck | 600kHz | Board(s) | IR3894 |
|
LM2651-3.3EVALEVAL BOARD FOR LM2651 |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 14V | Buck | 300kHz | Board(s) | LM2651 |
|

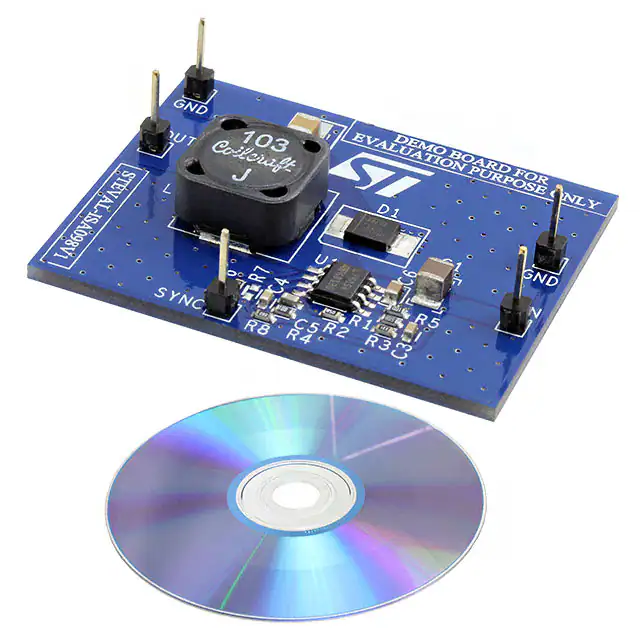

STEVAL-ISA098V1EVAL BOARD FOR L7985A |
0 |
|
Ficha técnica |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 38V | 2A | 4.5V ~ 38V | Buck | - | Board(s) | L7985A |
|
|
TPS54229EEVM-056EVAL BOARD FOR TPS54229 |
5 |
|
Ficha técnica |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54229 |
|
TPS54329EEVM-056EVAL BOARD FOR TPS54329 |
3 |
|
Ficha técnica |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54329 |
|

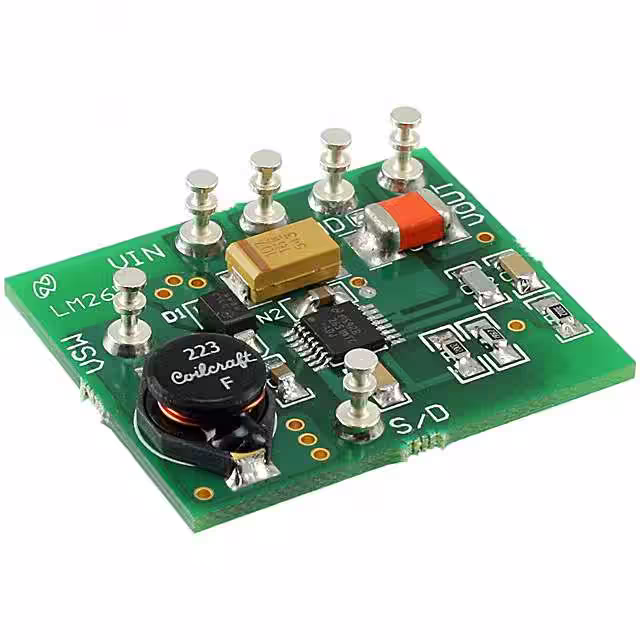

LM2651EVALEVAL BOARD FOR LM2651 |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1.5A | 4V ~ 14V | Buck | 300kHz | Board(s) | LM2651 |
