Placas de avaliação de sensores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de sensor | Faixa de detecção | Interface | Sensibilidade | Voltagem - Alimentação | Embutido | Conteúdo | CI/peça utilizada |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMAG3001EVMTMAG3001 EVALUATION MODULE FOR L |
3 |
|
Ficha técnica |
- | Box | Active | Hall Effect | ±40mT, ±80mT, ±133mT, ±266mT | I2C | 840LSB/mT, 420LSB/mT | 3.3V | Yes, MCU | Board(s) | TMAG3001 |
|

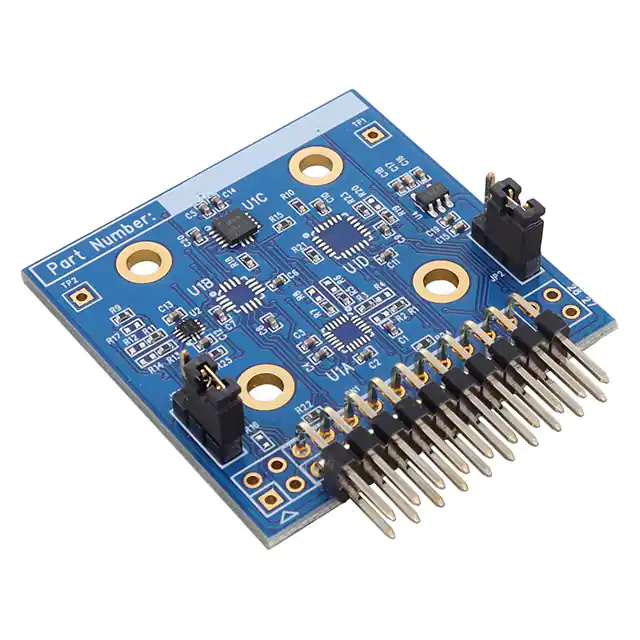

EV_IAM-20680EVAL BOARD |
2 |
|
Ficha técnica |
- | Bulk | Active | Accelerometer, Gyroscope, 3 Axis | ±2g, 4g, 8g, 16g, ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec | I2C, Serial, SPI | - | 1.71V ~ 3.6V | - | Board(s) | IAM-20680 |
|
|
EV_ICM-42688-PCHIP PART NUMBER ICM-42688-P |
0 |
|
Ficha técnica |
MotionTracking™ | Bulk | Active | Accelerometer, Gyroscope | ±2g, ±4g, ±8g, ±16g, ±15.625°/sec, ±31.25°/sec, ±62.5°/sec, ±125°/sec, ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec | I2C, I3C, Serial, SPI | 16384LSB/g, 8192LSB/g, 4096LSB/g, 2048LSB/g, 1048.6LSB/°/s, 524.3LSB/°/s, 262LSB/°/s, 131LSB/°/s, 65.5LSB/°/s, 32.8LSB/°/s, 16.4LSB/°/s, 2097.2LSB/°/s | 1.71V ~ 3.6V | No | Board(s) | ICM-42688-P |
|
|
SEK-SCC30-DB-SENSORSCC30 EVALUATION KIT |
4 |
|
Ficha técnica |
CMOSens® | Bulk | Active | Humidity, Temperature | -20°C ~ 85°C, 0 ~ 100% RH | I2C, Serial | ±0.3°C, ±3% | 2.4V ~ 5.5V | - | Board(s) | SCC30-DB |
|
|
CY8CKIT-062S2-AIPSOC 6 AI EVAL BOARD |
0 |
|
Ficha técnica |
PSOC™ 6 | Box | Active | Accelerometer, Gyroscope, Magnetometer, Microphone, Pressure, Radar | - | RF | 60GHz | - | Yes, MCU, 32-Bit | Board(s) | BGT60, BMI270, BMM350, DPS368, IM72D128 |
|
3538ADAFRUIT AMG8833 IR THERMAL CAME |
1 |
|
Ficha técnica |
Grid-EYE | Bulk | Active | Motion, Thermoelectric, PIR (Passive Infrared) | 0°C ~ 80°C | I2C | ±2.5°C | 3V ~ 5V | - | Board(s) | AMG8833 |
|
|
LXK3302AL012LX3302A NANO 50MM LINEAR |
0 |
|
Ficha técnica |
- | Bulk | Active | Position, Inductive | 50mm | Serial | - | 4V ~ 11V | Yes, MCU, 8-Bit | Board(s), Cable(s) | LX3302A |
|

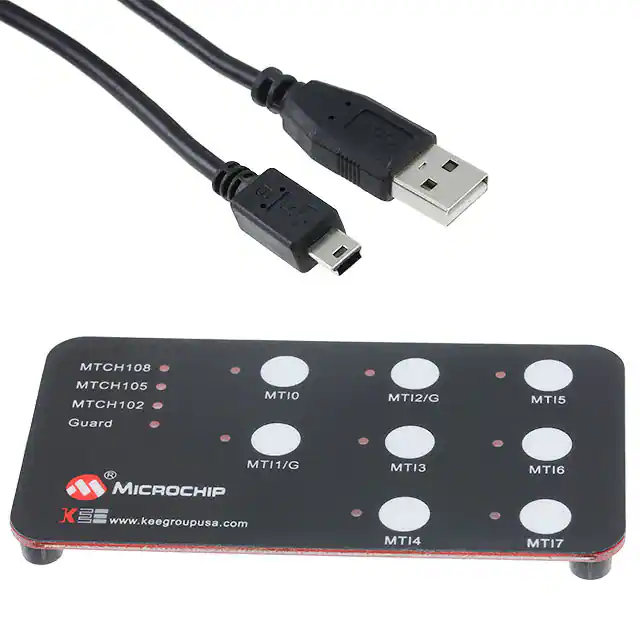

DM160229MTCH108 EVALUATION BOARD |
5 |
|
Ficha técnica |
- | Bulk | Active | Touch, Capacitive | 8 Buttons/Keys | - | - | - | - | Board(s), Cable(s) | MTCH108 |
|
|
UFM-01_EKUFM-01_EK |
0 |
|
Ficha técnica |
- | Bulk | Active | Flow, Liquid | - | UART | 10% | 4.5V ~ 5.5V | No | Board(s) | UFM-01 |
|
|
ENS160-LG_EK_ST V1EVAL BOARD FOR ENS160 |
0 |
|
Ficha técnica |
- | Bulk | Active | Indoor Air Quality (IAQ) | -40°C ~ 85°C, 5 ~ 95% RH | I2C, Serial, SPI | - | 1.71V ~ 1.98V | No | Board(s) | ENS160 |
|

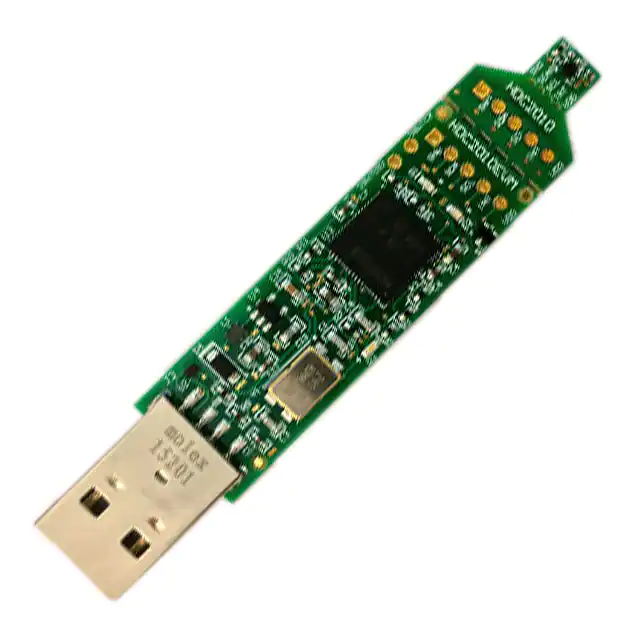

HDC2010EVMHDC2010 LOW POWER HUMIDITY AND T |
0 |
|
Ficha técnica |
- | Bulk | Active | Humidity, Temperature | - | USB | - | 5V, USB | Yes, MCU, 16-Bit | Board(s) | HDC2010 |
|
CY8CKIT-022KIT LIQUID LEVEL SENSING |
0 |
|
Ficha técnica |
CAPSENSE™ | Tray | Active | Liquid Level | - | - | - | - | - | Board(s) | PSoC® 4 |
|
|
SEK-STC31-CEVAL BOARD FOR STC31-C |
0 |
|
Ficha técnica |
CMOSens® | Bulk | Active | Carbon Dioxide (CO2) | 0 ~ 100% | I2C, Serial | - | 2.7V ~ 3.6V | Yes, MCU | Board(s), Cable(s) | STC31-C |
|
HDC2022EVMHDC2022 TEMPERATURE AND HUMIDITY |
0 |
|
Ficha técnica |
- | Box | Active | Humidity, Temperature | -20°C to 70°C, 0 to 100% RH | I2C | - | 1.62V ~ 3.6V | Yes | Board(s) | HDC2022 |
|

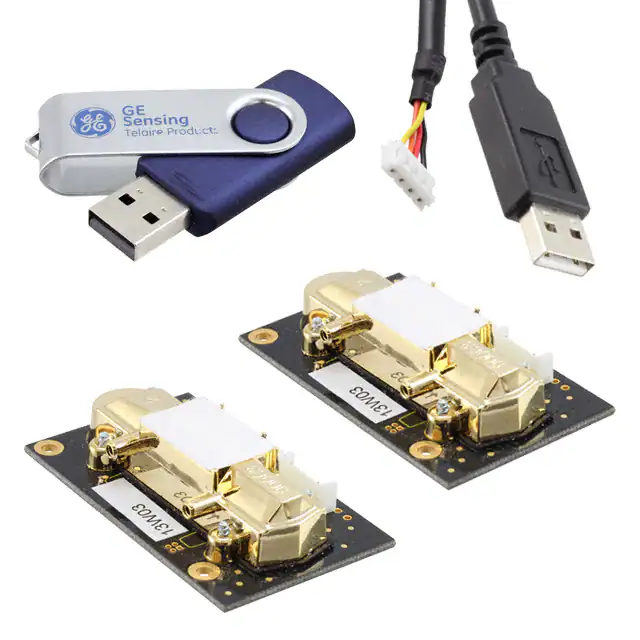

T6615-EVALT6615 DEV KIT NDIR |
1 |
|
Ficha técnica |
- | Bulk | Active | Carbon Dioxide (CO2) | 0 ~ 2000ppm | Analog and Digital | 10% | 4.75 ~ 5.25V | - | Board(s), Cable(s) | T6615 |
|
|
DK-45686ICM-45686 EVAL BOARD |
0 |
|
Ficha técnica |
SmartMotion® | Bulk | Active | Accelerometer, Gyroscope, 6 Axis | ±2g, 4g, 8g, 16g, 32g, ±15.625°/sec, ±31.25°/sec, ±62.5°/sec, ±125°/sec, ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec | I2C, I3C, SPI | 16384LSB/g, 8192LSB/g, 4096LSB/g, 2048LSB/g, 1024LSB/g, 1048.6LSB/°/s, 524.3LSB/°/s, 262LSB/°/s, 131LSB/°/s, 65.5LSB/°/s, 32.8LSB/°/s, 16.4LSB/°/s, 8.2LSB/°/s | 1.71V ~ 3.6V | Yes, MCU, 32-Bit | Board(s) | ICM-45686 |
|

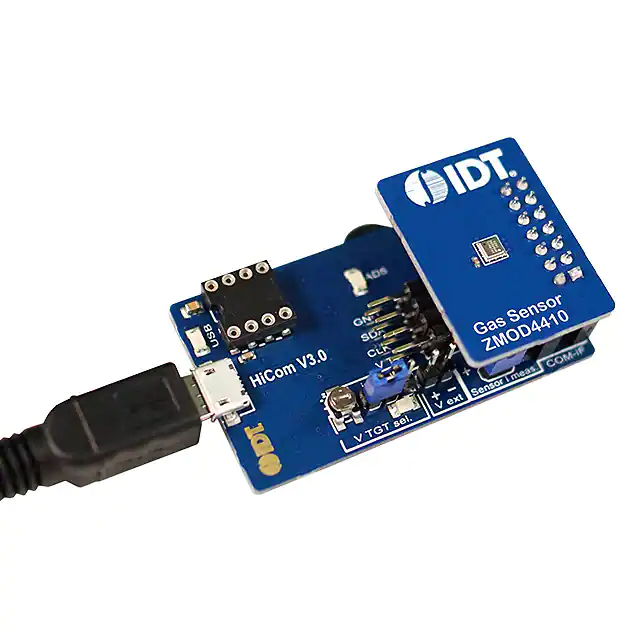

ZMOD4410-EVK-HCTVOC IAQ INTEGRATED SENSOR |
0 |
|
Ficha técnica |
- | Bulk | Active | Indoor Air Quality (IAQ) | - | I2C, Serial | - | 1.7V ~ 3.6V | - | Board(s), Cable(s) | ZMOD4410 |
|
|
OPT4060DTSEVMOPT4060 EVALUATION MODULE FOR HI |
0 |
|
- |
- | Box | Active | Color (RGB) | - | USB | - | - | Yes | Board(s) | OPT4060 |
|
|
DEMOBGT60UTR11AIPTOBO1EVAL BOARD FOR BGT60UTR11AIP |
0 |
|
Ficha técnica |
XENSIV™ | Bulk | Active | Radar | - | - | 60GHz | - | - | Board(s) | BGT60UTR11AIP |
|

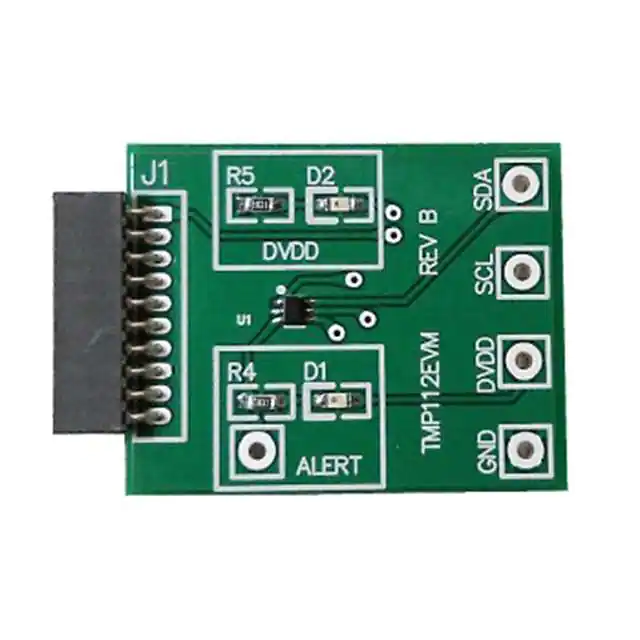

TMP112EVMEVAL BOARD FOR TMP112 |
1 |
|
Ficha técnica |
- | Box | Active | Temperature | -40°C ~ 125°C | I2C | ±1°C | - | No | Board(s), Cable(s) | TMP112 |
