Ventiladores CA
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Voltagem - Nominal | Tamanho/dimensão | Largura | Fluxo de ar | Pressão estática | Tipo de rolamento | Tipo de ventoinha | Recursos | Ruído | Potência (Watts) | RPM | Terminação | Proteção de entrada | Temperatura operacional | Agência de Aprovação | Peso |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4656TAFAN AXIAL 113X37MM 230VAC WIRE |
2 |
|
Ficha técnica |
4600TA | Bulk | Obsolete | 230VAC | Round - 113mm Dia | 37.00mm | 81.2 CFM (2.27m³/min) | - | Ball | Tubeaxial | Frameless | 42.0dB(A) | 19.00W | 2550 RPM | 2 Wire Leads | - | -40 ~ 167°F (-40 ~ 75°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
|
OA162-5E-115TBThermal Products |
0 |
|
- |
OA162 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.0dB(A) | 42.00W | 3250 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OA162-5E-230TBThermal Products |
0 |
|
- |
OA162 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.0dB(A) | 42.00W | 3250 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cURus, TUV, UR | - |
|
OA109LFGH221TFAN AXIAL 156X74MM 230VAC TERM |
0 |
|
Ficha técnica |
OA109LFGH | Box | Active | 230VAC | Square - 156mm L x 156mm H | 74.00mm | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Kit | 46.0dB | 15.00W | 3100 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
OA162AP-22-1TB1855FAN AXIAL 172X55MM 230VAC TERM |
0 |
|
Ficha técnica |
OA162 | Box | Obsolete | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 210.0 CFM (5.88m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 54.0dB | 42.00W | 3200 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus | 2.7 lbs (1.2 kg) |
_Series.jpg)
|
8556TVFAN AXIAL 76X37MM 230VAC WIRE |
0 |
|
Ficha técnica |
8000TV | Bulk | Obsolete | 230VAC | Round - 76mm Dia | 37.00mm | 23.5 CFM (0.658m³/min) | - | Ball | Tubeaxial | - | 28.0dB(A) | 12.00W | 2750 RPM | 2 Wire Leads | - | -40 ~ 194°F (-40 ~ 90°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
AFL22AUHW-R220DHAXIAL ROUND-222MM DIAMETER X 80M |
0 |
|
Ficha técnica |
AFL | Bulk | Active | 115/230VAC | Round - 222mm Dia | 87.00mm | 275.0 CFM (7.70m³/min) | 0.533 in H2O (132.8 Pa) | Ball | Tubeaxial | Dual Speed, Dual Voltage, Locked Rotor Protection, Thermal Overload Protector (TOP) | 53.0dB(A) | 13.00W | 1850 RPM, 2200 RPM | 3 Wire Leads | IP56 - Dust Protected, Water Resistant | -40 ~ 131°F (-40 ~ 55°C) | CE, cURus, TUV | - |
|
UF15PC12-BTLR-CCFAN AXIAL 172X150X51MM 115VAC |
1 |
|
Ficha técnica |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 106.0 CFM (2.97m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 37.0dB(A) | 31.00W | 1700 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.8 lbs (816.5 g) |
|

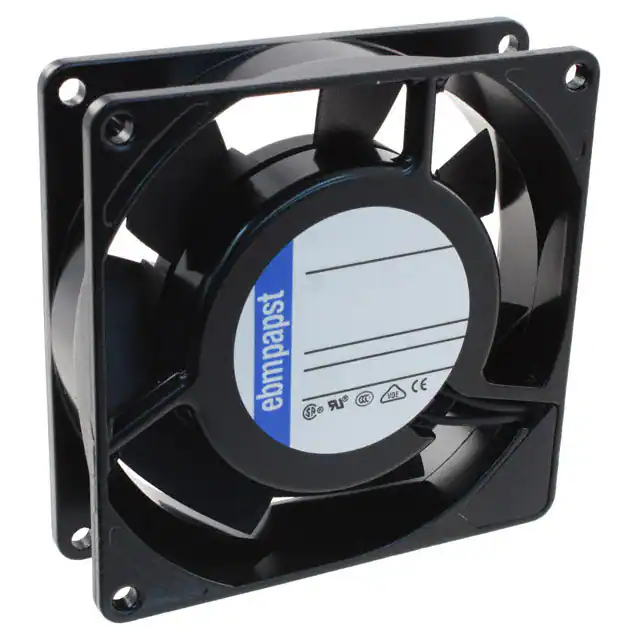

3956LFAN AXIAL 92X25MM 230VAC TERM |
0 |
|
Ficha técnica |
3900 | Box | Obsolete | 230VAC | Square - 92mm L x 92mm H | 25.00mm | 18.2 CFM (0.510m³/min) | - | Ball | Tubeaxial | - | 24.0dB(A) | 6.00W | 1550 RPM | 2 Terminals | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 0.617 lb (279.87 g) |
|
UF15KMR23-BTHR-FFAN 172X150X55MM 230V HIGH TEMP |
0 |
|
Ficha técnica |
UF15KMR | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 255.0 CFM (7.14m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Reverse Air Flow, Thermal Overload Protector (TOP) | 61.0dB(A) | 45.00W | 3250 RPM | 2 Terminals | - | -40 ~ 194°F (-40 ~ 90°C) | CE, cUL, TUV, UL | 2.4 lbs (1.1 kg) |
|
55444.40000FAN BLOWER CF 250X74MM 115VAC |
0 |
|
Ficha técnica |
QL4 | Bulk | Active | 115VAC | Rectangular - 332mm L x 59mm H (40mm Dia) | 74.00mm | 54.0 CFM (1.51m³/min) | 0.060 in H2O (15.0 Pa) | - | Blower, Cross Flow | - | - | 12.00W | 2000 RPM | 2 Terminals | - | 32 ~ 140°F (0 ~ 60°C) | - | 1.4 lbs (635 g) |
|
CF4113HBL-000U-A99FAN AXIAL 120X38MM 100-240V |
0 |
|
Ficha técnica |
CF | Bulk | Obsolete | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 109.0 CFM (3.05m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 44.9dB(A) | 5.10W | 3500 RPM | 2 Wire Leads | - | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.595 lb (269.89 g) |
|
|
A2175-HBT.T.GNFAN AXIAL 171.5X51MM 220/240VAC |
0 |
|
Ficha técnica |
A | Bulk | Active | 240VAC | Rectangular/Rounded - 171.5mm L x 151.5mm H | 51.00mm | 200.0 CFM (5.60m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | - | 55.0dB(A) | 36.00W | 2950 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 2.1 lbs (952.5 g) |
|
|
A1175-HBL.T.GNFAN AXIAL 171.5X51MM 115VAC WIRE |
0 |
|
Ficha técnica |
A | Bulk | Active | 115VAC | Rectangular/Rounded - 171.5mm L x 151mm H | 51.00mm | 200.0 CFM (5.60m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | - | 55.0dB(A) | 36.00W | 2950 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 2.1 lbs (952.5 g) |
|
A2175-HBL.T.GNFAN AXIAL 171.5X51MM 220/240VAC |
0 |
|
Ficha técnica |
A | Bulk | Active | 240VAC | Rectangular/Rounded - 171.5mm L x 151.5mm H | 51.00mm | 200.0 CFM (5.60m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | - | 55.0dB(A) | 36.00W | 2950 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 2.1 lbs (952.5 g) |
|
|
CF4113LBL-000U-AE9FAN AXIAL 120X38MM 100-240V IP68 |
0 |
|
Ficha técnica |
CF | Bulk | Active | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 64.3 CFM (1.80m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 31.4dB(A) | 1.80W | 2000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|
|
R87F-A3A83HFAN AXIAL 80X25MM 115VAC WIRE |
0 |
|
Ficha técnica |
R87F | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.157 in H2O (39.2 Pa) | Ball | Tubeaxial | - | 32.0dB | 7.00W | 2600 RPM | 2 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | CSA, UL | 0.507 lb (229.97 g) |
|
|
CF4113HBL-000U-AA9FAN AXIAL 120X38MM 100-240V IP21 |
0 |
|
Ficha técnica |
CF | Bulk | Obsolete | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 109.0 CFM (3.05m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 44.9dB(A) | 5.10W | 3500 RPM | 2 Wire Leads | IP21 | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.595 lb (269.89 g) |
|
|
CF4113HBT-000U-AA9FAN AXIAL 120X38MM 100-240V IP21 |
0 |
|
Ficha técnica |
CF | Bulk | Obsolete | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 109.0 CFM (3.05m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 44.9dB(A) | 5.10W | 3500 RPM | 2 Terminals | IP21 | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.595 lb (269.89 g) |
|
|
CF4113LBT-000U-AA9FAN AXIAL 120X38MM 100-240V IP21 |
0 |
|
Ficha técnica |
CF | Bulk | Obsolete | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 64.3 CFM (1.80m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 31.4dB(A) | 1.80W | 2000 RPM | 2 Terminals | IP21 | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.595 lb (269.89 g) |
