Ventiladores CA
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Voltagem - Nominal | Tamanho/dimensão | Largura | Fluxo de ar | Pressão estática | Tipo de rolamento | Tipo de ventoinha | Recursos | Ruído | Potência (Watts) | RPM | Terminação | Proteção de entrada | Temperatura operacional | Agência de Aprovação | Peso |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
AC6200NMRACMAXX TUBEAXIAL FAN |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OAB220-11-1FAN IMP MTRZD 220X71 115V W/CAP |
0 |
|
Ficha técnica |
OAB220 | Bulk | Active | 115VAC | Round - 223mm Dia | 71.00mm | 530.0 CFM (14.84m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 70.0dB | 117W | 2650 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 140°F (-40 ~ 60°C) | cURus, TUV | - |
|
OA172EC-11-1WBIP68AFAN 172X150X51MM 115VAC IP68ATEX |
0 |
|
Ficha técnica |
OA172EC | Box | Obsolete | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 220.0 CFM (6.16m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Tubeaxial | Electronic Commutation (EC), Thermal Overload Protector (TOP) | 57.0dB | 15.00W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | ATEX, CE, cURus, UR | 1.5 lbs (680.4 g) |
|

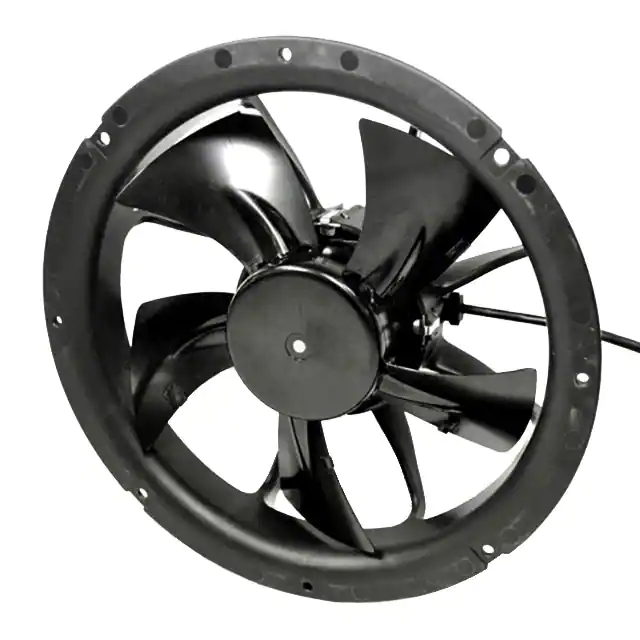

OA200EC-22-1WBFAN 250X76MM 230VAC DUAL SPEED E |
0 |
|
Ficha técnica |
OA200EC | Box | Active | 230VAC | Round - 250mm Dia | 76.10mm | 290.0 ~ 460.0 CFM (8.12 ~ 12.88m³/min) | 0.280/0.460 in H2O (69.7/114.6 Pa) | Ball | Tubeaxial | Dual Speed, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 44/55dB | 8.50W, 27.00W | 1400/2200 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -13 ~ 122°F (-25 ~ 50°C) | cURus, TUV | 2.2 lbs (997.9 g) |
|
OAB18055-22-1WBFAN IMP MTRZD 182X55MM 230VAC W/ |
0 |
|
Ficha técnica |
OAB18055 | Box | Active | 230VAC | Round - 182mm Dia | 55.00mm | 290.0 CFM (8.12m³/min) | 1.400 in H2O (348.7 Pa) | Ball | Motorized Impellers | Capacitor | 67.0dB | 78.0W | 2800 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 140°F (-40 ~ 60°C) | - | 2.7 lbs (1.2 kg) |
|

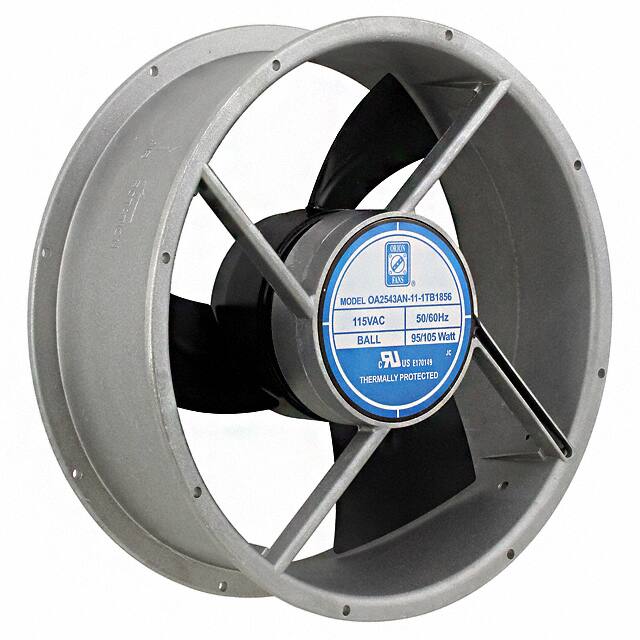

OA2543AN-11-1TB1856FAN AXIAL 254X89MM 115VAC TERM |
0 |
|
Ficha técnica |
OA2543AN | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 930.0 CFM (26.04m³/min) | 1.070 in H2O (266.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 105W | 3300 RPM | 2 Terminals | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 4.6 lbs (2.1 kg) |
|
W2E142-BB05-10FAN AXIAL 115VAC 172X150X38MM |
0 |
|
Ficha técnica |
W2E142 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | - | - | Ball | Tubeaxial | - | - | 28.00W | 3350 RPM | 2 Terminals | IP22 | -13 ~ 150°F (-25 ~ 65°C) | - | 1.8 lbs (816.5 g) |
|

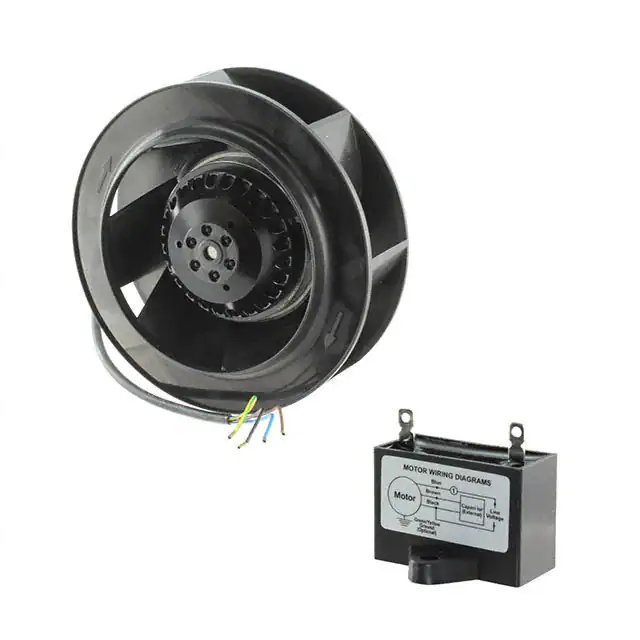

OAB190-22-1FAN IMP MTRZD 190X70 230V W/CAP |
0 |
|
Ficha técnica |
OAB190 | Bulk | Active | 230VAC | Round - 190mm Dia | 70.00mm | 370.0 CFM (10.36m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 63.0dB | 72.0W | 2700 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 140°F (-40 ~ 60°C) | cURus, TUV | - |
|
15038PB-A0L-GP-S0FAN 150MM X 172MM X 38MM 100VAC |
0 |
|
Ficha técnica |
15038PB | Bulk | Active | 100VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 33.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B4L-GP-S0FAN 150MM X 172MM X 38MM 240VAC |
0 |
|
Ficha técnica |
15038PB | Bulk | Active | 240VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 34.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B2L-GP-S0FAN 150MM X 172MM X 38MM 200VAC |
0 |
|
Ficha técnica |
15038PB | Bulk | Active | 220VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 38.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B0L-GP-S0FAN 150MM X 172MM X 38MM 200VAC |
0 |
|
Ficha técnica |
15038PB | Bulk | Active | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 33.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B0L-CP-S0FAN AXIAL 172X38MM 200VAC WIRE |
0 |
|
Ficha técnica |
15038PB | Bulk | Active | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 214.3 CFM (6.00m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 33.00W | 3200 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

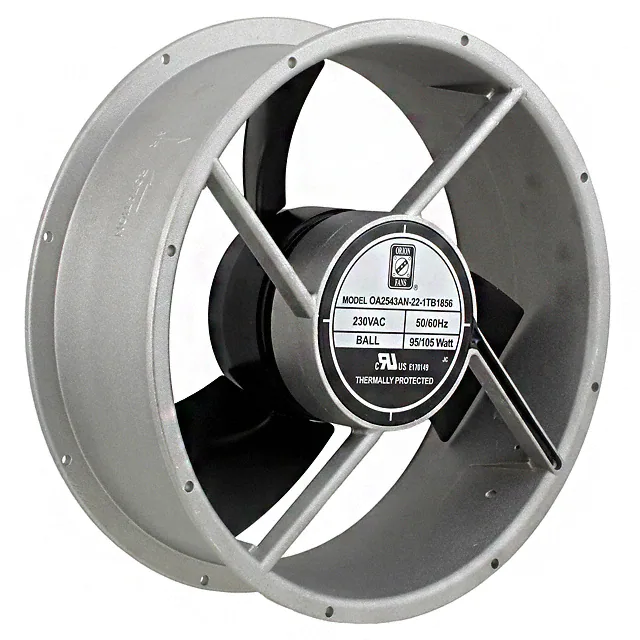

OA2543AN-22-1TB1856FAN AXIAL 254X89MM 230VAC TERM |
0 |
|
Ficha técnica |
OA2543AN | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 930.0 CFM (26.04m³/min) | 1.070 in H2O (266.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 105W | 3300 RPM | 2 Terminals | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 4.6 lbs (2.1 kg) |
|
|
R2E220-AD19-11MOTORIZED IMPELLER |
0 |
|
Ficha técnica |
R2E220 | Bulk | Obsolete | 415VAC | Round - 221.4mm Dia | 71.00mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 100W | 2750 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 131°F (-25 ~ 55°C) | CCC, CE, EAC | - |
|
|
R2E190-RA50-16MOTORIZED IMPELLER |
0 |
|
- |
R2E190 | Bulk | Active | 115VAC | Round - 190mm Dia | 68.50mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 70.0W | 2450 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 167°F (-25 ~ 75°C) | CCC, CE, EAC, UL | - |
|
OAB22585-11-1WBFAN IMP MTRZD 225X85MM 115VAC W/ |
0 |
|
Ficha técnica |
OAB22585 | Box | Active | 115VAC | Round - 225mm Dia | 85.00mm | 680.0 CFM (19.04m³/min) | 2.500 in H2O (622.7 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor | 75.0dB | 135W | 3000 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 140°F (-40 ~ 60°C) | - | 5.1 lbs (2.3 kg) |
|

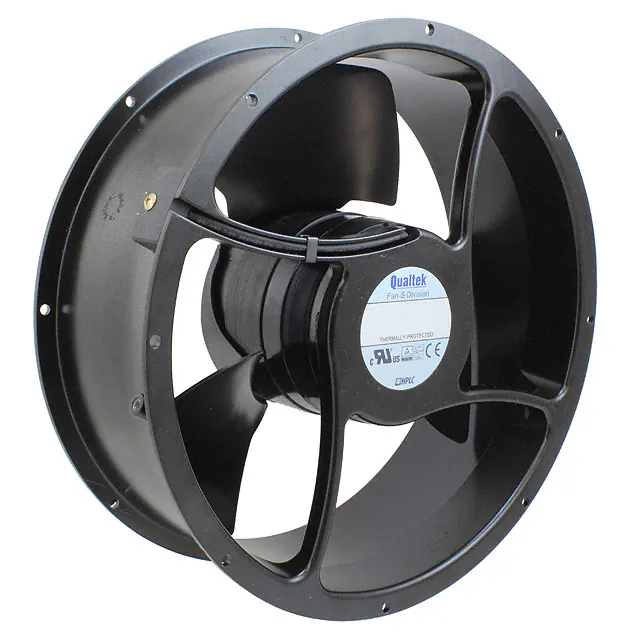

FDA2-25489NBLT4FFAN AXIAL 254X89MM 115VAC TERM |
0 |
|
Ficha técnica |
HPLC, FDA2-25489 | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 440.0 CFM (12.32m³/min) | 0.307 in H2O (76.5 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 29.00W | 1650 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 6 lbs (2.7 kg) |
|
|
UF200BMB23-H2C2AFAN HD AXIAL 225X80MM 230VAC |
0 |
|
Ficha técnica |
UF200BMB-H2 | Bulk | Active | 230VAC | Square - 225mm L x 225mm H | 80.00mm | 625.0 CFM (17.50m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 61.0dB(A) | 80.0W | 3000 RPM | 4 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, TUV, UL | 3 lbs (1.4 kg) |
|
ACI4400HHAUFAN AXIAL 119X38MM 100-240VAC |
0 |
|
Ficha técnica |
Green Tech ACi4400 | Bulk | Active | 100 ~ 240VAC | Square - 119mm L x 119mm H | 38.00mm | 103.0 CFM (2.88m³/min) | - | Ball | Tubeaxial | Electronic Commutation (EC), Locked Rotor Sensor, Speed Sensor (Tach) | 43.0dB(A) | 4.50W | 3300 RPM | 4 Terminals | IP65 - Dust Tight, Water Resistant | -40 ~ 167°F (-40 ~ 75°C) | CSAus, cURus | 0.606 lb (274.88 g) |
