Ventiladores CA
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Voltagem - Nominal | Tamanho/dimensão | Largura | Fluxo de ar | Pressão estática | Tipo de rolamento | Tipo de ventoinha | Recursos | Ruído | Potência (Watts) | RPM | Terminação | Proteção de entrada | Temperatura operacional | Agência de Aprovação | Peso |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SF1212AD.SL.GNFAN AXL 119.5X38.5MM 115/230VAC |
0 |
|
Ficha técnica |
SF | Bulk | Active | 115/240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Sleeve | Tubeaxial | Dual Voltage | 49.0dB(A) | 19.00W | 3100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUR, UL | 1.2 lbs (550 g) |
|
LPH60B99-BWHR-PCEC FAN AXIAL 60 X 60 X 25MM W/PA |
0 |
|
Ficha técnica |
LPH60B99 | Bulk | Active | 100 ~ 240VAC | Square - 60mm L x 60mm H | 25.50mm | 17.0 CFM (0.476m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC), Parylene Coating | 35.0dB(A) | 2.30W | 4500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | - | - | 0.154 lb (69.85 g) |
|
UF12A12-BWMR-CCFAN AXIAL 120X38MM 115VAC WIRE |
0 |
|
Ficha técnica |
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 92.0 CFM (2.58m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Conformal Coating | 42.0dB(A) | 12.00W | 2750 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
OA109AP-11/22-3WBFAN AXIAL 120X38MM 115/230VAC |
0 |
|
Ficha técnica |
OA109 | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 38.00mm | 51.0 CFM (1.43m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Dual Voltage | 25.0dB | 8.00W | 1600 RPM | 4 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

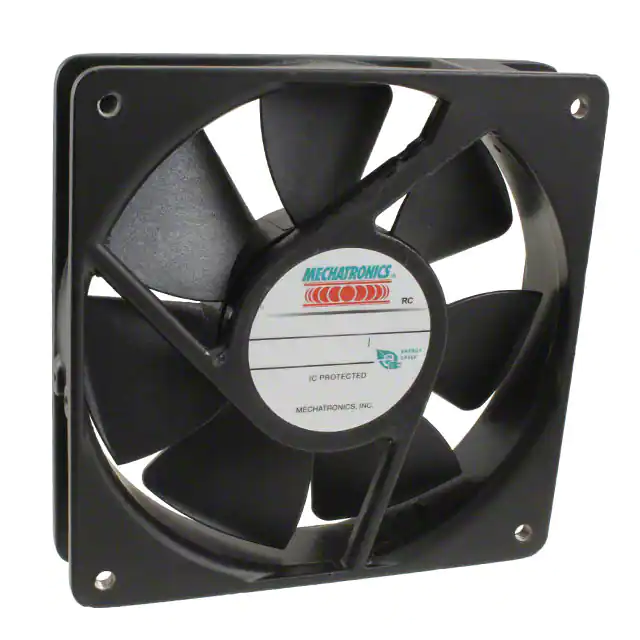

LPC12B99-BTMRFAN AXIAL 120X25MM 90-264VAC EC |
0 |
|
Ficha técnica |
LPC12B | Bulk | Obsolete | 90 ~ 264VAC | Square - 120mm L x 120mm H | 25.00mm | 100.0 CFM (2.80m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 48.0dB(A) | 5.50W | 3200 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | 0.498 lb (225.89 g) |
|
MA1082HVL.GNFAN AXIAL 80X25MM 115VAC WIRE |
0 |
|
Ficha técnica |
MagLev® MA | Bulk | Obsolete | 115VAC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 33.0dB(A) | 3.60W | 3300 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.225 lb (102.06 g) |
|
UF12B23-BTHRFAN AXIAL 120X38MM 230VAC TERM |
1 |
|
Ficha técnica |
UF12B | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 14.00W | 2900 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 0.725 lb (328.85 g) |
|
|
19028326AFAN AXIAL 119.1X39.1MM MX3A1 |
0 |
|
Ficha técnica |
Muffin XL AC | Box | Obsolete | 220VAC | Square - 120mm L x 120mm H | 39.10mm | 100.0 CFM (2.80m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 18.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.3 lbs (589.7 g) |
|
LPC12A99-BTLRFAN AXIAL 120X38MM 90-264VAC EC |
0 |
|
Ficha técnica |
LPC12A | Bulk | Obsolete | 90 ~ 264VAC | Square - 120mm L x 120mm H | 38.00mm | 84.0 CFM (2.35m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 43.0dB(A) | 6.00W | 2800 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
|
DP202A-2123MBT.GNFAN AXIAL 120X38MM 220/240VAC |
0 |
|
Ficha técnica |
DP | Box | Active | 220 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 84.0 CFM (2.35m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 15.00W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, TUV, UL | 1.2 lbs (550 g) |
|
|
DP203A-2123LBT.GNFAN AXIAL 120X38MM 220/240VAC |
0 |
|
Ficha técnica |
DP | Box | Active | 220 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 72.0 CFM (2.02m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 37.0dB(A) | 10.00W | 2150 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (550 g) |
|
SP101A-1123HBL.GNFAN AXIAL 119X38.5MM 115VAC WIRE |
0 |
|
Ficha técnica |
SP | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.50mm | 107.0 CFM (3.00m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 18.00W | 3050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
|
DP201A-2123HBL.GNFAN AXIAL 120X38MM 220/240VAC |
0 |
|
Ficha técnica |
DP | Bulk | Active | 220 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 107.0 CFM (3.00m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 19.00W | 3050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (550 g) |
|
|
DP202A-2123MBL.GNFAN AXIAL 120X38MM 220/240VAC |
0 |
|
Ficha técnica |
DP | Bulk | Active | 220 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 84.0 CFM (2.35m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 15.00W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, TUV, UL | 1.2 lbs (550 g) |
|
|
SP102A-1123MBL.GNFAN AXIAL 119X38.5MM 115VAC WIRE |
0 |
|
Ficha técnica |
SP | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.50mm | 88.0 CFM (2.46m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 15.00W | 2700 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 1.2 lbs (550 g) |
|
|
SP103A-1123LBL.GNFAN AXIAL 120X38MM 115VAC WIRE |
0 |
|
Ficha técnica |
SP | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 78.0 CFM (2.18m³/min) | 0.130 in H2O (32.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 11.00W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (550 g) |
|
|
DP201A-2123HBL.S.GNThermal Products |
0 |
|
Ficha técnica |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 38.50mm | 107.0 CFM (3.00m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 19.00W | 3050 RPM | 2 Wire Leads | - | - | CCC, CE, cUL, TUV, UL | - |
|
|
DP202A-2123MBL.S.GNThermal Products |
0 |
|
Ficha técnica |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 38.50mm | 84.0 CFM (2.35m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 15.00W | 2600 RPM | 2 Wire Leads | - | - | CCC, CE, cUL, TUV, UL | - |
|
|
DP201A-2123HBT.S.GNThermal Products |
0 |
|
Ficha técnica |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 38.50mm | 107.0 CFM (3.00m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 19.00W | 3050 RPM | 2 Terminals | - | - | CCC, CE, cUL, TUV, UL | - |
|
|
DP203A-2123LBL.S.GNThermal Products |
0 |
|
Ficha técnica |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 38.50mm | 72.0 CFM (2.02m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 37.0dB(A) | 10.00W | 2150 RPM | 2 Wire Leads | - | - | CCC, CE, cUL, TUV, UL | - |
