Ventiladores CC sem escova (BLDC)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Voltagem - Nominal | Tamanho/dimensão | Largura | Fluxo de ar | Pressão estática | Tipo de rolamento | Tipo de ventoinha | Recursos | Ruído | Potência (Watts) | RPM | Terminação | Proteção de entrada | Temperatura operacional | Agência de Aprovação | Peso |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

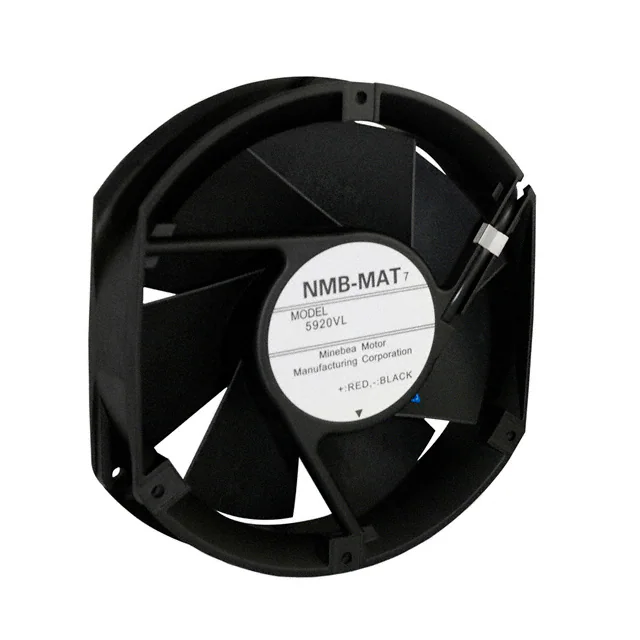

5920VL-07W-B50-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
0 |
|
Ficha técnica |
5920VL | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 263.3 CFM (7.37m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 21.1 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL, VDE | 1.8 lbs (816.5 g) |
|
2410SB-05W-B29-B50FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 17.0dB(A) | 720 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
3110SB-04W-B29-E50FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 19.0dB(A) | 600 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-04W-B59-E50FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1.68 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
2410SB-04W-B39-B50FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.5dB(A) | 960 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B59-B50FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 1.8 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B39-B50FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.5dB(A) | 960 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B49-B50FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.5dB(A) | 1.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B59-B50FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 1.92 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B29-E50FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 17.0dB(A) | 720 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B39-E50FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.5dB(A) | 960 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B49-E50FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.5dB(A) | 1.2 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B59-E50FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 1.8 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B29-E50FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 17.0dB(A) | 720 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B39-E50FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.5dB(A) | 960 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B49-E50FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.5dB(A) | 1.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B59-E50FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 1.92 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
3110SB-04W-B29-B50FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 19.0dB(A) | 600 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-04W-B39-B50FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 30.4 CFM (0.851m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.0dB(A) | 720 mW | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-04W-B59-B50FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1.68 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
