Ventiladores CC sem escova (BLDC)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Voltagem - Nominal | Tamanho/dimensão | Largura | Fluxo de ar | Pressão estática | Tipo de rolamento | Tipo de ventoinha | Recursos | Ruído | Potência (Watts) | RPM | Terminação | Proteção de entrada | Temperatura operacional | Agência de Aprovação | Peso |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WS1248M102FAN AXIAL 119X38MM 48VDC WIRE |
0 |
|
Ficha técnica |
San Ace 120WS | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.52 W | 2600 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.573 lb (259.91 g) |
|
109L0812S401FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
San Ace 80L | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 3.12 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
109L0824H401FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
San Ace 80L | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.4 CFM (1.05m³/min) | 0.157 in H2O (39.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.16 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

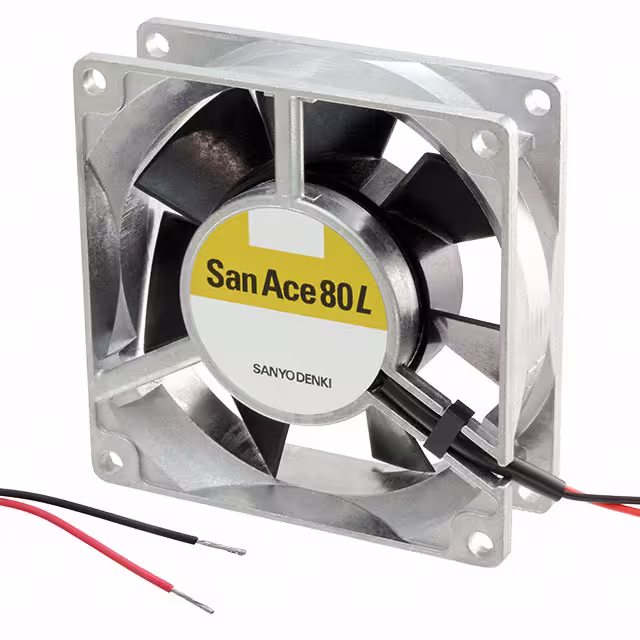

109L0824H402FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
San Ace 80L | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.4 CFM (1.05m³/min) | 0.157 in H2O (39.2 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 2.16 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
109L0824S401FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
San Ace 80L | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

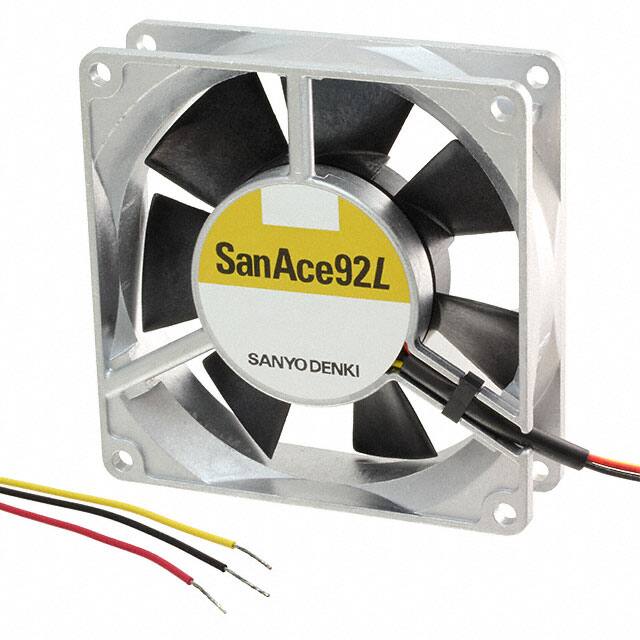

109L0912H401FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Ficha técnica |
San Ace 92L | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 2.52 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

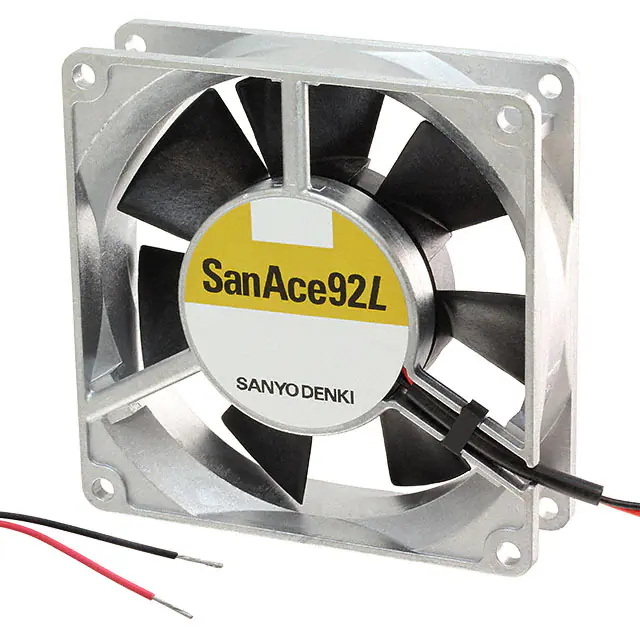

109L0924H402FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Ficha técnica |
San Ace 92L | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.88 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

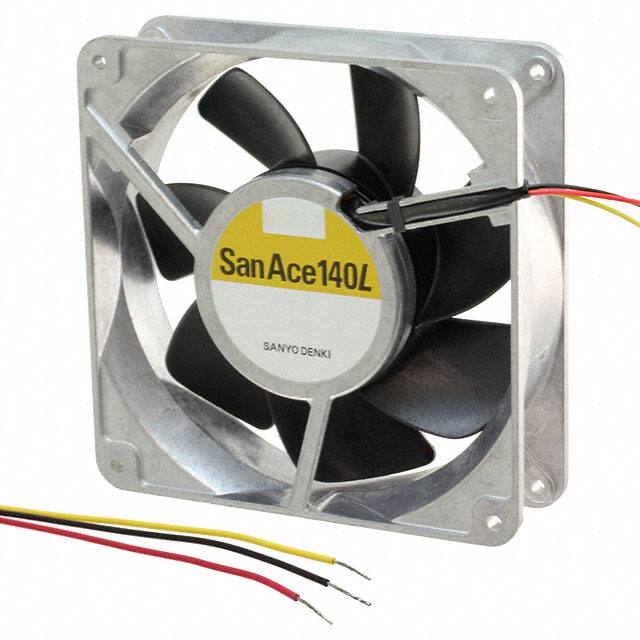

109L1424H101FAN AXIAL 140X38MM 24VDC WIRE |
0 |
|
Ficha técnica |
San Ace 140L | Box | Obsolete | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 159.0 CFM (4.45m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.88 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.3 lbs (600.0 g) |
|
109P0524H702FAN AXIAL 52X15MM 24VDC WIRE |
0 |
|
Ficha técnica |
San Ace 52 | Box | Obsolete | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 9.0 CFM (0.252m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.2 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
109P0524M702FAN AXIAL 52X15MM 24VDC WIRE |
0 |
|
Ficha técnica |
San Ace 52 | Box | Obsolete | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 7.2 CFM (0.202m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 960 mW | 3700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
109P0612B7D01FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Ficha técnica |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.047 in H2O (11.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 21.0dB(A) | 600 mW | 2200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
|
109P0612H7D01FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Ficha técnica |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 1.08 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
|
109P0624H702FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Ficha técnica |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.44 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|

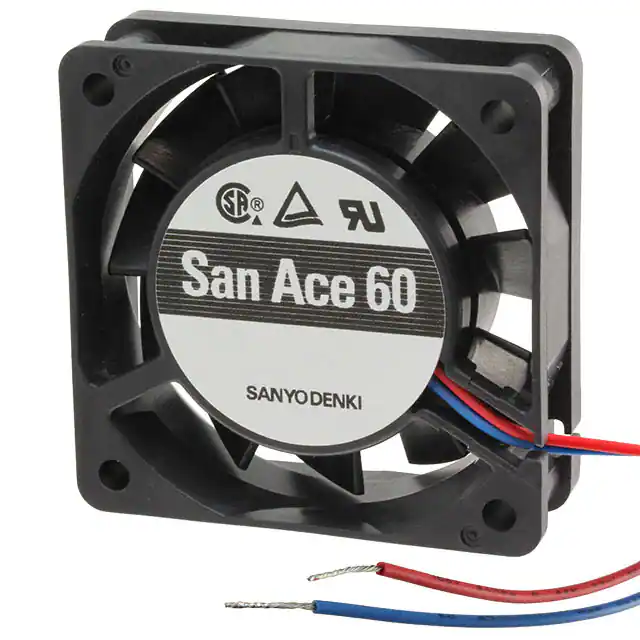

109P0624M602FAN AXIAL 60X20MM 24VDC WIRE |
0 |
|
Ficha técnica |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 10.6 CFM (0.297m³/min) | 0.076 in H2O (18.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 1.2 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109P0812A201FAN AXIAL 80X32MM 12VDC WIRE |
0 |
|
Ficha técnica |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 53.7 CFM (1.50m³/min) | 0.366 in H2O (91.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 6.72 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 131°F (-20 ~ 55°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
109P0812H2011FAN AXIAL 80X32MM 12VDC WIRE |
0 |
|
Ficha técnica |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 37.1 CFM (1.04m³/min) | 0.173 in H2O (43.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 1.92 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
109P0812M701FAN AXIAL 80X15MM 12VDC WIRE |
0 |
|
Ficha técnica |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 20.1 CFM (0.563m³/min) | 0.051 in H2O (12.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 1.08 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.15 lb (68.04 g) |
|

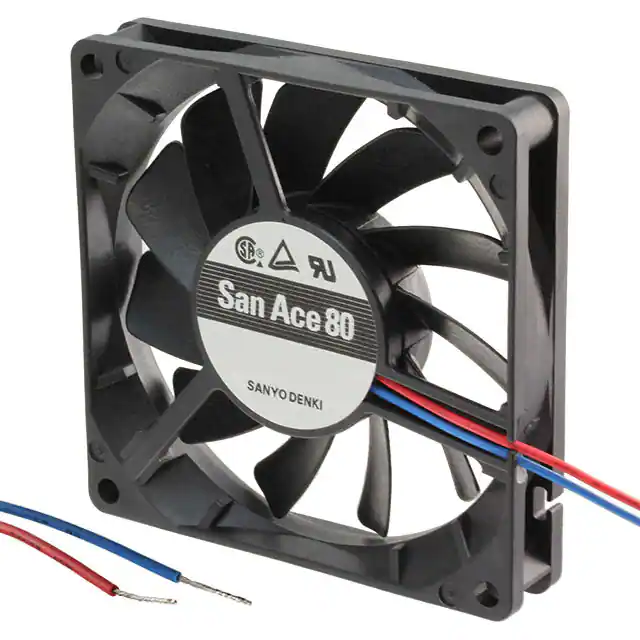

109P0812M702FAN AXIAL 80X15MM 12VDC WIRE |
0 |
|
Ficha técnica |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 20.1 CFM (0.563m³/min) | 0.051 in H2O (12.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 1.08 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.15 lb (68.04 g) |
|

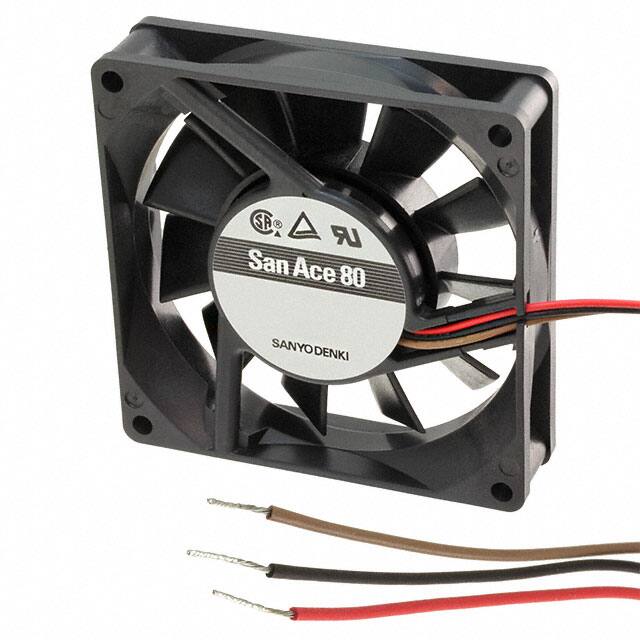

109P0812T6H12FAN AXIAL 80X20MM 12VDC WIRE |
0 |
|
Ficha técnica |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Thermistor, External | 31.0dB(A) | 2.16 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UR | 0.222 lb (100.7 g) |
|
|
109P0824A201FAN AXIAL 80X32MM 24VDC WIRE |
0 |
|
Ficha técnica |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 53.7 CFM (1.50m³/min) | 0.366 in H2O (91.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 6.96 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
