Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC95EIR18/5/12-ZFERRITE CORE HER 3.69UH 1SET |
62 |
|
Ficha técnica |
Planar | Tray | Active | HER, PLT | EI 18 x 5 x 12 | PC95 | - | 3.69 µH | ±25% | Ungapped | - | - | 0.6 | 32.8 | 19.7 | 28.3 | 645.0 | Uncoated | 0.197" (5.00mm) | 0.715" (18.15mm) | 0.472" (12.00mm) |
|
HF90T25X13X15FERRITE CORE TOROID |
47 |
|
Ficha técnica |
T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.512" (13.00mm) | - | - |
|
TX29/19/15-3E10-MFERRITE CORE TOROID |
78 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 29 x 19 x 15 | - | 1.179" (29.95mm) | - | ±30% | Ungapped | 10000.0 | - | 0.98 | 73.2 | 73.9 | - | 5410.0 | Epoxy | 0.632" (16.05mm) | - | - |
|
TX29/19/7.6-3E12FERRITE CORE TOROID |
59 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 29 x 19 x 7.6 | - | 0.640" (16.25mm) | - | ±30% | Ungapped | 12000.0 | - | 2.06 | 73.2 | 35.5 | - | 2600.0 | Epoxy | 0.258" (6.55mm) | - | - |
|
P11/7/I-3F46FERRITE CORE P 3F46 2PC SET |
64 |
|
Ficha técnica |
- | Bulk | Active | P (Pot Core) | P 11 x 7 | 3F46 | 0.437" (11.10mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.260" (6.60mm) | - | - |
|
TX36/23/10-3C94FERRITE CORE TOROID 3C94 |
47 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 36 x 23 x 10 | 3C94 | 1.463" (37.15mm) | - | ±25% | Ungapped | 2300.0 | - | 1.38 | 89.7 | 64.9 | - | 5820.0 | Epoxy | 0.430" (10.92mm) | - | - |
|
B65495B0000Y030FERRITE CORE P 800NH N30 2PCS |
86 |
|
Ficha técnica |
P4.6/4.1 | Box | Active | P (Pot Core) | P 4.6 x 4.1 | N30 | 0.183" (4.65mm) | 800 nH | -30%, +40% | Ungapped | 1730.0 | 4300 | 2.7 | 7.6 | 2.8 | - | 21.3 | Uncoated | 0.079" (2.00mm) | - | - |
|
B65939A0000X022FERRITE CORE PS N22 |
100 |
|
Ficha técnica |
PS25/8.9 | Box | Active | PS | PS 25 x 8.9 | N22 | 0.976" (24.80mm) | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.350" (8.90mm) | - | - |
|
B65813J0000R097FERRITE CORE RM 4.2UH N97 2PCS |
54 |
|
Ficha técnica |
RM10 | Box | Active | RM | RM 10 | N97 | - | 4.2 µH | -20%, +30% | Ungapped | 1500.0 | 2300 | 0.45 | 44.0 | 98.0 | 90.0 | 4310.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
|
H5AP30/19Z-52H2PCS POT CORE FOR SIGNAL TRANSFO |
100 |
|
Ficha técnica |
P | Tray | Not For New Designs | P (Pot Core) | P 30 x 19 | H5A | 1.181" (30.00mm) | 9.8 µH | ±25% | Ungapped | 2573.0 | 3300 | 0.33 | 45.2 | 137.0 | 109.0 | 6192.0 | Uncoated | 0.748" (19.00mm) | - | - |
|
B66367Q0250K187FERRITE CORE ETD 250NH N87 |
44 |
|
Ficha técnica |
ETD49/25/16 | Bulk | Active | ETD | ETD 49 x 25 x 16 | N87 | - | 250 nH | ±10% | Distributed Gapped | - | - | 0.54 | 114.0 | 211.0 | 209.0 | 24100.0 | Uncoated | 0.657" (16.70mm) | 1.909" (48.50mm) | 0.980" (24.90mm) |
|
PC47EER35-ZFERRITE CORE E 2.77UH PCS47 2PC |
56 |
|
Ficha técnica |
E | Tray | Active | E | EER 35 | PC47 | - | 2.77 µH | ±25% | Ungapped | - | - | 0.85 | 90.8 | 107.0 | - | 9720.0 | Uncoated | 0.815" (20.70mm) | 1.378" (35.00mm) | 0.445" (11.30mm) |
|
PQ32/25-3C97FERRITE CORE PQ 3C97 2PC SET |
74 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 32 x 25 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.984" (25.00mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|
|
HF90T38X14X22FERRITE CORE TOROID |
41 |
|
Ficha técnica |
T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.551" (14.00mm) | - | - |
|

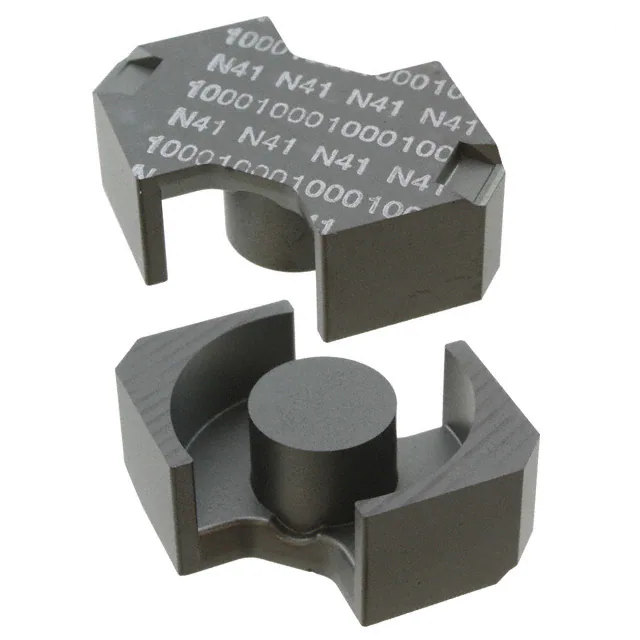

B65815E1000J041FERRITE CORE RM 1UH N41 2PCS |
85 |
|
Ficha técnica |
RM12 | Box | Active | RM | RM 12 | N41 | - | 1 µH | ±5% | Gapped | 311.0 | 2800 | 0.39 | 57.0 | 146.0 | 125.0 | 8320.0 | Uncoated | 0.484" (12.30mm) | 1.480" (37.60mm) | 0.634" (16.10mm) |
|

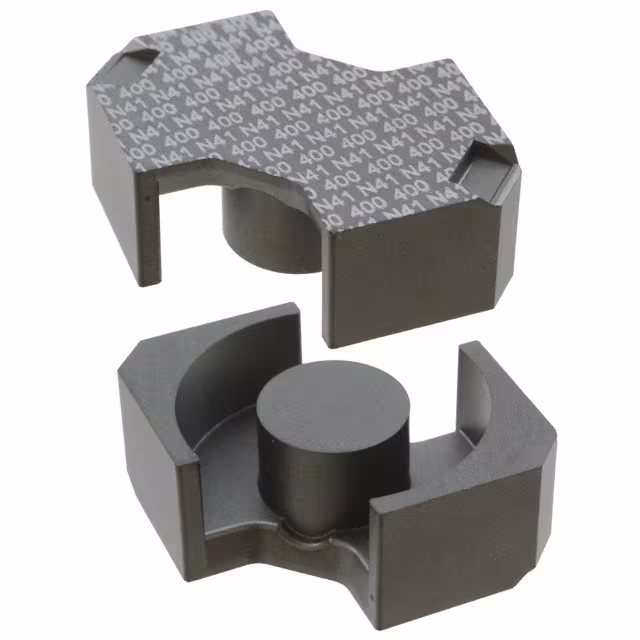

B65815E0400J041FERRITE CORE RM 400NH N41 2PCS |
35 |
|
Ficha técnica |
RM12 | Box | Active | RM | RM 12 | N41 | - | 400 nH | ±5% | Gapped | 124.0 | 2800 | 0.39 | 57.0 | 146.0 | 125.0 | 8320.0 | Uncoated | 0.484" (12.30mm) | 1.480" (37.60mm) | 0.634" (16.10mm) |
|
|
PQ35/30-3C97FERRITE CORE PQ 3C97 2PC SET |
68 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 35 x 30 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.181" (30.00mm) | 1.421" (36.10mm) | 1.024" (26.00mm) |
|
|
PQ35/35-3C97FERRITE CORE PQ 3C97 2PC SET |
85 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 35 x 35 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.366" (34.70mm) | 1.421" (36.10mm) | 1.024" (26.00mm) |
|
|
B65611D0000R030FERRITE CORE P 15.2UH N30 2PCS |
78 |
|
Ficha técnica |
P36/22 | Box | Active | P (Pot Core) | P 36 x 22 | N30 | 1.417" (36.00mm) | 15.2 µH | -20%, +30% | Ungapped | 3040.0 | 4300 | 0.26 | 52.0 | 202.0 | - | 10500.0 | Uncoated | 0.433" (11.00mm) | - | - |
|
|
PC47EI50-ZFERRITE CORE E 6.11UH PCS47 1SET |
52 |
|
Ficha técnica |
E | Tray | Active | E | - | PC47 | - | 6.11 µH | ±25% | Ungapped | - | 2500 | 0.409 | 94.0 | 230.0 | - | 21620.0 | Uncoated | 1.313" (33.35mm) | 1.969" (50.00mm) | - |
