Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66506K0000X197FERRITE CORE I 5.75UH N97 |
880 |
|
Ficha técnica |
I30/2.7/20 | Box | Active | I | I 30 x 2.7 x 20 | N97 | - | 5.75 µH | ±25% | Ungapped | 1330.0 | - | 0.29 | 31.5 | 108.0 | 95.0 | 3400.0 | Uncoated | 0.106" (2.70mm) | 1.181" (30.00mm) | 0.787" (20.00mm) |
|
B66291G0000X149FERRITE CORE ELP N49 1PC |
275 |
|
Ficha técnica |
ELP43/10/28 | Box | Active | ELP | ELP 43 x 10 x 28 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.374" (9.50mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
PQ32/30-3C95FERRITE CORE PQ 3C95 2PC SET |
1,771 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 32 x 30 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.193" (30.30mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|
B66289G0000X149FERRITE CORE ELP N49 1PC |
180 |
|
Ficha técnica |
ELP38/8/25 | Box | Active | ELP | ELP 38 x 8 x 25 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.324" (8.25mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
C055351A2FERRITE CORE TOROID 51NH MPP |
418 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | MPP | 0.928" (23.57mm) | 51 nH | ±8% | Ungapped | - | 60 | - | 58.8 | 38.8 | - | 2280.0 | Coated | 0.350" (8.90mm) | - | - |
|
|
ZW43813TCFERRITE CORE TOROID 16.7UH W |
520 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | W | 1.560" (39.63mm) | 16.7 µH | ±30% | Ungapped | - | 10000 | - | 82.8 | 116.0 | - | 9576.0 | Epoxy | 0.530" (13.47mm) | - | - |
|
|
ZJ46113TCFERRITE CORE TOROID 6.845UH |
295 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | - | 2.450" (62.23mm) | 6.845 µH | ±20% | Ungapped | - | 5000 | - | 144.6 | 157.4 | - | 22774.0 | Epoxy | 0.528" (13.40mm) | - | - |
|

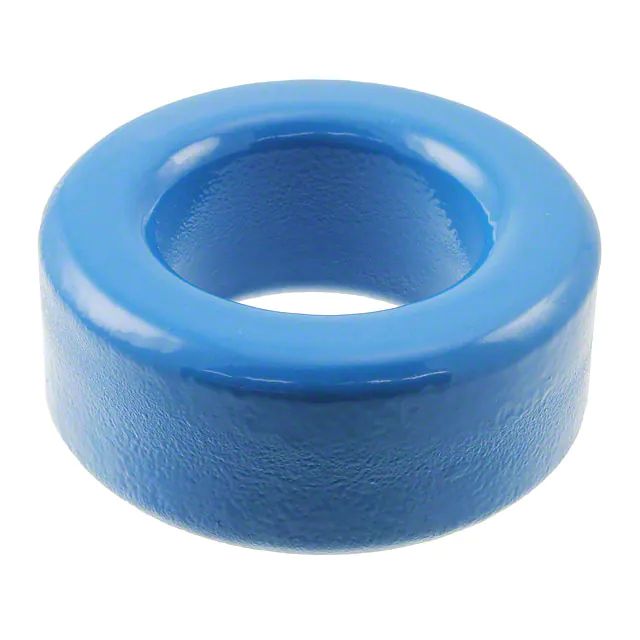

B64290L0659X087FERRITE CORE TOROID 3.59UH N87 |
338 |
|
Ficha técnica |
TX40/24/16 | Box | Active | Toroid | - | N87 | 1.646" (41.80mm) | 3.59 µH | ±25% | Ungapped | - | 2200 | 0.77 | 96.29 | 125.3 | 125.3 | 12070.0 | Epoxy | 0.677" (17.20mm) | - | - |
|
|
C058378A2FERRITE CORE TOROID 114NH HI FLX |
1,126 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | High Flux | 0.710" (18.03mm) | 114 nH | ±8% | Ungapped | - | 160 | - | 41.4 | 23.2 | - | 960.0 | Coated | 0.280" (7.11mm) | - | - |
|

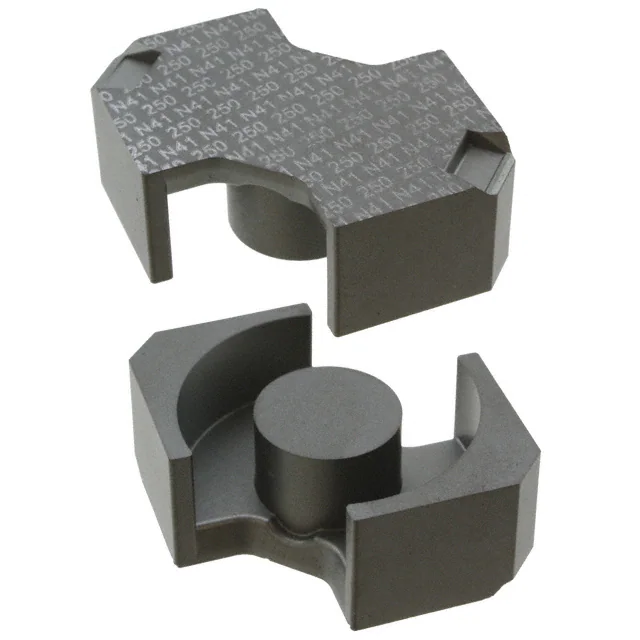

B65815E0250A041FERRITE CORE RM 250NH N41 2PCS |
433 |
|
Ficha técnica |
RM12 | Box | Active | RM | RM 12 | N41 | - | 250 nH | ±3% | Gapped | 78.0 | 2800 | 0.39 | 57.0 | 146.0 | 125.0 | 8320.0 | Uncoated | 0.484" (12.30mm) | 1.480" (37.60mm) | 0.634" (16.10mm) |
|

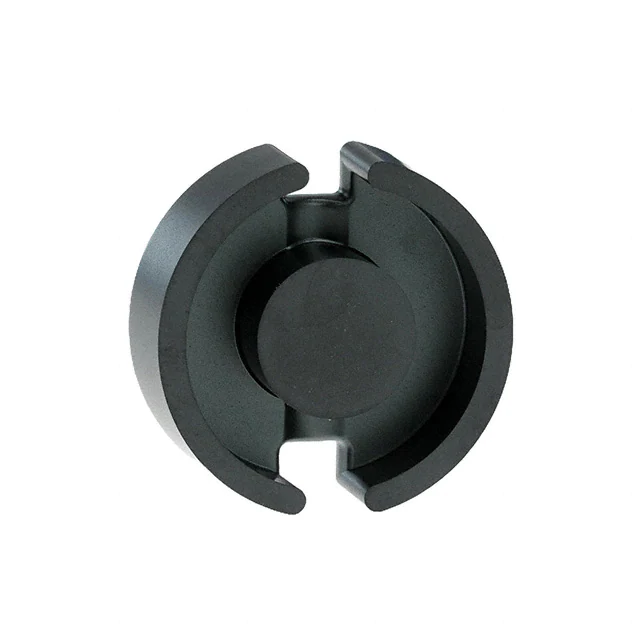

B65701W0000R087FERRITE CORE P 6.4UH N87 2PCS |
554 |
|
Ficha técnica |
P30/19 | Box | Active | P (Pot Core) | P 30 x 19 | N87 | 1.200" (30.50mm) | 6.4 µH | -20%, +30% | Ungapped | 1620.0 | 2200 | 0.32 | 46.0 | 145.0 | 117.0 | 6670.0 | Uncoated | 0.374" (9.50mm) | - | - |
|

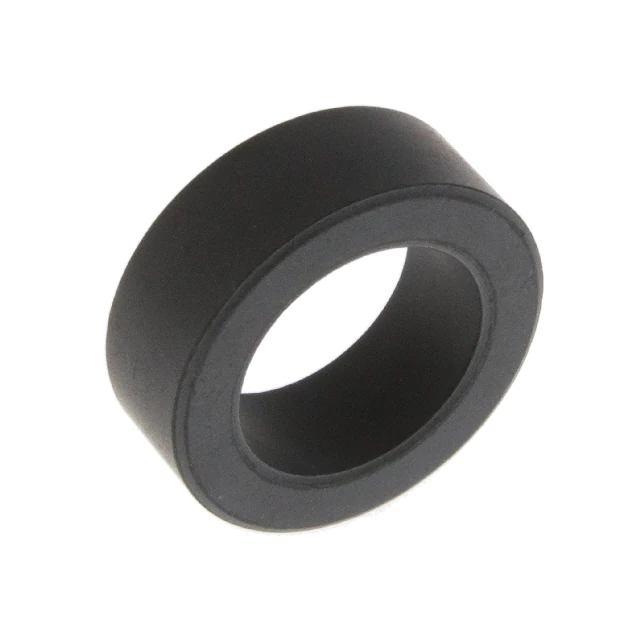

5968002701FERRITE CORE TOROID 68 |
1,348 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | 68 | 1.400" (35.56mm) | - | - | Ungapped | - | 16 | - | 89.0 | 78.0 | - | 7000.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
|
C055310A2FERRITE CORE TOROID 90NH MPP |
1,005 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | MPP | 0.900" (22.86mm) | 90 nH | ±8% | Ungapped | - | 125 | - | 56.7 | 31.7 | - | 1800.0 | Coated | 0.300" (7.60mm) | - | - |
|
E80/38/20-3C94FERRITE CORE E 3C94 |
734 |
|
Ficha técnica |
- | Bulk | Active | E | E 80 x 38 x 20 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.500" (38.10mm) | 3.150" (80.00mm) | 0.780" (19.80mm) |
|
|
E65/32/27-3C94FERRITE CORE E 3C94 |
11,744 |
|
Ficha técnica |
- | Bulk | Active | E | E 65 x 32 x 27 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) |
|
|
0077716A7FERRITE CORE TOROID 73NH KOOL MU |
158 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu | 2.000" (50.80mm) | 73 nH | ±8% | Ungapped | - | 60 | - | 127.0 | 125.0 | - | 15900.0 | Coated | 0.530" (13.46mm) | - | - |
|
|
0077439A7FERRITE CORE TOROID 135NH |
1,090 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | - | 1.875" (47.63mm) | 135 nH | ±8% | Ungapped | - | 60 | - | 107.0 | 199.0 | - | 21300.0 | Coated | 0.745" (18.92mm) | - | - |
|
|
0077438A7FERRITE CORE TOROID 281NH KOOLMU |
198 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu | 1.875" (47.63mm) | 281 nH | ±8% | Ungapped | - | 125 | - | 107.0 | 199.0 | - | 21300.0 | Coated | 0.745" (18.92mm) | - | - |
|
|
E71/33/32-3C94FERRITE CORE E 3C94 |
194 |
|
Ficha técnica |
- | Bulk | Active | E | E 71 x 33 x 32 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.307" (33.20mm) | 2.776" (70.50mm) | 1.260" (32.00mm) |
|
|
TX42/26/13-3E12FERRITE CORE TOROID |
1,220 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 42 x 26 x 13 | - | 1.697" (43.15mm) | - | ±30% | Ungapped | 12000.0 | - | 1.076 | 103.0 | 95.8 | - | 9860.0 | Epoxy | 0.531" (13.50mm) | - | - |
