Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U93/52/30-3C94FERRITE CORE U 3C94 |
166 |
|
Ficha técnica |
- | Bulk | Active | U | U 93 x 52 x 30 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.047" (52.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
C058439A2FERRITE CORE TOROID 135NH |
230 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | - | 1.875" (47.63mm) | 135 nH | ±8% | Ungapped | - | 60 | - | 107.0 | 199.0 | - | 21300.0 | Coated | 0.710" (18.03mm) | - | - |
|
|
0059439A2FERRITE CORE TOROID 135NH EDGE |
146 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Edge | 1.840" (46.74mm) | 135 nH | ±8% | Ungapped | - | 60 | - | 107.4 | 198.0 | - | 21300.0 | Coated | 0.710" (18.03mm) | - | - |
|
PC95PQ60/52-ZFERRITE CORE PQ 11.2UH PCS95 2PC |
355 |
|
Ficha técnica |
Large PQ | Tray | Active | PQ | PQ 60 x 52 | PC95 | - | 11.2 µH | ±25% | Ungapped | - | - | 0.25 | 118.0 | 477.0 | - | 56237.0 | Uncoated | 2.028" (51.50mm) | 2.323" (59.00mm) | 1.535" (39.00mm) |
|
U93/76/30-3C90FERRITE CORE U |
647 |
|
Ficha técnica |
- | Bulk | Active | U | U 93 x 76 x 30 | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
|
ZW49725TCFERRITE CORE TOROID 21.184UH W |
210 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | W | 4.311" (109.50mm) | 21.184 µH | ±30% | Ungapped | - | 10000 | - | 259.31 | 514.3 | - | 133351.0 | Epoxy | 1.026" (26.05mm) | - | - |
|
|
C058192A2FERRITE CORE TOROID 138NH HI FLX |
849 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | High Flux | 2.285" (58.04mm) | 138 nH | ±8% | Ungapped | - | 60 | - | 125.0 | 229.0 | - | 28600.0 | Coated | 0.635" (16.13mm) | - | - |
|
|
C055438A2FERRITE CORE TOROID 281NH MPP |
85 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | MPP | 1.875" (47.63mm) | 281 nH | ±8% | Ungapped | - | 125 | - | 107.0 | 199.0 | - | 21300.0 | Coated | 0.745" (18.92mm) | - | - |
|
|
C055090A2FERRITE CORE TOROID 86NH MPP |
121 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | MPP | 1.875" (47.63mm) | 86 nH | ±8% | Ungapped | - | 60 | - | 116.0 | 134.0 | - | 15600.0 | Coated | 0.635" (16.13mm) | - | - |
|
|
0059192A2FERRITE CORE TOROID 138NH EDGE |
102 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Edge | 2.250" (57.15mm) | 138 nH | ±8% | Ungapped | - | 60 | - | 125.0 | 229.0 | - | 28600.0 | Coated | 0.600" (15.24mm) | - | - |
|
|
B64290A0084X010FERRITE CORE TOROID 900NH K10 |
31 |
|
Ficha técnica |
T102/66/15 | Box | Active | Toroid | R 102 x 65.8 x 15 | K10 | 4.016" (102.00mm) | 900 nH | ±25% | Ungapped | - | 700 | 0.96 | 255.3 | 267.3 | - | 68220.0 | Uncoated | 0.591" (15.00mm) | - | - |
|
B67370A0002X027FERRITE CORE U N27 1PC |
26 |
|
Ficha técnica |
U101/76/30 | Box | Active | U | U 101 x 76 x 30 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.976" (101.00mm) | 1.181" (30.00mm) |
|
|
C055439A2FERRITE CORE TOROID 135NH MPP |
84 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | MPP | 1.875" (47.63mm) | 135 nH | ±8% | Ungapped | - | 60 | - | 107.0 | 199.0 | - | 21300.0 | Coated | 0.745" (18.92mm) | - | - |
|
|
B64290A0699X010FERRITE CORE TOROID 1.8UH K10 |
64 |
|
Ficha técnica |
T63/38/25 | Box | Active | Toroid | R 63 x 38 x 25 | K10 | 2.480" (63.00mm) | 1.8 µH | ±25% | Ungapped | - | 700 | 0.5 | 152.1 | 305.9 | - | 46530.0 | Uncoated | 0.984" (25.00mm) | - | - |
|
B65713A0000R087FERRITE CORE PM 12UH N87 2PCS |
26 |
|
Ficha técnica |
PM87/70 | Box | Active | PM | PM 87 x 70 | N87 | 3.425" (87.00mm) | 12 µH | -20%, +30% | Ungapped | 1530.0 | 2200 | 0.16 | 146.0 | 910.0 | 700.0 | 133000.0 | Uncoated | 1.378" (35.00mm) | - | - |
|

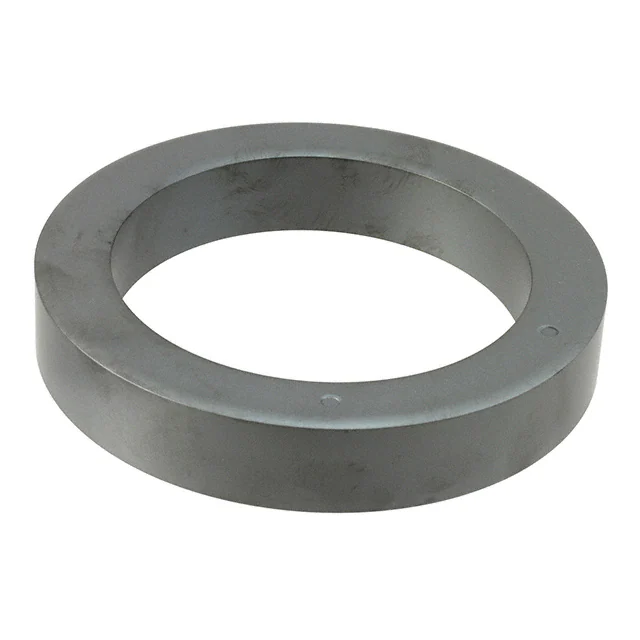

B64290A0705X830FERRITE CORE TOROID 6.2UH N30 |
36 |
|
Ficha técnica |
T140/103/25 | Box | Active | Toroid | R 140 x 103 x 25 | N30 | 5.512" (140.00mm) | 6.2 µH | ±25% | Ungapped | - | 4000 | 0.82 | 375.8 | 458.9 | - | 172440.0 | Uncoated | 0.984" (25.00mm) | - | - |
|

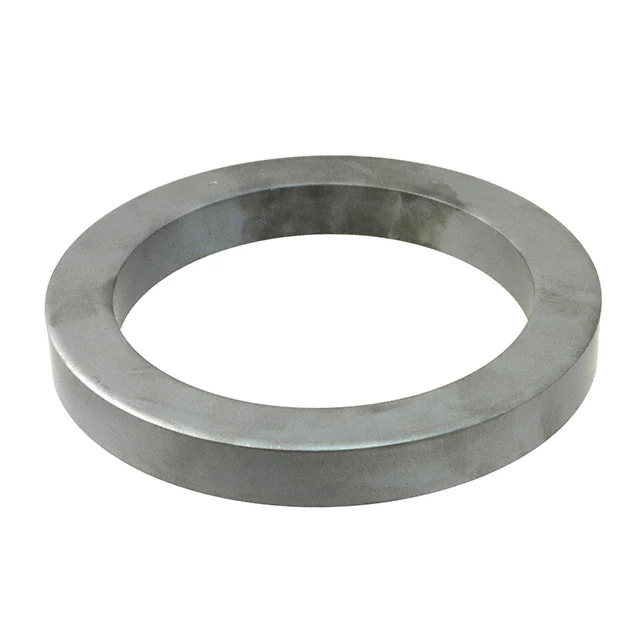

B64290A0711X830FERRITE CORE TOROID 5.2UH N30 |
32 |
|
Ficha técnica |
T202/153/25 | Box | Active | Toroid | R 202 x 153 x 25 | N30 | 7.953" (202.00mm) | 5.2 µH | ±25% | Ungapped | - | 3700 | 0.9 | 550.5 | 608.6 | - | 335030.0 | Uncoated | 0.984" (25.00mm) | - | - |
|
3061990821FERRITE CORE ROD 61 |
3,526 |
|
Ficha técnica |
- | Bulk | Active | ROD | - | 61 | 0.030" (0.76mm) | - | - | Ungapped | 35.0 | 125 | - | - | 0.442 | - | - | Uncoated | - | 0.295" (7.50mm) | - |
|
|
5979000101FERRITE CORE TOROID 280NH 79 |
1,831 |
|
Ficha técnica |
HF | Bag | Active | Toroid | - | 79 | 0.234" (5.95mm) | 280 nH | ±25% | Ungapped | - | 1400 | 0.06259 | 12.85 | 2.054 | - | 26.4 | Uncoated | 0.065" (1.65mm) | - | - |
|
9498102002FERRITE CORE E SET |
2,245 |
|
Ficha técnica |
- | Bulk | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 234.0 | 29.6 | 12.7 | 12.2 | 376.0 | Uncoated | 0.250" (6.35mm) | 0.500" (12.70mm) | - |
