Matrizes de FET, MOSFET
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Tecnologia | Configuração | Característica FET | Dreno para tensão de fonte (Vdss) | Corrente - Dreno contínuo (Id) @ 25 °C | Rds ligado (Máx.) @ Id, Vgs | Vgs(th) (Máx.) @ Id | Carga de porta (Qg) (máx.) @ Vgs | Capacitância de entrada (Ciss) (máx.) @ Vds | Potência - Máx. | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTM20HM20STGMOSFET 4N-CH 200V 89A SP4 |
9,397 |
|
Ficha técnica |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 200V | 89A | 24mOhm @ 44.5A, 10V | 5V @ 2.5mA | 112nC @ 10V | 6850pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM100H35FT3GMOSFET 4N-CH 1000V 22A SP3 |
6,683 |
|
Ficha técnica |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | 5200pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
APTML1002U60R020T3AGMOSFET 2N-CH 1000V 20A SP3 |
3,226 |
|
- |
- | SP3 | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 1000V (1kV) | 20A | 720mOhm @ 10A, 10V | 4V @ 2.5mA | - | 6000pF @ 25V | 520W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTC80TA15PGMOSFET 6N-CH 800V 28A SP6-P |
2,079 |
|
Ficha técnica |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 800V | 28A | 150mOhm @ 14A, 10V | 3.9V @ 2mA | 180nC @ 10V | 4507pF @ 25V | 277W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
APTC80TDU15PGMOSFET 6N-CH 800V 28A SP6-P |
6,719 |
|
Ficha técnica |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 800V | 28A | 150mOhm @ 14A, 10V | 3.9V @ 2mA | 180nC @ 10V | 4507pF @ 25V | 277W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
APTM50HM75STGMOSFET 4N-CH 500V 46A SP4 |
9,356 |
|
Ficha técnica |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 46A | 90mOhm @ 23A, 10V | 5V @ 2.5mA | 123nC @ 10V | 5600pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
APTC60AM35SCTGMOSFET 2N-CH 600V 72A SP4 |
8,625 |
|
Ficha técnica |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 600V | 72A | 35mOhm @ 36A, 10V | 3.9V @ 2mA | 518nC @ 10V | 14000pF @ 25V | 416W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
GA100SCPL12-227ESIC 1.2KV 100A |
5,057 |
|
- |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTM50TDUM65PGMOSFET 6N-CH 500V 51A SP6-P |
5,412 |
|
Ficha técnica |
- | SP6 | Bulk | Obsolete | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 500V | 51A | 78mOhm @ 25.5A, 10V | 5V @ 2.5mA | 140nC @ 10V | 7000pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
.jpg)
|
MSCSM120HM50CT3AGMOSFET 4N-CH 1200V 55A SP3F |
9,889 |
|
Ficha técnica |
- | Module | Tube | Active | Silicon Carbide (SiC) | 4 N-Channel | - | 1200V (1.2kV) | 55A (Tc) | 50mOhm @ 40A, 20V | 2.7V @ 1mA | 137nC @ 20V | 1990pF @ 1000V | 245W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
APTM20AM10STGMOSFET 2N-CH 200V 175A SP4 |
7,211 |
|
Ficha técnica |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 200V | 175A | 12mOhm @ 87.5A, 10V | 5V @ 5mA | 224nC @ 10V | 13700pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM20AM08FTGMOSFET 2N-CH 200V 208A SP4 |
4,386 |
|
Ficha técnica |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 200V | 208A | 10mOhm @ 104A, 10V | 5V @ 5mA | 280nC @ 10V | 14400pF @ 25V | 781W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM10TAM19FPGMOSFET 6N-CH 100V 70A SP6-P |
6,300 |
|
Ficha técnica |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 100V | 70A | 21mOhm @ 35A, 10V | 4V @ 1mA | 200nC @ 10V | 5100pF @ 25V | 208W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
APTM20HM16FTGMOSFET 4N-CH 200V 104A SP4 |
8,341 |
|
Ficha técnica |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 200V | 104A | 19mOhm @ 52A, 10V | 5V @ 2.5mA | 140nC @ 10V | 7220pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM10AM05FTGMOSFET 2N-CH 100V 278A SP4 |
4,805 |
|
Ficha técnica |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 100V | 278A | 5mOhm @ 125A, 10V | 4V @ 5mA | 700nC @ 10V | 20000pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
APTM50AM35FTGMOSFET 2N-CH 500V 99A SP4 |
5,004 |
|
Ficha técnica |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 99A | 39mOhm @ 49.5A, 10V | 5V @ 5mA | 280nC @ 10V | 14000pF @ 25V | 781W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM50HM65FTGMOSFET 4N-CH 500V 51A SP4 |
8,606 |
|
Ficha técnica |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 51A | 78mOhm @ 25.5A, 10V | 5V @ 2.5mA | 140nC @ 10V | 7000pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|

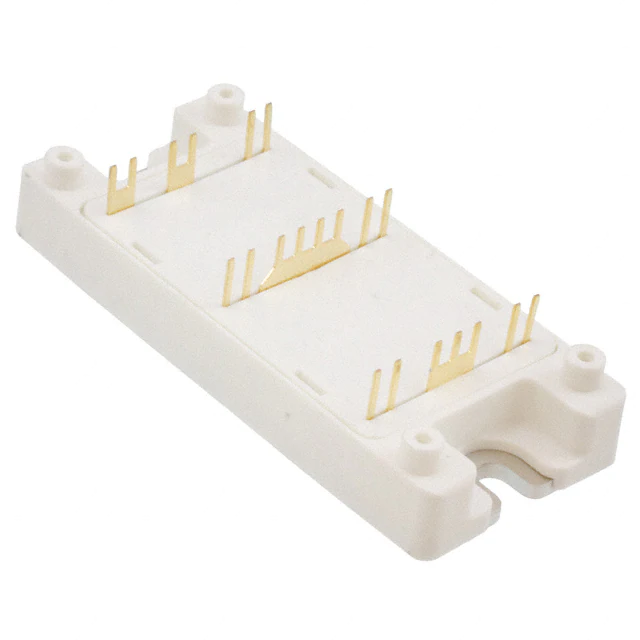

APTM100H45STGMOSFET 4N-CH 1000V 18A SP4 |
2,016 |
|
Ficha técnica |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 18A | 540mOhm @ 9A, 10V | 5V @ 2.5mA | 154nC @ 10V | 4350pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM100A23STGMOSFET 2N-CH 1000V 36A SP4 |
6,262 |
|
Ficha técnica |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 36A | 270mOhm @ 18A, 10V | 5V @ 5mA | 308nC @ 10V | 8700pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM20DUM05TGMOSFET 2N-CH 200V 333A SP4 |
7,265 |
|
Ficha técnica |
- | SP4 | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 200V | 333A | 5mOhm @ 166.5A, 10V | 4V @ 8mA | 1184nC @ 10V | 40800pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
