Fontes de Alimentação Industriais, Trilho DIN
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de entrada | Número de saídas | Voltagem CA - Entrada | Voltagem CC - Entrada (Mín.) | Voltagem CC - Entrada (Máx.) | Tensão - Saída 1 | Tensão - Saída 2 | Tensão - Saída 3 | Tensão - Saída 4 | Tensão - Saída 5 | Tensão - Saída 6 | Corrente - Saída (máx.) | Potência (Watts) | Tensão - Isolamento | Aplicações | Eficiência | Temperatura operacional | Recursos | Tamanho/dimensão | Agência de Aprovação | Número padrão |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

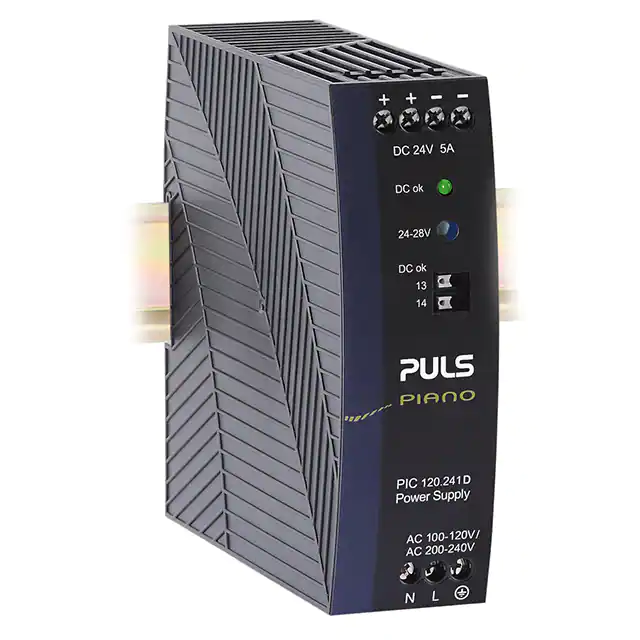

PIC120.241DAC/DC DIN RAIL SUPPLY 24V 120W |
42 |
|
Ficha técnica |
PIANO (120W) | Box | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | ITE (Commercial) | 92.3% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.88" L x 1.54" W x 4.88" H (124.0mm x 39.0mm x 124.0mm) | EAC, IEC, UL | 61010-2-201; 62368-1 |
|

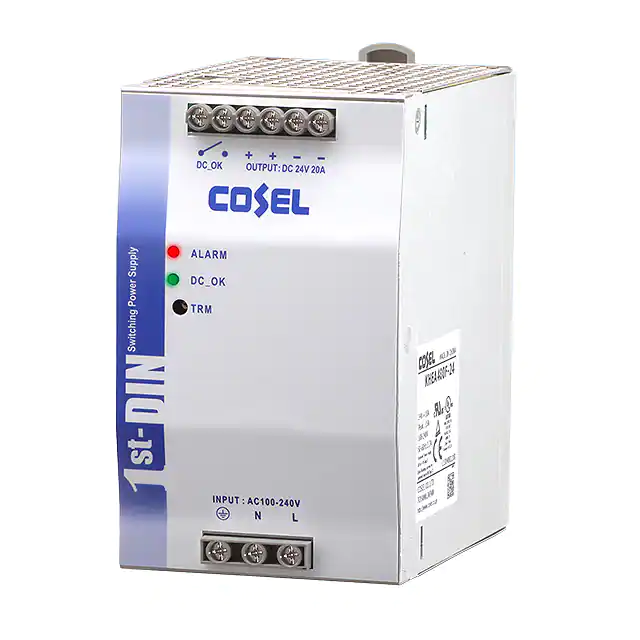

KHEA480F-24AC/DC DIN RAIL SUPPLY 24V 480W |
138 |
|
Ficha técnica |
KHEA (480W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 94% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Universal Input | 4.77" L x 2.76" W x 4.88" H (121.2mm x 70.0mm x 124.0mm) | CE, cURus, TUV | - |
|
S8VK-C24024AC/DC DIN RAIL SUPPLY 24V 240W |
74 |
|
Ficha técnica |
S8VK-C (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 87% | -25°C ~ 60°C | Adjustable Output, IP20, Universal Input | 5.91" L x 2.36" W x 4.92" H (150.0mm x 60.0mm x 125.0mm) | CE, cURus, TUV | - |
|
S8VK-T12024AC/DC DIN RAIL SUPPLY 24V 120W |
72 |
|
Ficha técnica |
S8VK-T (120W) | Box | Active | AC | 1 | 320 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | 4.81" L x 1.57" W x 4.92" H (122.2mm x 40.0mm x 125.0mm) | CE, TUV, UL | - |
|

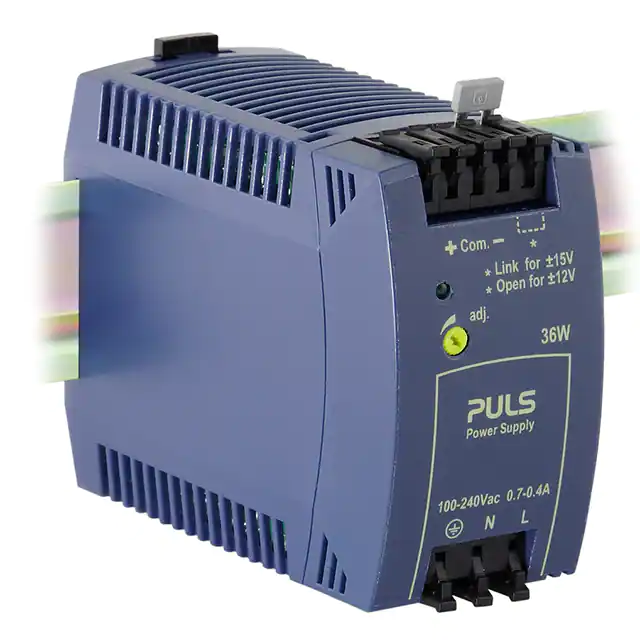

ML30.106AC/DC DIN RAIL SUPPLY +/-12V 36W |
79 |
|
Ficha técnica |
MiniLine (36W) | Box | Active | AC | 2 | 85 ~ 264 VAC | - | - | 12V | -12V | - | - | - | - | 2.8A, 1.4A | 36W | - | ITE (Commercial) | 86% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | ABS, DNV GL, EAC, IEC, NEC, UL | Class 2; 508; 60950-1; 61010-2-201 |
|

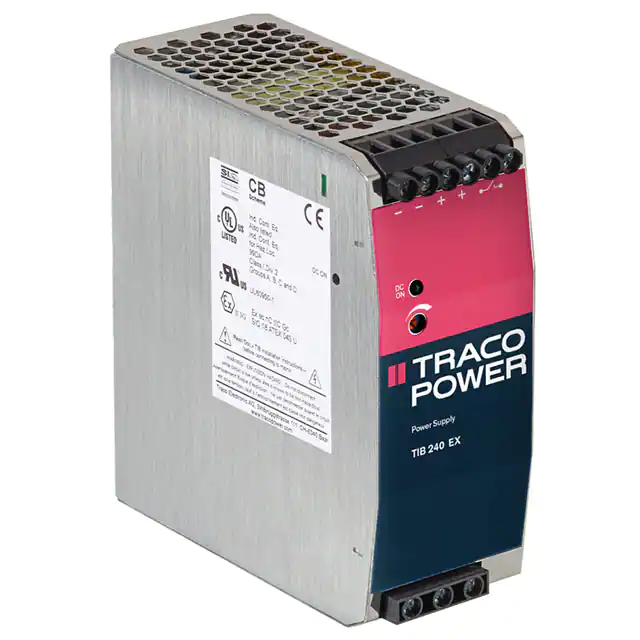

TIB 240-124EXAC/DC DIN RAIL SUPPLY 24V 240W |
26 |
|
Ficha técnica |
TIB 240EX (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4.25 kV | Hazardous Locations, Industrial, ITE (Commercial) | 95% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.50" L x 1.89" W x 4.89" H (114.2mm x 48.0mm x 124.2mm) | CB, CE, cULus, cURus, SIQ | - |
|

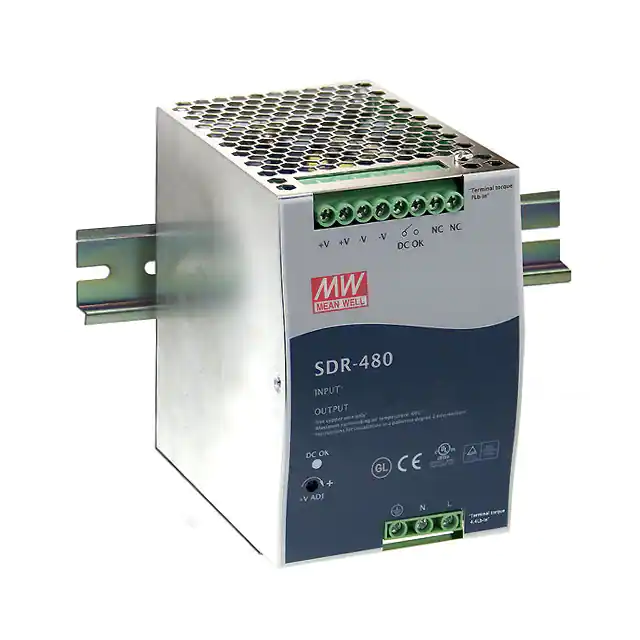

SDR-480-24AC/DC DIN RAIL SUPPLY 24V 480W |
57 |
|
Ficha técnica |
SDR-480 (480W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
|
2903153AC/DC DIN RAIL SUPPLY 24V 120W |
72 |
|
Ficha técnica |
TRIO | Bulk | Active | AC | 1 | 320 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.53" L x 1.38" W x 5.12" H (115.0mm x 35.0mm x 130.0mm) | cULus, cURus, EAC | - |
|
2903158AC/DC DIN RAIL SUPPLY 12V 120W |
32 |
|
Ficha técnica |
TRIO | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 12V | - | - | - | - | - | 10A | 120W | 3 kV | Industrial, ITE (Commercial) | 88.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.53" L x 1.38" W x 5.12" H (115.0mm x 35.0mm x 130.0mm) | CE, UL | - |
|

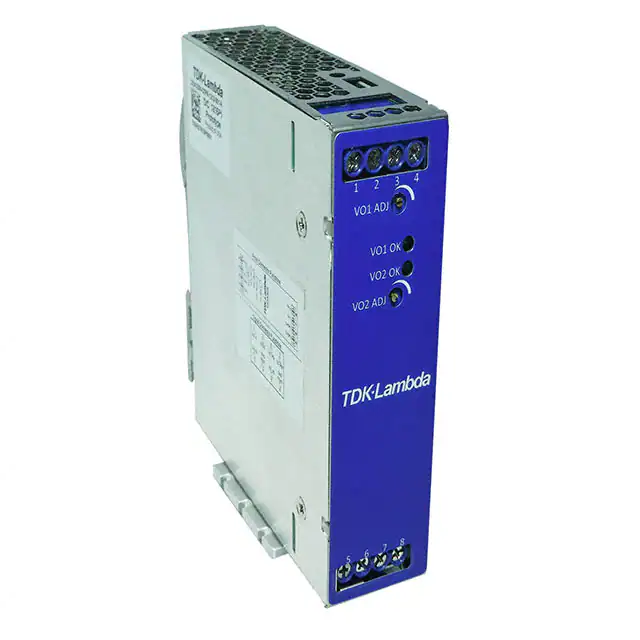

DDA250N-S1PX-12-001DC/DC DIN RAIL SUPPLY 12V 250W |
215 |
|
Ficha técnica |
DDA (250W) | Box | Active | DC | 1 | - | 9V | 53V | 12V | - | - | - | - | - | 20A | 250W | - | ITE (Commercial) | 95% | -40°C ~ 100°C | Adjustable Output, Remote On/Off, Remote Sense | 4.53" L x 1.44" W x 4.86" H (115.1mm x 36.6mm x 123.4mm) | CE | - |
|

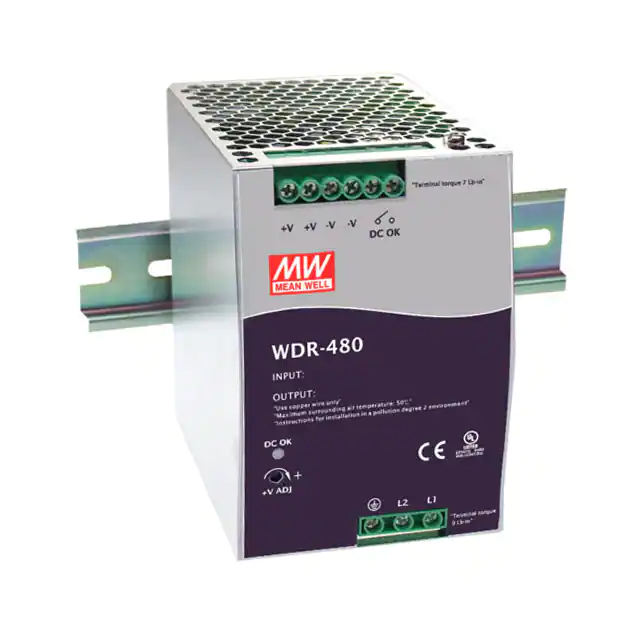

WDR-480-24AC/DC DIN RAIL SUPPLY 24V 480W |
319 |
|
Ficha técnica |
WDR-480 (480W) | Box | Active | AC or DC | 1 | 180 ~ 550 VAC (2 Phase) | 254V | 780V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, UL | - |
|
TIB 240-148AC/DC DIN RAIL SUPPLY 48V 240W |
28 |
|
Ficha técnica |
TIB 240 (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 4.25 kV | Industrial, ITE (Commercial) | 95% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.50" L x 1.89" W x 4.89" H (114.2mm x 48.0mm x 124.2mm) | CB, CE, cULus, cURus, SIQ | - |
|
DRL-24V480W1AAAC/DC DIN RAIL SUPPLY 24V 480W |
37 |
|
Ficha técnica |
LYTE (480W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.03" L x 3.37" W x 4.87" H (127.7mm x 85.5mm x 123.6mm) | CB, CCC, CE, cULus, cURus, TUV | - |
|
|
SDR-480-48AC/DC DIN RAIL SUPPLY 48V 480W |
182 |
|
Ficha técnica |
SDR-480 (480W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
|

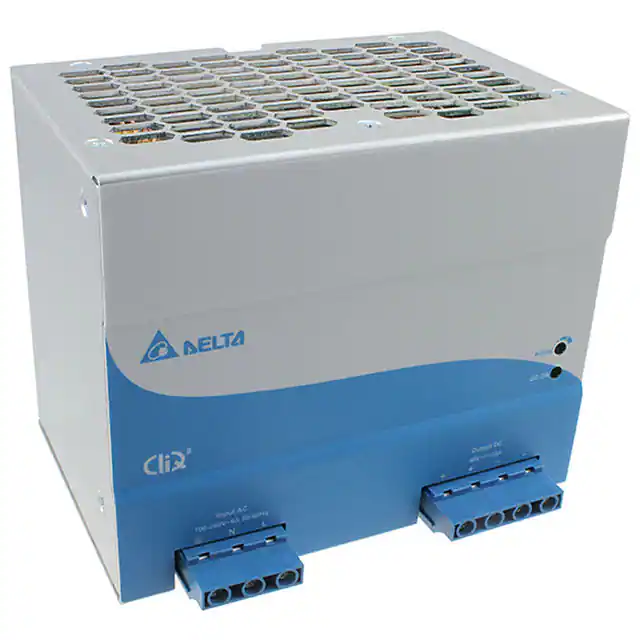

DRP048V480W1BNAC/DC DIN RAIL SUPPLY 48V 480W |
149 |
|
Ficha técnica |
CliQ II (480W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.67" L x 4.67" W x 4.76" H (144.0mm x 118.6mm x 121.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61010-1; 61204-3; 61558-1; 61558-2-16 |
|
PSC-24024AC/DC DIN RAIL SUPPLY 24V 240W |
62 |
|
Ficha técnica |
PSC-240 (240W) | Box | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 94% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm) | CB, CE, cULus, cURus | 60950-1; UL 508 |
|

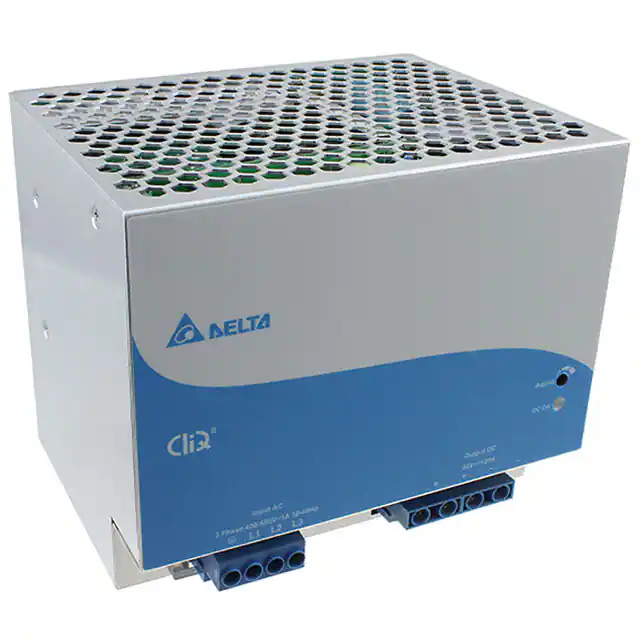

DRP024V480W3BNAC/DC DIN RAIL SUPPLY 24V 480W |
63 |
|
Ficha técnica |
CliQ II (480W) | Bulk | Active | AC | 1 | 320 ~ 600 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.52" L x 4.62" W x 4.76" H (140.0mm x 117.3mm x 121.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |
|
DRF240-24-1AC/DC DIN RAIL SUPPLY 24V 240W |
357 |
|
Ficha técnica |
DRF (120-480W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 125V | 370V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Universal Input | 4.53" L x 1.93" W x 4.86" H (115.0mm x 49.0mm x 123.4mm) | CE | - |
|
2903149AC/DC DIN RAIL SUPPLY 24V 240W |
152 |
|
Ficha técnica |
TRIO | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.30" L x 1.65" W x 5.12" H (160.0mm x 42.0mm x 130.0mm) | cULus, cURus, EAC | - |
|

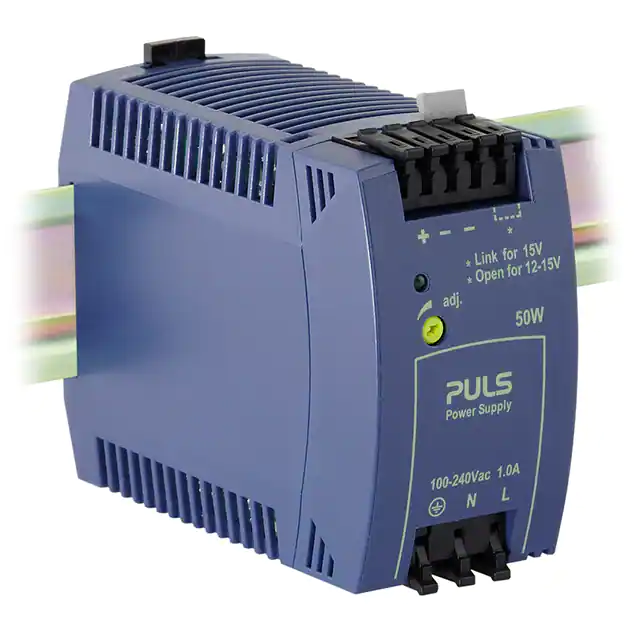

ML50.102AC/DC DIN RAIL SUPPLY 12V 50W |
39 |
|
Ficha técnica |
MiniLine (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.2A | 50W | - | ITE (Commercial) | 90% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | CSA, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
