Fotoelétricos, industriais
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Método de Detecção | Distância de detecção | Voltagem - Alimentação | Tempo de Resposta | Configuração de Saída | Fonte de luz | Método de conexão | Proteção de entrada | Comprimento do cabo | Tipo de ajuste | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SL30VB6VQPHOTO SEN SLOT 30MM BIPOLAR |
3 |
|
Ficha técnica |
SL30 | Box | Active | Through-Beam | 1.181" (30mm) | 10V ~ 30V | 1ms | NPN/PNP - Dark-ON/Light-ON | Red (680nm) | Connector | NEMA 6P, IP67 | - | Adjustable, Potentiometer | -40°C ~ 70°C |
|
FT-V25SENSOR THROUGH-BEAM NON-THREAD |
13 |
|
Ficha técnica |
FX-500 | Box | Active | Through-Beam | - | - | - | - | - | Cable | - | 78.74" (2m) | - | -55°C ~ 80°C |
|
O6H301DIFFUSE REFLECTION SENSOR; RED L |
20 |
|
Ficha técnica |
- | Box | Active | Diffuse, Background Suppression | 0.079" ~ 7.874" (2mm ~ 200mm) | 10V ~ 30V | - | PNP - Dark-ON/Light-ON | Red (633nm) | Connector, M12 | IP65, IP67, IP68, IP69K | - | - | -25°C ~ 80°C |
|
E3Z-R81SENSOR RETROREFLECTIVE 4M PNP |
17 |
|
Ficha técnica |
E3Z | Bulk | Active | Retroreflective | 157.480" (4m) | 12V ~ 24V | 1ms | PNP - Dark-ON/Light-ON - Selectable | Infrared (870nm) | Cable | IEC IP67, IP69K | - | Single-Turn | -25°C ~ 55°C |
|
PIRS1X166UMPMALFIBER OPPOSED 16 X 0.25MM CORE |
11 |
|
Ficha técnica |
PIRS1X16 | Box | Active | Through-Beam | - | - | - | - | - | - | - | - | - | 70°C |
|

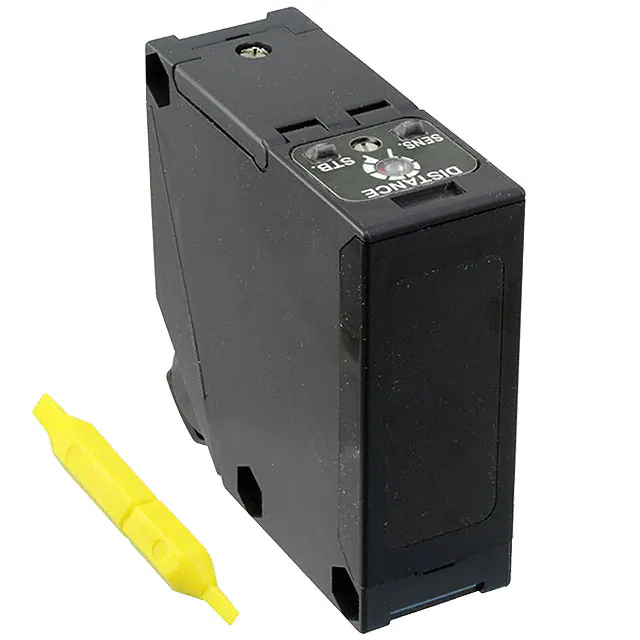

EQ-511SENSOR REFLECTIVE 2.5M NPN/PNP |
23 |
|
Ficha técnica |
EQ-500 | Box | Active | Reflective | 3.937" ~ 98.425" (100mm ~ 2.5m) ADJ | 12V ~ 24V | 2ms | NPN/PNP | Infrared | Cable | IP67 | - | Adjustable | -20°C ~ 55°C |
|

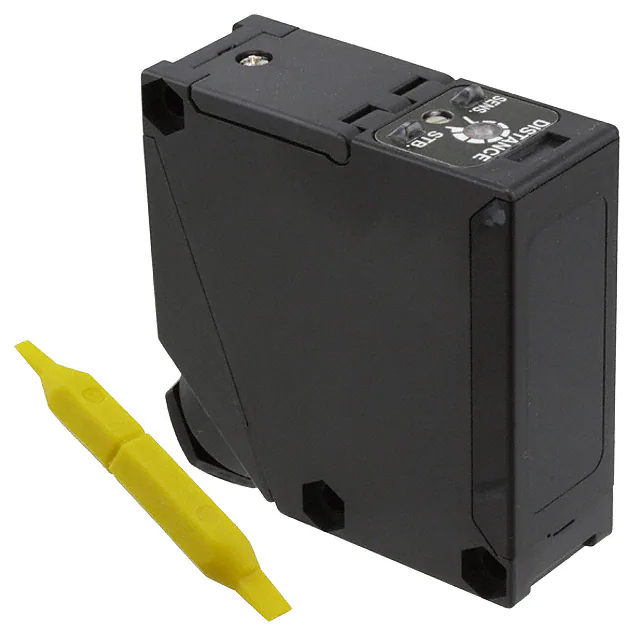

EQ-512SENSOR REFLECTIVE 1M NPN/PNP |
10 |
|
Ficha técnica |
EQ-500 | Box | Active | Reflective | 3.937" ~ 39.370" (100mm ~ 1m) ADJ | 12V ~ 24V | 2ms | NPN/PNP | Infrared | Cable | IP67 | - | Adjustable | -20°C ~ 55°C |
|

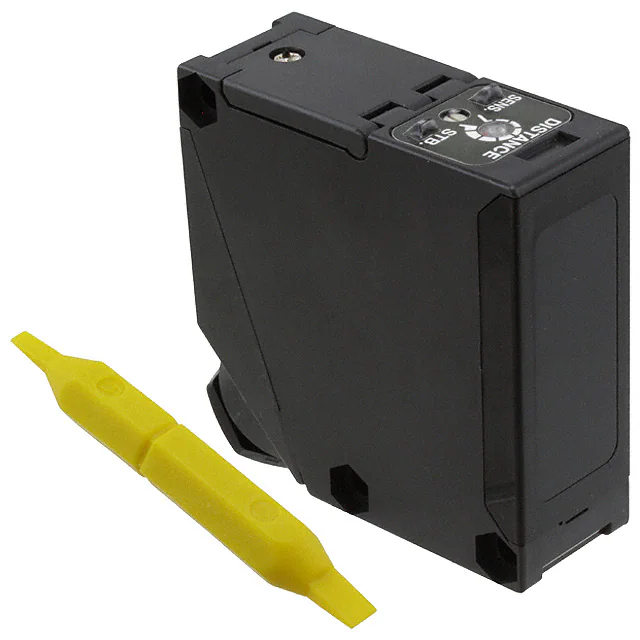

EQ-502SENSOR REFLECTIVE 1M RELAY |
21 |
|
Ficha técnica |
EQ-500 | Box | Active | Reflective | 3.937" ~ 39.370" (100mm ~ 1m) ADJ | 12V ~ 240V, 24V ~ 240V | 20ms | Relay - Dark-ON/Light-ON - Selectable | Infrared | Cable | IP67 | - | Adjustable | -20°C ~ 55°C |
|
EQ-501SENSOR REFLECTIVE 2.5M RELAY |
5 |
|
Ficha técnica |
EQ-500 | Box | Active | Reflective | 3.937" ~ 98.425" (100mm ~ 2.5m) ADJ | 12V ~ 240V, 24V ~ 240V | 20ms | Relay - Dark-ON/Light-ON - Selectable | Infrared | Cable | IP67 | - | Adjustable | -20°C ~ 55°C |
|
QS18EP6XLPCQ8PHOTO SEN CLEAR 3000MM PNP |
13 |
|
Ficha técnica |
QS18 | Box | Active | Retroreflective, Polarized | 118.110" (3m) | 10V ~ 30V | 400µs | PNP - Dark-ON/Light-ON | LED | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -40°C ~ 70°C |
|
E3T-ST14SENSOR THROUGH-BEAM 1M PNP |
23 |
|
Ficha técnica |
E3T | Bulk | Active | Through-Beam | 39.370" (1m) | 12V ~ 24V | 1ms | PNP - Open Collector/Dark-ON | Red (650nm) | Cable | IEC IP67 | - | Adjustable | -25°C ~ 55°C |
|
QS30ARXQPHOTO SEN RECEIVER 213M BIPOLAR |
18 |
|
Ficha técnica |
QS30 | Box | Active | Through-Beam | 698.82' (213m) | 10V ~ 30V | 5ms | NPN/PNP - Light-ON | Infrared LED | Connector | NEMA 6P, IP69K | - | - | -20°C ~ 70°C |
|
QS30RRXPHOTO SEN RECEIVER 213M BIPOLAR |
15 |
|
Ficha técnica |
QS30 | Box | Active | Through-Beam | 698.82' (213m) | 10V ~ 30V | 5ms | NPN/PNP - Dark-ON | Infrared LED | Cable | NEMA 6P, IP67 | 78.74" (2m) | - | -20°C ~ 70°C |
|
STBVP6Q5TOUCH BUTTON PNP M12 CONN |
12 |
|
Ficha técnica |
STB | Box | Active | Through-Beam | - | 10V ~ 30V | 20ms | PNP - Open Collector | Green LED | Connector | NEMA 1, 3, 4, 4X, 12, 13 IEC IP66 | - | - | - |
|
|
QS30ARXPHOTO SEN RECEIVER 213M BIPOLAR |
9 |
|
Ficha técnica |
QS30 | Box | Active | Through-Beam | 698.82' (213m) | 10V ~ 30V | 5ms | NPN/PNP - Light-ON | Infrared LED | Cable | NEMA 6P, IP67 | 78.74" (2m) | - | -20°C ~ 70°C |
|
STBVR81STB SERIES: SELF-CHECKING TOUCH |
5 |
|
Ficha técnica |
STB | Box | Active | Through-Beam | - | 20 ~ 30VAC, 20 ~ 30VDC | 20ms | Relay | Green LED | Cable | NEMA 1, 3, 4, 4X, 12, 13 IEC IP66 | 78.74" (2m) | - | 0°C ~ 50°C |
|
QS18VP6LLPQ8SEN LASER RETRO 0.1-10M PNP |
19 |
|
Ficha técnica |
QS18 | Bag | Active | Retroreflective, Polarized | 32.81' (10m) | 10V ~ 30V | 700µs | PNP - Dark-ON/Light-ON | LED | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -10°C ~ 50°C |
|
E3Z-T86ASENSOR THRUBEAM 4M PNP TRANSISTR |
13 |
|
Ficha técnica |
E3Z | Bulk | Active | Through-Beam | 157.480" (4m) | 12V ~ 24V | 1ms | PNP Transistor | Infrared (870nm) | Connector | IEC IP67, IP69K | - | Single-Turn | -40°C ~ 55°C |
|
OID250PHOTOELECTRIC DISTANCE SENSOR; N |
18 |
|
Ficha técnica |
- | Box | Active | Background Suppression | 1.181" ~ 78.740" (30mm ~ 2m) | 10V ~ 30V | - | PNP-NC/NO | Red (650nm) | Connector, M12 | IP65, IP67 | - | - | -25°C ~ 60°C |
|
O5D100PHOTOELECTRIC DISTANCE SENSOR; N |
4 |
|
Ficha técnica |
- | Bulk | Active | Background Suppression | 1.181" ~ 78.740" (30mm ~ 2m) | 10V ~ 30V | - | PNP-NC/NO | Red (650nm) | Connector, M12 | IP65, IP67 | - | - | -25°C ~ 60°C |
