Isoladores - Drivers de Porta
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Tecnologia | Número de canais | Tensão - Isolamento | Imunidade transitória de modo comum (mín.) | Atraso de propagação tpLH / tpHL (máx.) | Distorção da largura do pulso (máx.) | Tempo de subida/descida (típico) | Corrente - Saída alta, baixa | Corrente - Saída de pico | Voltagem - Direto (Vf) (Típico) | Corrente - DC para frente (If) (Máx.) | Voltagem - Fornecimento de saída | Grau | Qualificação | Temperatura operacional | Tipo de montagem | Pacote do dispositivo do fornecedor | Agência de Aprovação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC21755QDWRQ1DGTL ISO 5.7KV 1CH GT DVR 16SOIC |
826 |
|
Ficha técnica |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 150V/ns | 130ns, 130ns | 30ns | 33ns, 27ns | 10A, 10A | 10A | - | - | 13V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | UL, VDE |
|

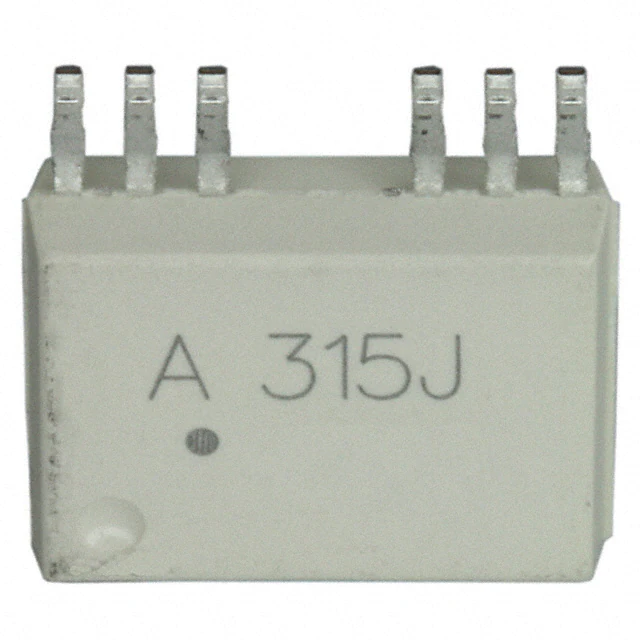

HCPL-315J-000EOPTOISO 5KV 2CH GATE DVR 16SO |
599 |
|
Ficha técnica |
- | 16-SOIC (0.295", 7.50mm Width), 12 Leads | Tube | Active | Optical Coupling | 2 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 500mA, 500mA | 600mA | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
ADUM3221ARZDGTL ISO 2.5KV 2CH GT DVR 8SOIC |
3,288 |
|
Ficha técnica |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
ADUM3221ARZ-RL7DGTL ISO 2.5KV 2CH GT DVR 8SOIC |
2,540 |
|
Ficha técnica |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
ADUM3220ARZ-RL7DGTL ISO 2.5KV 2CH GT DVR 8SOIC |
1,671 |
|
Ficha técnica |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
ACNT-H343-000EOPTOISO 7.5KV 1CH GATE DVR 8SO |
877 |
|
Ficha técnica |
- | 8-SOIC (0.535", 13.60mm Width) | Tube | Active | Optical Coupling | 1 | 7500Vrms | 100kV/µs | 150ns, 150ns | 80ns | 26ns, 7.5ns | 4A, 4A | 5A, 5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
|
ADUM4120ARIZ-RLDGTL ISO 5KV 1CH GATE DRVR 6SOIC |
717 |
|
Ficha técnica |
iCoupler® | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 69ns, 79ns | 16.5ns | 18ns, 18ns | - | 2.3A | - | - | 4.5V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC-IC | CSA, UR, VDE |
|
NCD57000DWR2GDGTL ISO 5KV 1CH GATE DVR 16SOIC |
148 |
|
Ficha técnica |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 15ns | 10ns, 15ns | - | 7.8A, 7.1A | - | 10 mA | 0V ~ 24V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 16-SOIC | UL, VDE |
|
ADUM4135BRWZDGTL ISO 5KV 1CH GATE DVR 16SOIC |
6,336 |
|
Ficha técnica |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 100kV/µs | 66ns, 66ns | - | 16ns, 16ns | - | 4A | - | - | 12V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | - |
|
|
STGAP4STRDISCRETE |
1,197 |
|
Ficha técnica |
- | 36-BSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | - | 100V/ns | - | 30ns | 15ns, 45ns | - | 3.4A | - | - | 0.3V ~ 28V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | 36-SO | IEC/EN/DIN, UL, VDE |
|
|
UCC5880QDFCRQ1AUTOMOTIVE, 20-A, ISOLATEDREAL-T |
312 |
|
Ficha técnica |
- | 32-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | - | - | - | - | - | 20A | - | - | 12V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 32-SSOP | - |
|
HCPL-316JOPTOISO 5KV 1CH GATE DVR 16SO |
905 |
|
Ficha técnica |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
HCPL-316J#500OPTOISO 5KV 1CH GATE DVR 16SO |
4,228 |
|
Ficha técnica |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
AHV85111KNHTRDIGITAL ISO 8KV 1CH GATE DVR |
1,520 |
|
Ficha técnica |
- | 12-SMD, No Lead | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 8000Vpk | 100V/ns | 50ns, 50ns | - | - | - | - | - | - | 10.5V ~ 13.2V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | - | UL, VDE |
|
UCC23513BDWYRDGTL ISO 5.7KV 1CH GT DVR 6SOIC |
5,365 |
|
Ficha técnica |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns (Max) | 4.5A, 5.3A | 4.5A, 5.3A | 2.1V | 25 mA | 10V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC | CQC, UL, VDE |
|
|
ISOM8711DFFRDC INPUT, OPEN-COLLECTOR OUTPUT, |
1,022 |
|
Ficha técnica |
- | 5-SMD, Gull Wing | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 125kV/µs | 54ns, 54ns | 26ns | 10ns, 10ns | 100µA, - | - | 1.5V | 25 mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-SOIC | IEC/EN/DIN, UL, VDE |
|
|
UCC23313BDWYRDGTL ISO 3.75KV 1CH GT DVR 6SOIC |
1,193 |
|
Ficha técnica |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns (Max) | 4.5A, 5.3A | 4.5A, 5.3A | 2.1V | 16 mA | 14V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC | CQC, UL, VDE |
|
|
UCC21331CDR3KVRMS 4A/6A TWO-CHANNEL GATE DR |
2,244 |
|
Ficha técnica |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3000Vrms | 125V/ns | 45ns, 45ns | 5ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 13.5V ~ 25V | - | - | -40°C ~ 150°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
UCC21330BDRISOLATED GATE DRIVER |
820 |
|
Ficha técnica |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3000Vrms | 125V/ns | 45ns, 45ns | 6ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 3V ~ 5.5V | - | - | -40°C ~ 150°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
UCC21550BDWRUCC21550BDWR |
2,344 |
|
Ficha técnica |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 125V/ns | 45ns, 45ns | 5ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 9.2V ~ 25V | - | - | -40°C ~ 150°C | Surface Mount | 16-SOIC | UL, VDE |
