LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C402A-YTY-LW6540X2 STN YELLOW/GREEN CHARACTER |
33 |
|
Ficha técnica |
C402A | Box | Active | 80.0 | 40 x 2 | 5 x 7 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 13.50mm | 152.50mm L x 16.50mm W | LED - Yellow | 5V | 0.60mm W x 0.65mm H | Parallel | ST7066 | -20°C ~ 70°C | Black | Yellow/Green |
|
C402A-YTY-LW6340X2 STN YELLOW/GREEN CHARACTER |
46 |
|
Ficha técnica |
C402A | Tape & Box (TB) | Active | 80.0 | 40 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 13.50mm | 152.50mm L x 16.50mm W | LED - Yellow | 3.3V | 0.60mm W x 0.65mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Yellow/Green |
|
|
C402A-BW-LW6340X2 STN BLUE CHARACTER LCD |
36 |
|
Ficha técnica |
C402A | Tape & Box (TB) | Active | 80.0 | 40 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 13.50mm | 152.50mm L x 16.50mm W | LED - White | 3.3V | 0.60mm W x 0.65mm H | Parallel | ST7066U | -20°C ~ 70°C | White | Blue |
|
|
WH4002A2-YYH-JWCharacter Display LCD 40x2, 40x2 |
9 |
|
Ficha técnica |
- | Tray | Active | 80.0 | 40 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 13.60mm | 154.40mm L x 16.50mm W | LED - Yellow/Green | 4V ~ 4.3V | 0.60mm W x 0.65mm H | 4/8-Bit, I2C, Parallel, SPI | - | -20°C ~ 70°C | Yellow/Green | - |
|

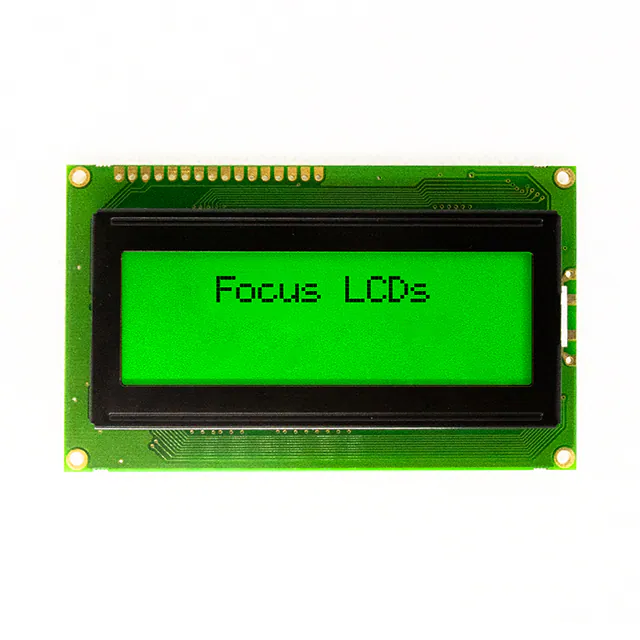

C204AXBSYLY6WT20X4 STN YELLOW/GREEN CHARACTER |
45 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 14.00mm | 76.00mm L x 25.20mm W | LED - Yellow | 5V | 0.55mm W x 0.55mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Yellow/Green |
|
C204A1-KW-XW6520X4 FSTN BLACK CHARACTER LCD |
14 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 7 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 2.95mm H x 4.75mm W | 98.00mm x 60.00mm x 14.00mm | 76.00mm L x 25.20mm W | LED - White | 5V | 0.55mm W x 0.55mm H | Parallel | ST7066U | -20°C ~ 70°C | White | Black |
|
|
C402A-FTW-LW6340X2 FSTN GRAY CHARACTER LCD |
40 |
|
Ficha técnica |
C402A | Tape & Box (TB) | Active | 80.0 | 40 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 13.50mm | 152.50mm L x 16.50mm W | LED - White | 3.3V | 0.60mm W x 0.65mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Gray |
|
|
C202AS-YTY-LW6520X2 YELLOW/GREEN SERIAL LCD |
12 |
|
Ficha técnica |
C202AS | Tape & Box (TB) | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.70mm W | 116.00mm x 37.00mm x 13.50mm | 83.00mm L x 18.60mm W | LED - Yellow | 5V | 0.65mm W x 0.60mm H | - | ST7066U and PIC16F690 | -20°C ~ 70°C | Black | Yellow/Green |
|
C402A-KW-LW6540x2 FSTN BLACK CHARACTER LCD |
11 |
|
Ficha técnica |
C402A | Box | Active | 80.0 | 40 x 2 | 5 x 7 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 13.50mm | 152.50mm L x 16.50mm W | LED - White | 5V | 0.60mm W x 0.65mm H | Parallel | ST7066U | -20°C ~ 70°C | White | Black |
|
|
GFC1602F-YPOEES3A0916X2STN-YYELLOW GREEN122*44V |
43 |
|
Ficha técnica |
- | Tape & Box (TB) | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Y/G | Transflective | 9.66mm H x 4.84mm W | 122.00mm x 44.00mm x 14.50mm | 99.00mm L x 24.00mm W | LED - Yellow/Green | 3.3V | 0.92mm W x 1.10mm H | Parallel | ST7066U-0B | -20°C ~ 70°C | Black | Yellow/Green |
|
C202C-FTW-LW6520X2 FSTN GRAY CHARACTER LCD |
26 |
|
Ficha técnica |
C202C | Box | Active | 40.0 | 20 x 2 | 5 x 7 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 43.00mm x 13.80mm | 122.00mm L x 23.00mm W | LED - White | 5V | 0.92mm W x 1.10mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Gray |
|
C402ASBSYLY6WT55PAB40X2 STN YELLOW/GREEN CHARACTER |
9 |
|
Ficha técnica |
- | Box | Active | 80.0 | 40 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 15.00mm | 153.60mm L x 16.20mm W | LED - Yellow | 5V | 0.60mm W x 0.65mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Yellow/Green |
|
O162B-CW-SS5OLED MOD 32DIG 16 X 2 REFLECTIVE |
11 |
|
Ficha técnica |
- | Box | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Reflective | 5.57mm H x 2.97mm W | 80.00mm x 36.00mm x 9.70mm | 58.22mm L x 13.52mm W | LED | 4.5V ~ 5.5V | 0.57mm W x 0.67mm H | Parallel, 8-Bit | KS0066 | -40°C ~ 85°C | - | - |
|

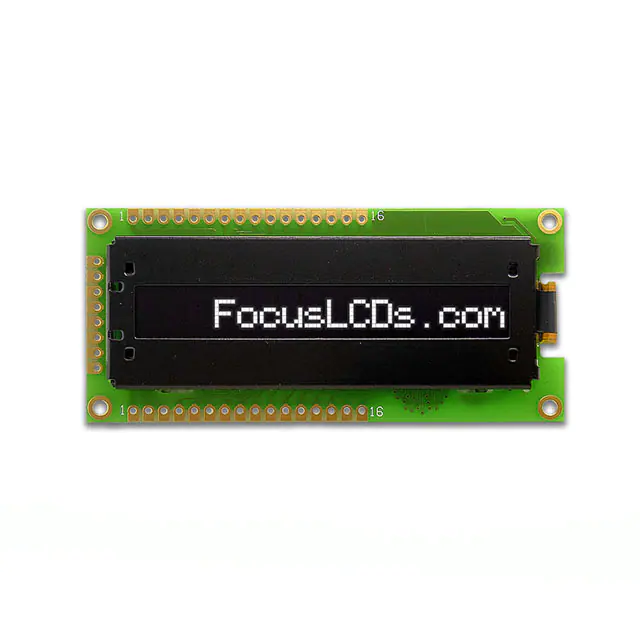

O161A-CW-SS5OLED MOD 16DIG 16 X 1 REFLECTIVE |
10 |
|
Ficha técnica |
- | Box | Active | 16.0 | 16 x 1 | 5 x 8 Dots | OLED | Reflective | 6.56mm H x 3.07mm W | 80.00mm x 36.00mm x 9.70mm | 61.56mm L x 8.56mm W | LED - White | 4.5V ~ 5.5V | 0.55mm W x 0.75mm H | Parallel, 8-Bit | KS0066 | -40°C ~ 85°C | - | - |
|

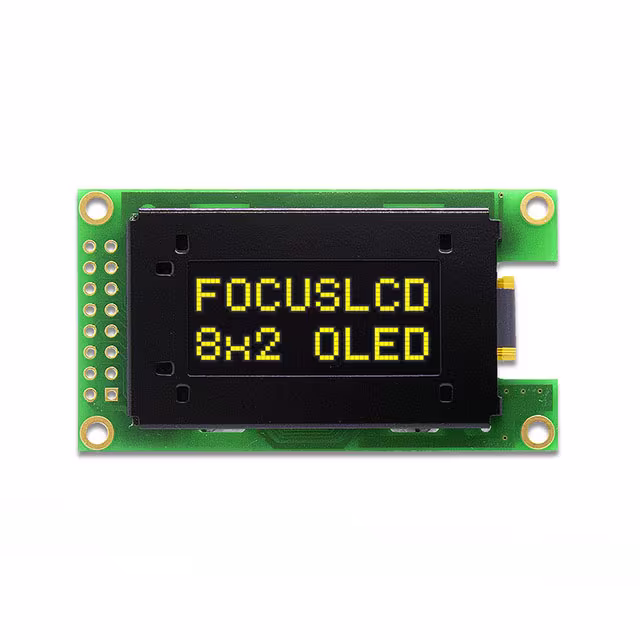

O82A-CY-SS3OLED MOD 16DIG 8 X 2 REFLECTIVE |
7 |
|
Ficha técnica |
- | Box | Active | 16.0 | 8 x 2 | 5 x 8 Dots | OLED | Reflective | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 9.70mm | 29.81mm L x 13.50mm W | LED - White | 2.7V ~ 3.5V | 0.56mm W x 0.66mm H | Parallel, 8-Bit | KS0066 | -40°C ~ 85°C | - | - |
|
|
GFC1604A-YPOEEPB0816X4STN-YYELLOW GREEN87*60NP |
19 |
|
Ficha técnica |
- | Tape & Box (TB) | Active | 64.0 | 16 x 4 | 5 x 8 Dots | STN - Y/G | Transflective | 4.75mm H x 2.95mm W | 87.00mm x 60.00mm x 13.50mm | 62.00mm L x 25.60mm W | LED - Yellow/Green | 5V | 0.55mm W x 0.55mm H | Parallel | ST7066U-0B | -20°C ~ 70°C | Black | Yellow/Green |
|
C-51505NFQJ-LB-AJNLCD MOD 40DIG 20X2 TRANSMIS BLUE |
39 |
|
Ficha técnica |
C-51505 | Bulk | Obsolete | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 15.60mm | 83.00mm L x 18.60mm W | LED - Blue | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel | - | -20°C ~ 70°C | Blue | Black |
|
|
MCOB21605G1V-EWP2x16 chip-on-board OLED, white o |
65 |
|
Ficha técnica |
MCOB21605G1 | Tray | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 10.00mm | 66.00mm L x 16.00mm W | LED - White | 5V | 0.55mm W x 0.65mm H | Parallel | - | -40°C ~ 80°C | White | Black |
|
|
GFC1601A-YPOEOS16X1STN-YYELLOW GREEN151X40X1 |
40 |
|
Ficha técnica |
- | Tape & Box (TB) | Active | 16.0 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 14.54mm H x 6.00mm W | 151.00mm x 40.00mm x 15.00mm | 120.00mm L x 23.00mm W | LED - Yellow/Green | 5V | 1.15mm W x 1.77mm H | Parallel | ST7066U-0T | -20°C ~ 70°C | Black | Yellow/Green |
|
C404A-BW-LW6540X4 STN BLUE CHARACTER LCD |
53 |
|
Ficha técnica |
C404A | Box | Active | 160.0 | 40 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.89mm H x 2.78mm W | 190.00mm x 54.00mm x 13.00mm | 147.00mm L x 29.50mm W | LED - White | 5V | 0.50mm W x 0.55mm H | Parallel | ST7066 | -20°C ~ 70°C | White | Blue |
