LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
LK202-25-WBLCD MOD 40DIG 20X2 TRANSMIS BLUE |
0 |
|
Ficha técnica |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | LCD - Color | Transmissive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 28.69mm | 73.50mm L x 11.50mm W | LED - Blue | 4.75V ~ 5.25V | 0.60mm W x 0.65mm H | I2C, RS-232, TTL | - | 0°C ~ 50°C | White | Blue |
|

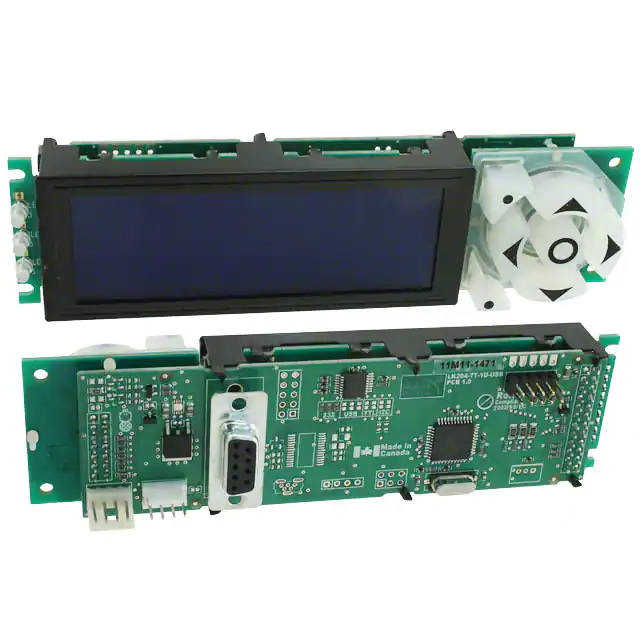

LK204-7T-1U-WBLCD MOD 80DIG 20X4 TRANSMIS BLUE |
0 |
|
Ficha técnica |
- | Bulk | Active | 80.0 | 20 x 4 | 5 x 8 Dots | LCD - Color | Transmissive | 5.15mm H x 3.20mm W | 144.00mm x 38.00mm x 34.30mm | 82.00mm L x 28.40mm W | LED - Blue | 4.75V ~ 5.25V | 0.60mm W x 0.65mm H | I2C, RS-232, TTL | - | 0°C ~ 50°C | White | Blue |
|
VIM-828-DP5.7-6-HV-RH-WLCD MOD 8 DIG 8 X 1 REFLECTIVE |
3 |
|
Ficha técnica |
VIM-828 | Box | Active | 8.0 | 8 x 1 | 14-Segment | TN - Twisted Nematic | Reflective | 9.00mm H x 5.40mm W | 70.00mm x 25.00mm x 2.80mm | 64.00mm L x 12.50mm W | Without Backlight | 3.9V ~ 7.7V | - | - | - | -30°C ~ 80°C | - | - |
|
EA DOGM081S-ALCD MOD 8 DIG 8 X 1 TRANSMISSIVE |
4 |
|
Ficha técnica |
EA DOG | Bag | Active | 8.0 | 8 x 1 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 11.97mm H x 4.97mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.97mm W x 1.47mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | White | Black |
|
EA DOGM081E-ALCD MOD 8DIG 8 X 1 TRANSFLECTIVE |
1 |
|
Ficha técnica |
EA DOG | Bag | Active | 8.0 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 11.97mm H x 4.97mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.97mm W x 1.47mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Gray | Green |
|

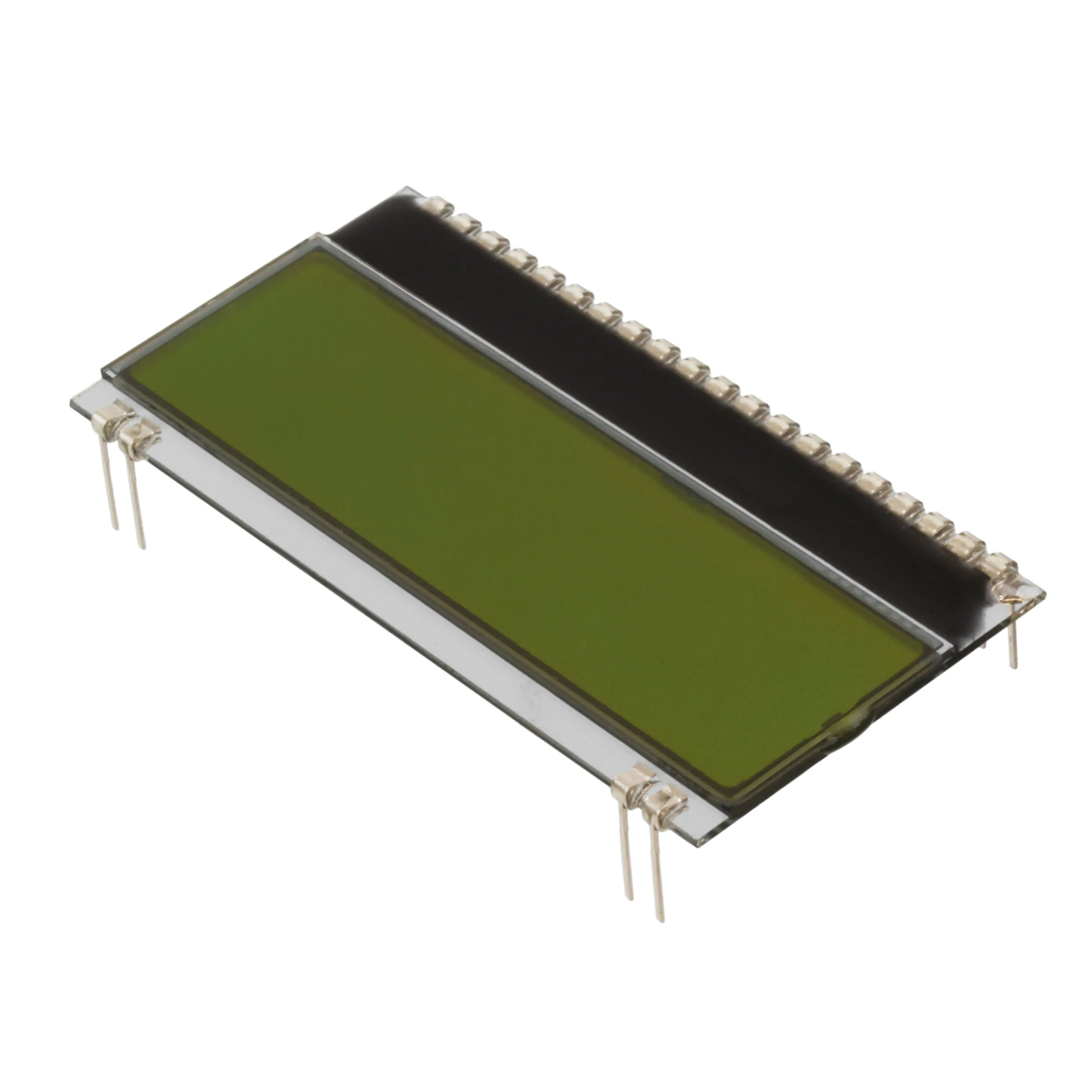

EA DOGM081L-ALCD MOD 8 DIG 8 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
EA DOG | Tray | Active | 8.0 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 11.97mm H x 4.97mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.97mm W x 1.47mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Gray | Green |
|
EA DOGS164B-ALCD MOD 64DIG 16X4 TRANSMISV WHT |
0 |
|
Ficha técnica |
EA DOG | Bag | Active | 64.0 | 16 x 4 | 5 x 32 Dots | STN - Super-Twisted Nematic | Transmissive | - | 40.00mm x 33.00mm x 2.60mm | 38.00mm L x 19.00mm W | LED - White | 3.3V | 0.32mm W x 0.45mm H | I2C, SPI | - | -20°C ~ 70°C | - | Blue |
|

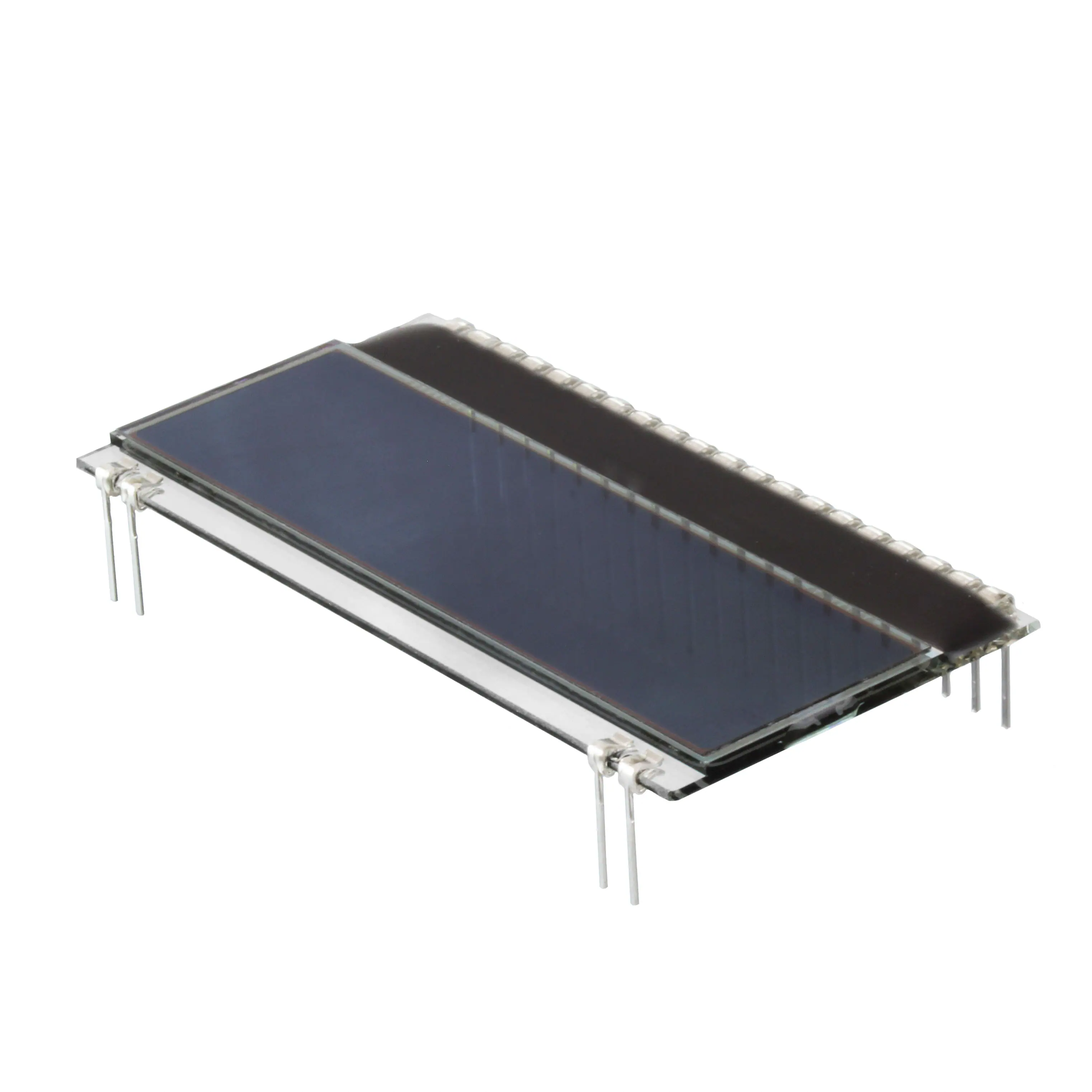

EA DOGM162S-ALCD MOD 32DIG 16 X 2 TRANSMISSIV |
1 |
|
Ficha técnica |
EA DOG | Bag | Active | 32.0 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 5.57mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.67mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | White | Black |
|
EA DOGM162L-ALCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
EA DOG | Bag | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.57mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.67mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Gray | Green |
|
MOP-AL164A-BYFY-25E-3INLCD MOD 64DIG 16X4 TRANS YLW/GRN |
1 |
|
Ficha técnica |
- | Bulk | Active | 64.0 | 16 x 4 | 5 x 8 Dots | Alphanumeric | Transflective | 4.75mm H x 2.95mm W | 87.00mm x 40.00mm x 14.00mm | 61.80mm L x 25.20mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel, 8-Bit | - | -20°C ~ 70°C | - | - |
|
LCD-10862LCD MOD 32DIG 16X2 TRANSFL R/G/B |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 5.23mm H x 3.00mm W | 80.00mm x 36.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - Red/Green/Blue | 5V | 0.56mm W x 0.61mm H | Parallel, 8-Bit | - | -20°C ~ 70°C | Black | - |
|
EA DOGS104B-ALCD MOD 40DIG 10 X 4 TRANSMISSIV |
1 |
|
Ficha técnica |
EA DOG | Bag | Active | 40.0 | 10 x 4 | - | STN - Super-Twisted Nematic | Transmissive | - | 36.00mm x 27.50mm x 4.60mm | 33.00mm L x 12.10mm W | LED | 3.3V | 0.49mm W x 0.31mm H | I2C, SPI | - | -20°C ~ 70°C | - | Blue |
|
EA DOGM204B-ALCD MOD 80DIG 20 X 4 TRANSMISSIV |
1 |
|
Ficha técnica |
EA DOG | Bag | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.83mm H x 2.46mm W | 66.00mm x 38.10mm x 2.00mm | 59.00mm L x 26.00mm W | Without Backlight | 3.3V | 0.48mm W x 0.59mm H | I2C, Parallel, SPI | - | -20°C ~ 70°C | White | Blue |
|
EA DOGM204S-ALCD MOD 80DIG 20 X 4 TRANSMISSIV |
1 |
|
Ficha técnica |
EA DOG | Bag | Active | 80.0 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 4.83mm H x 2.46mm W | 66.00mm x 38.10mm x 2.00mm | 59.00mm L x 26.00mm W | Without Backlight | 3.3V | 0.48mm W x 0.59mm H | I2C, Parallel, SPI | - | -20°C ~ 70°C | White | Black |
|
EA W082-XLGOLED MODULE 16DIG 8 X 2 PASSIVE |
1 |
|
Ficha técnica |
- | Bag | Active | 16.0 | 8 x 2 | 5 x 8 Dots | OLED | Passive | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 4.50mm | 38.00mm L x 16.00mm W | Without Backlight | 3.3V ~ 5V | 0.56mm W x 0.66mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Yellow | Black |
|
EA OLEDM204-LWAOLED MODULE 80DIG 20 X 4 W/PINS |
3 |
|
Ficha técnica |
EA OLED | Bag | Active | 80.0 | 20 x 4 | 5 x 32 Dots | OLED | - | - | 60.96mm x 26.00mm x 2.40mm | 50.00mm L x 20.00mm W | - | 2.4V ~ 3.6V, 4.4V ~ 5.5V | 0.37mm W x 0.51mm H | I2C, SPI | - | -40°C ~ 80°C | White | Black |
|

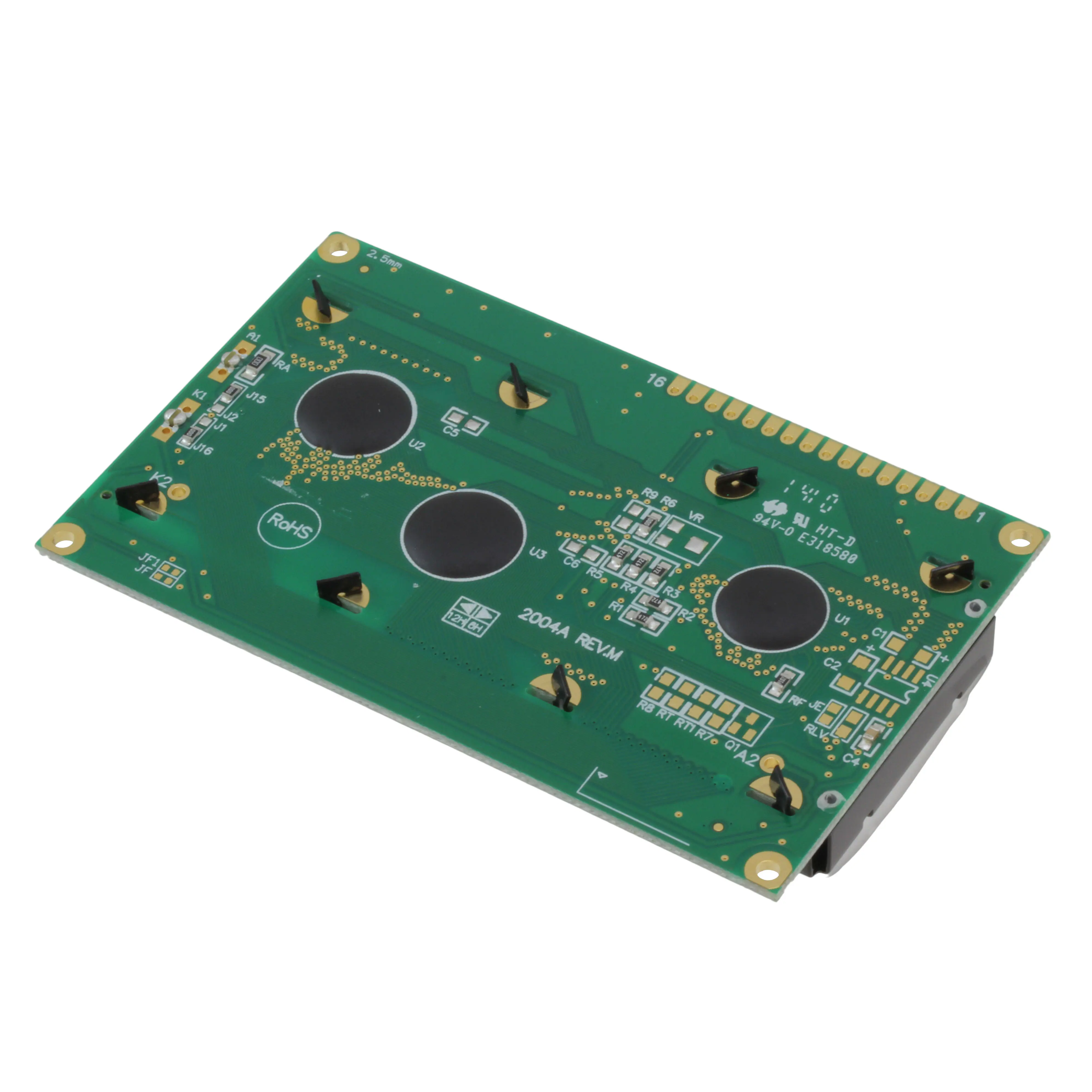

EA W204B-NLWLCD MOD 80DIG 20X4 TRANSFLCT WHT |
0 |
|
Ficha técnica |
BlueLine | Bag | Active | 80.0 | 20 x 4 | - | STN - Super-Twisted Nematic | Transflective | - | - | 64.50mm L x 16.00mm W | LED - White | 5V | - | Parallel, 8-Bit | - | -20°C ~ 70°C | White | Blue |
|

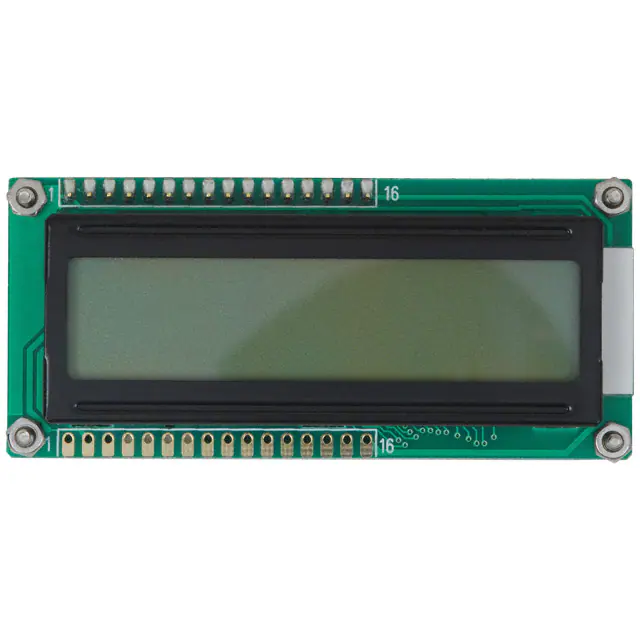

LK162-12-GWLCD MODULE 32 DIG 16 X 2 WHT/GRY |
3 |
|
Ficha técnica |
LK162-12 | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | Alphanumeric | - | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 28.82mm | 56.20mm L x 11.50mm W | LED - White/Gray | 4.75V ~ 5.25V | 0.55mm W x 0.65mm H | I2C, RS-232, TTL | - | 0°C ~ 50°C | Gray | White |
|

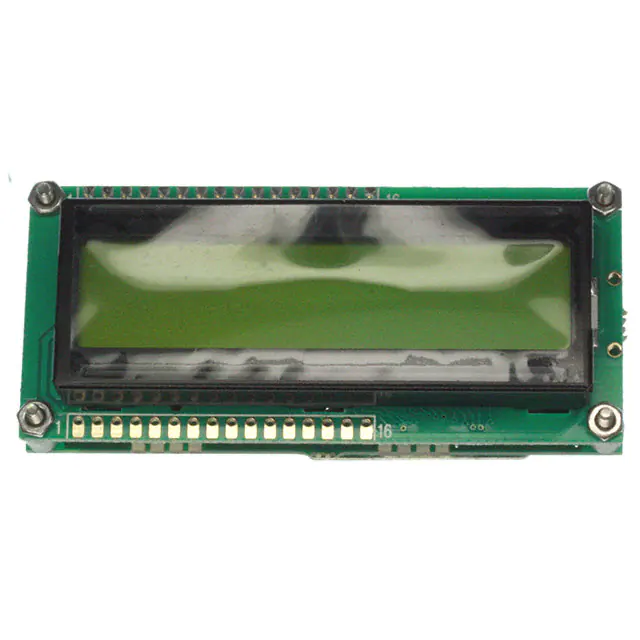

LK162-12LCD MODULE 32 DIG 16 X 2 YLW/GRN |
2 |
|
Ficha técnica |
LK162-12 | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | LCD - Monochrome | - | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 28.82mm | 56.20mm L x 11.50mm W | LED - Yellow/Green | 4.75V ~ 5.25V | 0.55mm W x 0.65mm H | I2C, RS-232, TTL | - | 0°C ~ 50°C | Black | Green |
.JPG)
|

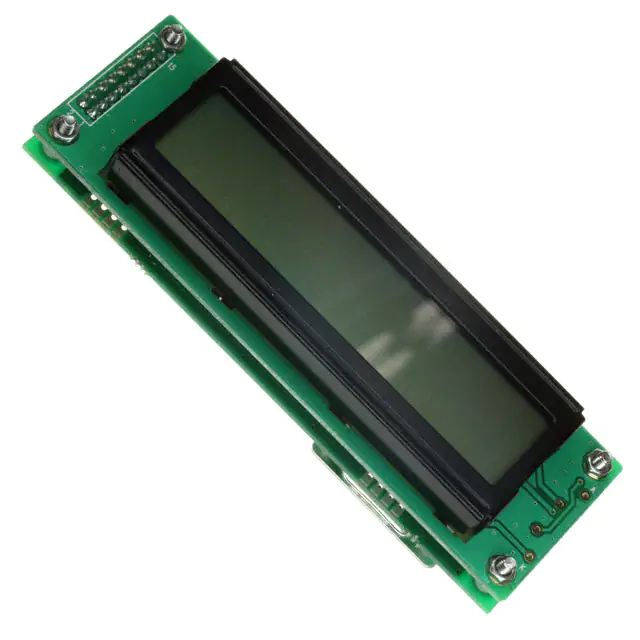

LK202-25-GWLCD MOD 40DIG 20X2 TRANSMISV WHT |
0 |
|
Ficha técnica |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | LCD - Color | Transmissive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 28.69mm | 73.50mm L x 11.50mm W | LED - White | 4.75V ~ 5.25V | 0.60mm W x 0.65mm H | I2C, RS-232, TTL | - | 0°C ~ 50°C | Gray | White |
