LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
O020N004ABPP5N0000OLED MODULE 80DIG 20 X 4 PASSIVE |
0 |
|
- |
- | Tray | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 77.00mm L x 25.20mm W | - | 4.8V ~ 5.3V | 0.54mm W x 0.55mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Blue | - |
|
|
O020N004AGPP5N0000OLED MODULE 80DIG 20 X 4 PASSIVE |
0 |
|
- |
- | Tray | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 77.00mm L x 25.20mm W | - | 4.8V ~ 5.3V | 0.54mm W x 0.55mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Green | - |
|
|
O020N004ALPP5N0000OLED MODULE 80DIG 20 X 4 PASSIVE |
0 |
|
- |
- | Tray | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 77.00mm L x 25.20mm W | - | 4.8V ~ 5.3V | 0.54mm W x 0.55mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Yellow | - |
|

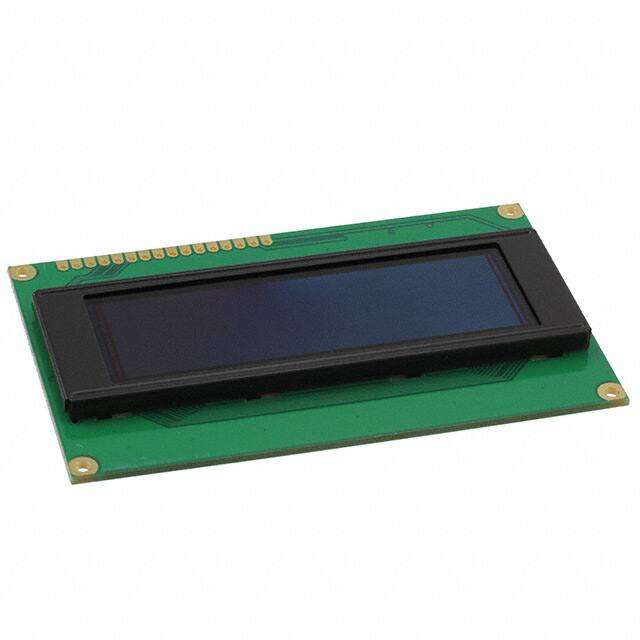

O020N004AWPP5N0000OLED MODULE 80DIG 20 X 4 PASSIVE |
0 |
|
- |
- | Tray | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 77.00mm L x 25.20mm W | - | 4.8V ~ 5.3V | 0.54mm W x 0.55mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | White | - |
|
|
O020N004BBPP5N0000OLED MODULE 80DIG 20 X 4 PASSIVE |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 70.00mm L x 25.20mm W | - | 5V | 0.54mm W x 0.55mm H | SPI | - | - | Blue | - |
|
|
O020N004BGPP5N0000OLED MODULE 80DIG 20 X 4 PASSIVE |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 70.00mm L x 25.20mm W | - | 5V | 0.54mm W x 0.55mm H | SPI | - | - | Green | - |
|
|
O020N004BLPP5N0000OLED MODULE 80DIG 20 X 4 PASSIVE |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 70.00mm L x 25.20mm W | - | 5V | 0.54mm W x 0.55mm H | SPI | - | - | Yellow | - |
|
|
O020N004BRPP5N0000OLED MODULE 80DIG 20 X 4 PASSIVE |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 70.00mm L x 25.20mm W | - | 5V | 0.54mm W x 0.55mm H | SPI | - | - | Red | - |
|
O020N004BWPP5N0000OLED MODULE 80DIG 20 X 4 PASSIVE |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 70.00mm L x 25.20mm W | - | 5V | 0.54mm W x 0.55mm H | SPI | - | - | White | - |
|
|
O040N002ALPP5N0000OLED MODULE 80DIG 20 X 4 PASSIVE |
0 |
|
- |
- | Tray | Active | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 5.55mm H x 3.05mm W | 182.00mm x 38.50mm x 9.30mm | 154.40mm L x 16.50mm W | - | 4.8V ~ 5.3V | 0.57mm W x 0.65mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Yellow | - |
|
|
LCM-H02002DTFLCD MOD 40DIG 20X2 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | TN - Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 12.70mm | 85.00mm L x 16.80mm W | LED | 4.7V ~ 5.3V | 0.60mm W x 0.65mm H | - | - | -20°C ~ 70°C | - | - |
|
|
LCM-S02002DSF-S5LCD MODULE 40 DIG 20 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | - | - | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 8.90mm | 85.00mm L x 18.60mm W | Without Backlight | 4.7V ~ 5.3V | 0.60mm W x 0.65mm H | - | - | 0°C ~ 70°C | - | - |
|
|
LCM-H01602DSF/DLCD MOD 32DIG 16X2 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.63mm H x 4.84mm W | 122.00mm x 44.00mm x 13.00mm | 99.00mm L x 24.00mm W | LED | 4.7V ~ 5.3V | - | - | - | 0°C ~ 50°C | - | - |
|
|
LCM-H01602DSF/GLCD MOD 32DIG 16X2 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.56mm H x 2.96mm W | 84.00mm x 44.00mm x 12.00mm | 63.00mm L x 19.00mm W | LED | - | 0.56mm W x 0.66mm H | - | - | -20°C ~ 70°C | - | - |
|
|
LCM-S01602DTR/A-3LCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | TN - Twisted Nematic | Reflective | 5.56mm H x 2.96mm W | 80.00mm x 36.00mm x 8.80mm | 66.00mm L x 16.00mm W | Without Backlight | 2.7V ~ 4.5V | 0.56mm W x 0.66mm H | - | - | 0°C ~ 50°C | - | - |
|
|
LCM-H01602DSF/A-ALCD MOD 32DIG 16X2 TRANSFLCT WHT |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | TN - Twisted Nematic | Transflective | 5.56mm H x 2.96mm W | 80.00mm x 36.00mm x 12.70mm | 66.00mm L x 16.00mm W | LED - White | 4.7V ~ 5.3V | 0.56mm W x 0.66mm H | - | - | -20°C ~ 70°C | - | - |
|
|
LCD-S101D14TFLCD MOD 1DIG 1 X 1 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Active | 1.0 | 1 x 1 | 7-Segment | TN - Twisted Nematic | Transflective | 34.54mm H x 19.00mm W | 50.00mm x 33.00mm x 2.80mm | 38.90mm L x 27.90mm W | Without Backlight | 5V | - | - | - | 0°C ~ 50°C | - | Gray |
|
|
LCD-H401C71TRLCD MOD 4 DIG 4 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
- | Tape & Reel (TR) | Active | 4.0 | 4 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 18.00mm H x 9.00mm W | 69.85mm x 38.10mm x 2.80mm | 62.23mm L x 22.86mm W | Without Backlight | 5V | - | - | - | -30°C ~ 75°C | - | Gray |
|
|
LCD-S301C31TR-3LCD MOD 3 DIG 3 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
- | Tray | Active | 3.0 | 3 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | - | 30.70mm x 16.20mm x 2.80mm | 27.90mm L x 10.00mm W | Without Backlight | 3V | - | - | - | 0°C ~ 50°C | - | Gray |
|
|
LCD-S401C71TF-1LCD MOD 4DIG 4 X 1 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Tray | Active | 4.0 | 4 x 1 | 7-Segment | TN - Twisted Nematic | Transflective | 18.00mm H x 9.00mm W | 69.85mm x 38.10mm x 2.80mm | 62.23mm L x 22.86mm W | Without Backlight | 5V | - | - | - | 0°C ~ 50°C | - | Gray |
