LED COBs, motores, módulos, tiras
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Cor | CCT (K) | Comprimento de onda | Configuração | Fluxo luminoso @ corrente/temperatura | Corrente - Teste | Temperatura - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | CRI (Índice de renderização de cores) | Ângulo de visão | Recursos | Tamanho/dimensão | Altura | Superfície emissora de luz (LES) | Tipo de lente |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLU03Q-1208E1-272H5X3LED COB CLU03Q WARM WHT SQ 2700K |
48 |
|
Ficha técnica |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 3379lm (Typ) | 720mA | 85°C | 33.8V | 129 lm/W | 1.84A | 90 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
BXRE-30E6500-D-73LED COB V22 WM WH SQUARE 3000K |
50 |
|
Ficha técnica |
Gen 7 V22 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6846lm (Typ) | 1.4A | 85°C | 33.4V | 146 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia | Flat |
|
BXEB-L0560Z-30S2000-C-C3LED MOD EB SER WH LNR STR 3000K |
90 |
|
Ficha técnica |
EB Series™ Gen 3 Thrive | Bulk | Active | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2470lm (Typ) | 960mA | 25°C | 20.3V | 127 lm/W | 1.92A | 98 (Typ) | 120° | - | 560.00mm L x 24.00mm W | 6.10mm | - | Flat |
|
|
CLU03Q-1208E1-352M2X2LED COB CLU03Q WARM WHT SQ 3500K |
29 |
|
Ficha técnica |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 4200lm | 720mA | 85°C | 33.8V | 160 lm/W | 1.84A | 80 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
BXRC-40E2000-C-83LED COB VERO 13C WHT ROUND 4000K |
7 |
|
Ficha técnica |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 3068lm (Typ) | 500mA | 25°C | 33.4V | 184 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
|
CMA1840-0000-000N0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
93 |
|
Ficha técnica |
XLamp® CMA1840 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4817lm (Typ) | 1.1A | 85°C | 34.7V | 126 lm/W | 2.3A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CLU713-1204E1-303M2X2LED COB CLU713 WM WHT SQ 3000K |
40 |
|
Ficha técnica |
CLU713 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3557lm (Typ) | 700mA | 85°C | 36.5V | 131 lm/W | 1.2A | 97 (Typ) | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 8.50mm Dia | Flat |
|
CXA2540-0000-000N0YT430GLED COB XLAMP WARM WHT SQ 3000K |
34 |
|
Ficha técnica |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 1.1A | 85°C | 36V | 90 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CL-L104-C3N-FLED COB CL-L104 WHT RECT 5000K |
51 |
|
Ficha técnica |
CL-L104 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Rectangle | 385lm (Typ) | 350mA | 25°C | 9.2V | 120 lm/W | 720mA | 65 (Typ) | - | - | 50.00mm L x 7.00mm W | 1.35mm | - | Flat |
|
MTG7-001I-XPG00-CW-0H53LED MOD CREE XP-G STARBRD 6000K |
87 |
|
Ficha técnica |
Cree XP-G | Tray | Active | LED Module | White, Cool | 6000K | - | Starboard | 144lm (139lm ~ 148lm) | 350mA | 25°C | 2.9V | 142 lm/W | 1.5A | 70 (Typ) | 125° | - | 19.90mm Dia | - | - | Domed |
|
|
CXB2530-0000-00PN0U0A30GLED COB XLAMP WARM WHT SQU 3000K |
86 |
|
Ficha técnica |
XLamp® CXB2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3817lm | 800mA | 85°C | 35V | 136 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CDM-14-4027-90-36-DW01LED MOD CDM WHITE RECT 4000K |
88 |
|
Ficha técnica |
CDM, Human Centric (HCL) | Tray | Active | LED Module | White, Warm / White, Neutral | 2700K ~ 4000K | - | Rectangle | 2085lm (Typ) | 600mA | 85°C | 35.5V | 98 lm/W | 800mA | 92 | 130° | Dimming - Warm | 24.00mm L x 20.00mm W | 1.58mm | 15.50mm Dia | Flat |
|
|
CLU713-1204E1-303H7X5LED COB CLU713 WM WHT SQ 3000K |
38 |
|
Ficha técnica |
CLU713 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2770lm (Typ) | 700mA | 85°C | 36.5V | 102 lm/W | 1.2A | 97 (Typ) | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 8.50mm Dia | Flat |
|
FIT0809LED MOD GREEN LINEAR STRIP 3V |
7 |
|
- |
- | Bulk | Active | LED Module | Green | - | - | Linear Light Strip, Flexible | - | - | - | 3V | - | 80mA | - | 360° | - | 257.00mm L x 1.80mm W | - | - | - |
|
CXB1310-0000-000F0HM230GLED COB XLAMP WARM WHT SQ 3000K |
93 |
|
Ficha técnica |
XLamp® CXB1310 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 700mA | 85°C | 18V | 114 lm/W | 1.4A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|

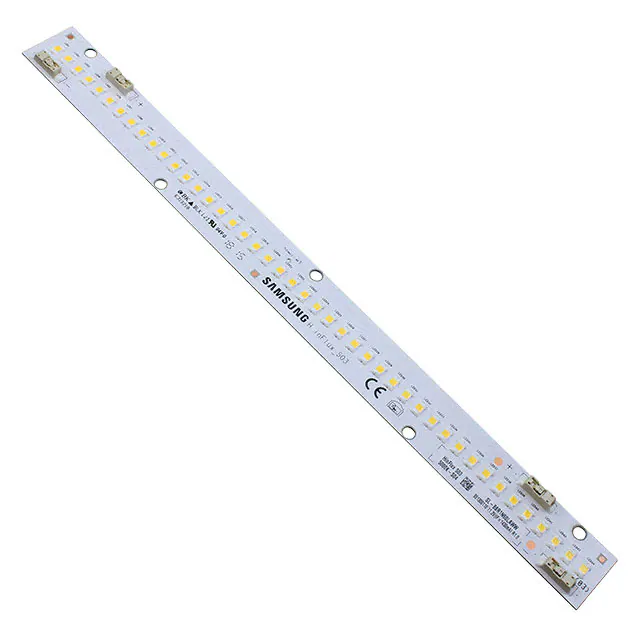

SL-B8T1N60LAWWLED MOD H INFLUX LNR STRP 4000K |
99 |
|
Ficha técnica |
H inFlux | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 3060lm (Typ) | 1.43A | 55°C | 11.2V | 191 lm/W | 2.2A | 80 | 118° | - | 280.00mm L x 24.00mm W | 5.20mm | - | Flat |
|
AB-FO02440-02012-9A1LED COB AB-FO WH LNR STRP 4000K |
25 |
|
Ficha técnica |
AB-FO | Bag | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 536lm | 250mA | - | 24V | 87 lm/W | 250mA | 90 | 150° | IP65 | - | 2.20mm | - | Flat |
|
BXRV-TR-2750G-65A0-A-23LED COB VESTA WHITE SQUARE 3850K |
92 |
|
Ficha técnica |
Vesta™ | Tube | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Square | 5963lm (Typ) | 900mA | 25°C | 53V | 125 lm/W | 1.4A | 92 | 130° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.10mm Dia | Flat |
|
4613LED COB WM WHT LNR STRP 3000K |
76 |
|
Ficha técnica |
- | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K | - | Linear Light Strip, Flexible | 1100lm | - | - | 9V ~ 12V | - | - | 90 | 180° | - | 1000.00mm L x 10.00mm W | - | - | Flat |
|
|
CLU03Q-1210E1-272M2X2LED COB CLU03Q WARM WHT SQ 2700K |
93 |
|
Ficha técnica |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 4866lm (Typ) | 900mA | 85°C | 33.8V | 149 lm/W | 2.3A | 80 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
