LED COBs, motores, módulos, tiras
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Cor | CCT (K) | Comprimento de onda | Configuração | Fluxo luminoso @ corrente/temperatura | Corrente - Teste | Temperatura - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | CRI (Índice de renderização de cores) | Ângulo de visão | Recursos | Tamanho/dimensão | Altura | Superfície emissora de luz (LES) | Tipo de lente |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3590-0000-000R0YZ227GLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 7668lm (7390lm ~ 7945lm) | 1.2A | 85°C | 72V | 89 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000R0YZ430GLED COB XLAMP WARM WHT SQ 3000K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 72V | 95 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000R0YZ435GLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 72V | 95 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
CLU058-1825C4-353M2K1LED COB CLU058 WARM WHT SQ 3500K |
0 |
|
Ficha técnica |
CLU058 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 17748lm (Typ) | 2.25A | 85°C | 52V | 152 lm/W | 5.75A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
LPH1-04C24-5770-00LED MOD XHP70.2 LNR STRP 5700K |
0 |
|
Ficha técnica |
XHP70.2 | Tray | Active | LED Module | White, Cool | 5700K | - | Linear Light Strip | 7320lm (Typ) | 1.05A | 85°C | 44.8V | 156 lm/W | 2.4A | 70 | - | - | 170.18mm L x 32.99mm W | - | - | Domed |
|
|
LPH1-04C24-5780-00LED MOD XHP70.2 LNR STRP 5700K |
0 |
|
Ficha técnica |
XHP70.2 | Tray | Active | LED Module | White, Cool | 5700K | - | Linear Light Strip | 7320lm (Typ) | 1.05A | 85°C | 44.8V | 156 lm/W | 2.4A | 80 | - | - | 170.18mm L x 32.99mm W | - | - | Domed |
|

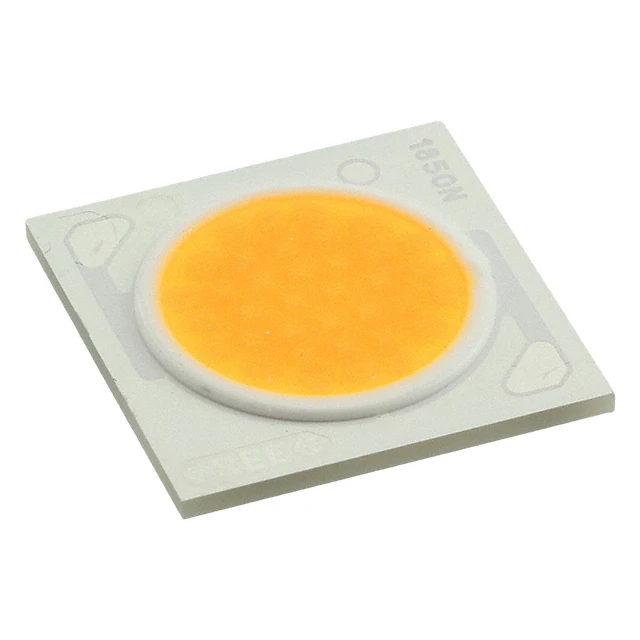

CXA1850-0000-000N00U430FLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Ficha técnica |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 1.4A | 85°C | 35V | 84 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXB3590-0000-00PN0Z0AL7CLED COB XLAMP WHITE SQUARE |
0 |
|
Ficha técnica |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White | - | - | Square | - | 2.4A | 85°C | 36V | - | 3.6A | - | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-00PR0Z0AL7CLED COB XLAMP WHITE SQUARE |
0 |
|
Ficha técnica |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White | - | - | Square | - | 1.2A | 85°C | 72V | - | 1.8A | - | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
CXA2590-0000-000R0UX20E3LED COB XLAMP COOL WHT SQ 5000K |
0 |
|
Ficha técnica |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5800lm (5590lm ~ 6010lm) | 1.2A | 85°C | 69V | 70 lm/W | 1.8A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0UX20E5LED COB XLAMP NEUT WHT SQ 4000K |
0 |
|
Ficha técnica |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 5800lm (5590lm ~ 6010lm) | 1.2A | 85°C | 69V | 70 lm/W | 1.8A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0AD27HLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0BB27FLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 2.4A | 85°C | 36V | 113 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0BB30HLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 2.4A | 85°C | 36V | 113 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0BB35HLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 2.4A | 85°C | 36V | 113 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0BD30FLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0BD35FLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0BD40HLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0CB40FLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0CB50HLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
