| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Cor | CCT (K) | Comprimento de onda | Configuração | Fluxo luminoso @ corrente/temperatura | Corrente - Teste | Temperatura - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | CRI (Índice de renderização de cores) | Ângulo de visão | Recursos | Tamanho/dimensão | Altura | Superfície emissora de luz (LES) | Tipo de lente |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA2590-0000-000R0YX230HLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.2A | 85°C | 69V | 70 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YX430FLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 6220lm (6010lm ~ 6430lm) | 1.2A | 85°C | 69V | 75 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YX435FLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 6220lm (6010lm ~ 6430lm) | 1.2A | 85°C | 69V | 75 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|

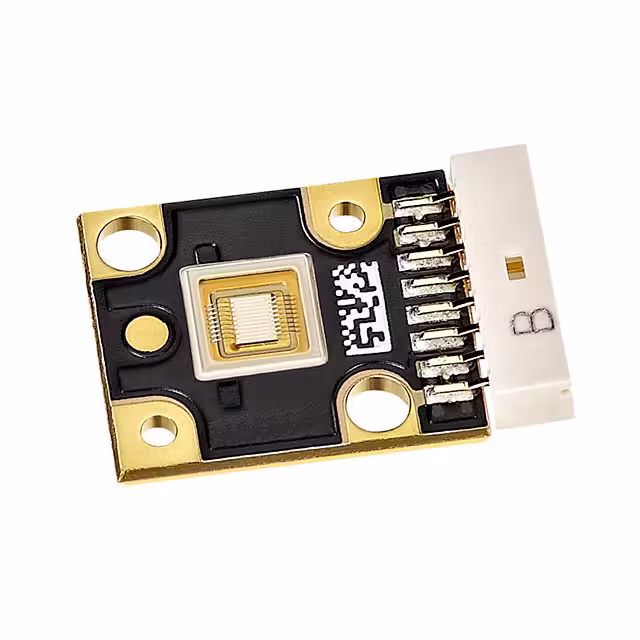

PT-40-B-L51-EPJLED MOD PT-40 BLUE RECT |
0 |
|
Ficha técnica |
PT-40 | Tray | Obsolete | LED Module | Blue | - | 462nm | Rectangle | 365lm (300lm ~ 430lm) | 9.8A | 40°C | 3.8V | 10 lm/W | - | - | - | With Connector | 21.85mm L x 15.00mm W | 3.70mm | 1.61mm L x 2.42mm W | Flat |
|

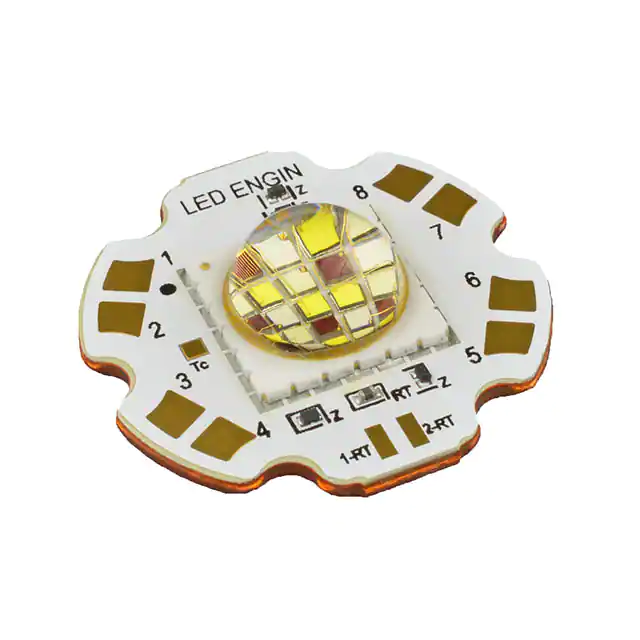

LZP-L0MD00-0000LED MOD LUXIGEN STARBRD 6335K |
0 |
|
Ficha técnica |
LuxiGen™ | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool | 6335K | 624nm Red, 525nm Green, 457nm Blue | Starboard | 770lm Red, 925lm Green, 221lm Blue, 1605lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 25°C | 15V Red, 21.6V Green, 19.2V Blue, 22.4V White | 73 lm/W Red, 61 lm/W Green, 16 lm/W Blue, 102 lm/W White | 1A Red, 1A Green, 1A Blue, 1A White | 75 (Typ) | 125° | - | 27.60mm Dia | 7.60mm | 10.50mm Dia | Domed |
|
SBR-90-WDLS-R71-NA150LED MOD SBR-90 WHT STARBOARD |
0 |
|
Ficha técnica |
SBR-90 | Tray | Active | LED Module | - | - | - | Starboard | - | - | - | - | - | - | - | - | - | 10.00mm L x 11.00mm W | 1.54mm | 3.00mm L x 3.00mm W | Flat |
|
LPH1-04C24-2780-00LED MOD XHP70.2 WH LNR STR 2700K |
0 |
|
Ficha técnica |
XHP70.2 | Tray | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 5490lm (Typ) | 1.05A | 85°C | 44.8V | 126 lm/W | 2.4A | 80 | - | - | 170.18mm L x 32.99mm W | - | - | Domed |
|
|
LPH1-04C24-2790-00LED MOD XHP70.2 WH LNR STR 2700K |
0 |
|
Ficha técnica |
XHP70.2 | Tray | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 5490lm (Typ) | 1.05A | 85°C | 44.8V | 126 lm/W | 2.4A | 90 | - | - | 170.18mm L x 32.99mm W | - | - | Domed |
|
|
LPH1-04C24-3070-00LED MOD XHP70.2 WH LNR STR 3000K |
0 |
|
Ficha técnica |
XHP70.2 | Tray | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 6840lm (Typ) | 1.05A | 85°C | 44.8V | 145 lm/W | 2.4A | 70 | - | - | 170.18mm L x 32.99mm W | - | - | Domed |
|
|
LPH1-04C24-3080-00LED MOD XHP70.2 WH LNR STR 3000K |
0 |
|
Ficha técnica |
XHP70.2 | Tray | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 6840lm (Typ) | 1.05A | 85°C | 44.8V | 145 lm/W | 2.4A | 80 | - | - | 170.18mm L x 32.99mm W | - | - | Domed |
|
OPA731WLED MOD OPA731 COOL WH SQ 6500K |
0 |
|
- |
OPA731 | - | Obsolete | LED Module | White, Cool | 6500K | - | Square | 960lm (Typ) | 1.4A | 25°C | 18V | 38 lm/W | 1.4A | - | 120° | With Connector | 69.85mm L x 63.50mm W | 1.45mm | - | Domed |
|
PT-39-G-L21-MPHLED MOD PT-39 GREEN RECT |
0 |
|
Ficha técnica |
PT-39 | Tray | Not For New Designs | LED Module | Green | - | 525nm | Rectangle | 1735lm (1450lm ~ 2020lm) | 9.8A | 40°C | 5.2V | 34 lm/W | 9.8A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W | Flat |
|
PT-54-RAX-L35-MPHLED MOD PT-54 AMBER RECT |
0 |
|
Ficha técnica |
PT-54 | Tray | Active | LED Module | Amber | - | 613nm | Rectangle | 1213lm (990lm ~ 1435lm) | 13.5A | 40°C | 3V | 30 lm/W | - | - | - | With Connector | 26.50mm L x 16.00mm W | 6.40mm | 2.00mm L x 2.70mm W | Flat |
|
LZC-C0CW0R-0055LED MOD LZC WHT STARBOARD 5500K |
0 |
|
Ficha técnica |
LZC | Tray | Obsolete | LED Module | White, Cool | 5500K | - | Starboard | 2554lm (1908lm ~ 3200lm) | 2 x 700mA | 25°C | 18.9V | 97 lm/W | 1A | 70 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia | Domed |
|
150465-1LED MOD BLUE LNR LGT STRIP |
5 |
|
Ficha técnica |
- | Box | Obsolete | LED Module | Blue | - | - | Linear Light Strip | - | - | - | 12V | - | - | - | - | IP65 | 74.93mm L x 12.45mm W | 4.06mm | - | Flat |
|
CXA3590-0000-000N0HCB0E5LED COB XLAMP NEUT WHT SQ 4000K |
0 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
PT-39-B-L21-EPFLED MOD PT-39 BLUE RECT |
0 |
|
Ficha técnica |
PT-39 | Tray | Not For New Designs | LED Module | Blue | - | 462nm | Rectangle | - | 9.8A | 40°C | 3.9V | - | 9.8A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W | Flat |
|
|
AB-FA012AM-19712-XA1LED MOD AB-FA AMBER LNR STRIP |
0 |
|
Ficha técnica |
AB-FA | Bulk | Active | LED Module | Amber | - | 575nm (558nm ~ 592nm) | Linear Light Strip, Flexible | 190lm (Typ) | - | 25°C | 12V | 19 lm/W | 830mA | - | 120° | IP20 | 5000.00mm L x 10.00mm W | - | - | Flat |
|
|
CVM-32-56-95-54-TC42-F5-3STUDIO COBS |
0 |
|
Ficha técnica |
CVM-32 Gen4 | Tray | Active | Chip On Board (COB) | White, Cool | 5600K 3-Step MacAdam Ellipse | - | Square | 30000lm (Typ) | 5A | 85°C | 55.1V | 109 lm/W | 6A | 95 | 120° | - | 38.00mm L x 38.00mm W | 1.37mm | 33.00mm Dia | Flat |
|
LPS1-04C24-4070-00LED MOD XHP70.2 NEUT WH SQ 4000K |
0 |
|
Ficha técnica |
XHP70.2 | Tray | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 7320lm (Typ) | 1.05A | 85°C | 44.8V | 156 lm/W | 2.4A | 70 | - | - | 70.00mm L x 70.00mm W | - | - | Domed |
