LED COBs, motores, módulos, tiras
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Cor | CCT (K) | Comprimento de onda | Configuração | Fluxo luminoso @ corrente/temperatura | Corrente - Teste | Temperatura - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | CRI (Índice de renderização de cores) | Ângulo de visão | Recursos | Tamanho/dimensão | Altura | Superfície emissora de luz (LES) | Tipo de lente |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XHP50A-00-0000-0D0BH430E-SB01LED MOD XLAMP WHT STARBRD 3000K |
0 |
|
Ficha técnica |
Xlamp® XHP50 | Tray | Obsolete | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Starboard | 1005lm (970lm ~ 1040lm) | 1.4A, 700mA | 85°C | 6V, 12V | 62 lm/W | 3A, 1.5A | 70 | 120° | - | 19.89mm Dia | - | - | Domed |
|
XHP70A-00-0000-0D0BN450E-SB01LED MOD XLAMP WH STARBOARD 5000K |
0 |
|
Ficha técnica |
Xlamp® XHP70 | Tray | Obsolete | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Starboard | 1770lm (1710lm ~ 1830lm) | 2.1A, 1.05A | 85°C | 6V, 12V | 145 lm/W | 4.8A, 2.4A | 70 | 120° | - | 19.89mm Dia | - | - | Domed |
|
XPEBGR-L1-0000-00G01-SB01LED MOD XLAMP GREEN STARBOARD |
0 |
|
Ficha técnica |
XLamp® XP-E2 | Tray | Obsolete | LED Module | Green | - | 528nm (520nm ~ 535nm) | Starboard | 135lm (130lm ~ 139lm) | 350mA | 25°C | 3.2V | 121 lm/W | 1A | - | 135° | - | 19.89mm Dia | - | - | Domed |
|
LXK8-PW27-0004LED MOD LUXEON K WM WH RND 2700K |
0 |
|
Ficha técnica |
LUXEON K | Tray | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 375lm (Typ) | 350mA | 85°C | 10.5V | 102 lm/W | 1.05A | 80 | 100° | - | 17.57mm Dia | 3.42mm | - | Domed |
|
|
LXK8-PW27-0008LED MOD LUXEON K WM WH RND 2700K |
0 |
|
Ficha técnica |
LUXEON K | Tray | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 775lm (Typ) | 350mA | 85°C | 21V | 105 lm/W | 1.05A | 80 | 100° | - | 21.50mm Dia | 3.42mm | - | Domed |
|
|
LXK8-PW27-0012LED MOD LUXEON K WM WH RND 2700K |
0 |
|
Ficha técnica |
LUXEON K | Tray | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1165lm (Typ) | 350mA | 85°C | 31.5V | 106 lm/W | 1.05A | 80 | 100° | - | 24.20mm Dia | 3.42mm | - | Domed |
|
|
LXK8-PW27-0024LED MOD LUXEON K WM WH RND 2700K |
0 |
|
Ficha técnica |
LUXEON K | Tray | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2400lm (Typ) | 350mA | 85°C | 63V | 109 lm/W | 1.05A | 80 | 100° | - | 30.00mm Dia | 3.42mm | - | Domed |
|
|
LXK8-PW30-0004LED MOD LUXEON K WHT RND 3000K |
0 |
|
Ficha técnica |
LUXEON K | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 460lm (Typ) | 350mA | 85°C | 10.5V | 125 lm/W | 1.05A | 80 | 100° | - | 17.57mm Dia | 3.42mm | - | Domed |
|
|
LXK8-PW30-0012LED MOD LUXEON K WHT RND 3000K |
0 |
|
Ficha técnica |
LUXEON K | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1375lm (Typ) | 350mA | 85°C | 31.5V | 125 lm/W | 1.05A | 80 | 100° | - | 24.20mm Dia | 3.42mm | - | Domed |
|
|
LXK8-PW30-0016LED MOD LUXEON K WHT RND 3000K |
0 |
|
Ficha técnica |
LUXEON K | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1640lm (Typ) | 350mA | 85°C | 42V | 112 lm/W | 1.05A | 80 | 100° | - | 24.20mm Dia | 3.42mm | - | Domed |
|
|
LXK8-PW40-0004LED MOD LUXEON K WHT ROUND 4000K |
0 |
|
Ficha técnica |
LUXEON K | Tray | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 505lm (Typ) | 350mA | 85°C | 10.5V | 137 lm/W | 1.05A | 80 | 100° | - | 17.57mm Dia | 3.42mm | - | Domed |
|
|
LXK8-PW40-0012LED MOD LUXEON K WHT ROUND 4000K |
0 |
|
Ficha técnica |
LUXEON K | Tray | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1405lm (Typ) | 350mA | 85°C | 31.5V | 127 lm/W | 1.05A | 80 | 100° | - | 24.20mm Dia | 3.42mm | - | Domed |
|
PT-39-G-L51-CD100LED MOD PT-39 GREEN RECT |
0 |
|
Ficha técnica |
PT-39 | Tray | Obsolete | LED Module | Green | - | - | Rectangle | 2700mW (2600mW ~ 2800mW) | 7.5A | 40°C | 4V | - | 10A | - | - | With Connector | 21.85mm L x 15.00mm W | 3.70mm | 1.87mm L x 2.09mm W | Flat |
|

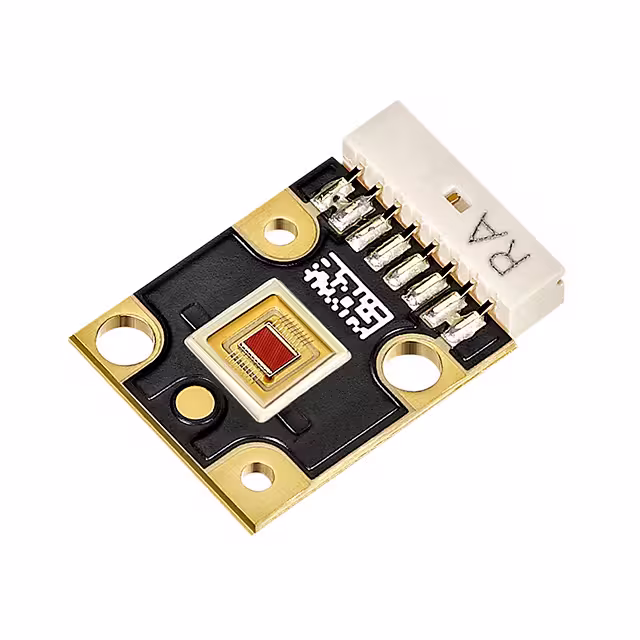

PT-40-RAX-L55-MPLLED MOD PT-40 RED RECT |
0 |
|
Ficha técnica |
PT-40 | Tray | Obsolete | LED Module | Red | - | - | Rectangle | 1058lm (990lm ~ 1125lm) | 9.8A | 40°C | 3.1V | 35 lm/W | - | - | - | With Connector | 21.85mm L x 15.00mm W | 3.70mm | 1.61mm L x 2.42mm W | Flat |
|

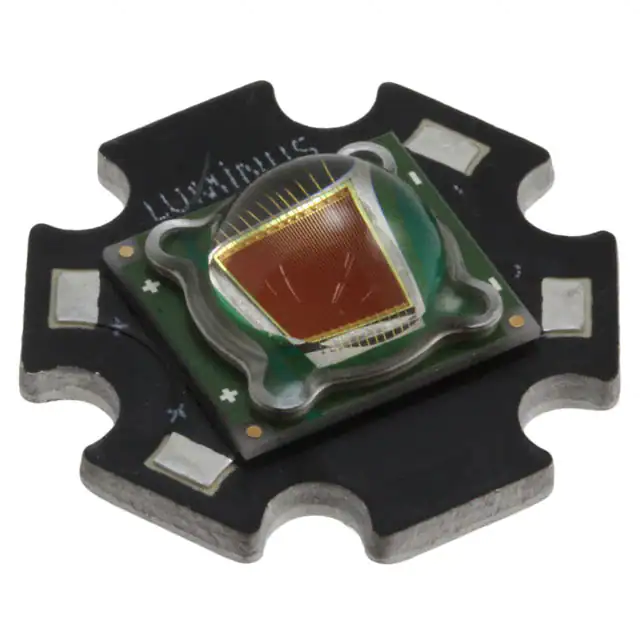

SSR-90-R-R11-HJ102LED MOD SSR-90 RED STARBOARD |
0 |
|
Ficha técnica |
SSR-90 | Tray | Obsolete | LED Module | Red | - | 619nm (615nm ~ 623nm) | Starboard | 540lm (Typ) | 3.15A | 25°C | 2.1V | 103 lm/W | 18A | - | - | - | 19.90mm Dia | 7.10mm | 3.00mm L x 3.00mm W | Domed |
|
3574CAN LIGHT, 24V, ROUND, WARM WHIT |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GW KAHJB1.CM-SRSS-30S3-T02LED COB SOLERIQ WHT SQ 3000K |
0 |
|
Ficha técnica |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 2250lm (2100lm ~ 2400lm) | 500mA | 85°C | 46.5V | 97 lm/W | 700mA | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.60mm | 18.10mm Dia | Flat |
|
|
GW KAHJB1.CM-SSST-35S3-T02LED COB SOLERIQ WHT SQ 3500K |
0 |
|
Ficha técnica |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Square | 2415lm (2240lm ~ 2590lm) | 500mA | 85°C | 46.5V | 104 lm/W | 700mA | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.60mm | 18.10mm Dia | Flat |
|
|
GW KAHJB1.CM-SSST-40S3-T02LED COB SOLERIQ WHT SQ 4000K |
0 |
|
Ficha técnica |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 2415lm (2240lm ~ 2590lm) | 500mA | 85°C | 46.5V | 104 lm/W | 700mA | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.60mm | 18.10mm Dia | Flat |
|
|
GW KAHJB1.CM-SRSS-27S3-T02LED COB SOLERIQ WHT SQ 2700K |
0 |
|
Ficha técnica |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 2600lm (2400lm ~ 2800lm) | 500mA | 85°C | 48V | 108 lm/W | 700mA | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.60mm | 18.10mm Dia | Flat |
