LED COBs, motores, módulos, tiras
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Cor | CCT (K) | Comprimento de onda | Configuração | Fluxo luminoso @ corrente/temperatura | Corrente - Teste | Temperatura - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | CRI (Índice de renderização de cores) | Ângulo de visão | Recursos | Tamanho/dimensão | Altura | Superfície emissora de luz (LES) | Tipo de lente |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L2C5-RM001211E1900LED COB LUXEON WARM WHT SQ 2200K |
97 |
|
Ficha técnica |
LUXEON CoB FreshFocus | Tube | Active | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 2820lm (Typ) | 1.2A | 85°C | 34.8V | 67 lm/W | 2.4A | - | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
CLU04Q-1818E1-352H5X3LED COB CLU04Q WARM WHT SQ 3500K |
23 |
|
Ficha técnica |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 12346lm (Typ) | 1.62A | 85°C | 50.7V | 140 lm/W | 4.14A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1818E1-272M2X2LED COB CLU04Q WARM WHT SQ 2700K |
29 |
|
Ficha técnica |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 13025lm (Typ) | 1.62A | 85°C | 50.7V | 148 lm/W | 4.14A | 80 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1818E1-403L7X4LED COB CLU04Q NEUT WHT SQ 4000K |
22 |
|
Ficha técnica |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 14825lm (Typ) | 1.62A | 85°C | 50.7V | 168 lm/W | 4.14A | 70 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1818E1-402M2X2LED COB CLU04Q NEUT WHT SQ 4000K |
18 |
|
Ficha técnica |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 13916lm (Typ) | 1.62A | 85°C | 50.7V | 158 lm/W | 4.14A | 80 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
SI-B8T441560WWLinear IC's |
56 |
|
Ficha técnica |
H inFlux | Bulk | Last Time Buy | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 8920lm (Typ) | 1A | 55°C | 44.2V | 202 lm/W | 1.6A | 80 | 118° | - | 561.00mm L x 41.00mm W | 5.50mm | - | Flat |
|
BXRC-57E10K1-C-83LED COB VERO 29C WHT ROUND 5700K |
28 |
|
Ficha técnica |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 16043lm (Typ) | 1.3A | 25°C | 66.7V | 185 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
BXRC-27H10K0-C-83-SELED COB VERO SE 29C WH RND 2700K |
49 |
|
Ficha técnica |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 11014lm (Typ) | 1.3A | 25°C | 66.7V | 127 lm/W | 4.75A | 97 (Typ) | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-30H10K0-C-83-SELED COB VERO SE29C WH RND 3000K |
47 |
|
Ficha técnica |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 11767lm (Typ) | 1.3A | 25°C | 66.7V | 136 lm/W | 4.75A | 97 (Typ) | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-57C10K1-C-83-SELED COB VERO SE 29C WH RND 5700K |
50 |
|
Ficha técnica |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 16850lm (Typ) | 1.3A | 25°C | 66.7V | 194 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-57E10K1-C-83-SELED COB VERO SE 29C WH RND 5700K |
50 |
|
Ficha técnica |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 16003lm (Typ) | 1.3A | 25°C | 66.7V | 185 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-65E10K1-C-83-SELED COB VERO SE 29C WH RND 6500K |
48 |
|
Ficha técnica |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 16191lm (Typ) | 1.3A | 25°C | 66.7V | 187 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
CXA3590-0000-000R00AD27FLED COB XLAMP WARM WHT SQU 2700K |
20 |
|
Ficha técnica |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 77V | 100 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
LHC1-4070-1211LED COB LUXEON NEUT WH SQ 4000K |
34 |
|
Ficha técnica |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 5600lm (Typ) | 1.2A | 85°C | 35.5V | 131 lm/W | 2.4A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|

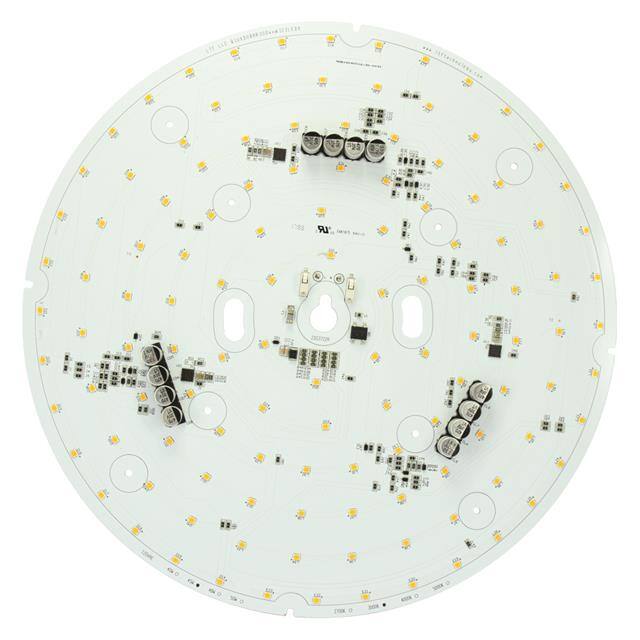

QLUXDOBAR30045W12930LED ENG QLUX WHT ROUND 3000K |
98 |
|
Ficha técnica |
QLUX | Bag | Active | LED Engine | White, Neutral | 3000K 3-Step MacAdam Ellipse | - | Round | 4174lm | - | 25°C | 120VAC | 90 lm/W | - | 94 | 160° | Dimming-ELV, Triac | 300.00mm Dia | - | - | Flat |
|
AB-GES-L10206W304T1LED ENG AB-GES WH LNR STRP 3000K |
38 |
|
Ficha técnica |
AB-GES | Tray | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 600lm (Typ) | - | 25°C | 230VAC | - | - | 80 | - | - | 100.00mm L x 32.00mm W | - | - | Flat |
|
L2M0-5770003MC3300LED MOD LUXEON WH LNR STR 5700K |
17 |
|
Ficha técnica |
LUXEON XR-M | Tray | Obsolete | LED Module | White, Cool | 5700K | - | Linear Light Strip | 3239lm (Typ) | 700mA | 85°C | 33V | 140 lm/W | 1.05A | 70 | - | - | 132.00mm L x 33.00mm W | 6.21mm | - | Domed |
|
BXRC-30A10K1-L-23LED COB DECOR WM WHT RND 3000K |
41 |
|
Ficha técnica |
Décor Series™ Class A Vero® 29 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 6668lm (Typ) | 2.1A | 85°C | 36.8V | 86 lm/W | 4.2A | 93 (Typ) | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
BXRC-35A10K1-L-23LED COB DECOR WM WHT RND 3000K |
20 |
|
Ficha técnica |
Décor Series™ Class A Vero® 29 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 7637lm (Typ) | 2.1A | 70°C | 37.2V | 98 lm/W | 4.2A | 93 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-35E10K0-D-83-SEVERO SE 29D WARM WHITE LED ARRAY |
83 |
|
Ficha técnica |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 11684lm (Typ) | 1.3A | 25°C | 66.7V | 189 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.50mm | 29.10mm Dia | Flat |
