LED COBs, motores, módulos, tiras
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Cor | CCT (K) | Comprimento de onda | Configuração | Fluxo luminoso @ corrente/temperatura | Corrente - Teste | Temperatura - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | CRI (Índice de renderização de cores) | Ângulo de visão | Recursos | Tamanho/dimensão | Altura | Superfície emissora de luz (LES) | Tipo de lente |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-27-50-80-36-AB00-F2-5LED COB CXM-27 GEN1 WHT SQ 5000K |
888 |
|
Ficha técnica |
CXM-27 GEN1 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 8310lm (Typ) | 1.8A | 85°C | 35V | 132 lm/W | 3.6A | 80 | 120° | - | 27.89mm L x 27.89mm W | 1.37mm | 26.42mm Dia | Flat |
|
BXRC-30G4000-D-83LED COB VERO 18C WHT RND 3000K |
200 |
|
Ficha técnica |
Gen 8 Vero® 18 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3497lm (Typ) | 850mA | 25°C | 28.2V | 146 lm/W | 2.5A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.50mm Dia | Flat |
|
BXEB-L1120Z-35E8000-C-D3LED MOD EB SER WH LNR STRP 3500K |
554 |
|
Ficha técnica |
EB Series™ Gen 3 | Bulk | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 9920lm | 1.4A | 25°C | 38.4V | 185 lm/W | 2.8A | 80 | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - | Flat |
E0900.jpg)
|
L2C5-40801203E0900LED COB LUXEON WHT RECT 4000K |
256 |
|
Ficha técnica |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 1514lm (Typ) | 300mA | 85°C | 34.5V | 146 lm/W | 600mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
SPHWHAHDNM231ZT3D3LED COB D GEN3 NEUT WHT SQ 4000K |
252 |
|
Ficha técnica |
COB D Gen3 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 14376lm (Typ) | 1.62A | 85°C | 50V | 177 lm/W | 4.14A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
BXRE-30G4000-C-83LED COB V18 WM WH SQUARE 3000K |
600 |
|
Ficha técnica |
Gen 8 V18 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5195lm (Typ) | 1.05A | 25°C | 33.9V | 146 lm/W | 3A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.65mm | 19.60mm Dia | Flat |
|
|
CXM-14-HS-12-36-AC30-P1-7LED COB SENSUS HORT WHT SQUARE |
193 |
|
Ficha técnica |
Sensus™ Horticulture | Tray | Active | Chip On Board (COB) | White | - | - | Square | - | 720mA | 85°C | 34V | - | 1.44A | - | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.30mm Dia | Flat |
|
XPLAWT-00-0000-000BV50E5-SB01LED MOD XLAMP WHT STARBRD 4000K |
490 |
|
Ficha técnica |
XLamp® XP-L | Tray | Not For New Designs | LED Module | White, Neutral | 4000K | - | Starboard | 470lm (460lm ~ 480lm) | 1.05A | 85°C | 2.95V | 152 lm/W | 3A | 70 | 125° | - | 19.89mm Dia | - | - | Domed |
|
CXM-22-40-80-54-AC30-F4-3LED COB CXM-22 GEN3 WHT SQ 4000K |
456 |
|
Ficha técnica |
CXM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 8645lm (Typ) | 1.1A | 85°C | 51V | 154 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
CXA2540-0000-000N0HW240GLED COB XLAMP NEUT WHT SQU 4000K |
111 |
|
Ficha técnica |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 36V | 127 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
BXRE-50E4001-C-83LED COB V18 CL WHT SQUARE 5000K |
170 |
|
Ficha técnica |
Gen 8 V18 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 6664lm (Typ) | 1.05A | 25°C | 33.9V | 187 lm/W | 3A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.65mm | 19.60mm Dia | Flat |
|
CXM-22-35-90-54-AC40-F5-3LED COB CXM-22 GEN4 WHT SQ 3500K |
1,660 |
|
Ficha técnica |
CXM-22 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 7640lm (Typ) | 1.05A | 85°C | 50V | 146 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
BXEB-L1120Z-30S4000-C-C3LED MOD EB SER WH LNR STR 3000K |
212 |
|
Ficha técnica |
EB Series™ Gen 3 Thrive | Bulk | Active | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 4940lm (Typ) | 960mA | 25°C | 40.6V | 127 lm/W | 1.92A | 98 (Typ) | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - | Flat |
|
|
BXRE-40G65F0-C-83LED COB V22 F90 ARRAY SQ 4000K |
104 |
|
Ficha técnica |
V22 F90 Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 21657lm | - | 85°C | 57V | 141 lm/W | 2.7A | 90 | 120° | Dimming | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
BXRE-50C6501-D-84LED COB V SER GEN 8 WHT SQ 5000K |
150 |
|
Ficha técnica |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 6935lm (Typ) | 1.05A | 25°C | 33.5V | 197 lm/W | - | 70 | - | - | - | - | 22.00mm Dia | Flat |
|
|
BXRE-35G40F0-C-83LED COB V18 F90 ARRAY SQ 3500K |
599 |
|
Ficha técnica |
V18 F90 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 11498lm | - | 85°C | 38V | 140 lm/W | 2.16A | 90 | 120° | Dimming | 24.00mm L x 24.00mm W | 1.65mm | 19.60mm Dia | Flat |
|

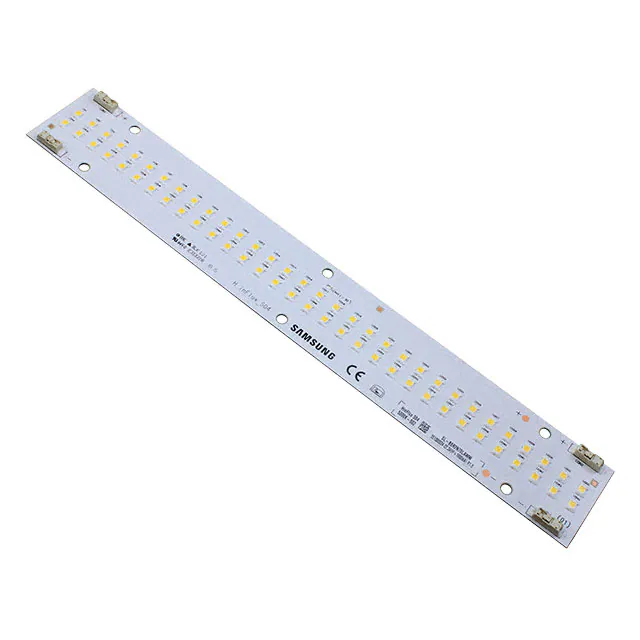

SL-B8R2N70LAWWLED MOD H INFLUX LNR STRP 5000K |
605 |
|
Ficha técnica |
H inFlux | Tray | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip | 4280lm (Typ) | 1A | 55°C | 22.3V | 192 lm/W | 1.6A | 80 | 118° | - | 281.00mm L x 41.00mm W | 5.20mm | - | Flat |
|
CDM-18-3018-90-36-DW01LED MOD CDM WARM WHT RECT 3000K |
237 |
|
Ficha técnica |
CDM, Human Centric (HCL) | Tray | Active | LED Module | White, Warm | 1800K ~ 3000K | - | Rectangle | 2875lm (Typ) | 900mA | 85°C | 35.5V | 90 lm/W | 1.08A | 97 | 130° | Dimming - Warm | 24.00mm L x 20.00mm W | 1.58mm | 16.80mm Dia | Flat |
|
CXB2540-0000-000N0BX250ELED COB XLAMP COOL WHT SQU 5000K |
114 |
|
Ficha técnica |
XLamp® CXB2540 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.1A | 85°C | 36V | 146 lm/W | 2.1A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
E1300.jpg)
|
L2C5-40801205E1300LED COB LUXEON WHT RECT 4000K |
229 |
|
Ficha técnica |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 3028lm (Typ) | 600mA | 85°C | 35V | 144 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
