Iluminação colorida de LED
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Cor | Comprimento de onda | Corrente - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | Fluxo luminoso @ corrente/temperatura | Temperatura - Teste | Ângulo de visão | Tipo de montagem | Pacote do dispositivo do fornecedor | Tamanho/dimensão | Altura - Assentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

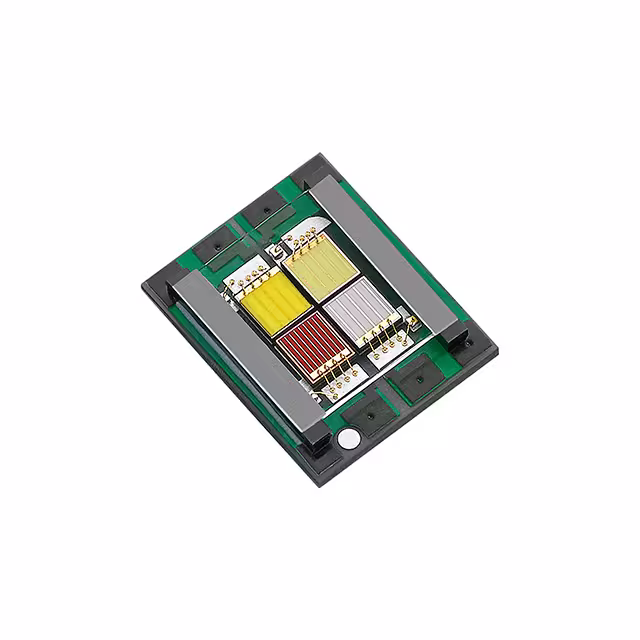

SBM-40-RGBW-N41-QA100LED SBM40 RGBW 626/527/453NM SMD |
0 |
|
- |
SBM-40 | 2318 (5847 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White (RGBW) | 626nm Red, 527nm Green, 453nm Blue | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 2.5V Red, 4.5V Green, 3.4V Blue, 3.4V White | 48 lm/W Red, 53 lm/W Green, 76 lm/W White | 2A Red, 2A Green, 2A Blue, 2A White | 84lm Red, 168lm Green, 765mW Blue, 182lm White | 25°C | - | Surface Mount | SMD | 0.226" L x 0.184" W (5.75mm x 4.68mm) | 0.050" (1.26mm) |
|
XMLDCL-H0-0000-00A4AAAB1XLAMP XMLDCL HI LIGHT EMITTING D |
0 |
|
Ficha técnica |
XLamp® XM-L® Gen 2 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue, White (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 4000K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.1V Red, 2.6V Green, 2.9V Blue, 2.9V White | 129 lm/W Red, 187 lm/W Green, 41 lm/W Blue, 118 lm/W White | 1.75A Red, 1.75A Green, 1.75A Blue, 1.75A White | 95lm Red, 170lm Green, 42lm Blue, 120lm White | 25°C | 118° | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.044" (1.13mm) |
|
|
XMLDCL-H0-0000-00A3AAAC1XLAMP XMLDCL HI LIGHT EMITTING D |
0 |
|
Ficha técnica |
XLamp® XM-L® Gen 2 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue, White (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 2950K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.1V Red, 2.6V Green, 2.9V Blue, 2.9V White | 129 lm/W Red, 187 lm/W Green, 41 lm/W Blue, 118 lm/W White | 1.75A Red, 1.75A Green, 1.75A Blue, 1.75A White | 95lm Red, 170lm Green, 42lm Blue, 120lm White | 25°C | 118° | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.044" (1.13mm) |
|
LZ4-00G108-0000LED LZ4 GREEN 528NM SMD |
0 |
|
Ficha técnica |
LZ4 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | Green | 528nm (520nm ~ 535nm) | 700mA | 13.9V | 65 lm/W | 1A | 657lm (445lm ~ 868lm) | 25°C | 100° | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.154" (3.90mm) |
|
SML-LXL8047USBCTR3LED TITANBRITE BLU 454NM SMD |
0 |
|
Ficha técnica |
TitanBrite™ | 2-SMD, Gull Wing Exposed Pad | Tape & Reel (TR) | Active | Blue | 454nm (Typ) | 700mA | 4.6V | 6 lm/W | 700mA | 20lm (Typ) | 25°C | 100° | Surface Mount | SMD | 0.315" Dia (8.00mm) | 0.185" (4.70mm) |
|
|
LR W5AP-LXMY-1-ZLED DIAMOND DRAGON RED 625NM SMD |
0 |
|
- |
Diamond Dragon | 3026 (7767 Metric) | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | Surface Mount | SMD | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.175" (4.45mm) |
|
|
XMLDCL-H0-0000-00A3AAAE7XLAMP XMLDCL HI LIGHT EMITTING D |
0 |
|
Ficha técnica |
XLamp® XM-L® Gen 2 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue, White - Neutral (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 4000K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.1V Red, 2.6V Green, 2.9V Blue, 2.9V White | 88 lm/W Red, 154 lm/W Green, 17 lm/W Blue, 133 lm/W White | 1.75A Red, 1.75A Green, 1.75A Blue, 1.75A White | 65lm Red, 140lm Green, 17lm Blue, 135lm White | 25°C | 118° | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.044" (1.13mm) |
|
|
XNPACL-H0-0000-0000HC2AACE5XLAMP XNPACL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPACL-H0-0000-0000HC2ACBE5XLAMP XNPACL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPACL-H0-0000-0000HC2ACCE5XLAMP XNPACL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPACL-H0-0000-0000HC2AABE5XLAMP XNPACL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPACL-H0-0000-0000HC2ABAE5XLAMP XNPACL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPACL-H0-0000-0000HC2ABBE5XLAMP XNPACL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPACL-H0-0000-0000HC2ACAE5XLAMP XNPACL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPACL-H0-0000-0000HC2ABCE5XLAMP XNPACL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPAPL-H0-0000-00000CPAACL4XLAMP XNPAPL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPAPL-H0-0000-00000CPABAL4XLAMP XNPAPL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPAPL-H0-0000-00000CPABBL3XLAMP XNPAPL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPAPL-H0-0000-00000CPAABL3XLAMP XNPAPL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XNPAPL-H0-0000-00000CPAACL3XLAMP XNPAPL HI LIGHT EMITTING D |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
