Iluminação branca de LED
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Cor | CCT (K) | Fluxo a 85 °C, corrente - teste | Fluxo a 25 °C, corrente - teste | Corrente - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | CRI (Índice de renderização de cores) | Corrente - Máx. | Ângulo de visão | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor | Tamanho/dimensão | Altura - Assentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JB2835BWT-G-U40EA0000-N000P001LED J NEUTRAL WHT 4000K 1411 |
1,735 |
|
Ficha técnica |
J | 1411 (3528 Metric) | Tape & Reel (TR) | Active | White, Neutral | 4000K 3-Step MacAdam Ellipse | 28lm (Typ) | 31lm (Typ) | 55mA | 2.67V | 211 lm/W | 90 | 480mA | 120° | - | - | Surface Mount | 1411 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.031" (0.80mm) |
|
SPMWH1228FD5WAPUVGLED LM281B+ COOL WHT 6500K 2835 |
82,250 |
|
Ficha técnica |
LM281B+ | 1113 (2835 Metric) | Tape & Reel (TR) | Active | White, Cool | 6500K 3-Step MacAdam Ellipse | - | 74lm (72lm ~ 76lm) | 150mA | 2.95V | 167 lm/W | 80 | 200mA | 120° | - | - | Surface Mount | 2835 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.030" (0.75mm) |
|
JB2835BWT-G-U22GA0000-N0000001LED J WARM WHT 2200K 1411 |
62,457 |
|
Ficha técnica |
J | 1411 (3528 Metric) | Tape & Reel (TR) | Active | White, Warm | 2200K 3-Step MacAdam Ellipse | 20lm (Typ) | 21lm (Typ) | 55mA | 2.67V | 143 lm/W | 90 | 480mA | 120° | - | - | Surface Mount | 1411 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.031" (0.80mm) |
.jpg)
|

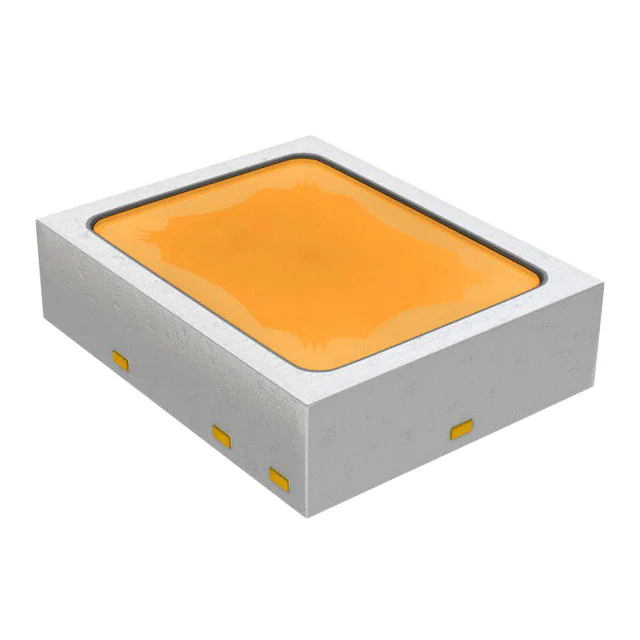

MP-2016-1100-65-80LED MP2016 COOL WHITE 6500K 2016 |
687,677 |
|
Ficha técnica |
MP-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | White, Cool | 6500K | - | 24lm (Typ) | 60mA | 3V | 133 lm/W | 80 | 120mA | 110° | - | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.52mm) |
|
|
MP-2016-1100-50-70LED MP2016 COOL WHITE 5000K 2016 |
104,597 |
|
Ficha técnica |
MP-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | White, Cool | 5000K (Typ) | - | 27lm (Typ) | 60mA | 3V | 150 lm/W | 70 | 120mA | 110° | - | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.52mm) |
|
|
MP-2016-1100-65-70LED MP2016 COOL WHITE 6500K 2016 |
83,438 |
|
Ficha técnica |
MP-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | White, Cool | 6500K | - | 26lm (Typ) | 60mA | 3V | 144 lm/W | 70 | 120mA | 110° | - | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.52mm) |
|
|
MP-2016-1100-30-80LED MP2016 WARM WHT 3000K 2016 |
45,853 |
|
Ficha técnica |
MP-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | White, Warm | 3000K (Typ) | - | 22lm (Typ) | 60mA | 3V | 122 lm/W | 80 | 120mA | 110° | - | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.52mm) |
|
|
SPMWH1228FD7WAWUVGLED LM281B+ WARM WHT 2700K 2835 |
32,008 |
|
Ficha técnica |
LM281B+ | 1113 (2835 Metric) | Tape & Reel (TR) | Active | White, Warm | 2700K 3-Step MacAdam Ellipse | - | 69lm (67lm ~ 71lm) | 150mA | 2.95V | 156 lm/W | 90 | 200mA | 120° | - | - | Surface Mount | 2835 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.030" (0.75mm) |
|
|
MP-2016-1100-40-80LED MP2016 NEUT WHT 4000K 2016 |
28,971 |
|
Ficha técnica |
MP-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | White, Neutral | 4000K (Typ) | - | 24lm (Typ) | 60mA | 3V | 133 lm/W | 80 | 120mA | 110° | - | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.52mm) |
|
|
MP-2016-1100-57-80LED MP2016 COOL WHITE 5700K 2016 |
18,367 |
|
Ficha técnica |
MP-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | White, Cool | 5700K | - | 23lm (Typ) | 60mA | 3V | 128 lm/W | 80 | 120mA | 110° | - | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.52mm) |
|
|
MP-2016-1100-27-90LED MP2016 WARM WHT 2700K 2016 |
148,196 |
|
Ficha técnica |
MP-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | White, Warm | 2700K | - | 22lm (Typ) | 60mA | 3V | 122 lm/W | 90 | 120mA | 110° | - | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.52mm) |
|
|
SPMWH1228MD5WARUVKLED LM281B+ COOL WHT 5000K 2835 |
95,637 |
|
Ficha técnica |
LM281B+ | 1113 (2835 Metric) | Tape & Reel (TR) | Active | White, Cool | 5000K 3-Step MacAdam Ellipse | - | 37lm (36lm ~ 38lm) | 65mA | 2.8V | 203 lm/W | 80 | 200mA | 120° | - | - | Surface Mount | 2835 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.030" (0.75mm) |
|
|
MP-2016-1100-40-90LED MP2016 NEUT WHT 4000K 2016 |
66,372 |
|
Ficha técnica |
MP-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | White, Neutral | 4000K | - | 26lm (Typ) | 60mA | 3V | 144 lm/W | 90 | 120mA | 110° | - | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.52mm) |
|
|
SPMWH1228FD5WAVUVJLED LM281B+ WARM WHT 3000K 2835 |
65,846 |
|
Ficha técnica |
LM281B+ | 1113 (2835 Metric) | Tape & Reel (TR) | Active | White, Warm | 3000K 3-Step MacAdam Ellipse | - | 75lm (73lm ~ 77lm) | 150mA | 3V | 167 lm/W | 80 | 200mA | 120° | - | - | Surface Mount | 2835 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.030" (0.75mm) |
|
|
MP-2016-1100-50-80LED MP2016 COOL WHITE 5000K 2016 |
45,787 |
|
Ficha técnica |
MP-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | White, Cool | 5000K | - | 24lm (Typ) | 60mA | 3V | 133 lm/W | 80 | 120mA | 110° | - | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.52mm) |
|
|
SPMWH1228FD5WATUVGLED LM281B+ NEUT WHT 4000K 2835 |
35,368 |
|
Ficha técnica |
LM281B+ | 1113 (2835 Metric) | Tape & Reel (TR) | Active | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | 74lm (72lm ~ 76lm) | 150mA | 2.95V | 167 lm/W | 80 | 200mA | 120° | - | - | Surface Mount | 2835 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.030" (0.75mm) |
|
|
SPMWH1228MD7WARUVKLED LM281B+ COOL WHT 5000K 2835 |
48,770 |
|
Ficha técnica |
LM281B+ | 1113 (2835 Metric) | Tape & Reel (TR) | Active | White, Cool | 5000K 3-Step MacAdam Ellipse | - | 33lm (32lm ~ 34lm) | 65mA | 2.8V | 181 lm/W | 90 | 200mA | 120° | - | - | Surface Mount | 2835 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.030" (0.75mm) |
|
|
SPMWH1228FD5WAPUVJLED LM281B+ COOL WHT 6500K 2835 |
34,179 |
|
Ficha técnica |
LM281B+ | 1113 (2835 Metric) | Tape & Reel (TR) | Active | White, Cool | 6500K 3-Step MacAdam Ellipse | - | 78lm (76lm ~ 80lm) | 150mA | 3V | 173 lm/W | 80 | 200mA | 120° | - | - | Surface Mount | 2835 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.030" (0.75mm) |
|
|
L130-6580HE1400001LED LUXEON COOL WHITE 6500K 1206 |
9,827 |
|
Ficha técnica |
LUXEON 3014 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | White, Cool | 6500K | - | 29lm | 60mA | 2.95V | 161 lm/W | 80 | 120mA | 116° | - | - | Surface Mount | 1206 | 0.118" L x 0.055" W (3.00mm x 1.40mm) | 0.028" (0.70mm) |
|
L130-4090001400001LED LUXEON NEUT WHT 4000K 3014 |
34,367 |
|
Ficha técnica |
LUXEON 3014 | 1206 (3014 Metric) | Tape & Reel (TR) | Active | White, Neutral | 4000K | - | 21lm (Typ) | 60mA | 3.1V | 113 lm/W | 90 | 100mA | 116° | - | - | Surface Mount | 3014 | 0.114" L x 0.055" W (2.90mm x 1.40mm) | 0.033" (0.83mm) |
