Interruptores de limite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito | Função do Interruptor | Classificação de Corrente (Amps) | Classificação de Tensão - CA | Classificação de Tensão - CC | Tipo de Atuador | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos | Força operacional | Força de Liberação | Posição Operacional | Pré-deslocamento | Deslocamento Diferencial | Sobredeslocamento | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

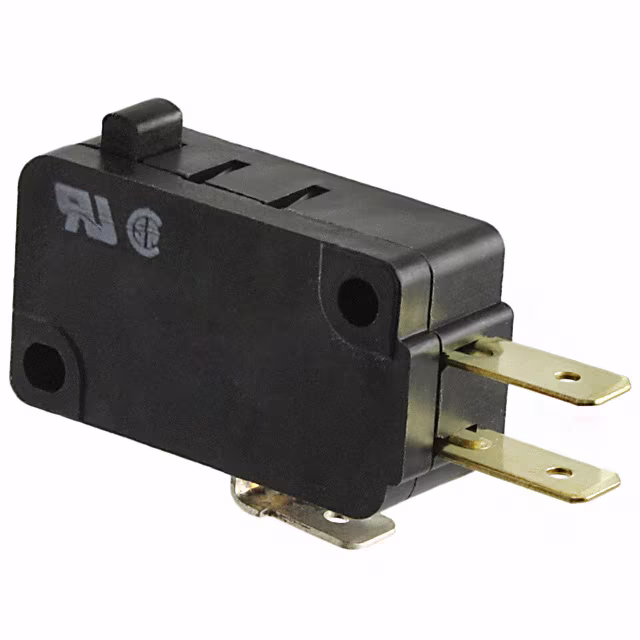

V7-6C17D8-000-2SWITCH SNAP ACTION SPDT 15A 125V |
446 |
|
Ficha técnica |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 170 ~ 397gf | 113gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

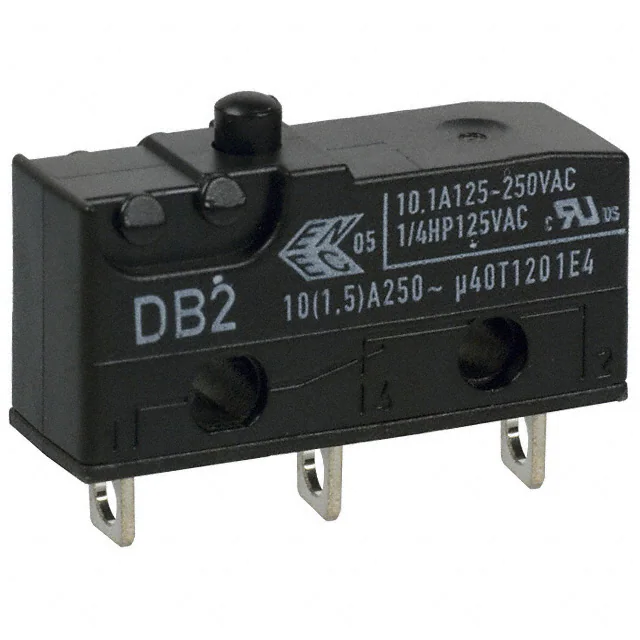

DB2CA1AASWITCH SNAP ACTION SPDT 10A 125V |
19,075 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 250gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
SS-5GL-2SWITCH SNAP ACT SPST-NC 5A 125V |
5,820 |
|
Ficha técnica |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

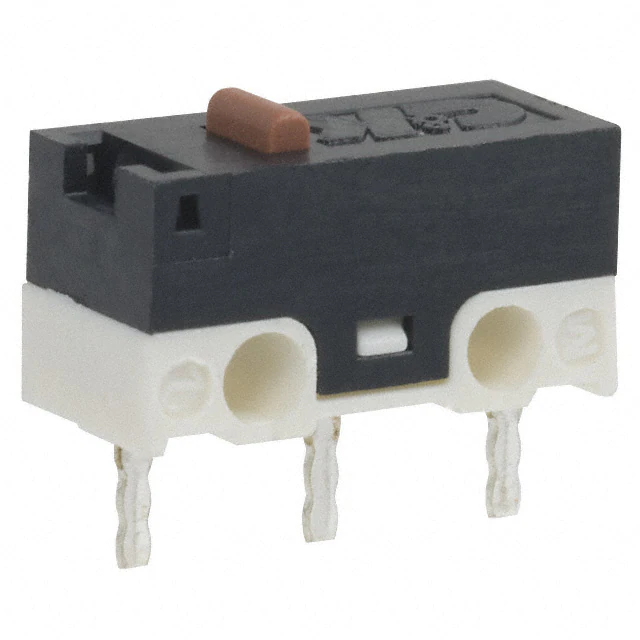

ZMCJF7P0TSWITCH SNAP ACTION SPDT 3A 125V |
3,302 |
|
Ficha técnica |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | - | 0.276" (7.0mm) | - | - | - | -30°C ~ 85°C |
|
D2F-01FL30-DSWITCH SNAP ACTION SPDT 0.1A 30V |
474 |
|
Ficha técnica |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 75gf | 5.000gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
LS0851504F085C1ASWITCH SNAP ACTION SPDT 15A 125V |
618 |
|
Ficha técnica |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 85gf | 30gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|

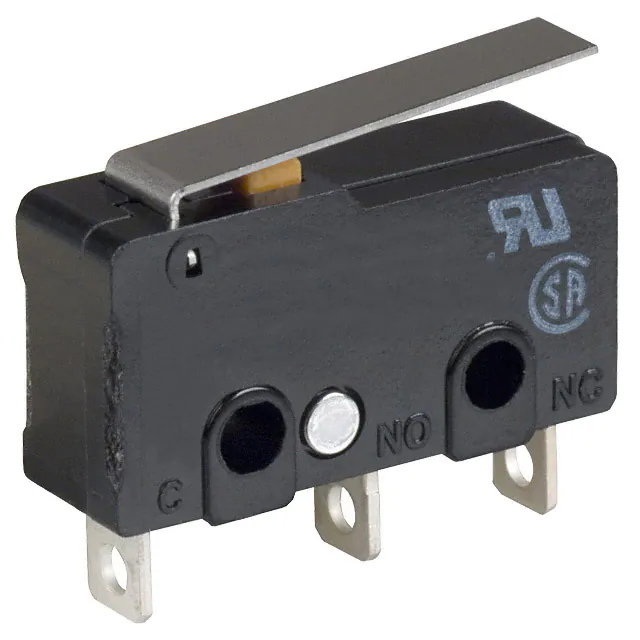

SS-10GLSWITCH SNAP ACTION SPDT 10A 250V |
338 |
|
Ficha técnica |
SS | Tray | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.040" (1.0mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
D2F-L20SWITCH SNAP ACTION SPDT |
9,408 |
|
Ficha técnica |
D2F | Bulk | Active | SPDT | On-Mom | - | - | - | - | - | - | IP40 | - | - | - | - | - | - | - | -40°C ~ 85°C |
|

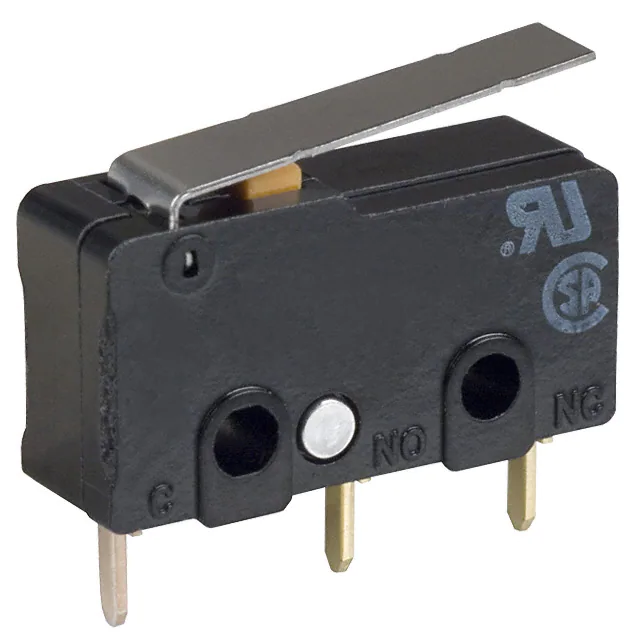

SS-5GLDSWITCH SNAP ACTION SPDT 5A 125V |
420 |
|
Ficha técnica |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
LS0851502F120V1ASWITCH SNAP ACTION SPDT 15A 125V |
2,396 |
|
Ficha técnica |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 120gf | 40gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
D2SW-P2L2HSWITCH SNAP ACTION SPDT 2A 250V |
3,852 |
|
Ficha técnica |
D2SW-P | Tray | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
|
D2AW-A053D RSWITCH SNAP ACT SPST-NO 0.1A 12V |
281 |
|
Ficha técnica |
D2AW | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 152gf | 10gf | 0.476" (12.1mm) | - | 0.027" (0.7mm) | 0.100" (2.5mm) | -40°C ~ 85°C |
|
463092370402SWITCH LIMIT SPDT 3A 125V |
214 |
|
Ficha técnica |
WS-MITV | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 80gf | 5.000gf | 0.268" (6.8mm) | 0.125" (3.2mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|

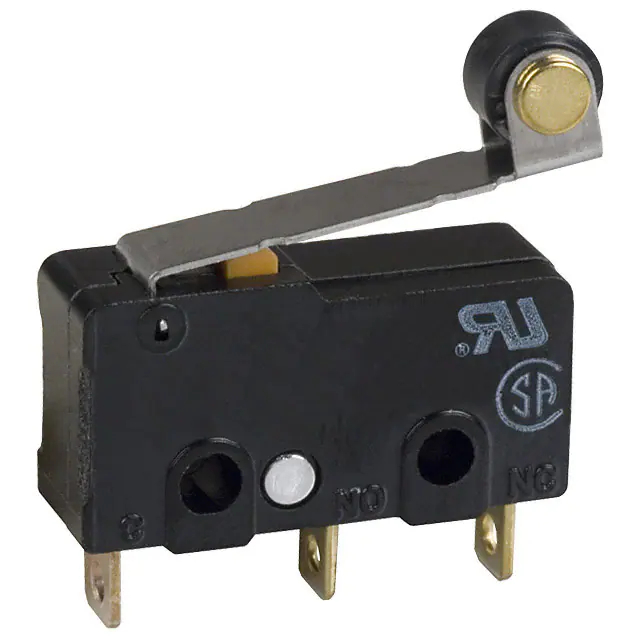

SS-5GL2-FSWITCH SNAP ACTION SPDT 5A 125V |
4,922 |
|
Ficha técnica |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 16gf | 2.039gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

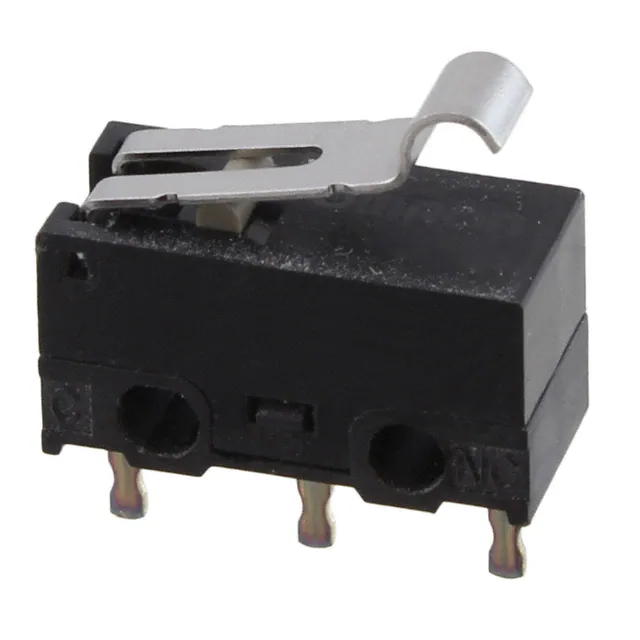

D2F-FL3SWITCH SNAP ACTION SPDT 1A 125V |
560 |
|
Ficha técnica |
D2F | Tray | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 75gf | 2.039gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

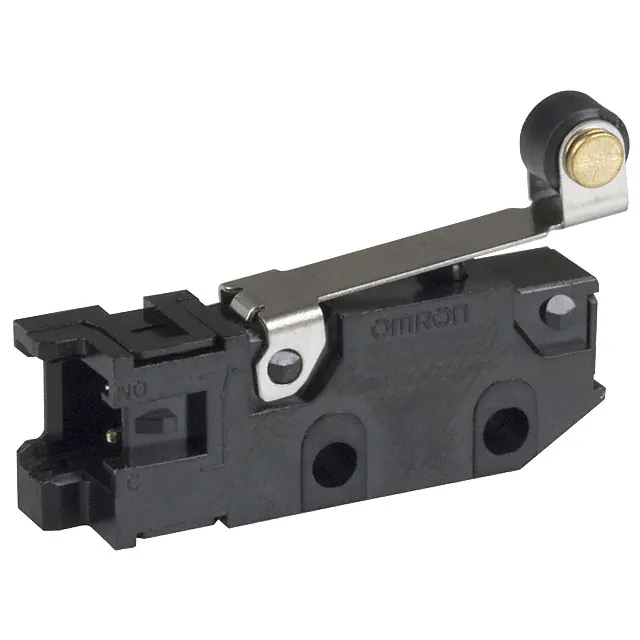

D3M-01L2-3SWITCH SNAP ACT SPST-NO 0.1A 30V |
6,210 |
|
Ficha técnica |
D3M | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Connector | IP40 | - | 102gf | 10gf | 0.587" (14.9mm) | - | 0.025" (0.6mm) | 0.026" (0.7mm) | -25°C ~ 85°C |
|

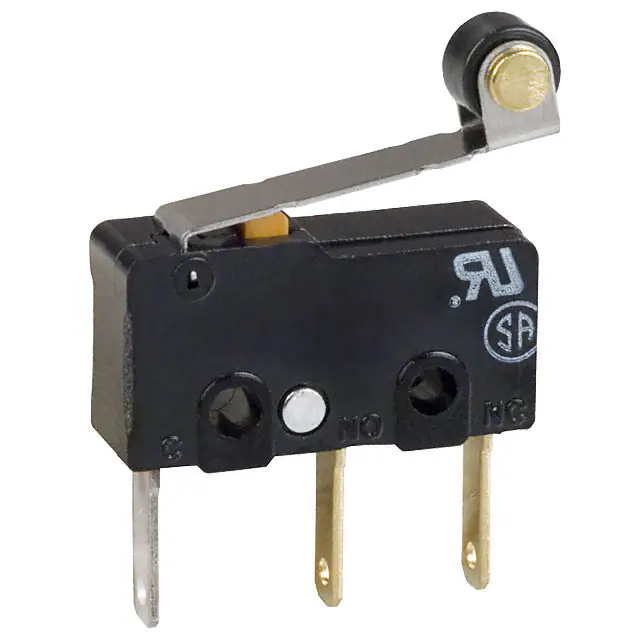

SS-5GL2-FTSWITCH SNAP ACTION SPDT 5A 125V |
2,628 |
|
Ficha técnica |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 16gf | 2.039gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D2F-L-A1SWITCH SNAP ACTION SPDT 3A 125V |
17,454 |
|
Ficha técnica |
D2F | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 80gf | 5.099gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
SS-5-2TSWITCH SNAP ACT SPST-NC 5A 125V |
508 |
|
Ficha técnica |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|

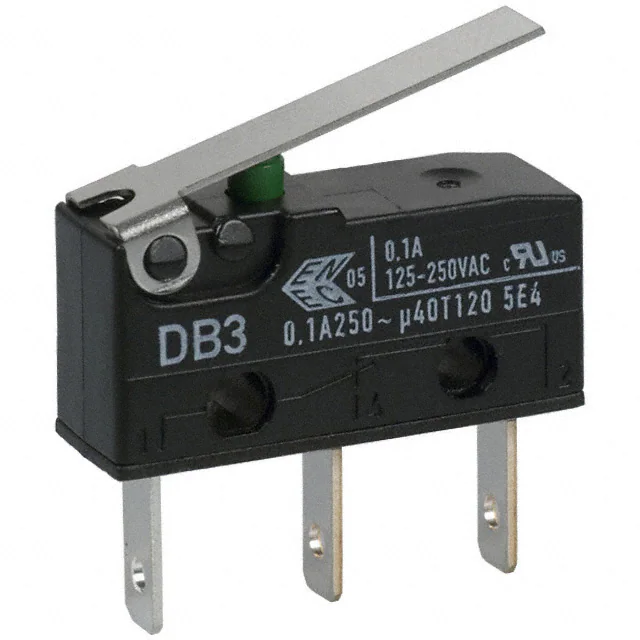

DB3CB1LBSWITCH SNAP ACT SPDT 0.1A 125V |
44,136 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 60gf | - | 0.420" (10.7mm) | 0.157" (4.0mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -40°C ~ 120°C |
