Interruptores de limite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito | Função do Interruptor | Classificação de Corrente (Amps) | Classificação de Tensão - CA | Classificação de Tensão - CC | Tipo de Atuador | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos | Força operacional | Força de Liberação | Posição Operacional | Pré-deslocamento | Deslocamento Diferencial | Sobredeslocamento | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

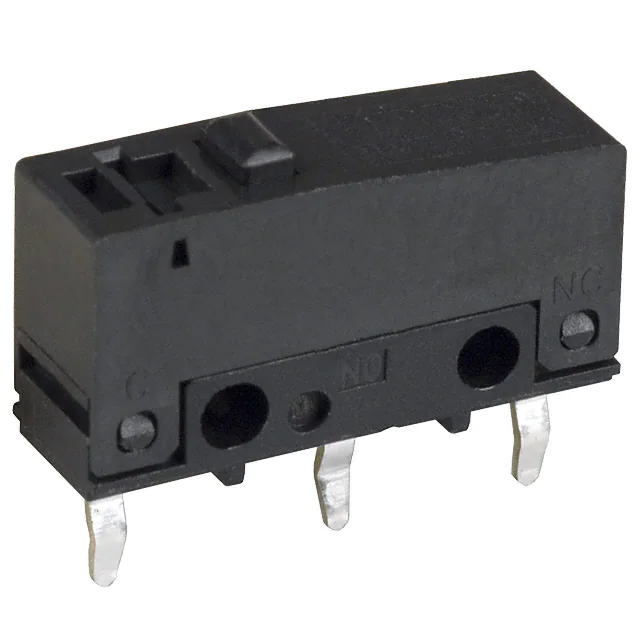

SS-3GPDSWITCH SNAP ACTION SPDT 3A 125V |
1,187 |
|
Ficha técnica |
SS-P | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 153gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
D2GW-A1L3FSEALED SWITCH PCB PIN PLUNGER |
491 |
|
- |
D2GW | Tray | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 13.5 V | Lever, Straight | Panel Mount | Press-Fit | IP67 - Dust Tight, Waterproof | - | 87gf | 2.000gf | 0.356" (9.05mm) | - | 0.055" (1.4mm) | 0.175" (4.45mm) | -40°C ~ 85°C |
|
|
D2GW-A1R3FSEALED SWITCH PCB PIN PLUNGER |
483 |
|
- |
D2GW | Tray | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 13.5 V | Lever, Straight | Panel Mount | Press-Fit | IP67 - Dust Tight, Waterproof | - | 87gf | 2.000gf | 0.356" (9.05mm) | - | 0.055" (1.4mm) | 0.175" (4.45mm) | -40°C ~ 85°C |
|
|
D2GW-A1L2FSEALED SWITCH PCB PIN PLUNGER |
462 |
|
- |
D2GW | Tray | Active | SPST-NC | On-Mom | 10mA (DC) | - | 13.5 V | Lever, Straight | Panel Mount | Press-Fit | IP67 - Dust Tight, Waterproof | - | 87gf | 2.000gf | 0.356" (9.05mm) | - | 0.055" (1.4mm) | 0.175" (4.45mm) | -40°C ~ 85°C |
|
SS-3GL13PDSWITCH SNAP ACTION SPDT 3A 125V |
494 |
|
Ficha técnica |
SS-P | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 51gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
|
D2GW-AL6L3FSEALED ULTRA SUBMINIATURE SWITCH |
486 |
|
- |
D2GW | Tray | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 13.5 V | Lever, Leaf | Panel Mount | Press-Fit | IP67 - Dust Tight, Waterproof | - | 153gf | 10gf | 0.346" (8.80mm) | - | 0.055" (1.4mm) | 0.105" (2.67mm) | -40°C ~ 85°C |
|
SAJ25YXRHL147SDTSEQSWITCH SNAP ACTION SPDT 5A 125V |
1,673 |
|
Ficha técnica |
SAJ2 | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 50gf | 60gf | 0.420" (10.7mm) | 0.188" (4.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 75°C |
|
ZMT03ACJS05LCESWITCH SNAP ACTION SPDT 3A 125V |
184 |
|
Ficha técnica |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | - | 48gf | 7.000gf | 0.358" (9.1mm) | 0.138" (3.5mm) | - | 0.026" (0.7mm) | -40°C ~ 85°C |
|
SS-5-F-3 DASH TSWITCH SNAP ACT SPST-NO 5A 125V |
411 |
|
Ficha técnica |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
SAJ405XHL0N30SNOSLQSWITCH SNAP ACT SPST-NO 0.5A 30V |
986 |
|
Ficha técnica |
SAJ4 | Bulk | Active | SPST-NO | Off-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
SM3CQF0801L04SWITCH LIMIT SPDT 5A 125V |
226 |
|
Ficha técnica |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 12gf | 5.000gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
|
SM3CQF0804L01SWITCH LIMIT SPDT 5A 125V |
393 |
|
Ficha técnica |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 20gf | 10gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
|
SM3CQF0805L04SWITCH LIMIT SPDT 5A 125V |
200 |
|
Ficha técnica |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 12gf | 5.000gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
|
D3SK-A0RSWITCH DETECT SPST-NO 0.001A 5V |
3,929 |
|
Ficha técnica |
D3SK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Right Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
SM3CQF0801L03SWITCH LIMIT SPDT 5A 125V |
209 |
|
Ficha técnica |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 18gf | 5.000gf | 0.646" (16.4mm) | 0.161" (4.1mm) | 0.031" (0.80mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
SS-5GL13-2TSWITCH SNAP ACT SPST-NC 5A 125V |
155 |
|
Ficha técnica |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D2F-F-DSWITCH SNAP ACTION SPDT 1A 125V |
1,920 |
|
Ficha técnica |
D2F | Tray | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 75gf | 5.099gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
SS-10GL13-3DSWITCH SNAP ACT SPST-NO 10A 250V |
888 |
|
Ficha técnica |
SS | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.040" (1.0mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
AVT34323SWITCH SNAP ACTION SPDT 3A 125V |
172 |
|
Ficha técnica |
AVT3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 12gf | 1.224gf | 0.345" (8.8mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
SS-01GL-3DSWITCH SNP ACT SPST-NO 0.1A 125V |
310 |
|
Ficha técnica |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
