Interruptores de limite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito | Função do Interruptor | Classificação de Corrente (Amps) | Classificação de Tensão - CA | Classificação de Tensão - CC | Tipo de Atuador | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos | Força operacional | Força de Liberação | Posição Operacional | Pré-deslocamento | Deslocamento Diferencial | Sobredeslocamento | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E51-00TSWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Side Rotary, Wire | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Counterclockwise Operation Only | 0.101gfm | - | 15° | 15° | 3° | 17° | -40°C ~ 85°C |
|
E53-00RSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Side Rotary, Wire | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Clockwise Rotation | 0.101gfm | - | 15° | 15° | 3° | 17° | -40°C ~ 85°C |
|

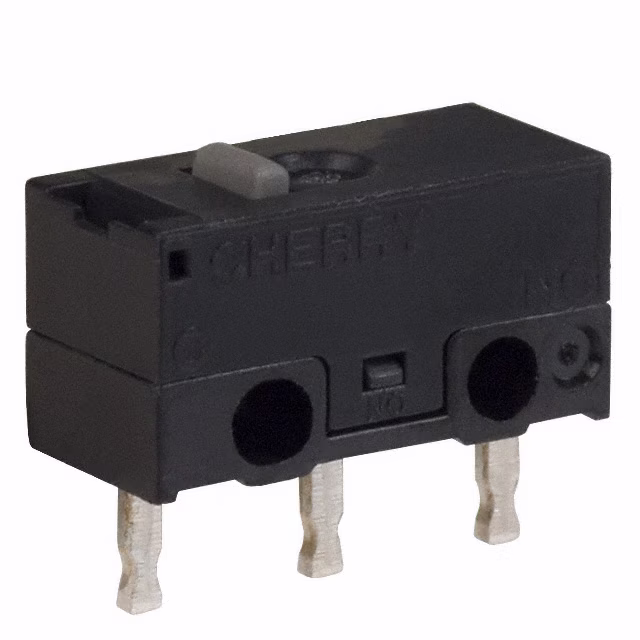

DG13-B1AASWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Ficha técnica |
DG | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 140gf | - | 0.213" (5.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.008" (0.2mm) | -25°C ~ 85°C |
|
ESE-105SV1SWITCH DETECT SPST-NO 0.05A 20V |
0 |
|
Ficha técnica |
ESE105 | Bulk | Obsolete | SPST-NO | Off-Mom | 50mA (DC) | - | 20 V | Overtravel Plunger | Through Hole | PC Pin | - | - | 40gf | - | - | - | - | - | -10°C ~ 70°C |
|

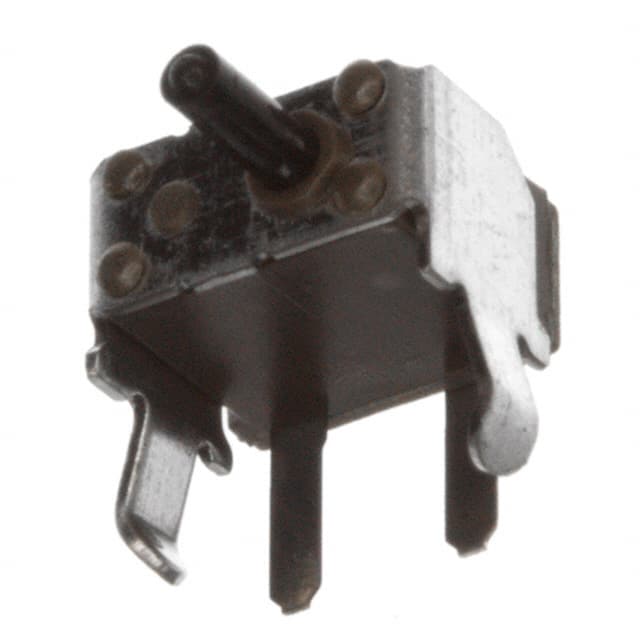

ESE-105SH1SWITCH DETECT SPST-NO 0.05A 20V |
0 |
|
Ficha técnica |
ESE105 | Bulk | Obsolete | SPST-NO | Off-Mom | 50mA (DC) | - | 20 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 40gf | - | - | - | - | - | -10°C ~ 70°C |
|
|
DG1C-C1LBSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Ficha técnica |
DG | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
E20-00ASWITCH SNAP ACTION DPDT 20A 125V |
0 |
|
Ficha técnica |
E | Bulk | Active | DPDT | On-Mom | 20A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 1280gf | - | 0.248" (6.3mm) | 0.100" (2.5mm) | 0.015" (0.38mm) | 0.050" (1.27mm) | -40°C ~ 105°C |
|
E72-40HTSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Wire Leads | - | - | 67gf | - | 0.595" (15.13mm) | 0.275" (7.0mm) | 0.025" (0.6mm) | 0.100" (2.54mm) | -40°C ~ 85°C |
|
ESE-2101BTSWITCH DETECTOR SPST-NO 0.01A 5V |
0 |
|
Ficha técnica |
ESE21 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | Gull Wing | - | Board Guide | 31gf | - | 0.138" (3.5mm) | - | - | - | - |
|
E61-60HSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Ficha técnica |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 9.000gf | - | 0.350" (8.9mm) | 0.416" (10.6mm) | 0.050" (1.3mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

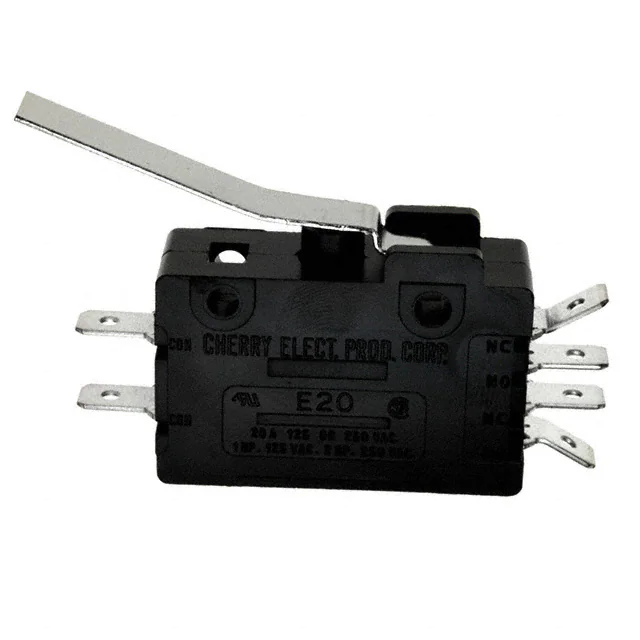

E20-50HSWITCH SNAP ACTION DPDT 20A 125V |
0 |
|
Ficha técnica |
E | Bulk | Active | DPDT | On-Mom | 20A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 285gf | - | 0.437" (11.1mm) | 0.600" (15.24mm) | 0.080" (2.0mm) | 0.156" (3.96mm) | -40°C ~ 105°C |
|
DG13-B2LASWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Ficha técnica |
DG | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 45gf | - | 0.268" (6.8mm) | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
DA3C-B1AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 90gf | - | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.007" (0.18mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|
|
DA3C-B1SBSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 30gf | - | 0.571" (14.5mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
DA3C-H1AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 90gf | - | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.007" (0.18mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|

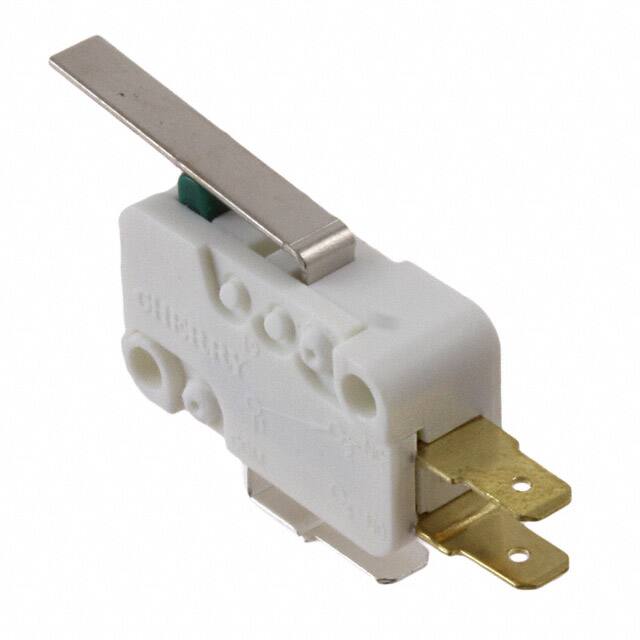

D41C-R1LDSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Ficha técnica |
D4 | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC), 500mA (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 88gf | - | 0.551" (14.0mm) | 0.125" (3.2mm) | 0.031" (0.8mm) | 0.090" (2.3mm) | -40°C ~ 85°C |
|

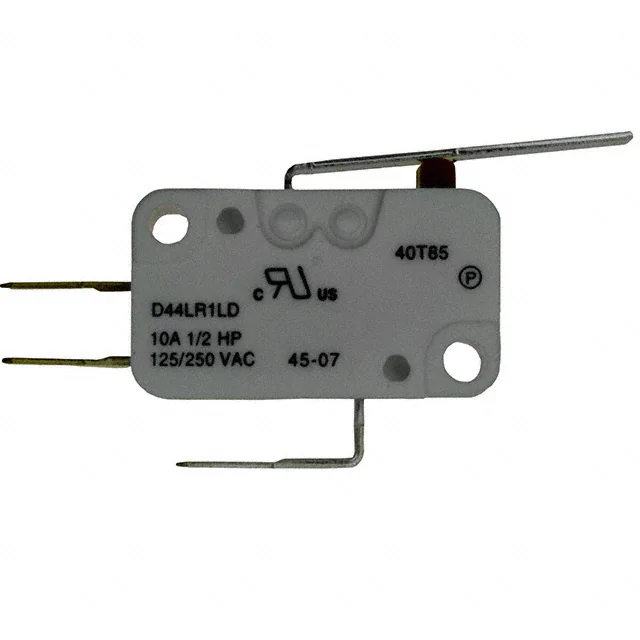

D44L-R1LDSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Ficha técnica |
D4 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 41gf | - | 0.551" (14.0mm) | 0.125" (3.2mm) | 0.031" (0.8mm) | 0.090" (2.3mm) | -40°C ~ 85°C |
|

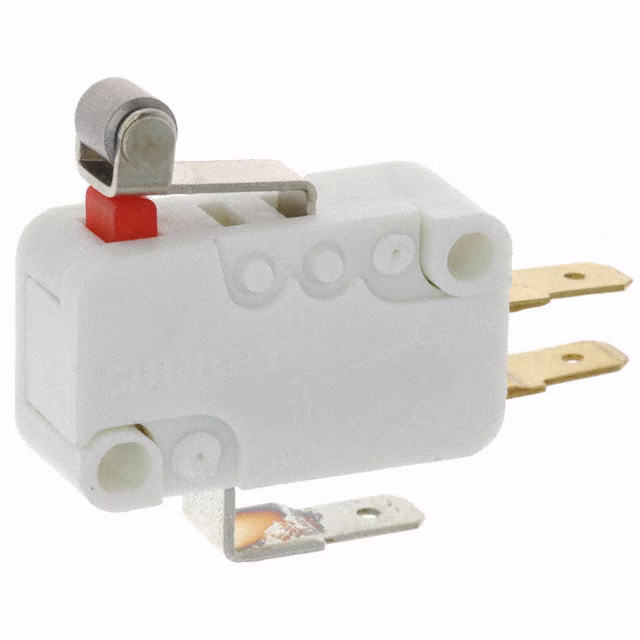

D44L-R1RASWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Ficha técnica |
D4 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 76gf | - | 0.776" (19.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
D45L-R1LLSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Ficha técnica |
D4 | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 22gf | - | 0.472" (12.0mm) | 0.300" (7.6mm) | 0.065" (1.7mm) | 0.185" (4.7mm) | -40°C ~ 85°C |
|
|
E14-00KSWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Ficha técnica |
E | Bulk | Active | SPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 48 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 285gf | - | 0.860" (21.84mm) | 0.347" (8.8mm) | 0.045" (1.1mm) | 0.130" (3.3mm) | -40°C ~ 105°C |
