Comparadores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Série | Embalagem | Status do produto | Tipo | Número de elementos | Tipo de saída | Tensão - Alimentação, Simples/Duplo (±) | Voltagem - Offset de entrada (máx.) | Corrente - Polarização de entrada (máx.) | Corrente - Saída (típico) | Corrente - Quiescente (máx.) | CMRR, PSRR (típico) | Atraso de propagação (máx.) | Histerese | Temperatura operacional | Grau | Qualificação | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX9100ESA+IC COMPARATOR 1 GEN PUR 8SOIC |
0 |
|
Ficha técnica |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 1 | CMOS, Push-Pull, Rail-to-Rail | 1V ~ 5.5V | 10mV @ 5.5V | 0.015µA @ 5.5V | - | 13µA | 68dB CMRR, 66dB PSRR | 4.5µs | ±2mV | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
MAX986ESA+IC COMPARATOR 1 GEN PUR 8SOIC |
0 |
|
Ficha técnica |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 1 | CMOS, Open-Drain, Rail-to-Rail, TTL | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | 5mV @ 5.5V | 1pA @ 5.5V | - | 24µA | 80dB CMRR, 80dB PSRR | 450ns | ±3mV | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
MAX977ESD+TIC COMPARATOR 2 GEN PUR 14SOIC |
0 |
|
Ficha técnica |
14-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | CMOS, Rail-to-Rail, TTL | 2.7V ~ 5.25V | 2mV @ 5V | 0.1µA @ 5.25V | - | 500µA | 90dB CMRR, 90dB PSRR | 820ns | 4mV | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
MAX986ESA+TIC COMPARATOR 1 GEN PUR 8SOIC |
0 |
|
Ficha técnica |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | CMOS, Open-Drain, Rail-to-Rail, TTL | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | 5mV @ 5.5V | 1pA @ 5.5V | - | 24µA | 80dB CMRR, 80dB PSRR | 450ns | ±3mV | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
MAX9052BESA+TIC COMPARATOR 2 W/VOLT REF 8SOIC |
0 |
|
Ficha técnica |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | with Voltage Reference | 2 | CMOS, Push-Pull, Rail-to-Rail, TTL | 2.7V ~ 5.5V | 1mV @ 5V | 1pA @ 5V | 8mA | 130µA | 80dB CMRR, 80dB PSRR | 450ns | ±3mV | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
LM293ADGKRG4IC COMPARATOR 2 DIFF 8VSSOP |
0 |
|
Ficha técnica |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | Open-Collector, Open-Drain, Rail-to-Rail | 2V ~ 36V, ±1V ~ 18V | 2mV @ 30V | 0.25µA @ 5V | 20mA | 2.5mA | - | - | - | -25°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
|
LM293DGKRG4IC COMPARATOR 2 DIFF 8VSSOP |
0 |
|
Ficha técnica |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | Open-Collector, Open-Drain, Rail-to-Rail | 2V ~ 36V, ±1V ~ 18V | 5mV @ 30V | 0.25µA @ 5V | 20mA | 2.5mA | - | - | - | -25°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
ADCMP601BKSZ-RLIC COMPARATOR 1 W/LATCH SC70-6 |
0 |
|
Ficha técnica |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | with Latch | 1 | CMOS, TTL | 2.5V ~ 5.5V | 5mV @ 2.5V | 5µA @ 2.5V | 50mA | 4mA | 50dB CMRR, 50dB PSRR | 5ns | 100µV | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|

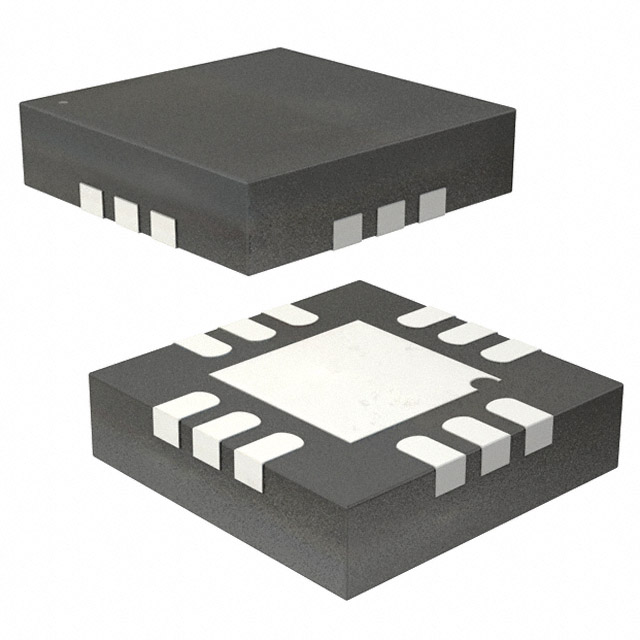

ADCMP603BCPZ-R2IC COMPARATOR 1 W/LATCH 12LFCSP |
0 |
|
Ficha técnica |
12-WFQFN Exposed Pad | - | Tape & Reel (TR) | Discontinued | with Latch | 1 | CMOS, Complementary, Rail-to-Rail, TTL | 2.5V ~ 5.5V | 5mV @ 2.5V | 5µA @ 2.5V | 50mA | 1.8mA | 50dB CMRR, 50dB PSRR | 5ns | 100µV | -40°C ~ 125°C | - | - | Surface Mount | 12-LFCSP-WQ (3x3) |
|
|
ADCMP604BKSZ-RLIC COMPARATOR 1 GEN PUR SC70-6 |
0 |
|
Ficha técnica |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | Complementary, LVDS, Rail-to-Rail | 2.5V ~ 5.5V | 5mV @ 3V | 5µA @ 3V | 50mA | 21mA | 50dB CMRR, 50dB PSRR | 3ns | 100µV | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
ADCMP605BCPZ-R2IC COMPARATOR 1 W/LATCH 12LFCSP |
0 |
|
Ficha técnica |
12-WFQFN Exposed Pad, CSP | - | Tape & Reel (TR) | Discontinued | with Latch | 1 | Complementary, LVDS, Rail-to-Rail | 2.5V ~ 5.5V | 5mV @ 3V | 5µA @ 3V | 50mA | 3mA | 50dB CMRR, 50dB PSRR | 3ns | 100µV | -40°C ~ 125°C | - | - | Surface Mount | 12-LFCSP (3x3) |
|
TLV3701CDBVTG4IC COMPARATOR 1 GEN PUR SOT23-5 |
0 |
|
Ficha técnica |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | CMOS, Push-Pull, Rail-to-Rail | 2.5V ~ 16V, ±1.25V ~ 8V | 5mV @ 15V | 250pA @ 15V | 10mA | 1µA | 88dB CMRR, 105dB PSRR | - | - | 0°C ~ 70°C | - | - | Surface Mount | SOT-23-5 |
|
TS3022IDIC COMPARATOR 2 GEN PUR 8SOIC |
0 |
|
Ficha técnica |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 2 | Push-Pull | 1.8V ~ 5V | 8mV @ 5V | 0.16µA @ 5V | - | 90µA | 79dB CMRR | 105ns | - | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
SC2901VNGIC COMPARATOR 4 GEN PUR 14DIP |
0 |
|
Ficha técnica |
14-DIP (0.300", 7.62mm) | - | Tube | Obsolete | General Purpose | 4 | CMOS, Open-Collector, TTL | 3V ~ 36V, ±1.5V ~ 18V | 7mV @ 5V | 0.25µA @ 5V | 16mA @ 5V | 2mA | - | - | - | -40°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
ISL55142IVZIC COMPARATOR 2 WINDW 20TSSOP |
0 |
|
Ficha técnica |
20-TSSOP (0.173", 4.40mm Width) | - | Tube | Obsolete | Window | 2 | - | 10V ~ 18V | 50mV @ -3V, 12V | 0.025µA @ -3V, 12V | - | 12.5mA | - | 15ns | - | -40°C ~ 85°C | - | - | Surface Mount | 20-TSSOP |
|
ISL55141IRZIC COMPARATOR 1 WINDW 16QFN |
0 |
|
Ficha técnica |
16-TFQFN Exposed Pad | - | Tube | Obsolete | Window | 1 | - | 10V ~ 18V | 50mV @ -3V, 12V | 0.025µA @ -3V, 12V | - | 12.5mA | - | 15ns | - | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (4x4) |
|
ISL55141IVZIC COMPARATOR 1 WINDW 14TSSOP |
0 |
|
Ficha técnica |
14-TSSOP (0.173", 4.40mm Width) | - | Tube | Obsolete | Window | 1 | - | 10V ~ 18V | 50mV @ -3V, 12V | 0.025µA @ -3V, 12V | - | 12.5mA | - | 15ns | - | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
ISL55142IVZ-TIC COMPARATOR 2 WINDW 20TSSOP |
0 |
|
Ficha técnica |
20-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Window | 2 | - | 10V ~ 18V | 50mV @ -3V, 12V | 0.025µA @ -3V, 12V | - | 12.5mA | - | 15ns | - | -40°C ~ 85°C | - | - | Surface Mount | 20-TSSOP |
|
|
ISL55141IVZ-TIC COMPARATOR 1 WINDW 14TSSOP |
0 |
|
Ficha técnica |
14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Window | 1 | - | 10V ~ 18V | 50mV @ -3V, 12V | 0.025µA @ -3V, 12V | - | 12.5mA | - | 15ns | - | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
ISL55143IRZ-TIC COMPARATOR 4 WINDW 36TQFN |
0 |
|
Ficha técnica |
36-WFQFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Window | 4 | - | 10V ~ 18V | 50mV @ -3V, 12V | 0.025µA @ -3V, 12V | - | 12.5mA | - | 15ns | - | -40°C ~ 85°C | - | - | Surface Mount | 36-TQFN (6x6) |
