Triac, Optoisoladores de Saída SCR
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Tipo de saída | Circuito de cruzamento zero | Número de canais | Tensão - Isolamento | Voltagem - Estado desligado | Estático dV/dt (Min) | Corrente - Disparador de LED (Ift) (Máx) | Corrente - Estado Ligado (It (RMS)) (Máx.) | Corrente - Retenção (Ih) | Hora de Ligar | Voltagem - Direto (Vf) (Típico) | Corrente - DC para frente (If) (Máx.) | Temperatura operacional | Tipo de montagem | Pacote do dispositivo do fornecedor | Agência de Aprovação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC3SD21YXPDFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Ficha técnica |
- | 6-SMD | Tape & Reel (TR) | Discontinued | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
|
PC3SD21YXPLFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Ficha técnica |
- | 6-SMD | Tape & Reel (TR) | Discontinued | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | - | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
|
PC4SD11YXPCFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Ficha técnica |
- | 6-SMD | Tape & Reel (TR) | Discontinued | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
PC4SF11YVZBFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Ficha técnica |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
PC4SF21YVZBFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Ficha técnica |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC4SF21YVZCFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Ficha técnica |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC4SD21NXZCFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Ficha técnica |
- | 6-SMD | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
|
|
PC4SF11YVZAFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Ficha técnica |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
TLP160J(U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Obsolete | Triac | No | 1 | 2500Vrms | 600 V | 500V/µs | 10mA | 70 mA | 1mA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP160J(TPR,U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 2500Vrms | 600 V | 500V/µs | 10mA | 70 mA | 1mA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP161G(U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
0 |
|
Ficha técnica |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Obsolete | Triac | Yes | 1 | 2500Vrms | 400 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP161J(U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Obsolete | Triac | Yes | 1 | 2500Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP260JTPRPFOPTOISOLATOR 3KV TRIAC 4SOP |
0 |
|
- |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3000Vrms | 600 V | 500V/µs (Typ) | 10mA | 70 mA | 1mA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-SOP | UR |
.JPG)
|
TLP3023SFOPTOISOLATOR 5KV TRIAC 6DIP 5L |
0 |
|
Ficha técnica |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 400 V | 200V/µs | 5mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
TLP3042SCFOPTOISOLATOR 5KV TRIAC 6DIP 5L |
0 |
|
Ficha técnica |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 400 V | 200V/µs | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
.JPG)
|

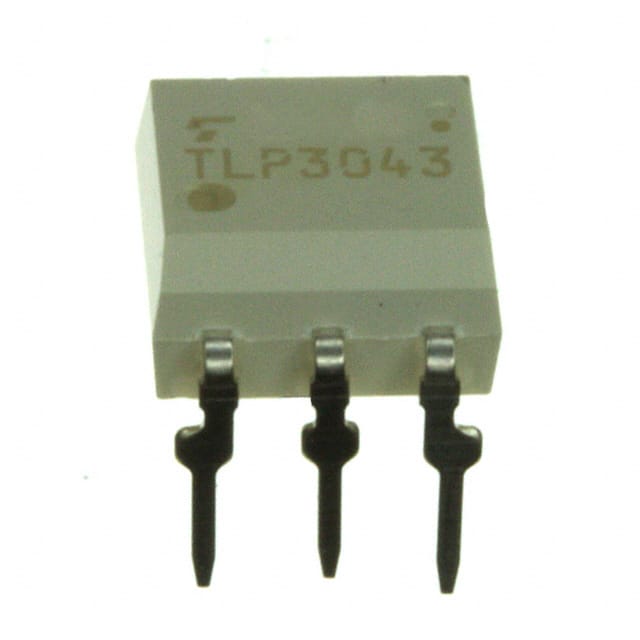

TLP3043(S,C,F)OPTOISOLATOR 5KV TRIAC 6DIP 5L |
0 |
|
Ficha técnica |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 400 V | 200V/µs | 5mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
TLP525G-2(F)OPTOISOLATOR 2.5KV TRIAC 8DIP |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 2 | 2500Vrms | 400 V | 200V/µs | 10mA | 80 mA | 200µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 8-DIP | UR |
|
MOC3031SDMOPTOISOLATOR 4.17KV TRIAC 6SMD |
0 |
|
Ficha técnica |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
.JPG)
|

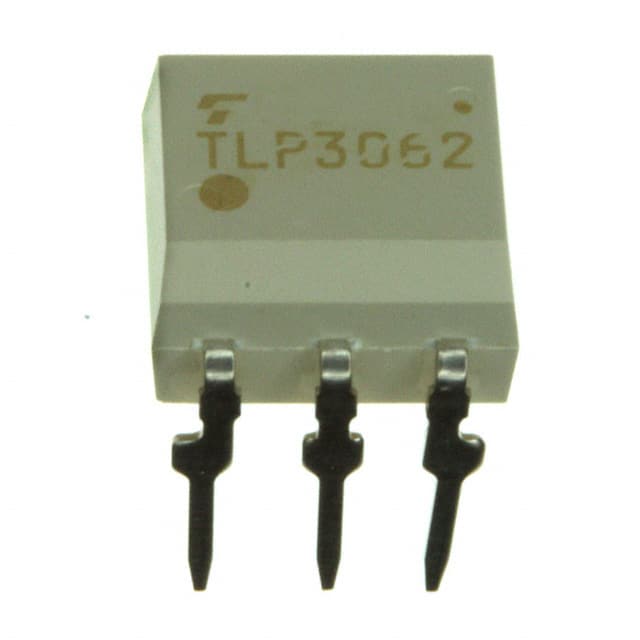

TLP3062(S,C,F)OPTOISOLATOR 5KV TRIAC 6DIP 5L |
0 |
|
Ficha técnica |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
|
PC4SD21YXPCFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Ficha técnica |
- | 6-SMD | Tape & Reel (TR) | Discontinued | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
