Medidores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Tipo de medição | Faixa de medição | Tipo de Exibição | Número de caracteres por linha | Caracteres de exibição - Altura | Tipo de saída | Voltagem - Alimentação | Dimensões do Recorte do Painel | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUB5TCB0TEMP METER LCD PANEL MOUNT |
7 |
|
Ficha técnica |
CUB5TC | Box | Active | Temperature Meter | Thermocouple | -200°C ~ 1820°C, -10 ~ 65mVDC | LCD - Dual Color Characters, Backlight | 5 | 0.480" (12.20mm) | Option Cards Available | 9 ~ 28VDC | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
EM530DINAV53XS1X3-PH ENERGY METER CT 5A RS485 DI |
8 |
|
Ficha técnica |
EM530 | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 5A, 208 ~ 415VAC, 45 ~ 65Hz | LCD - Black Characters, Blue Backlight | 8 | - | - | 120 ~ 415VAC | - | DIN Rail | Screw Terminal | IP40 | - |
|
PAXLCL00PROCESS METER 4-50MA LED PNL MT |
17 |
|
Ficha técnica |
PAX®LITE PAXLCL | Bulk | Active | Process Meter | Process | 4 ~ 50mA | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 85 ~ 250VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply |
|

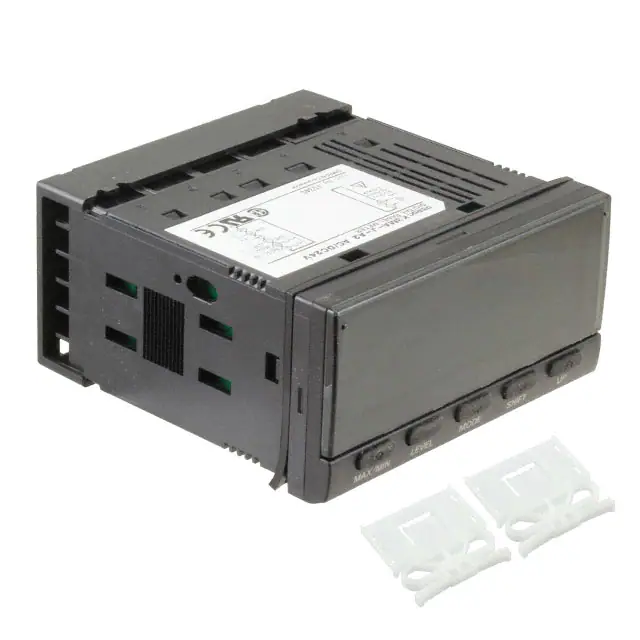

K3MA-L-C 100-240VACTEMP METER LCD PANEL MOUNT |
3 |
|
Ficha técnica |
K3MA-L | Bulk | Active | Temperature Meter | RTD, Thermocouple | -200°C ~ 1800°C | LCD - Dual Color Characters, Backlight | 4 | 0.560" (14.20mm) | Relay | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
K3MA-J-A2 24VAC/VDCPROC MTR 0-20MA/10VDC LCD PNL MT |
2 |
|
Ficha técnica |
K3MA-J | Bulk | Active | Process Meter | Process | 0 ~ 20mA, ±10VDC | LCD - Dual Color Characters, Backlight | 5 | 0.560" (14.20mm) | Relay (2) | 24VAC/DC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|

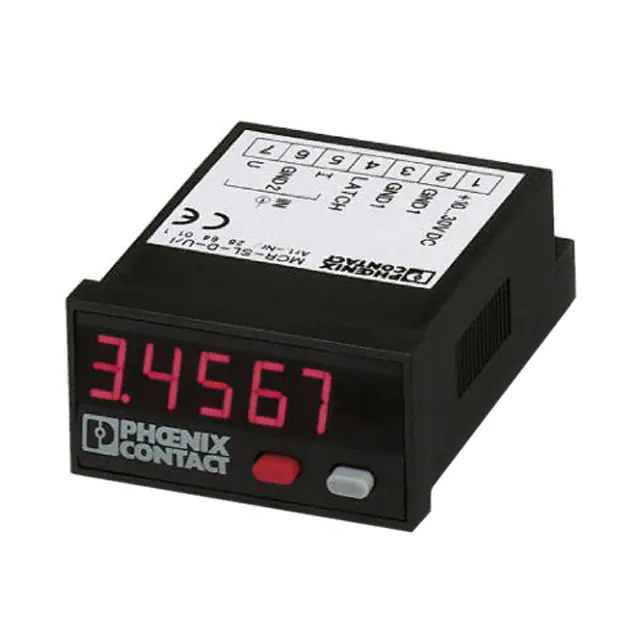

2864011PROCESS METER LED PANEL MOUNT |
4 |
|
Ficha técnica |
- | Bulk | Active | Process Meter | Process | 0 ~ 20mA, 0 ~ 10VDC | LED - Red Characters | 5 | 0.315" (8.00mm) | - | 10 ~ 30VDC | Rectangular - 45.00mm x 22.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|

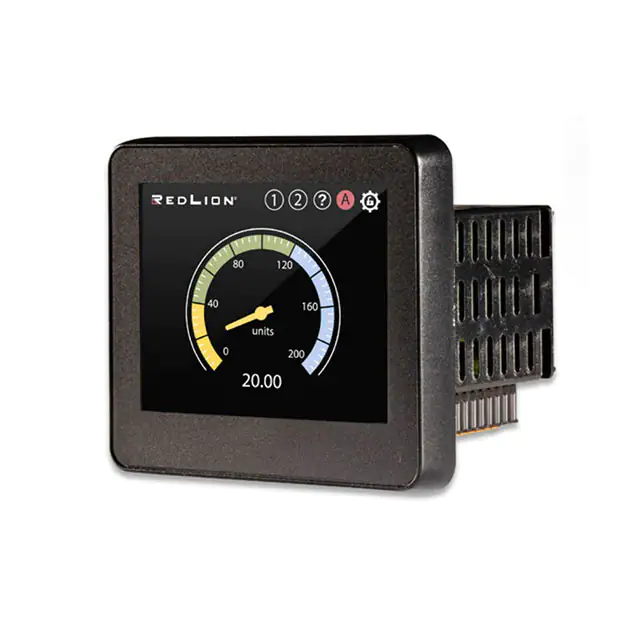

PM500A0301600F00GRAPHICAL PANEL METER, PM-50, 3. |
4 |
|
Ficha técnica |
PM-50 | Bulk | Active | Display | Current, Resistance, RTD, Thermocouple, Voltage | ±2A, ±60VDC, -270°C ~ 2315°C, 1000Ohm | TFT - Color (Touch) | - | - | Solid State | 10 ~ 30VDC | - | Panel Mount | - | IP65 - Dust Tight, Water Resistant | - |
|
PAXT0000TEMP METER LED PANEL MOUNT |
4 |
|
Ficha técnica |
PAX | Box | Active | Temperature Meter | RTD, Thermocouple | -270°C ~ 2315°C, -10 ~ 65mVDC, 0 ~ 400Ohms | LED - Red Characters | 5 | 0.560" (14.20mm) | Option Cards Available | 85 ~ 250VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply, Option Cards Available |
|
SGD 70-A7" DIGITAL CAP TOUCH DISPLAY |
5 |
|
Ficha técnica |
SGD | Box | Active | Ammeter, Voltmeter | Current, Voltage | 4 ~ 20mA, ±40VDC | TFT - Color (Touch) | - | - | Solid State (2) | 5 ~ 30VDC | Rectangular - 117.00mm x 78.00mm | Panel Mount | Screw Terminal | - | - |
|
2907945PANEL-MOUNT ENERGY METER WITH DI |
4 |
|
Ficha técnica |
EEM-MA | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 5A, 35 ~ 690VAC | LCD - Black Characters, Backlight | - | - | - | 100 ~ 400VAC, 150 ~ 250VDC | - | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | - |
|
PAXT0010TEMP METER LED PANEL MOUNT |
5 |
|
Ficha técnica |
PAX | Box | Active | Temperature Meter | RTD, Thermocouple | -270°C ~ 2315°C, -10 ~ 65mVDC, 0 ~ 400Ohms | LED - Red Characters | 5 | 0.560" (14.20mm) | Option Cards Available | 24VAC, 11 ~ 36VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply, Option Cards Available |
|
|
2907944PANEL-MOUNT ENERGY METER WITH DI |
2 |
|
Ficha técnica |
EEM-MA | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 5A, 35 ~ 690VAC | LCD - Black Characters, Backlight | - | - | - | 100 ~ 400VAC, 150 ~ 250VDC | - | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | - |
|
|
PAXS0010PROCESS METER 240MVDC LED PNL MT |
3 |
|
Ficha técnica |
PAX | Box | Active | Process Meter | Process | ±240mVDC | LED - Red Characters | 5 | 0.560" (14.20mm) | Option Cards Available | 24VAC, 11 ~ 36VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply, Option Cards Available |
|
LD4A05P0MULTI METER LED CHASSIS MOUNT |
4 |
|
Ficha técnica |
LD | Box | Active | Multifunction Meter | Current, Process, Voltage | 0 ~ 200mA, 0 ~ 200VDC | LED - Red Characters | 5 | 4.000" (101.00mm) | Relay (2) | 50 ~ 250VAC, 21.6 ~ 250VDC | - | Chassis Mount | Connector | IP65 - Dust Tight, Water Resistant | Serial Communications Output |
|
DK604VOLTMETER 200MVDC LED PANEL MT |
16 |
|
Ficha técnica |
DK600 | Bulk | Active | Voltmeter | Voltage | ±200mVDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 5VDC | Rectangular - 52.10mm x 20.60mm | Panel Mount - Window | PC Pin | - | Bezel Sold Separately |
|
MA12-100MV-DC-110V-CU-ROHSDC LED AMP METER |
88 |
|
Ficha técnica |
MA12 | Box | Active | Ammeter | Current | 0 ~ 4960A | LCD - Red Characters | 4 | 0.560" (14.22mm) | - | 110VAC | Rectangular - 92.00mm x 46.00mm | Panel Mount | Screw Terminal | IP51 - Dust Protected | - |
|
MV15-110V-CU-ROHSLED DIGITAL AC VOLT METER |
67 |
|
Ficha técnica |
MV15 | Box | Active | Voltmeter | Voltage | 0 ~ 516VAC/DC | LCD - Red Characters | 3 | 0.560" (14.22mm) | - | 110VAC | Rectangular - 92.00mm x 46.00mm | Panel Mount | Screw Terminal | IP51 - Dust Protected | - |
|
|
DK605VOLTMETER 2VDC LED PANEL MOUNT |
39 |
|
Ficha técnica |
DK600 | Bulk | Active | Voltmeter | Voltage | ±2VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 5VDC | Rectangular - 52.10mm x 20.60mm | Panel Mount - Window | PC Pin | - | Bezel Sold Separately |
|
DLA-201RVOLTMETER 2VDC LED PANEL MOUNT |
62 |
|
Ficha técnica |
DLA-200LED | Bulk | Active | Voltmeter | Voltage | ±2VDC | LED - Red Characters | 3.5 | 0.370" (9.40mm) | Reference | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | PC Pin | - | Bezel Sold Separately |
|
DLA-202LCDVOLTMETER 20VDC LCD PANEL MOUNT |
23 |
|
Ficha técnica |
DLA-200LCD | Bulk | Active | Voltmeter | Voltage | ±20VDC | LCD - Black Characters | 3.5 | 0.370" (9.40mm) | Reference | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | PC Pin | - | Bezel Sold Separately |
