Medidores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Tipo de medição | Faixa de medição | Tipo de Exibição | Número de caracteres por linha | Caracteres de exibição - Altura | Tipo de saída | Voltagem - Alimentação | Dimensões do Recorte do Painel | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

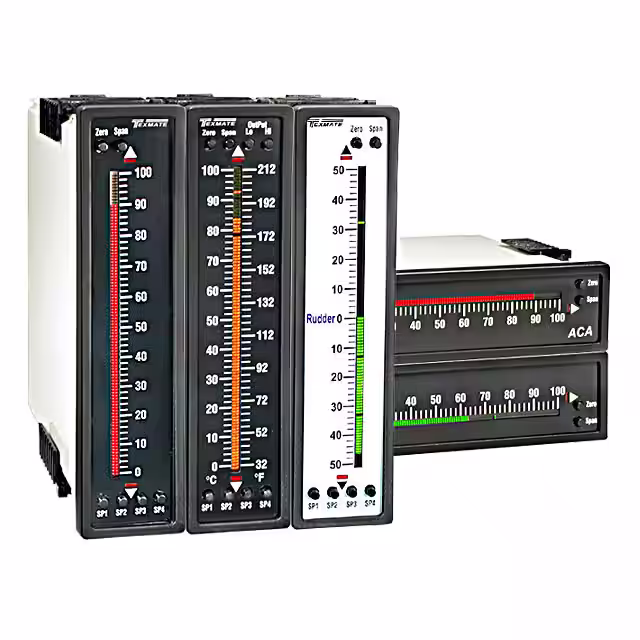

FL-B101Q-ACA0-5 Amp AC Bargraph Controller / |
50 |
|
Ficha técnica |
FL-B | Box | Active | Ammeter | Current | 0 ~ 5A | LED - Red Bar Graph | - | - | Analog, Relay (2) | 85 ~ 265VAC, 95 ~ 300VDC | Rectangular - 144.53mm x 36.07mm | Panel Mount | Screw Terminal | - | - |
|
FL-BDPSF-ACAAC AMP 101 SEG 4 DIGITS LED BARG |
50 |
|
Ficha técnica |
FL-B | Box | Active | Ammeter | Current | 0 ~ 5A | LED - Red Characters, LED - Red Bar Graph | 4 | 0.310" (7.87mm) | Analog, Relay (2) | 85 ~ 265VAC, 95 ~ 300VDC | Rectangular - 144.53mm x 36.07mm | Panel Mount | Screw Terminal | - | - |
|

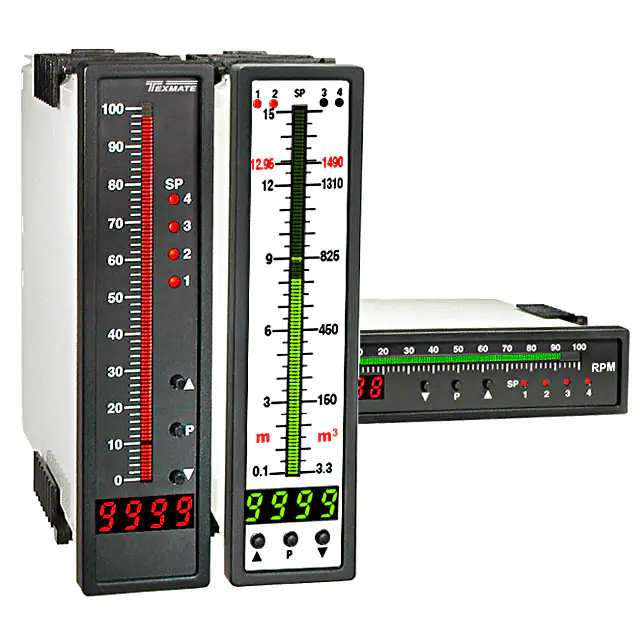

FL-BDPSF-ACV0-600 VAC RMS direct 0-9999 VAC |
50 |
|
Ficha técnica |
FL-B | Box | Active | Voltmeter | Voltage | 200 ~ 600VAC | LED - Red Characters, LED - Red Bar Graph | 4 | 0.310" (7.87mm) | Analog, Relay (2) | 85 ~ 265VAC, 95 ~ 300VDC | Rectangular - 144.53mm x 36.07mm | Panel Mount | Screw Terminal | - | - |
|
FL-B101D40HZLine Frequency 0-9999 Hz Bargrap |
50 |
|
Ficha técnica |
FL-B | Box | Active | Frequency Meter | Frequency | - | LED - Red Characters, LED - Red Bar Graph | 4 | 0.310" (7.87mm) | Analog, Relay (2) | 85 ~ 265VAC, 95 ~ 300VDC | Rectangular - 144.53mm x 36.07mm | Panel Mount | Screw Terminal | - | - |
|
CL-B101D40-TCSwitchBoard Style Thermocouple C |
50 |
|
Ficha técnica |
CL-B | Box | Active | Temperature Meter | Thermocouple | - | LED - Red Characters, LED - Red Bar Graph | 4 | 0.560" (14.22mm) | Analog, Relay (2) | 85 ~ 265VAC, 95 ~ 300VDC | Round - 97.77mm Dia | Panel Mount | Screw Terminal | - | - |
|

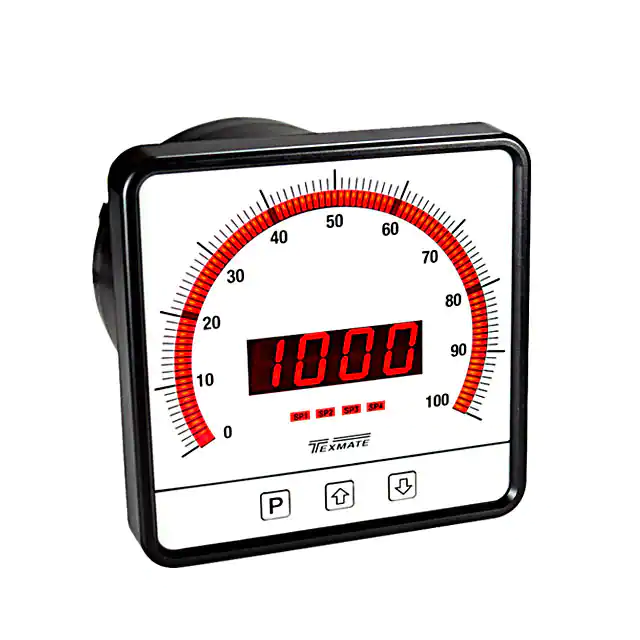

CL-B101D40HZSwitchboard Style 0-9999 Hz Circ |
49 |
|
Ficha técnica |
CL-B | Box | Active | Frequency Meter | Frequency | - | LED - Red Characters, LED - Red Bar Graph | 4 | 0.560" (14.22mm) | Analog, Relay (2) | 85 ~ 265VAC, 95 ~ 300VDC | Round - 97.77mm Dia | Panel Mount | Screw Terminal | - | - |
|

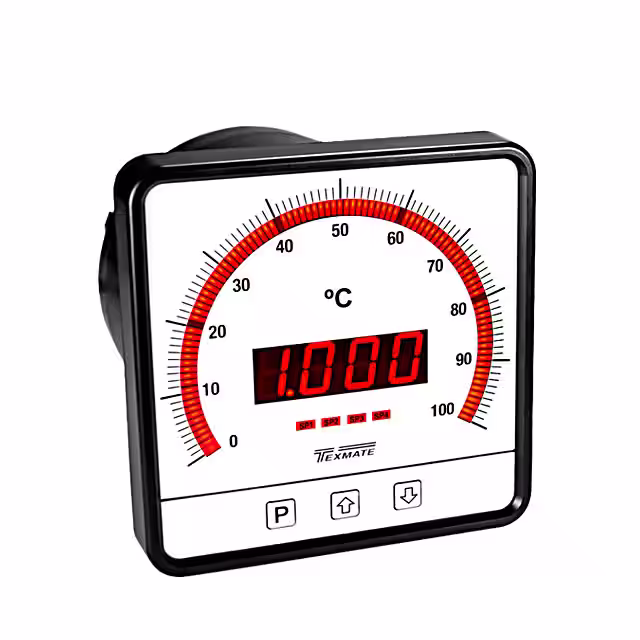

CL-B101D40-RTDSwitchBoard Style Thermocouple C |
50 |
|
Ficha técnica |
CL-B | Box | Active | Temperature Meter | RTD | - | LED - Red Characters, LED - Red Bar Graph | 4 | 0.560" (14.22mm) | Analog, Relay (2) | 85 ~ 265VAC, 95 ~ 300VDC | Round - 97.77mm Dia | Panel Mount | Screw Terminal | - | - |
|
EM94-ZV1HZ00000000DC PWR MTR 200-1000DC Aux60-300v |
100 |
|
Ficha técnica |
Alpha EM DC | Case | Active | DC Amp Meter Controller | - | 10 ~ 60VDC | LCD - Red Characters | 4 | 0.713" (18.10mm) | - | 60 ~ 300VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | DC Energy Meter With Advanced Monitoring and Logging option |
|
|
EM94-ZV1HR00000000DC PWR MTR 200-1000DC,Pulse Out |
100 |
|
Ficha técnica |
Alpha EM DC | Case | Active | DC Amp Meter Controller | - | 10 ~ 60VDC | LCD - Red Characters | 4 | 0.713" (18.10mm) | Relay (2) | 60 ~ 300VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | DC Energy Meter With Advanced Monitoring and Logging option |
|
|
EM94-ZV1HD00000000DC PWR MTR 200-1000DC,PLSout,Log |
100 |
|
Ficha técnica |
Alpha EM DC | Case | Active | DC Amp Meter Controller | - | 10 ~ 60VDC | LCD - Red Characters | 4 | 0.713" (18.10mm) | Relay (2), RS485, USB-Datalogging | 60 ~ 300VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | DC Energy Meter With Advanced Monitoring and Logging option |
|
|
AP4L - 430102RH20000PWR METER;3PH,100-600vAC,RS485 |
100 |
|
Ficha técnica |
Alpha LM 1360 | Case | Active | Multifunction Meter (Current, Voltage, Frequency, Power) | Current (1-Phase/3-Phase), Voltage, Wattage | 0 ~ 5A, 208 ~ 480VAC, 45 ~ 65Hz | LCD - Black Characters, Backlight | Programmable | 0.384" (9.75mm) | - | 100 ~ 550VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | THD Monitoring |
|
|
SM35DCV-2V0-2V DC VoltMeter. 5V Power |
50 |
|
Ficha técnica |
SM | Retail Package | Active | Process Meter, Voltmeter | Voltage | 0 ~ 2VDC | LED | 3.5 | 0.560" (14.22mm) | - | - | Rectangular - 64.77mm x 24.64mm | Panel Mount - Bezel | - | IP30 | Header Programmable |
|
SM-35XSLIM CASE 5DCV POWER LCD 2V |
50 |
|
Ficha técnica |
SM | Box | Active | Voltmeter | Voltage | 2VDC | LCD - Black Characters | 3.5 | 0.480" (12.20mm) | - | 5VDC | Rectangular - 64.77mm x 24.64mm | Panel Mount | Card Edge | - | - |
|
SM-35-200SLIM CASE 5DCV POWER 200V |
50 |
|
Ficha técnica |
SM | Box | Active | Voltmeter | Voltage | 200VDC | LED - Red Characters | 3.5 | 0.500" (12.70mm) | - | 5VDC | Rectangular - 64.77mm x 24.64mm | Panel Mount | Card Edge | - | - |
|
|
SM-35MVSLIM CASE 5DCV POWER 2V |
50 |
|
Ficha técnica |
SM | Box | Active | Voltmeter | Voltage | 2VDC | LED - Red Characters | 3.5 | 0.500" (12.70mm) | - | 5VDC | Rectangular - 64.77mm x 24.64mm | Panel Mount | Card Edge | - | - |
|
|
SM35DCV-LMV50mV DC (Current Shunt) Volt 5V |
50 |
|
Ficha técnica |
SM | Retail Package | Active | Process Meter, Voltmeter | Voltage | 0 ~ 50VDC | LED | 3.5 | 0.560" (14.22mm) | - | - | Rectangular - 64.77mm x 24.64mm | Panel Mount - Bezel | - | IP30 | Header Programmable, External Current Shunt Compatible |
|
|
SM35DCV-20V0-20V DC VoltMeter. 5V Power |
50 |
|
Ficha técnica |
SM | Retail Package | Active | Process Meter, Voltmeter | Voltage | 0 ~ 20VDC | LED | 3.5 | 0.560" (14.22mm) | - | - | Rectangular - 64.77mm x 24.64mm | Panel Mount - Bezel | - | IP30 | Header Programmable |
|
|
SM35DCV-2CV0-200V DC VoltMeter. 5V Power |
50 |
|
Ficha técnica |
SM | Retail Package | Active | Process Meter, Voltmeter | Voltage | 0 ~ 200VDC | LED | 3.5 | 0.560" (14.22mm) | - | - | Rectangular - 64.77mm x 24.64mm | Panel Mount - Bezel | - | IP30 | Header Programmable |
|
|
SM35DCV-CMV100mV DC (Current Shunt) Volt 5V |
50 |
|
Ficha técnica |
SM | Retail Package | Active | Process Meter, Voltmeter | Voltage | 0 ~ 100VDC | LED | 3.5 | 0.560" (14.22mm) | - | - | Rectangular - 64.77mm x 24.64mm | Panel Mount - Bezel | - | IP30 | Header Programmable, External Current Shunt Compatible |
|
|
SM35DCV-2VDDifferential 0-2VDC Volt 5V Pwr |
50 |
|
Ficha técnica |
SM | Retail Package | Active | Process Meter, Voltmeter | Voltage | 0 ~ 2VDC | LED | 3.5 | 0.560" (14.22mm) | - | - | Rectangular - 64.77mm x 24.64mm | Panel Mount - Bezel | - | IP30 | Header Programmable |
