Reguladores de tensão - Linear, Low Drop Out (LDO) Reguladores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Configuração de Saída | Tipo de saída | Número de Reguladores | Tensão - Entrada (Máx.) | Tensão - Saída (Mín./Fixo) | Tensão - Saída (Máx.) | Queda de Tensão (Máx.) | Corrente - Saída | Corrente - Quiescente (Iq) | Corrente - Alimentação (máx.) | PSRR | Recursos de Controle | Recursos de Proteção | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

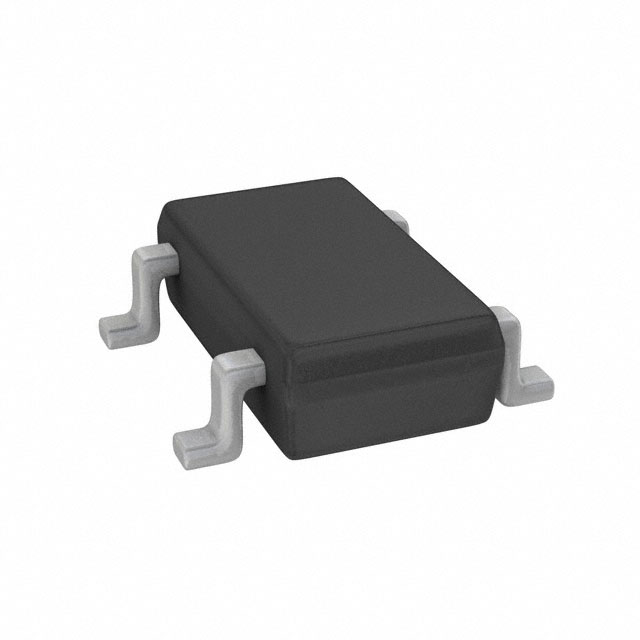

MPQ2013AGJE-33-C672-PIC REG LIN 3.3V 150MA TSOT23-4 |
0 |
|
Ficha técnica |
- | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 1.1V @ 150mA | 150mA | 50 µA | - | 58dB ~ 41dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-4 |
|
|
MPQ2013AGJE-5-AEC1C672-PIC REG LINEAR 5V 150MA TSOT23-4 |
0 |
|
Ficha técnica |
- | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 1.1V @ 150mA | 150mA | 10 µA | 50 µA | 58dB ~ 41dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TSOT-23-4 |
|
|
MPQ2013AGJE-5-C672-PIC REG LINEAR 5V 150MA TSOT23-4 |
0 |
|
Ficha técnica |
- | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 1.1V @ 150mA | 150mA | 10 µA | 50 µA | 58dB ~ 41dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-4 |
|
|
MPQ2013AGJE-C672-PIC REG LIN POS ADJ 150MA TSOT23 |
0 |
|
Ficha técnica |
- | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.215V | 15V | 1.1V @ 150mA | 150mA | - | - | 58dB ~ 41dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-4 |
|
MP2019GNIC REG LINEAR POS ADJ 300MA |
0 |
|
Ficha técnica |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 40V | 1.2V | 15V | 0.55V @ 150mA | 300mA | 95 µA | - | 45dB (1kHz) | Enable, Power Good | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC-EP |
|
MP6402DN-EF-LFIC REG LINEAR POS ADJ 500MA |
0 |
|
Ficha técnica |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 2 | 5.5V | 0.9V | 3.3V | 0.26V @ 500mA (Typ), 0.26V @ 500mA (Typ) | 500mA, 500mA | 580 µA | - | 60db ~ 51dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOICE |
|
|
MPQ2019GNIC REG LINEAR POS ADJ 300MA |
0 |
|
Ficha técnica |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 40V | 1.2V | 15V | 0.55V @ 300mA | 300mA | 95 µA | - | 45dB (1kHz) | Enable, Power Good | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC-EP |
|
|
MPQ2019GN-33IC REG LINEAR 3.3V 300MA |
0 |
|
Ficha técnica |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.6V @ 300mA | 300mA | 95 µA | - | 45dB (1kHz) | Enable, Power Good | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC-EP |
|
|
MPQ2019GN-AEC1IC REG LINEAR POS ADJ 300MA |
0 |
|
Ficha técnica |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 40V | 1.2V | 15V | 0.55V @ 300mA | 300mA | 95 µA | - | 45dB (1kHz) | Enable, Power Good | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
|
MPQ2019GN-33-AEC1IC REG LINEAR 3.3V 300MA |
0 |
|
Ficha técnica |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.6V @ 300mA | 300mA | 95 µA | - | 45dB (1kHz) | Enable, Power Good | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
-Exposed-Pad.jpg)
|
TS39104CS RLGIC REG LINEAR POS ADJ 1A 8SOP |
0 |
|
Ficha técnica |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 1.25V | 16V | 0.63V @ 1A | 1A | 2 mA | 20 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOP |
|
TS2950CT33 A3GIC REG LINEAR 3.3V 150MA TO92-3 |
0 |
|
- |
- | - | Tape & Box (TB) | Active | Positive | Fixed | 1 | 30V | - | 3.3V | 0.45V @ 100mA | 150mA | - | 12 mA | - | - | - | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
TS2950CT50 A3GIC REG LINEAR 5V 150MA TO92-3 |
0 |
|
- |
- | - | Tape & Box (TB) | Active | Positive | Fixed | 1 | 30V | - | 5V | 0.45V @ 100mA | 150mA | - | 12 mA | - | - | - | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
TS78L03CT A3GIC REG LINEAR 3.3V 100MA TO92 |
0 |
|
Ficha técnica |
- | TO-226-3, TO-92-3 (TO-226AA) | Tape & Box (TB) | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 2V @ 100mA (Typ) | 100mA | 6 mA | - | 49dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS78L09CT A3GIC REG LINEAR 9V 100MA TO92 |
0 |
|
Ficha técnica |
- | TO-226-3, TO-92-3 (TO-226AA) | Tape & Box (TB) | Obsolete | Positive | Fixed | 1 | 35V | 9V | - | 1.7V @ 100mA (Typ) | 100mA | 6 mA | - | 57dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS78L12CT A3GIC REG LINEAR 12V 100MA TO92 |
0 |
|
Ficha técnica |
- | TO-226-3, TO-92-3 (TO-226AA) | Tape & Box (TB) | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 1.7V @ 100mA (Typ) | 100mA | 6.5 mA | - | 42dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS78L15CT A3GIC REG LINEAR 15V 100MA TO92 |
0 |
|
Ficha técnica |
- | TO-226-3, TO-92-3 (TO-226AA) | Tape & Box (TB) | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | 1.7V @ 100mA (Typ) | 100mA | 6.6 mA | - | 39dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS79L05CT A3GIC REG LINEAR -5V 100MA TO92 |
0 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) | Tape & Box (TB) | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | 1.7V @ 100mA (Typ) | 100mA | 6 mA | - | 49dB (120Hz) | Current Limit | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-92 |
|
|
TS79L09CT A3GIC REG LINEAR 9V 100MA TO92 |
0 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) | Tape & Box (TB) | Obsolete | Negative | Fixed | 1 | 35V | 9V | - | 1.7V @ 100mA (Typ) | 100mA | 6 mA | - | 57dB (120Hz) | Current Limit | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-92 |
|
TS317CZ C0GIC REG LINEAR POS ADJ 1.5A TO220 |
0 |
|
- |
- | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | - | 100 µA | 80dB (120Hz) | Current Limit | Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
