Reguladores de tensão - Linear, Low Drop Out (LDO) Reguladores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Configuração de Saída | Tipo de saída | Número de Reguladores | Tensão - Entrada (Máx.) | Tensão - Saída (Mín./Fixo) | Tensão - Saída (Máx.) | Queda de Tensão (Máx.) | Corrente - Saída | Corrente - Quiescente (Iq) | Corrente - Alimentação (máx.) | PSRR | Recursos de Controle | Recursos de Proteção | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS7A0333PYCHRIC POWER |
23,438 |
|
Ficha técnica |
- | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.31V @ 200mA | 200mA | 300 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.64x0.64) |
|
SPX5205M5-L-3-3/TRIC REG LINEAR 3.3V 150MA SOT23-5 |
22,223 |
|
Ficha técnica |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.35V @ 150mA | 150mA | 5 µA | 2.5 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
LD1117S50CTRIC REG LINEAR 5V 800MA SOT223 |
19,377 |
|
Ficha técnica |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 5V | - | 1.3V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223 |
|
TCR2LF18,LM(CTIC REG LINEAR 1.8V 200MA SMV |
14,998 |
|
Ficha técnica |
TCR2LF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.62V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SMV |
|
|
TCR2LF30,LM(CTIC REG LINEAR 3V 200MA SMV |
12,943 |
|
Ficha técnica |
TCR2LF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.3V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SMV |
|
L79L12ACD13TRIC REG LINEAR -12V 100MA 8SO |
12,768 |
|
Ficha técnica |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -12V | - | - | 100mA | 6 mA | 6.5 mA | 42dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
TLV1117CDCYRIC REG LIN POS ADJ 800MA SOT223 |
10,717 |
|
Ficha técnica |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 15V | 1.25V | 13.7V | 1.3V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
SPX5205M5-L-5-0/TRIC REG LINEAR 5V 150MA SOT23-5 |
10,285 |
|
Ficha técnica |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.35V @ 150mA | 150mA | 5 µA | 2.5 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
TLV75740PDRVRIC REG LINEAR 4V 1A 6WSON |
10,189 |
|
Ficha técnica |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4V | - | 0.475V @ 1A | 1A | - | 40 µA | 52dB (1kHz ~ 1MHz) | Enable | Current Limit, Thermal Shutdown, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
TLV70018DSERIC REG LINEAR 1.8V 200MA 6WSON |
7,226 |
|
Ficha técnica |
- | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.25V @ 200mA | 200mA | 55 µA | 270 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
TPS7A20L33PDQNR300-MA LOW-NOISE, LOW-IQ VOLTAGE |
2,593 |
|
Ficha técnica |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.14V @ 300mA | 300mA | 15 µA | - | 95dB ~ 45dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
TLV73312PQDBVRQ1IC REG LINEAR 1.2V 300MA SOT23-5 |
62,720 |
|
Ficha técnica |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.45V @ 300mA | 300mA | 78 µA | - | - | Enable | Over Current, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
LDLN030G33RIC REG LIN 3.3V 300MA TSOT23-5 |
31,293 |
|
Ficha técnica |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.23V @ 300mA | 300mA | 30 µA | 360 µA | 70dB ~ 53dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
L79L05ACUTRIC REG LINEAR -5V 100MA SOT89-3 |
18,628 |
|
Ficha técnica |
- | TO-243AA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -5V | - | - | 100mA | 5.5 mA | 6 mA | 49dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | SOT-89-3 |
|
|
L79L12ACUTRIC REG LINEAR -12V 100MA SOT89-3 |
18,445 |
|
Ficha técnica |
- | TO-243AA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -12V | - | - | 100mA | 6 mA | 6.5 mA | 42dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | SOT-89-3 |
|
|
TLV73325PQDBVRQ1IC REG LINEAR 2.5V 300MA SOT23-5 |
13,607 |
|
Ficha técnica |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.29V @ 300mA | 300mA | 78 µA | - | - | Enable | Over Current, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
TLV73310PQDBVRQ1IC REG LINEAR 1V 300MA SOT23-5 |
8,793 |
|
Ficha técnica |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | - | 300mA | 78 µA | - | - | Enable | Over Current, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
TLV73318PQDBVRQ1IC REG LINEAR 1.8V 300MA SOT23-5 |
6,328 |
|
Ficha técnica |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.3V @ 300mA | 300mA | 78 µA | - | 68dB ~ 28dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
LD39020ADTPU33RIC REG LINEAR 3.3V 200MA 4DFN |
5,501 |
|
Ficha técnica |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.35V @ 200mA | 200mA | 40 µA | - | 80dB ~ 55dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|

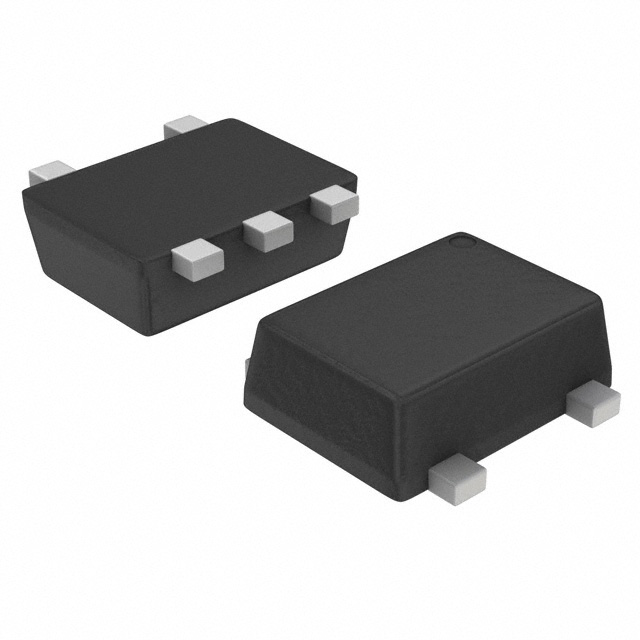

TCR2LE28,LM(CTIC REG LINEAR 2.8V 200MA ESV |
4,097 |
|
Ficha técnica |
TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.38V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
