Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6B-4BND DC5RELAY GEN PURPOSE SPST 5A 5V |
66 |
|
Ficha técnica |
G6B-4 | Bulk | Active | DIN Rail | 5VDC | SPST-NO (1 Form A) x 4 | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 35.5 mA | Non Latching | Socket Included | Screw Terminal | - | - | 4 VDC | 0.5 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | CE, CSA, UR, VDE | General Purpose | - | - |
|

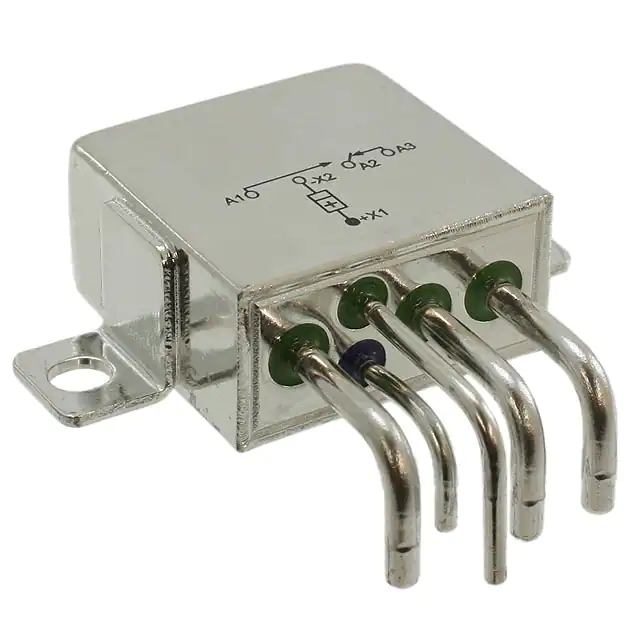

FCA-125-HX3RELAY GEN PURPOSE SPDT 25A 28V |
19 |
|
Ficha técnica |
FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 875 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|

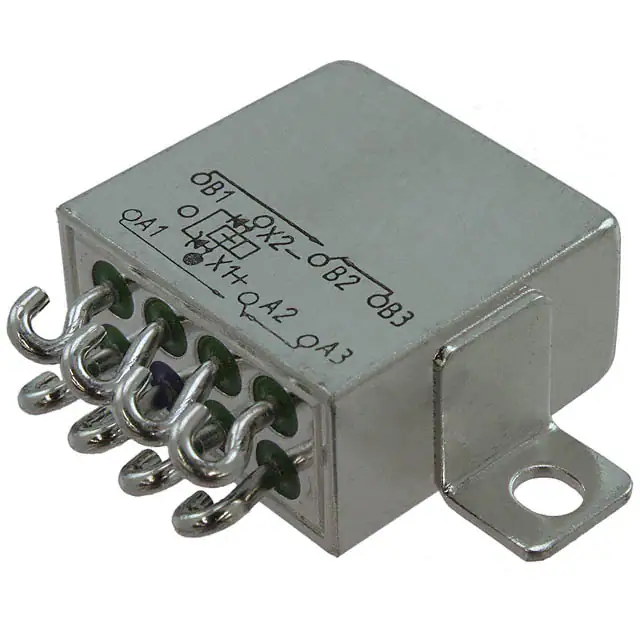

FCA-210-1026MRELAY GEN PURPOSE DPDT 10A 28V |
34 |
|
Ficha técnica |
FCA-210, CII | Tray | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
FCA-210-0923MRELAY GEN PURPOSE DPDT 10A 28V |
32 |
|
Ficha técnica |
FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-83536/9 |
|
29-511-12RELAY GEN PURPOSE SPST 500A 28V |
30 |
|
Ficha técnica |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 500 A | - | 22W | 777.8 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 60 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
HC-5RELAY GEN PURPOSE SPDT 8A 26.5V |
27 |
|
Ficha técnica |
HC-5, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 8 A | - | - | 79.1 mA | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 6 ms | 6 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
J102K1AS59VDC.45RELAY GEN PURPOSE SPST 5A 9V |
1,972 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J1021CS56VDC.45RELAY GEN PURPOSE SPDT 5A 6V |
4,376 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1CS36VDC.20RELAY GEN PURPOSE SPDT 3A 6V |
1,775 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J1021AS56VDC.45RELAY GEN PURPOSE SPST 5A 6V |
1,969 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1AS512VDC.45RELAY GEN PURPOSE SPST 5A 12V |
3,973 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1AS55VDC.45RELAY GEN PURPOSE SPST 5A 5V |
1,754 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
AZ9403-1A-5DERELAY GEN PURPOSE SPST 10A 5V |
560 |
|
Ficha técnica |
AZ9403 | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 400VAC, 150VDC - Max | 2770VA, 150W | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.8 VDC | 0.25 VDC | 8 ms | 5 ms | -40°C ~ 110°C | Silver Tin Oxide (AgSnO) | UL, VDE | General Purpose | - | - |
|
J1021AS524VDC.45RELAY GEN PURPOSE SPST 5A 24V |
1,260 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
AZ9322-1AH-12DRELAY GEN PURPOSE SPST 15A 12V |
485 |
|
Ficha técnica |
AZ9322 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 277VAC - Max | 1800VA | 30 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | - | 10 ms | 5 ms | - | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
|
AZ9322-1AH-5DRELAY GEN PURPOSE SPST 15A 5V |
465 |
|
Ficha técnica |
AZ9322 | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 15 A | 277VAC - Max | 1800VA | 71.43 mA | Non Latching | - | PC Pin | - | Class B | 3.8 VDC | - | 10 ms | 5 ms | - | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
J1021AS324VDC.20RELAY GEN PURPOSE SPST 3A 24V |
1,309 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J1021AS59VDC.45RELAY GEN PURPOSE SPST 5A 9V |
912 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
AZ9322-1AH-24DRELAY GEN PURPOSE SPST 15A 24V |
486 |
|
Ficha técnica |
AZ9322 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 277VAC - Max | 1800VA | 15 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | - | 10 ms | 5 ms | - | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
J105D1AS9VDC.45RELAY GEN PURPOSE SPST 10A 9V |
989 |
|
Ficha técnica |
J105D | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
