Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

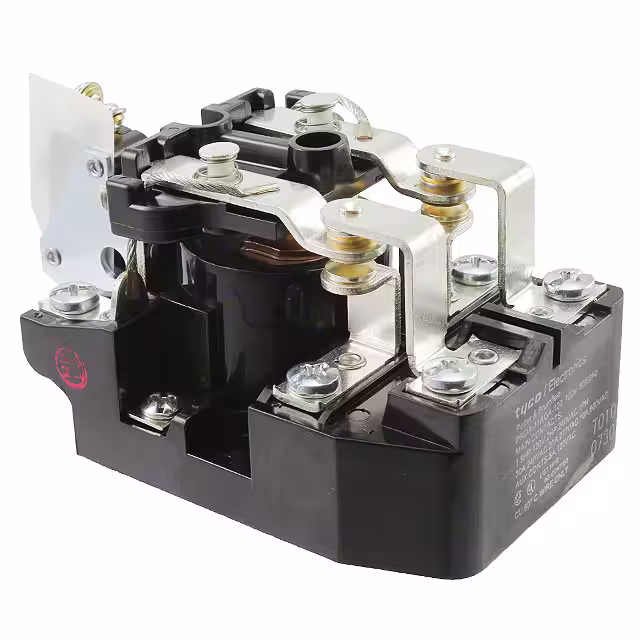

PRDA-11AGA-120RELAY GEN PURPOSE DPDT 30A 120V |
0 |
|
Ficha técnica |
PRDA | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|
OMIH-SH-124L,394RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Ficha técnica |
OMIH, OEG | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC | - | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RY530012RELAY GEN PURPOSE SPST 8A 12V |
0 |
|
Ficha técnica |
RY, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
KUP-14D35F-24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Ficha técnica |
KUP | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | CSA, UR | General Purpose | - | - |
|

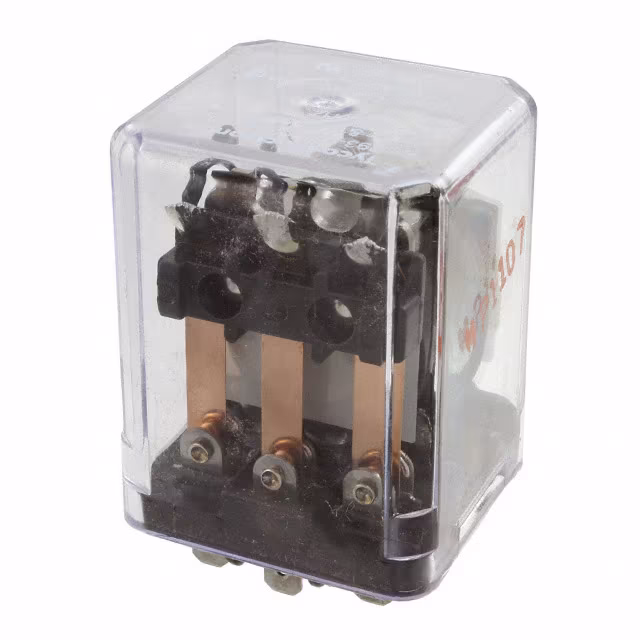

KUP93-14A11-120RELAY GEN PURPOSE 3PDT 5A 120V |
0 |
|
Ficha técnica |
KUP93 | Bulk | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 5 A | 240VAC, 28VDC - Max | 1200VA, 140W | 24 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KUP93-14A11-24RELAY GEN PURPOSE 3PDT 5A 24V |
0 |
|
Ficha técnica |
KUP93 | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 5 A | 240VAC, 28VDC - Max | 1200VA, 140W | 115 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
KUP-17D19-110RELAY GEN PURPOSE 4PDT 10A 110V |
0 |
|
Ficha técnica |
KUP | Bulk | Obsolete | Socketable | 110VDC | 4PDT (4 Form C) | 10 A | 240VAC - Max | 2400VA | 16 mA | Non Latching | - | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class B | 82.5 VDC | - | 15 ms | 10 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KUP-11DA5-24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Ficha técnica |
KUP | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUP-11D35-110RELAY GEN PURPOSE DPDT 10A 110V |
0 |
|
Ficha técnica |
KUP | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 11 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 82.5 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUP-14AE5-240RELAY GEN PURPOSE 3PDT 10A 240V |
0 |
|
Ficha técnica |
KUP | Bulk | Obsolete | Chassis Mount | 240VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 11.3 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

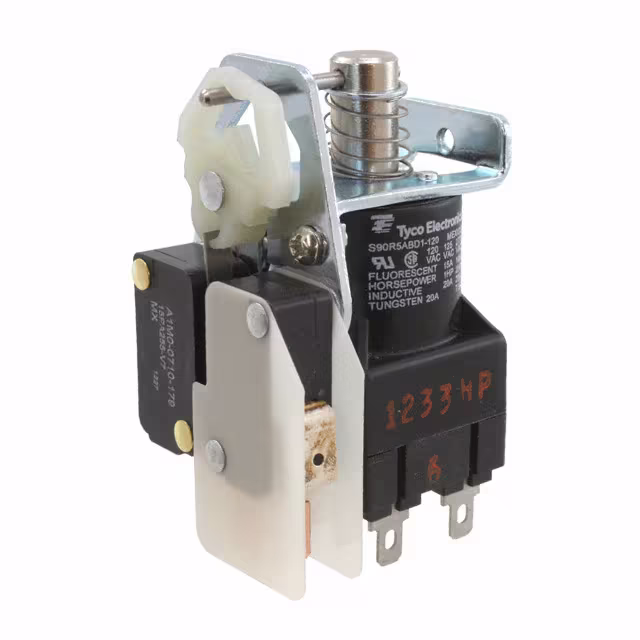

S90R5ABD1-120RELAY IMPULSE SPDT 20A 120V |
0 |
|
Ficha técnica |
S90R | Bulk | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 75 mA | Latching, Single Coil | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|
RM805048RELAY GEN PURPOSE DPDT 25A 48V |
0 |
|
Ficha técnica |
RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 48VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 25 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
RM732730RELAY GEN PURPOSE 3PDT 16A 230V |
0 |
|
Ficha técnica |
RM, SCHRACK | Bulk | Obsolete | Socketable | 230VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 30.7 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 184 VAC | 69 VAC | 15 ms | 10 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RM705024RELAY GEN PURPOSE 3PDT 16A 24V |
0 |
|
Ficha técnica |
RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 24VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 70.8 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

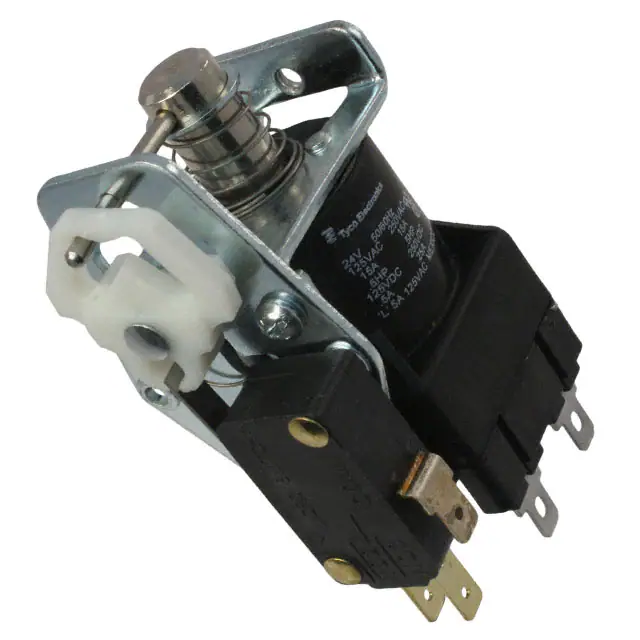

S89R5AAC1-120RELAY IMPULSE SPDT 15A 120V |
0 |
|
Ficha técnica |
S89R | Bulk | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 15 A | 277VAC - Max | 4155VA | 75 mA | Latching, Single Coil | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|
|
S89R11DAC1-24RELAY IMPULSE DPDT 15A 24V |
0 |
|
Ficha técnica |
S89R | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 260 mA | Latching, Single Coil | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|

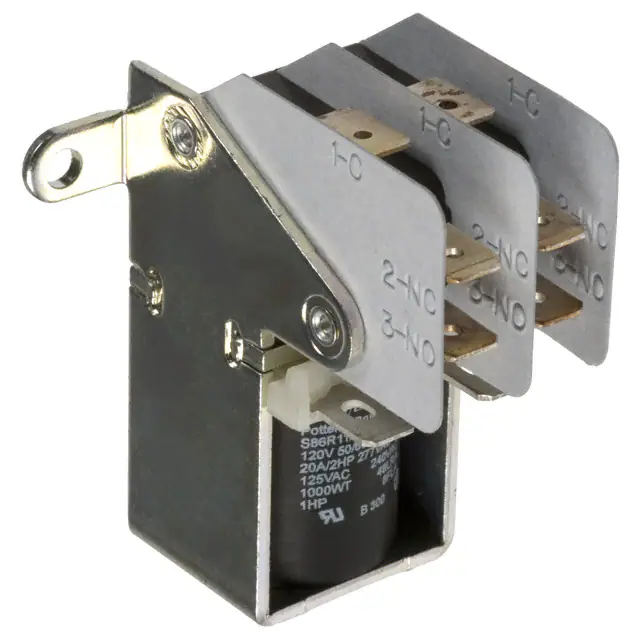

S86R5A1B1D1-120RELAY GEN PURPOSE SPDT 20A 120V |
0 |
|
Ficha técnica |
S86R | Bulk | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 33 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

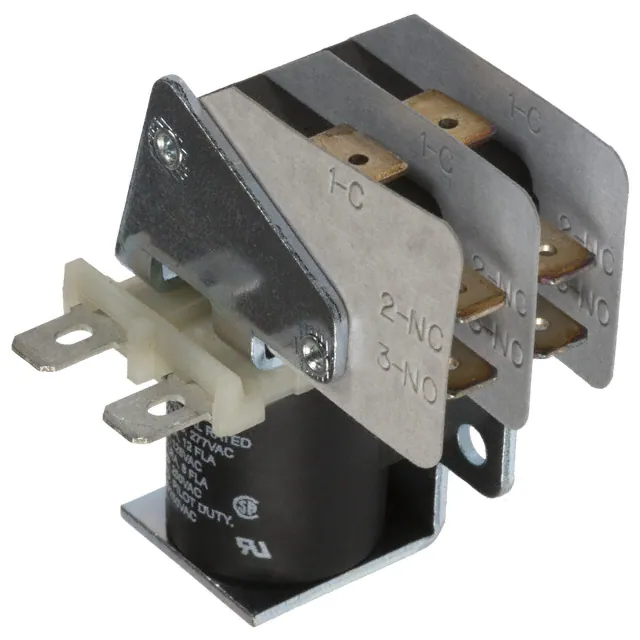

S87R5A2B1D1-120RELAY GEN PURPOSE SPDT 20A 120V |
0 |
|
Ficha técnica |
S87R | Tray | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 33 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
S89R11AAC1-24RELAY IMPULSE DPDT 15A 24V |
0 |
|
Ficha técnica |
S89R | Bulk | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 375 mA | Latching, Single Coil | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|
|
S87R5D2B1D1-24RELAY GEN PURPOSE SPDT 20A 24V |
0 |
|
Ficha técnica |
S87R | Tray | Obsolete | Chassis Mount | 24VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 120 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | - | - | - | -10°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
