Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC3-HTM-DC24V-FRELAY GEN PURPOSE 3PDT 7A 24V |
0 |
|
Ficha técnica |
HC | Tray | Obsolete | Chassis Mount | 24VDC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 1750VA | 37 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR, VDE | General Purpose | - | - |
|
|
HC3-HTM-DC48V-FRELAY GEN PURPOSE 3PDT 7A 48V |
0 |
|
Ficha técnica |
HC | Tray | Obsolete | Chassis Mount | 48VDC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 1750VA | 18.5 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR, VDE | General Purpose | - | - |
|
JK1AP-5V-FRELAY GEN PURPOSE SPST 8A 5V |
0 |
|
Ficha técnica |
JK | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 110VDC - Max | 2000VA, 880W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.25 VDC | 4 ms | 2 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JM1AN-P-DC12V-FRELAY GEN PURPOSE SPST 20A 12V |
0 |
|
Ficha técnica |
JM | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 75 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JM1AN-P-DC5V-FRELAY GEN PURPOSE SPST 20A 5V |
0 |
|
Ficha técnica |
JM | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 180 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JS1-F-18V-FRELAY GEN PURPOSE SPDT 10A 18V |
0 |
|
Ficha técnica |
JS | Tray | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 20 mA | Non Latching | - | PC Pin | - | Class F | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
4-1415540-1RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Ficha técnica |
XT, SCHRACK | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
4-1415540-4RELAY GEN PURPOSE SPDT 16A 230V |
0 |
|
Ficha técnica |
XT, SCHRACK | Bulk | Obsolete | DIN Rail | 230VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 172.5 VAC | 34.5 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|

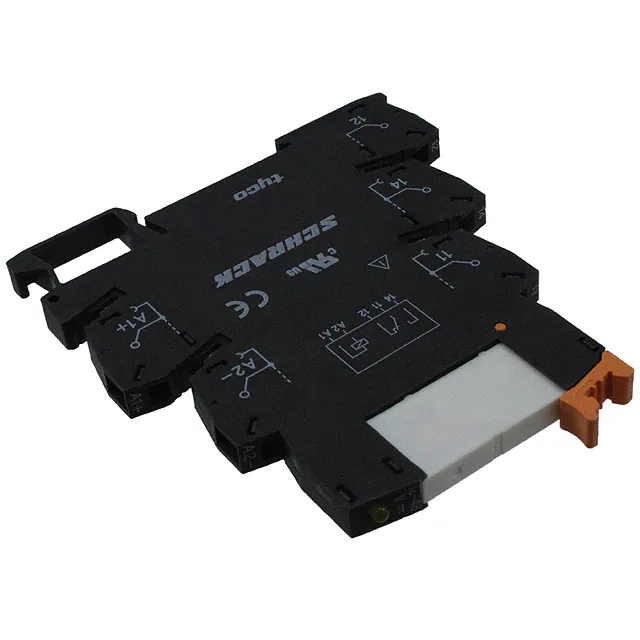

3-1416100-7RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Ficha técnica |
SNR, SCHRACK | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 7 mA | Non Latching | Socket Included | Spring Terminal | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
ST4P3TP0RELAY GEN PURPOSE SPDT 6A 230V |
0 |
|
Ficha técnica |
SNR, SCHRACK | Bulk | Obsolete | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 3.2 mA | Non Latching | Socket Included | Spring Terminal | Sealed - Fully | - | 160 VAC/DC | 15 VAC/DC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
HP4-DC24V-FRELAY GEN PURPOSE 4PDT 10A 24V |
0 |
|
Ficha técnica |
HP | Tray | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC - Nom | - | 63 mA | Non Latching | - | Plug In, Quick Connect - 0.205" (5.2mm) | - | - | 19.2 VDC | 3.6 VDC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR, VDE | General Purpose | - | - |
|
HG2-DC12V-FRELAY GEN PURPOSE DPDT 20A 12V |
0 |
|
Ficha técnica |
HG | Tube | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 120 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VDC | 1.2 VDC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | CSA, UR | General Purpose | - | - |
|
JM1AN-ZTM-DC5V-FRELAY GEN PURPOSE SPST 20A 5V |
0 |
|
Ficha técnica |
JM | Tube | Obsolete | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 180 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 3.5 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JM1AN-P-DC24V-FRELAY GEN PURPOSE SPST 20A 24V |
0 |
|
Ficha técnica |
JM | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 37.5 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JQ1AP-B-12V-FRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Ficha técnica |
JQ | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 2500VA, 1100W | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9.6 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
HG2-AC24V-FRELAY GEN PURPOSE DPDT 20A 24V |
0 |
|
Ficha técnica |
HG | Tube | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 150 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VAC | 7.2 VAC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | CSA, UR | General Purpose | - | - |
|
|
HG4-AC240V-FRELAY GEN PURPOSE 4PDT 20A 240V |
0 |
|
Ficha técnica |
HG | Tube | Obsolete | Socketable | 240VAC | 4PDT (4 Form C) | 20 A | 250VAC - Nom | - | 31.6 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 192 VAC | 72 VAC | 40 ms | 40 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | CSA, UR | General Purpose | - | - |
|
2980461RELAY GEN PURPOSE DPDT 6A 24V |
0 |
|
Ficha técnica |
PLC-RSC | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 10 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
2966524RELAY GEN PURPOSE SPDT 6A 120V |
0 |
|
Ficha técnica |
PLC-RSP | Bulk | Obsolete | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
JS1A-F-12V-FRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Ficha técnica |
JS | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
