Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2R-1A-E DC12RELAY GEN PURPOSE SPST 16A 12V |
4,098 |
|
Ficha técnica |
G2R | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G6QE-1A DC24RELAY GEN PURPOSE SPST 32A 24V |
338 |
|
Ficha técnica |
G6QE | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 32 A | 277VAC - Max | 9000VA | 58.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, cULus, TUV | General Purpose | - | - |
|
T9AP5D52-24RELAY GEN PURPOSE SPDT 20A 24V |
9,292 |
|
Ficha técnica |
T9A | Bulk | Active | Chassis Mount | 24VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 41.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|

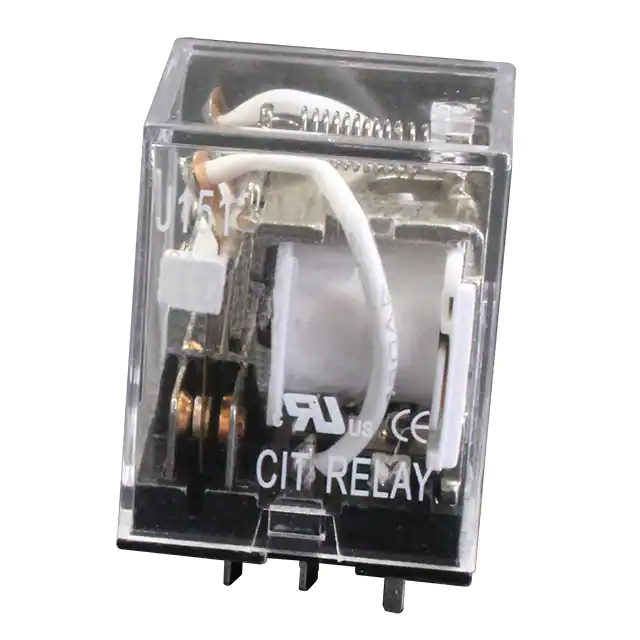

J1512CP120VAC1.2RELAY GEN PURPOSE DPDT 20A 120V |
1,124 |
|
Ficha técnica |
J151 | Tray | Active | Through Hole | 120VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 26.4 mA | Non Latching | - | PC Pin | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
40.52.7.024.0000RELAY GEN PURPOSE DPDT 8A 24V |
3,474 |
|
Ficha técnica |
40 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 21 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
40.52.9.024.0000RELAY GEN PURPOSE DPDT 8A 24V |
2,949 |
|
Ficha técnica |
40 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 27 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
RY612012RELAY GEN PURPOSE SPDT 8A 12V |
1,784 |
|
Ficha técnica |
RY, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 19.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
40.52.7.012.0000RELAY GEN PURPOSE DPDT 8A 12V |
405 |
|
Ficha técnica |
40 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 42 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 8.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
G6B-1114P-US DC5RELAY GEN PURPOSE SPST 5A 5V |
2,729 |
|
Ficha técnica |
G6B | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
RTB14012FRELAY GEN PURPOSE SPDT 12A 12V |
48,292 |
|
Ficha técnica |
RT1 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G2R-14 DC12RELAY GEN PURPOSE SPDT 8A 12V |
4,907 |
|
Ficha técnica |
G2R | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
T9AS1D22-12RELAY GEN PURPOSE SPST 30A 12V |
902 |
|
Ficha técnica |
T9A | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 83 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
DSP1-DC24V-FRELAY GEN PURPOSE DPST 5A 24V |
727 |
|
Ficha técnica |
DSP | Bulk | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
G6QE-1A DC12RELAY GEN PURPOSE SPST 32A 12V |
873 |
|
Ficha técnica |
G6QE | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 36 A | 277VAC - Max | 9000VA | 117 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, cULus, TUV | General Purpose | - | - |
|

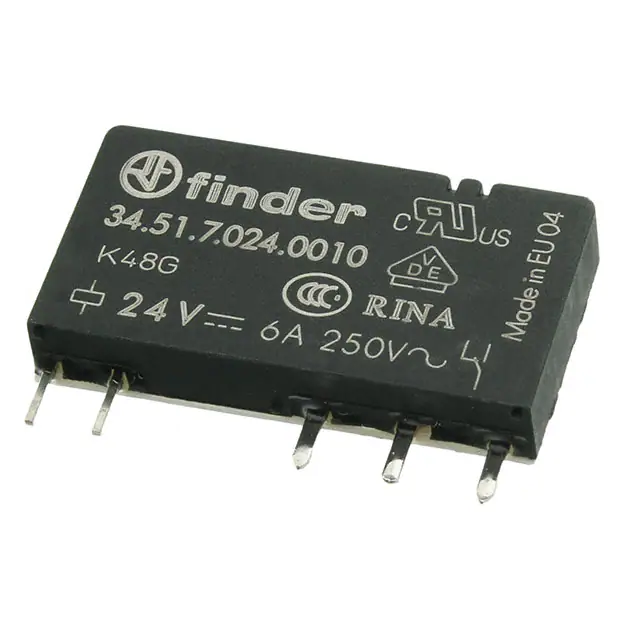

34.51.7.024.0010RELAY GEN PURPOSE SPDT 6A 24V |
4,789 |
|
Ficha técnica |
34 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 7.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 5 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, cURus, RINA, VDE | General Purpose | - | - |
|
|
34.51.7.012.0010RELAY GEN PURPOSE SPDT 6A 12V |
758 |
|
Ficha técnica |
34 | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 5 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, cURus, RINA, VDE | General Purpose | - | - |
|
G2R-1A-T DC12RELAY GEN PURPOSE SPST 10A 12V |
939 |
|
Ficha técnica |
G2R | Tray | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 43.6 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
T9AP1D52-12RELAY GEN PURPOSE SPST 30A 12V |
13,839 |
|
Ficha técnica |
T9A | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 83 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
T9AP1D52-24RELAY GEN PURPOSE SPST 30A 24V |
3,727 |
|
Ficha técnica |
T9A | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 41.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
G2R-1-E DC12RELAY GEN PURPOSE SPDT 16A 12V |
9,051 |
|
Ficha técnica |
G2R | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
