Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JS1APF-B-12V-FRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Ficha técnica |
JS | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JS1APF-B-18V-FRELAY GEN PURPOSE SPST 10A 18V |
0 |
|
Ficha técnica |
JS | Box | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 20 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JS1APF-B-24V-FRELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Ficha técnica |
JS | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1APF-B-48V-FRELAY GEN PURPOSE SPST 10A 48V |
0 |
|
Ficha técnica |
JS | Box | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 33.6 VDC | 4.8 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JS1APF-B-5V-FRELAY GEN PURPOSE SPST 10A 5V |
0 |
|
Ficha técnica |
JS | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 72 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1APF-B-6V-FRELAY GEN PURPOSE SPST 10A 6V |
0 |
|
Ficha técnica |
JS | Box | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1APF-B-9V-FRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Ficha técnica |
JS | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JS1-F-24V-F-6KRELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
Ficha técnica |
JS | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1F-F-12V-FRELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
Ficha técnica |
JS | Box | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JTV1S-PA-12VRELAY GEN PURPOSE SPST 20A 12V |
0 |
|
Ficha técnica |
JT-V | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 277VAC - Max | 5540VA | 83.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
JTV1S-PA-24VRELAY GEN PURPOSE SPST 20A 24V |
0 |
|
Ficha técnica |
JT-V | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 277VAC - Max | 5540VA | 41.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
JTV1S-TMP-12VRELAY GEN PURPOSE SPST 20A 12V |
0 |
|
Ficha técnica |
JT-V | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 277VAC - Max | 5540VA | 83.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
JTV1S-TMP-24VRELAY GEN PURPOSE SPDT 20A 24V |
0 |
|
Ficha técnica |
JT-V | Box | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 41.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
LKG1AF-24V-10-1RELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Ficha técnica |
LK-G | Box | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
NC2D-JP-AC100VRELAY GEN PURPOSE DPDT 5A 100V |
0 |
|
Ficha técnica |
NC | Box | Obsolete | Through Hole | 100VAC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 10.5 mA | Non Latching | - | PC Pin | - | - | 80 VAC | 10 VAC | 30 ms | 40 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
NC4D-JP-AC100VRELAY GEN PURPOSE 4PDT 4A 100V |
0 |
|
- |
NC | Box | Obsolete | Through Hole | 100VAC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 13 mA | Non Latching | - | PC Pin | - | - | 80 VAC | 10 VAC | 30 ms | 40 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
HL2-L-DC24V-D-FRELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Ficha técnica |
HL | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | - | 37 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

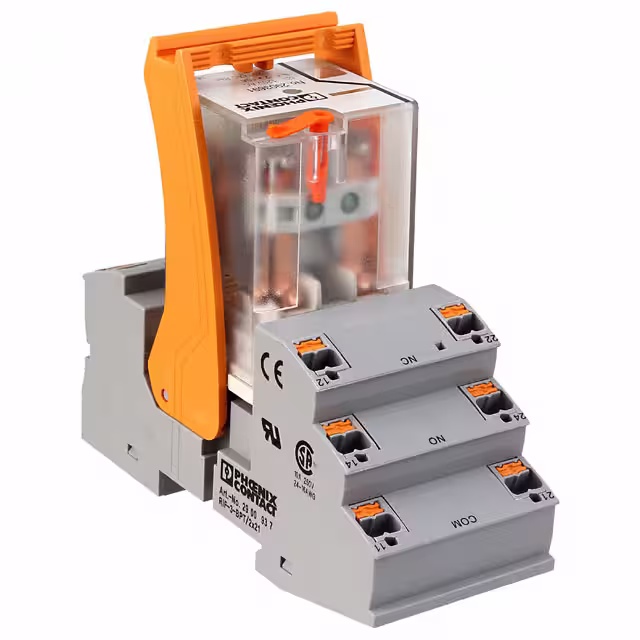

2903296RELAY GEN PURPOSE DPDT 7A 120V |
0 |
|
Ficha técnica |
RIF | Bulk | Obsolete | DIN Rail | 120VAC | DPDT (2 Form C) | 7 A | 250VAC, 250VDC - Max | - | 23 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 15 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
2903295RELAY GEN PURPOSE DPDT 7A 230V |
0 |
|
Ficha técnica |
RIF | Bulk | Obsolete | DIN Rail | 230VAC | DPDT (2 Form C) | 7 A | 250VAC, 250VDC - Max | - | 13 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 15 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|

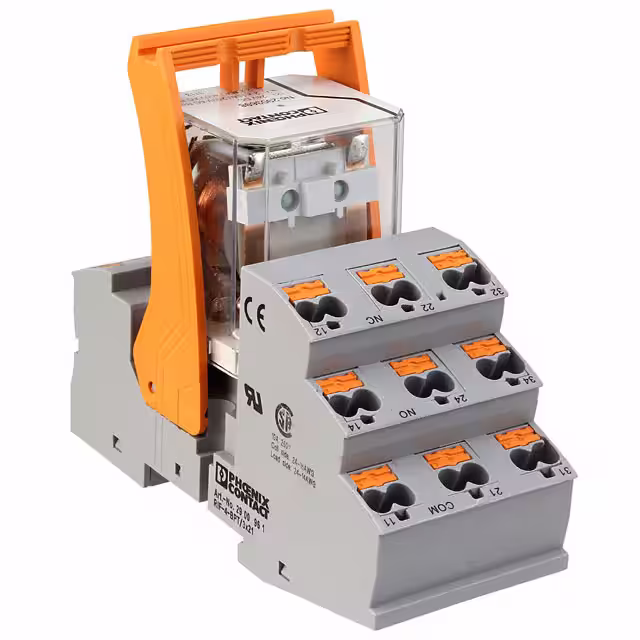

2903281RELAY GEN PURPOSE DPDT 11A 24V |
0 |
|
Ficha técnica |
RIF | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 11 A | 440VAC, 250VDC - Max | 4840VA, 2750W | 56 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 20 ms | 20 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
