Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCJ-112D3MH-WG,000MRELAY GEN PURPOSE SPST 5A 12V |
0 |
|
Ficha técnica |
PCJ, OEG | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 9 VDC | 0.6 VDC | 10 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
SDT-S-103DMR,000RELAY GEN PURPOSE SPST 10A 3V |
0 |
|
- |
SDT-R, OEG | Tube | Obsolete | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 180 mA | Non Latching | - | PC Pin | - | Class E | 2.25 VDC | 0.3 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
|
|
SDT-SS-124DM,000RELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Ficha técnica |
SDT, OEG | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 24VDC - Max | 2500VA, 240W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CSA, SEMKO, SEV, TUV, UL | General Purpose | - | - |
|
|
4-1617789-4FCB-205-CX5=MIDRANGE RELAY |
0 |
|
Ficha técnica |
FCB-205, CII | Bulk | Active | Chassis Mount | 48VDC | DPDT (2 Form C) | 5 A | - | - | 30 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 36 VDC | 2.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
1649376-1PCF-112D1M-2B |
0 |
|
Ficha técnica |
PCF, OEG | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 25 A | 277VAC, 24VDC - Max | 6925VA, 600W | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, cURus, TUV | General Purpose | - | - |
|
2909531RELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
Ficha técnica |
PLC-RPT | Bulk | Obsolete | DIN Rail | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|

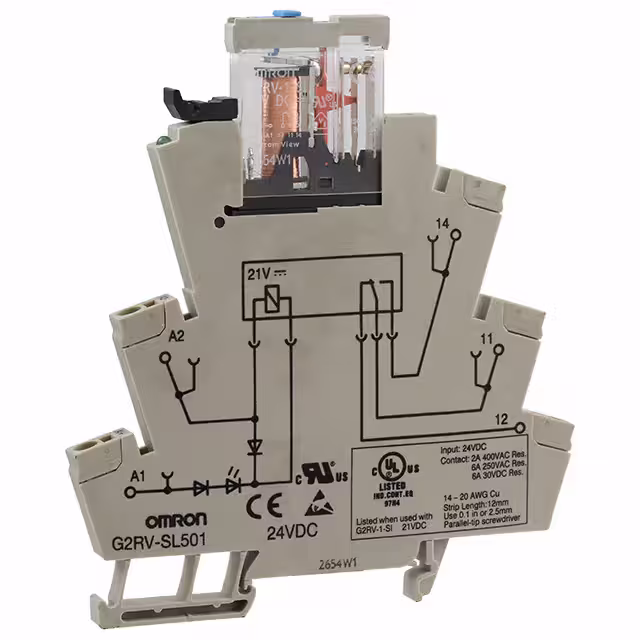

G2RV-SL501-DC24RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Ficha técnica |
G2RV | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 13.3 mA | Non Latching | Socket Included, Test Button | Spring Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 40 ms | -40°C ~ 55°C | - | CE, cULus, TUV | General Purpose | - | - |
|
|
H-16/115VDCRELAY GEN PURPOSE DPDT 115V |
0 |
|
Ficha técnica |
H-16, KILOVAC | Bulk | Active | Panel Mount | 115VDC | DPDT (2 Form C) | 30 A | - | - | 57.5 mA | Non Latching | - | Solder Turret | Sealed - Hermetically | - | 80 VDC | 50 VDC | 20 ms | 20 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
G2RV-SL501 AC/DC24RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Ficha técnica |
G2RV | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 13 mA | Non Latching | Socket Included, Test Button | Spring Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn) | CE, cULus, TUV | General Purpose | - | - |
|
|
G2RV-SL701 AC/DC24RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Ficha técnica |
G2RV | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 13 mA | Non Latching | Socket Included, Test Button | Screw Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | - | CE, cULus, TUV | General Purpose | - | - |
|
|
G2RV-SL701 DC24RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Ficha técnica |
G2RV | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 13.3 mA | Non Latching | Socket Included, Test Button | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 40 ms | -40°C ~ 55°C | - | CE, cULus, TUV | General Purpose | - | - |
|
|
HC1-DC12V-D-FRELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
Ficha técnica |
HC | Box | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 2500VA | 75 mA | Non Latching | Diode | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC1-DC24V-D-FRELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
Ficha técnica |
HC | Box | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 2500VA | 37 mA | Non Latching | Diode | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC1-DC48V-D-FRELAY GEN PURPOSE SPDT 10A 48V |
0 |
|
Ficha técnica |
HC | Box | Obsolete | Socketable | 48VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 2500VA | 18.5 mA | Non Latching | Diode | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC1-DC6V-D-FRELAY GEN PURPOSE SPDT 10A 6V |
0 |
|
Ficha técnica |
HC | Box | Obsolete | Socketable | 6VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 2500VA | 150 mA | Non Latching | Diode | Plug In | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC1E-H-AC120V-FRELAY GEN PURPOSE SPDT 5A 120V |
0 |
|
Ficha técnica |
HC | Box | Obsolete | Socketable | 120VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 11.9 mA | Non Latching | - | Plug In | Sealed - Fully | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC1E-H-AC12V-FRELAY GEN PURPOSE SPDT 5A 12V |
0 |
|
Ficha técnica |
HC | Box | Obsolete | Socketable | 12VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 100 mA | Non Latching | - | Plug In | Sealed - Fully | - | 9.6 VAC | 3.6 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC1E-H-AC200V-FRELAY GEN PURPOSE SPDT 5A 200V |
0 |
|
Ficha técnica |
HC | Box | Obsolete | Socketable | 200VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 6.6 mA | Non Latching | - | Plug In | Sealed - Fully | - | 160 VAC | 60 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC1E-H-AC24V-FRELAY GEN PURPOSE SPDT 5A 24V |
0 |
|
Ficha técnica |
HC | Box | Obsolete | Socketable | 24VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 50 mA | Non Latching | - | Plug In | Sealed - Fully | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC1E-H-AC48V-FRELAY GEN PURPOSE SPDT 5A 48V |
0 |
|
Ficha técnica |
HC | Box | Obsolete | Socketable | 48VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 25 mA | Non Latching | - | Plug In | Sealed - Fully | - | 38.4 VAC | 14.4 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
