Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7-1393236-1RELAY GEN PURPOSE SPDT 6A 12V |
855 |
|
Ficha técnica |
SNR, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
RXM2AB2EDHARMONY, MINIATURE PLUG-IN RELAY |
230 |
|
Ficha técnica |
Harmony | Box | Active | Socketable | 48VDC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 18.8 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, CSA, IECEE, GOST, Lloyd's, UL | General Purpose | - | - |
|
1-1393154-3RELAY GEN PURPOSE 4PDT 6A |
2 |
|
Ficha técnica |
PT, SCHRACK | Tube | Active | Socketable | - | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | - | Non Latching | Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | Sealed - Flux Protection | Class F | - | - | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
PT570110RELAY GEN PURPOSE 4PDT 6A 110V |
262 |
|
Ficha técnica |
PT, SCHRACK | Bulk | Active | Socketable | 110VDC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 6.8 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
HE1AN-Q-AC120VRELAY GEN PURPOSE SPST 30A 120V |
995 |
|
Ficha técnica |
HE | Bulk | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 22.1 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 84 VAC | 18 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
PT270220RELAY GEN PURPOSE DPDT 12A 220V |
250 |
|
Ficha técnica |
PT, SCHRACK | Bulk | Active | Socketable | 220VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 3.4 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 165 VDC | 22 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
PT570220RELAY GEN PURPOSE 4PDT 6A 220V |
238 |
|
Ficha técnica |
PT, SCHRACK | Bulk | Active | Socketable | 220VDC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 3.4 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 165 VDC | 22 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
G2R-1A-E DC110RELAY GEN PURPOSE SPST 16A 110V |
240 |
|
Ficha técnica |
G2R | Tray | Active | Through Hole | 110VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 4.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 77 VDC | 16.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G7L-1A-T-J-CB AC24RELAY GEN PURPOSE SPST 30A 24V |
19 |
|
Ficha técnica |
G7L | Bulk | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 71 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VAC | 3.6 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
DE1A-L2-5VRELAY GEN PURPOSE SPST 10A 5V |
113 |
|
Ficha técnica |
DE | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 40 mA | Latching, Dual Coil | - | PC Pin | - | - | 3.5 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
S4EB-L2-12VRELAY GEN PURPOSE 4PST 4A 12V |
368 |
|
Ficha técnica |
S | Box | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 4 A | 250VAC, 48VDC - Max | 1000VA, 192W | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 15 ms | 15 ms | -55°C ~ 65°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
RTX3-1AT-B003RELAY GEN PURPOSE SPST 16A 3V |
538 |
|
Ficha técnica |
RTX, SCHRACK | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Nom | - | 216 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 2.25 VDC | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Tungsten (W) | cURus, VDE | General Purpose | - | - |
|
|
7-1415543-8V23047-P1024-A501 |
216 |
|
Ficha técnica |
V23047, AXICOM | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 6 A | 400VAC - Max | 2400VA | 29.2 mA | Non Latching | - | Plug In | - | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, cURus, TUV, VDE | General Purpose | - | - |
|
1-1393845-4RELAY GEN PURPOSE DPDT 8A 24V |
480 |
|
Ficha técnica |
RP II/2, SCHRACK | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 9 ms | 3 ms | -40°C ~ 70°C | - | cURus, VDE | General Purpose | - | - |
|

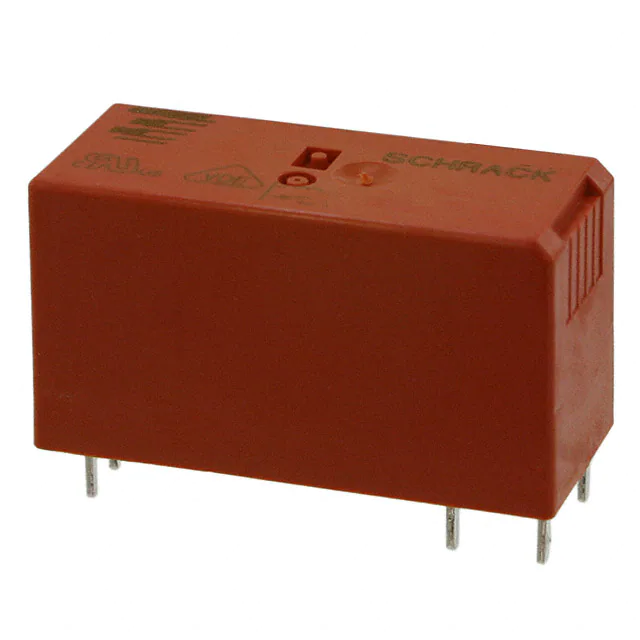

RTX3-1AT-C012RELAY GEN PURPOSE SPST 16A 12V |
689 |
|
Ficha técnica |
RTX, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Nom | - | 79 mA | Latching, Dual Coil | - | PC Pin | - | Class F | 9 VDC | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Tungsten (W) | cURus, VDE | General Purpose | - | - |
|
G9TB-K1ATW-E DC12RELAY GEN PURPOSE SPST 120A 12V |
18 |
|
Ficha técnica |
G9TB | Bulk | Active | Free Hanging | 12VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 451 mA | Latching, Dual Coil | - | PC Pin, Weld Terminal | Sealed - Flux Protection | - | 9.6 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | UL | General Purpose | - | - |
|
9-1393243-3RELAY GEN PURPOSE DPDT 8A 230V |
937 |
|
Ficha técnica |
RT2, SCHRACK | Tube | Active | Through Hole | 230VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 3.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 172.5 VAC | 34.5 VAC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
6-1393236-9RELAY GEN PURPOSE SPDT 6A 12V |
968 |
|
Ficha técnica |
SNR, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
HE1AN-P-DC6V-Y5RELAY GEN PURPOSE SPST 48A 6V |
328 |
|
Ficha técnica |
HE-PV | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 48 A | 490VAC, 48VDC - Max | 23520VA, 2304W | 320 mA | Non Latching | - | PC Pin | - | - | 4.2 VDC | 0.6 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Nickel (AgNi) | CSA, cURus, VDE | General Purpose | - | - |
|
RTX3-1AT-B048RELAY GEN PURPOSE SPST 16A 48V |
384 |
|
Ficha técnica |
RTX, SCHRACK | Bulk | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Nom | - | 13.5 mA | Latching, Single Coil | - | PC Pin | - | Class F | 36 VDC | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Tungsten (W) | cURus, VDE | General Purpose | - | - |
