Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T9GV5L24-22RELAY GEN PURPOSE SPDT 20A 22V |
109 |
|
Ficha técnica |
T9G | Bulk | Active | Through Hole | 22VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 41 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 16.5 VDC | 2.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|

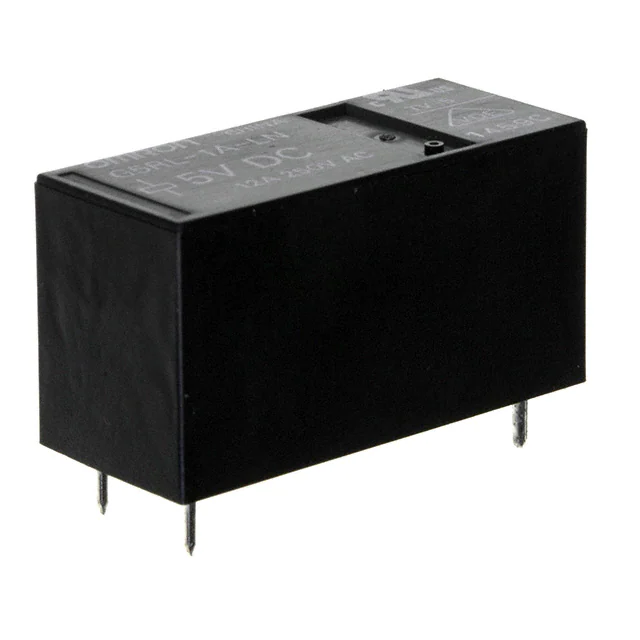

G5RL-1A-LN DC24RELAY GEN PURPOSE SPST 12A 24V |
278 |
|
Ficha técnica |
G5RL | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 250VAC, 24VDC - Max | 3000VA, 288W | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
G2RL-24-CF DC5RELAY GENERAL PURPOSE DPDT 8A 5V |
967 |
|
Ficha técnica |
G2RL | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
DSP1A-L2-DC6VRELAY GEN PURPOSE SPST 8A 6V |
950 |
|
Ficha técnica |
DSP | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4.8 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
G5RL-1A-LN DC12RELAY GEN PURPOSE SPST 12A 12V |
185 |
|
Ficha técnica |
G5RL | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 250VAC, 24VDC - Max | 3000VA, 288W | 44.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
2-1393224-6RELAY GEN PURPOSE SPST 8A 5V |
371 |
|
Ficha técnica |
RY, SCHRACK | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
5-1415393-1RELAY GEN PURPOSE SPST 16A 12V |
2,363 |
|
Ficha técnica |
RT1, Inrush, SCHRACK | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
G5CA-1A DC12RELAY GEN PURPOSE SPST 10A 12V |
1,221 |
|
Ficha técnica |
G5CA | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | - | CQC, CSA, TUV, UR | General Purpose | - | - |
|
ADW1103HLWRELAY GEN PURPOSE SPST 16A 3V |
522 |
|
Ficha técnica |
DW | Tray | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 66.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 2.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
DSP2A-DC6VRELAY GEN PURPOSE DPST 5A 6V |
832 |
|
Ficha técnica |
DSP | Bulk | Active | Through Hole | 6VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
G5CA-1A DC9RELAY GEN PURPOSE SPST 10A 9V |
196 |
|
Ficha técnica |
G5CA | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.9 VDC | 10 ms | 10 ms | -25°C ~ 70°C | - | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
DSP2A-DC24V-RRELAY GEN PURPOSE DPST 5A 24V |
145 |
|
Ficha técnica |
DSP | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 12.5 mA | Non Latching | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
APAN314HRELAY GEN PURPOSE SPST 5A 4.5V |
361 |
|
Ficha técnica |
PA-N | Tube | Active | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 24.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.15 VDC | 0.225 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Nickel (AgNi), Gold (Au) | cURus, TUV | General Purpose | - | - |
|
|
APAN3118RELAY GEN PURPOSE SPST 5A 18V |
301 |
|
Ficha técnica |
PA-N | Tube | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 6.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 12.6 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Nickel (AgNi), Gold (Au) | cURus, TUV | General Purpose | - | - |
|
|
APAN3106RELAY GEN PURPOSE SPST 5A 6V |
107 |
|
Ficha técnica |
PA-N | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 18.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Nickel (AgNi), Gold (Au) | cURus, TUV | General Purpose | - | - |
|
RTB34024FRELAY GEN PURPOSE SPST 12A 24V |
1,488 |
|
Ficha técnica |
RT1 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
PE014006RELAY GEN PURPOSE SPDT 5A 6V |
329 |
|
Ficha técnica |
PE, SCHRACK | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 34.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.5 VDC | 0.6 VDC | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
DSP2A-DC9VRELAY GEN PURPOSE DPST 5A 9V |
851 |
|
Ficha técnica |
DSP | Bulk | Active | Through Hole | 9VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 7.2 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
DSP2A-DC12V-RRELAY GEN PURPOSE DPST 5A 12V |
474 |
|
Ficha técnica |
DSP | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 25 mA | Non Latching | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
G2R-1A DC5RELAY GEN PURPOSE SPST 10A 5V |
938 |
|
Ficha técnica |
G2R | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
