Sensores de pressão, transdutores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Aplicações | Tipo de pressão | Pressão operacional | Tipo de saída | Saída | Precisão | Voltagem - Alimentação | Tamanho da porta | Estilo de porta | Recursos | Estilo de Terminação | Pressão máxima | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSCSSNT030PAAA5SENSOR 30PSIA 4.5V 4SIP |
0 |
|
Ficha técnica |
TruStability® SSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
XZ202798SSCSENSOR PRESSURE |
0 |
|
- |
- | - | Bulk | Obsolete | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LER00850TBPNKBAA15SENSOR 85PSIG SPST-NO 1/8"NPT |
0 |
|
Ficha técnica |
LE | Cylinder, Threaded | Bulk | Active | - | Gauge | 85PSI (586.05kPa) | SPST-NO | - | - | 28V | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 120°C | - | - | - | - |
|
|
BPS130-HA500P-1SGSENSOR 500PSIA 0.122" 4.95V |
0 |
|
Ficha técnica |
BPS130 | - | Tape & Reel (TR) | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | Solder Pad | 1000PSI (6894.76kPa) | -40°C ~ 150°C | - | - | - | - |
|
|
BPS140-HG300P-1SGSENSOR 300PSIG 0.106" 4.95V |
0 |
|
Ficha técnica |
BPS140 | - | Tape & Reel (TR) | Active | Board Mount | Gauge | 300PSI (2068.43kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.106" (2.69mm) Tube | Barbless | - | Solder Pad | 600PSI (4136.85kPa) | -40°C ~ 150°C | - | - | - | - |
|
|
BPS130-HG500P-1SGSENSOR 500PSIG 0.122" 4.95V |
0 |
|
Ficha técnica |
BPS130 | - | Tape & Reel (TR) | Active | Board Mount | Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | Solder Pad | 1000PSI (6894.76kPa) | -40°C ~ 150°C | - | - | - | - |
|
|
BPS130-HG500P-1SSENSOR 500PSIG 0.122" 4.95V |
0 |
|
Ficha técnica |
BPS130 | - | Tape & Reel (TR) | Active | Board Mount | Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | Solder Pad | 1000PSI (6894.76kPa) | -40°C ~ 150°C | - | - | - | - |
|
|
BPS130-HA500P-1MGSENSOR 500PSIA 4.95V |
0 |
|
Ficha técnica |
BPS130 | Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | - | No Port | - | - | 1000PSI (6894.76kPa) | -40°C ~ 150°C | - | - | - | - |
|
|
BPS130-HG500P-1MGSENSOR 500PSIG 4.95V |
0 |
|
Ficha técnica |
BPS130 | Module | Tape & Reel (TR) | Active | Board Mount | Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | - | No Port | - | - | 1000PSI (6894.76kPa) | -40°C ~ 150°C | - | - | - | - |
|
|
XZ202975SSCSENSOR PRESSURE |
0 |
|
- |
- | - | Bulk | Obsolete | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HSCMANV015PGAA5SENSOR 15PSIG 0.19" 4.5V 8SMD |
0 |
|
Ficha técnica |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

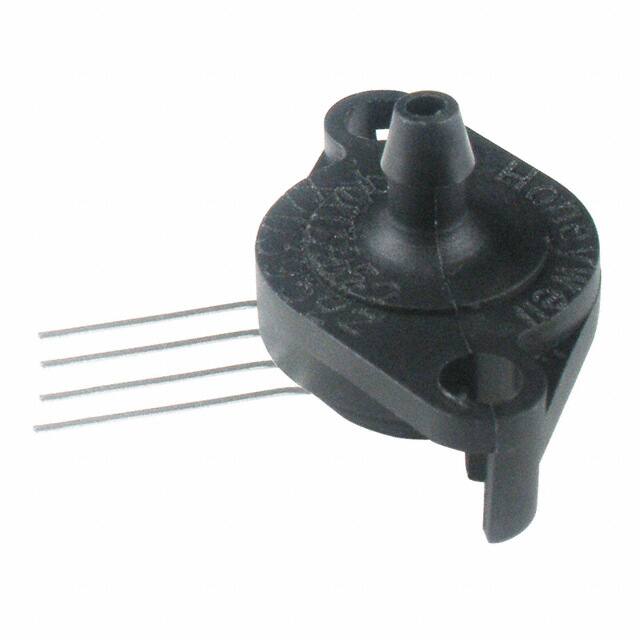

SSCSFNN150PGAA5SENSOR 150PSIG 0.19" 4.5V 4SIP |
0 |
|
Ficha técnica |
TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

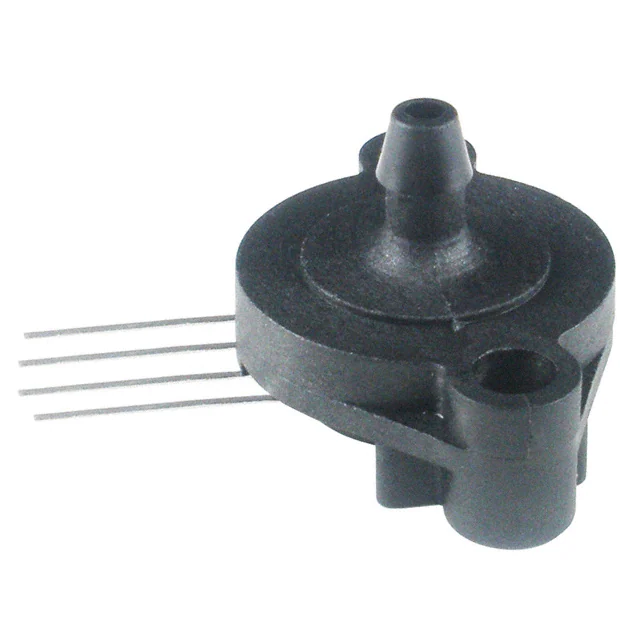

SSCSGNN015PAAA5SENSOR 15PSIA 0.19" 4.5V 4SIP |
0 |
|
Ficha técnica |
TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
DLVR-L01D-E1NS-C-NI3FSENSOR 0.04PSID 0.08" 14BIT 4SIP |
0 |
|
Ficha técnica |
DLVR | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 14 b | ±1% | 3.3V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
DLVR-L01D-E1NS-C-NI5FSENSOR 0.04PSID 0.08" 14BIT 4SIP |
0 |
|
Ficha técnica |
DLVR | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 14 b | ±1% | 5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
DLVR-L01D-E2NS-C-NI3FSENSOR 0.04PSID 0.08" 14BIT 4SIP |
0 |
|
Ficha técnica |
DLVR | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 14 b | ±1% | 3.3V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
DLVR-L01D-E2NS-C-NI5FSENSOR 0.04PSID 0.08" 14BIT 4SIP |
0 |
|
Ficha técnica |
DLVR | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 14 b | ±1% | 5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
DLVR-L01D-E1NJ-C-NI5FSENSOR 0.04PSID 0.08" 14BIT 8SMD |
0 |
|
Ficha técnica |
DLVR | 8-SMD Module | Tube | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 14 b | ±1% | 5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
DLVR-L01D-E2NJ-C-NI3FSENSOR 0.04PSID 0.08" 14BIT 8SMD |
0 |
|
Ficha técnica |
DLVR | 8-SMD Module | Tube | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 14 b | ±1% | 3.3V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
DLVR-L01D-E2NJ-C-NI5FSENSOR 0.04PSID 0.08" 14BIT 8SMD |
0 |
|
Ficha técnica |
DLVR | 8-SMD Module | Tube | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 14 b | ±1% | 5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Surface Mount | 8-SMD |
