Sensores de pressão, transdutores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Aplicações | Tipo de pressão | Pressão operacional | Tipo de saída | Saída | Precisão | Voltagem - Alimentação | Tamanho da porta | Estilo de porta | Recursos | Estilo de Terminação | Pressão máxima | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSCMJJI005NDSE3SENSOR PRESS DIFF 5" H2OF 3.3V S |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
79429-B00000020-01PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RSCMRRI002NDSE3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® RSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | -0.072PSI ~ 0.072PSI (-0.49kPa ~ 0.49kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | - | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
PX3AF1BS500PSAAXSENSOR 500PSIS 7/16" 4.5V |
0 |
|
Ficha técnica |
PX3 | Cylinder, Threaded | Bulk | Active | - | Sealed Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF Schrader | Threaded | Temperature Compensated | Connector | 1000PSI (6894.76kPa) | -40°C ~ 125°C | - | - | - | - |
|
ASCX01DNSENSOR 1PSID 0.19" 4.75V |
0 |
|
Ficha técnica |
ASCX | 6-SIP Module | - | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 4.5V ~ 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
ASCX05DNSENSOR 5PSID 0.19" 4.75V |
0 |
|
Ficha técnica |
ASCX | 6-SIP Module | - | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 4.5V ~ 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
ASCX100ANSENSOR 100PSIA 0.19" 4.75V |
0 |
|
Ficha técnica |
ASCX | 6-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 4.5V ~ 16V | Male - 0.19" (4.8mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
ASCX100DNSENSOR 100PSID 0.19" 4.75V |
0 |
|
Ficha técnica |
ASCX | 6-SIP Module | - | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 4.5V ~ 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
ASCX150ANSENSOR 150PSIA 0.19" 4.75V |
0 |
|
Ficha técnica |
ASCX | 6-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 4.5V ~ 16V | Male - 0.19" (4.8mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
ASCX150DNSENSOR 150PSID 0.19" 4.75V |
0 |
|
Ficha técnica |
ASCX | 6-SIP Module | - | Obsolete | Board Mount | Differential | 150PSI (1034.21kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 4.5V ~ 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
ASCX15ANSENSOR 15PSIA 0.19" 4.75V |
0 |
|
Ficha técnica |
ASCX | 6-SIP Module | - | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 4.5V ~ 16V | Male - 0.19" (4.8mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
ASCX15DNSENSOR 15PSID 0.19" 4.75V |
0 |
|
Ficha técnica |
ASCX | 6-SIP Module | - | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 4.5V ~ 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
ASCX30ANSENSOR 30PSIA 0.19" 4.75V |
0 |
|
Ficha técnica |
ASCX | 6-SIP Module | - | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 4.5V ~ 16V | Male - 0.19" (4.8mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
ASCX30DNSENSOR 30PSID 0.19" 4.75V |
0 |
|
Ficha técnica |
ASCX | 6-SIP Module | - | Obsolete | Board Mount | Differential | 30PSI (206.84kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 4.5V ~ 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
RSCDJJI600LDSE3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® RSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | ±0.09PSI (±0.6kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
XCA415DNSENSOR 15PSID 0.19" 6.25V |
0 |
|
Ficha técnica |
XCA4 | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Analog Voltage | 2.25 V ~ 6.25 V (5V) | ±1% | 3V ~ 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Amplified Output | - | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
DC030NDR5SENSOR 1.08PSID 0.19" 6V |
0 |
|
Ficha técnica |
DC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 1.08PSI (7.48kPa) | Analog Voltage | 1 V ~ 6 V | ±0.25% | 7V ~ 30V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 16.26PSI (112.13kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
77031-00000070-01PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

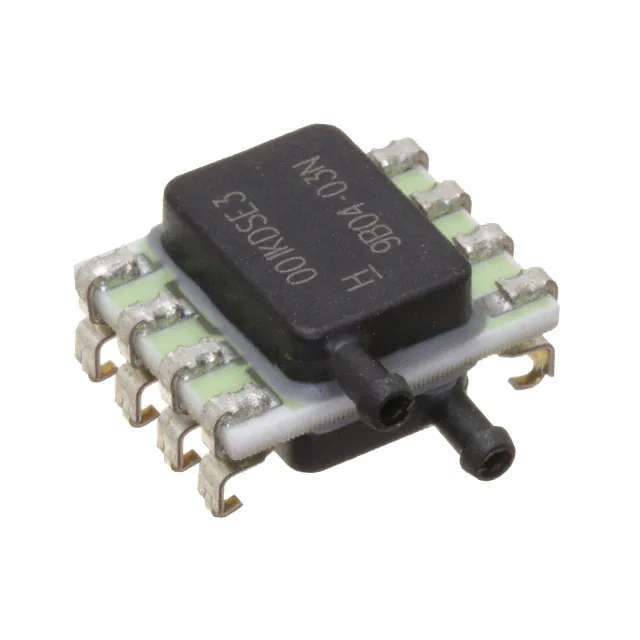

RSCMRRE001KDSE3SENSOR 0.15PSID 0.08" 24BIT 8SMT |
0 |
|
Ficha técnica |
TruStability® RSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.15PSI (±1kPa) | SPI | 24 b | ±0.1% | 2.7V ~ 6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | ±10.88PSI (±75kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
26PCAFD2GSENSOR 1PSIC .0167V |
0 |
|
Ficha técnica |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | - | No Port | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
