Sensores de pressão, transdutores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Aplicações | Tipo de pressão | Pressão operacional | Tipo de saída | Saída | Precisão | Voltagem - Alimentação | Tamanho da porta | Estilo de porta | Recursos | Estilo de Terminação | Pressão máxima | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASP1400SENSOR 0.02PSID .24" 15.2BIT MOD |
0 |
|
Ficha técnica |
- | Module | Tray | Obsolete | Board Mount | Differential | ±0.02PSI (±0.1kPa) | RS-232 | 15.2b | ±1.5% | 7V ~ 18V | Male - 0.24" (6mm) Tube, Dual | Barbed | Temperature Compensated | - | ±21.76PSI (±150kPa) | 0°C ~ 70°C | - | - | - | Module |
|
SDX100G2-ASENSOR 100PSIG 0.11" 0.1V |
0 |
|
Ficha técnica |
SDX | 6-DIP Module | Tray | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (12V) | ±0.25% | 20V | Male - 0.11" (2.67mm) Tube | Barbless | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SDX15D4-ASENSOR 15PSID 0.09" .09V |
0 |
|
Ficha técnica |
SDX | 6-DIP Module | Tray | Active | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.25% | 20V | Male - 0.09" (2.28mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
P-8300-501G-05SENSOR 7.11PSIG 0.1V |
0 |
|
Ficha técnica |
P-8300 | 5-SIP | Bulk | Active | Board Mount | Gauge | 7.11PSI (49kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.05% | - | - | No Port | Temperature Compensated | PC Pin | 14.23PSI (98.1kPa) | -20°C ~ 70°C | - | - | Through Hole | - |
|
|
P-8300-102G-05SENSOR 14.23PSIG 0.1V |
0 |
|
Ficha técnica |
P-8300 | 5-SIP | Bulk | Active | Board Mount | Gauge | 14.23PSI (98.1kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.05% | - | - | No Port | Temperature Compensated | PC Pin | 28.43PSI (196kPa) | -20°C ~ 70°C | - | - | Through Hole | - |
|
|
P-8300-352G-05SENSOR 49.75PSIG 0.1V |
0 |
|
Ficha técnica |
P-8300 | 5-SIP | Bulk | Active | Board Mount | Gauge | 49.75PSI (343kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.05% | - | - | No Port | Temperature Compensated | PC Pin | 99.5PSI (686kPa) | -20°C ~ 70°C | - | - | Through Hole | - |
|
|
P-8300-103G-05SENSOR 142.28PSIG 0.1V |
0 |
|
Ficha técnica |
P-8300 | 5-SIP | Bulk | Active | Board Mount | Gauge | 142.28PSI (981kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.05% | - | - | No Port | Temperature Compensated | PC Pin | 284.42PSI (1961kPa) | -20°C ~ 70°C | - | - | Through Hole | - |
|
|
P-8300-351A-05SENSOR 4.97PSIA 0.1V |
0 |
|
Ficha técnica |
P-8300 | 5-SIP | Bulk | Active | Board Mount | Absolute | 4.97PSI (34.3kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.05% | - | - | No Port | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | -20°C ~ 70°C | - | - | Through Hole | - |
|
|
P-8300-102A-05SENSOR 14.23PSIA 0.1V |
0 |
|
Ficha técnica |
P-8300 | 5-SIP | Bulk | Active | Board Mount | Absolute | 14.23PSI (98.1kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.05% | - | - | No Port | Temperature Compensated | PC Pin | 28.43PSI (196kPa) | -20°C ~ 70°C | - | - | Through Hole | - |
|
|
185PC15ATSENSOR 15PSIA 0.2" 7V |
0 |
|
- |
180PC | 6-DIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 1 V ~ 7 V | ±1% | 7V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
6057317PRESSURE TRANSMITTER |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6056425PRESSURE TRANSMITTER |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6074883PRESSURE TRANSMITTER |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6060676PRESSURE TRANSMITTER |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

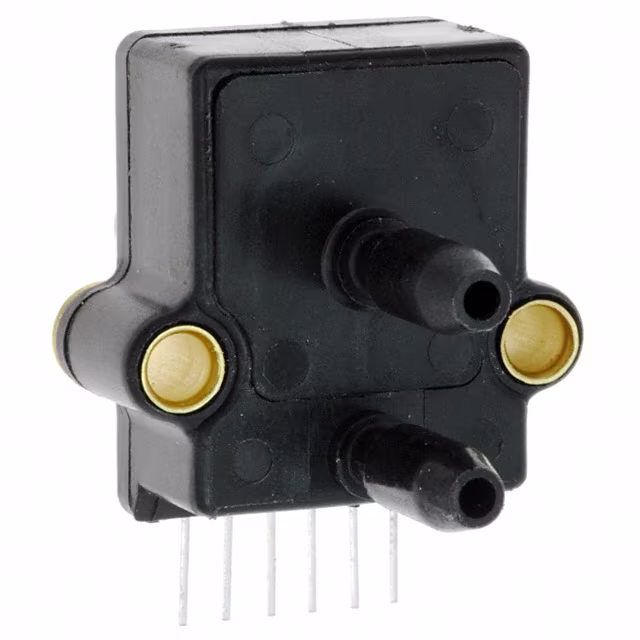

SCX01DNCSENSOR 1PSID 0.19" .018V 6SIP |
0 |
|
Ficha técnica |
SCX | 6-SIP | Bulk | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 20V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-SIP |
|
PSAN-L1CV-R1/8SENSOR 145.04PSI 1/8" 5V |
1 |
|
Ficha técnica |
PSAN | Module Box with Display | Box | Active | - | - | 145.04PSI (1000kPa) | Analog Voltage, NPN - Open Collector | 1 V ~ 5 V | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 217.56PSI (1500kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
|
PSAN-LC01CPA-R1/8SENSOR 14.5PSIC 1/8" .02A |
1 |
|
Ficha técnica |
PSAN | Module Box with Display | Box | Active | - | Compound | -14.69PSI ~ 14.5PSI (-101.3kPa ~ 100kPa) | Analog Current, PNP - Open Collector | 4 ~ 20 mA | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 29.01PSI (200kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
|
P-8305-101GSENSOR 1.45PSIG .025V SIP |
0 |
|
Ficha técnica |
P-8305 | 5-SIP Module | Bulk | Active | Board Mount | Gauge | 1.45PSI (10kPa) | Analog Voltage | 0 mV ~ 25 mV | - | - | - | No Port | Temperature Compensated | PC Pin | 4.35PSI (30kPa) | -20°C ~ 70°C | - | - | Through Hole | SIP |
|
SCX100DNCSENSOR 100PSID 0.19" 0.1V |
0 |
|
Ficha técnica |
SCX | 6-SIP Module | Bulk | Active | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (12V) | ±5% | 20V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
5 INCH-G-4V-MILSENSOR 0.18PSIG 0.19" 4.25V |
0 |
|
Ficha técnica |
ADCA | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.19" (4.83mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
