Sensores de pressão, transdutores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Aplicações | Tipo de pressão | Pressão operacional | Tipo de saída | Saída | Precisão | Voltagem - Alimentação | Tamanho da porta | Estilo de porta | Recursos | Estilo de Terminação | Pressão máxima | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV2102GPSENSOR 14.5PSIG 0.13" .04V 8SOP |
0 |
|
Ficha técnica |
MPXV2102 | 8-SMD, Gull Wing, Side Port | Tray | Obsolete | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
|
MPXV2202DPSENSOR 29.01PSID 0.13" .04V 8SOP |
0 |
|
Ficha técnica |
MPX2202 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tray | Obsolete | Board Mount | Differential | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MPXV2202GPSENSOR 29.01PSIG 0.13" .04V 8SOP |
0 |
|
Ficha técnica |
MPX2202 | 8-SMD, Gull Wing, Side Port | Tray | Obsolete | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MPXV4006GC6T1SENSOR 0.87PSIG 0.13" 4.7V |
0 |
|
Ficha técnica |
MPXV4006G | 8-SMD, Gull Wing, Top Port | Tape & Reel (TR) | Obsolete | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 3.48PSI (24kPa) | -10°C ~ 60°C | - | - | Surface Mount | - |
|
MPXV4006GPSENSOR 0.87PSIG 0.13" 4.7V 8SOP |
0 |
|
Ficha técnica |
MPXV4006G | 8-SMD, Gull Wing, Side Port | Tray | Obsolete | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 3.48PSI (24kPa) | -10°C ~ 60°C | - | - | Surface Mount | 8-SOP |
|
MPXV4115V6USENSOR 16.68PSI 4.6V 8SOP |
0 |
|
Ficha técnica |
MPXV4115V | 8-SMD Module | Tube | Obsolete | Board Mount | Vacuum | -16.68PSI (-115kPa) | Analog Voltage | 0.2 V ~ 4.6 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | SMD (SMT) Tab | -58.02PSI (-400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MPXV5004GC7USENSOR 0.57PSIG 0.13" 4.9V 8DIP |
0 |
|
Ficha técnica |
MPXV5004 | 8-DIP (0.550", 13.97mm), Top Port | Tube | Obsolete | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | - | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | PC Pin | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
MPXV5004GVPSENSOR 0.57PSIG 0.13" 4.9V 8SOP |
0 |
|
Ficha técnica |
MPXV5004 | 8-SMD Module | Tray | Obsolete | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | - | 4.75V ~ 5.25V | Male - 0.13" (3.3mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Surface Mount | 8-SOP |
|
|
MPXV5010G6USENSOR 1.45PSIG 4.7V |
0 |
|
Ficha técnica |
MPXV5010 | 8-SMD Module | Tube | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 5.8PSI (40kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
MPXHZ6115A6USENSOR 16.68PSIA 4.7V 8SSOP |
0 |
|
Ficha técnica |
MPXHZ6115A | 8-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
1210A-001D-3LSENSOR 1PSID 0.13" 0.1V |
0 |
|
Ficha técnica |
- | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
1210A-015D-3LSENSOR 15PSID 0.13" 0.1V |
0 |
|
Ficha técnica |
- | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
1210A-100D-3LSENSOR 100PSID 0.13" 0.1V |
0 |
|
Ficha técnica |
- | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1220A-015D-3LSENSOR 15PSID 0.13" .05V |
0 |
|
Ficha técnica |
- | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | 1.235V | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
1220A-100D-3LSENSOR 100PSID 0.13" .05V |
0 |
|
Ficha técnica |
- | 8-DIP Module | Bulk | Obsolete | - | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | 1.235V | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PCB | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

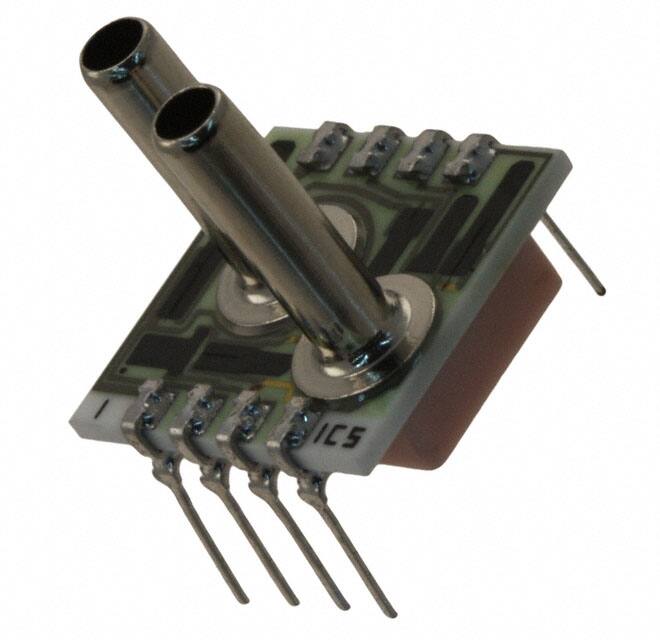

1230-015D-3LSENSOR 15PSID 0.13" 0.1V |
0 |
|
Ficha técnica |
1230 | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
PS-010PRESSURE SENDER FOR ENGAGE |
0 |
|
- |
- | - | - | Obsolete | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MPVZ5004GW6USENSOR 0.57PSIG 0.22" 4.9V |
0 |
|
Ficha técnica |
MPVZ5004G | 8-SMD Module | Tube | Obsolete | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | ±6.25% | 4.75V ~ 5.25V | Male - 0.22" (5.59mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Surface Mount | - |
|
|
MPVZ4006G6USENSOR 0.87PSIG 4.6V 8SOP |
0 |
|
Ficha técnica |
MPVZ4006G | 8-SMD Module | Tube | Obsolete | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 0.3 V ~ 4.6 V | - | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 10.88PSI (75kPa) | 10°C ~ 60°C | - | - | Surface Mount | - |
|
|
MPVZ4006G7USENSOR 0.87PSIG 4.6V 8DIP |
0 |
|
Ficha técnica |
MPVZ4006G | 8-DIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 0.3 V ~ 4.6 V | - | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | PC Pin | 10.88PSI (75kPa) | 10°C ~ 60°C | - | - | Through Hole | 8-DIP |
