Sensores de pressão, transdutores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Aplicações | Tipo de pressão | Pressão operacional | Tipo de saída | Saída | Precisão | Voltagem - Alimentação | Tamanho da porta | Estilo de porta | Recursos | Estilo de Terminação | Pressão máxima | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PX3MN2BH250PAAAXPX3MN2BH250PAAAX |
0 |
|
Ficha técnica |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PX3MN1BS200PSAAXPX3 PRESSURE SENSOR - XLPE CABLE |
0 |
|
Ficha técnica |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PX3AF1BH667PAAAXSENSOR 667PSIA 7/16" 4.5V |
0 |
|
Ficha técnica |
PX3 | Cylinder, Threaded | Bulk | Obsolete | - | Absolute | 667PSI (4598.8kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF Schrader | Threaded | Temperature Compensated | Connector | 1000PSI (6894.76kPa) | -30°C ~ 125°C | - | - | - | - |
|
|
PX3AN2BH010BAAAXSENSOR 145.04PSIA 1/8"NPT 4.5V |
0 |
|
Ficha técnica |
PX3 | Cylinder, Threaded | Bulk | Obsolete | - | Absolute | 145.04PSI (1000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Connector | 449.62PSI (3100kPa) | -30°C ~ 125°C | - | - | - | - |
|
|
123029-05PRESSURE TRANSDUCER SWITCH |
0 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
123028-05PRESSURE TRANSDUCER SWITCH |
0 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DPRCAN0010NG0000A5SENSOR 0.36PSIG 0.13" 4V |
0 |
|
- |
TruStability® DPR | Module | Tray | Active | Board Mount | Gauge | 0.36PSI (2.5kPa) | Analog Voltage | 0.25 V ~ 4 V | ±2% | 4.75V ~ 5.25V | Male - 0.13" (3.18mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Wire Leads | 10.84PSI (74.75kPa) | -40°C ~ 85°C | - | - | - | - |
|
DPRABN0005NG0000A5SENSOR 0.18PSIG 0.13" 4V |
0 |
|
- |
TruStability® DPR | Module | Tray | Active | Board Mount | Gauge | 0.18PSI (1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | ±2% | 4.75V ~ 5.25V | Male - 0.13" (3.18mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Cable with Connector | 9.75PSI (67.25kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
DPRCAN0005NG0000A5SENSOR 0.18PSIG 0.13" 4V |
0 |
|
- |
TruStability® DPR | Module | Tray | Active | Board Mount | Gauge | 0.18PSI (1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | ±2% | 4.75V ~ 5.25V | Male - 0.13" (3.18mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Wire Leads | 9.75PSI (67.25kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
DPRAAN0005NG0000A5SENSOR 0.18PSIG 0.13" 4V |
0 |
|
- |
TruStability® DPR | Module | Tray | Active | Board Mount | Gauge | 0.18PSI (1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | ±2% | 4.75V ~ 5.25V | Male - 0.13" (3.18mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Cable with Connector | 9.75PSI (67.25kPa) | -40°C ~ 85°C | - | - | - | - |
|

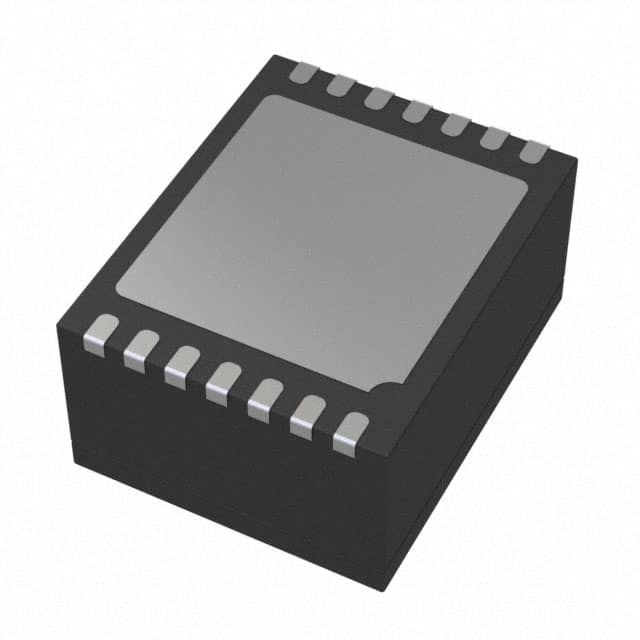

MLX90817KXE-DBH-008-SPSENSOR 14DFN |
0 |
|
Ficha técnica |
- | 14-BFDFN Exposed Pad | Tray | Active | Board Mount | Absolute | - | Analog Voltage | - | - | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | - | -40°C ~ 125°C | - | - | Surface Mount | 14-DFN (4x5) |
|
|
MLX90817KXE-DBH-008-RESENSOR 14DFN |
0 |
|
Ficha técnica |
- | 14-BFDFN Exposed Pad | Tape & Reel (TR) | Active | Board Mount | Absolute | - | Analog Voltage | - | - | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | - | -40°C ~ 125°C | - | - | Surface Mount | 14-DFN (4x5) |
|
|
76073-35 PSIPSI PRESSURE SWITCH |
0 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SP370231360XTMA1IC TPMS 14-DSOSP |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FXPS7550DI4T1SENSOR 79.77PSIA 32BIT 16HQFN |
0 |
|
Ficha técnica |
- | 16-QFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | Absolute | 2.9PSI ~ 79.77PSI (20kPa ~ 550kPa) | I2C | 32 b | ±0.51PSI (±3.5kPa) | 3.1V ~ 5.25V | - | No Port | - | SMD (SMT) Tab | 12.62PSI (87kPa) | -40°C ~ 130°C | - | - | Surface Mount, Wettable Flank | 16-HQFN (4x4) |
|
|
FXPS7400DS4T1SENSOR 58.02PSIA 32BIT 16HQFN |
0 |
|
Ficha técnica |
- | 16-QFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | Absolute | 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) | SPI | 32 b | ±0.51PSI (±3.5kPa) | 3.1V ~ 5.25V | - | No Port | - | SMD (SMT) Tab | 9.43PSI (65kPa) | -40°C ~ 130°C | - | - | Surface Mount, Wettable Flank | 16-HQFN (4x4) |
|
|
FXPS7250DS4T1SENSOR 36.26PSIA 32BIT 16HQFN |
0 |
|
Ficha técnica |
- | 16-QFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | Absolute | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) | SPI | 32 b | ±0.51PSI (±3.5kPa) | 3.1V ~ 5.25V | - | No Port | - | SMD (SMT) Tab | 6.38PSI (44kPa) | -40°C ~ 130°C | - | - | Surface Mount, Wettable Flank | 16-HQFN (4x4) |
|
FXPS7550A4T1SENSOR 79.77PSIA 4.6V 16HQFN |
0 |
|
Ficha técnica |
- | 16-QFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | Absolute | 2.9PSI ~ 79.77PSI (20kPa ~ 550kPa) | Analog Voltage | 0 V ~ 4.6 V | ±3% | 3.1V ~ 5.25V | - | No Port | - | SMD (SMT) Tab | 87.02PSI (600kPa) | -40°C ~ 130°C | - | - | Surface Mount, Wettable Flank | 16-HQFN (4x4) |
|
|
FXPS7250A4T1SENSOR 36.26PSIA 4.6V 16HQFN |
0 |
|
Ficha técnica |
- | 16-QFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | Absolute | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) | Analog Voltage | 0 V ~ 4.6 V | ±3% | 3.1V ~ 5.25V | - | No Port | - | SMD (SMT) Tab | 43.51PSI (300kPa) | -40°C ~ 130°C | - | - | Surface Mount, Wettable Flank | 16-HQFN (4x4) |
|
|
FXPS7165DS4T1SENSOR 23.93PSIA 32BIT 16HQFN |
0 |
|
Ficha técnica |
- | 16-QFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | Absolute | 8.7PSI ~ 23.93PSI (60kPa ~ 165kPa) | SPI | 32 b | ±0.51PSI (±3.5kPa) | 3.1V ~ 5.25V | - | No Port | - | SMD (SMT) Tab | 43.51PSI (300kPa) | -40°C ~ 130°C | - | - | Surface Mount, Wettable Flank | 16-HQFN (4x4) |
