Sensores de pressão, transdutores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Aplicações | Tipo de pressão | Pressão operacional | Tipo de saída | Saída | Precisão | Voltagem - Alimentação | Tamanho da porta | Estilo de porta | Recursos | Estilo de Terminação | Pressão máxima | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPVZ5010GW6USENSOR 1.45PSIG 0.22" 4.7V 8SO |
1,270 |
|
Ficha técnica |
MPVZ5010G | 8-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | - | 4.75V ~ 5.25V | Male - 0.22" (5.59mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 5.8PSI (40kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SO |
|
MPX5050GPSENSOR 7.25PSIG 0.19" 4.7V |
1,889 |
|
Ficha técnica |
MPX5050 | 6-SIP Module | Tray | Active | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

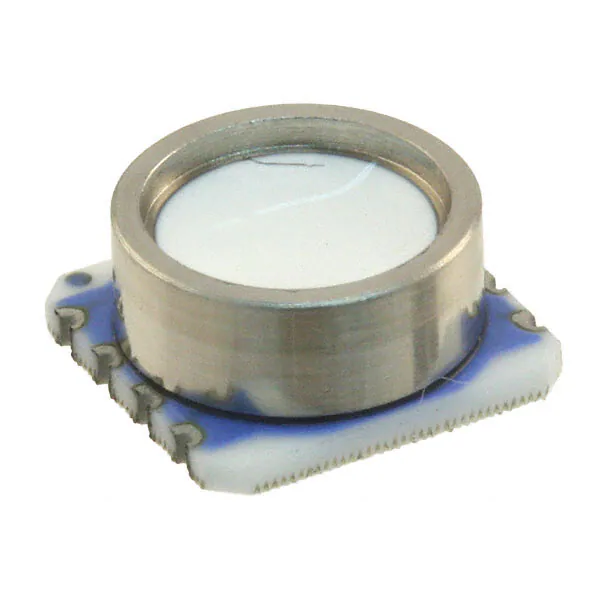

325540009-50SENSOR 15.95PSIA 16BIT |
797 |
|
Ficha técnica |
- | Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 0.15PSI ~ 15.95PSI (1kPa ~ 110kPa) | Digital | 16 b | ±0.022PSI (±0.15kPa) | 2.2V ~ 3.6V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 145.04PSI (1000kPa) | -40°C ~ 85°C | - | - | - | - |
|
NPA-730B-10WGSENSOR 0.36PSIG 0.12" 14BIT SOIC |
666 |
|
Ficha técnica |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
24PCEFA6GSENSOR 0.5PSIC 0.2" .035V |
514 |
|
Ficha técnica |
24PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±0.5PSI (±3.45kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube | Barbless | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

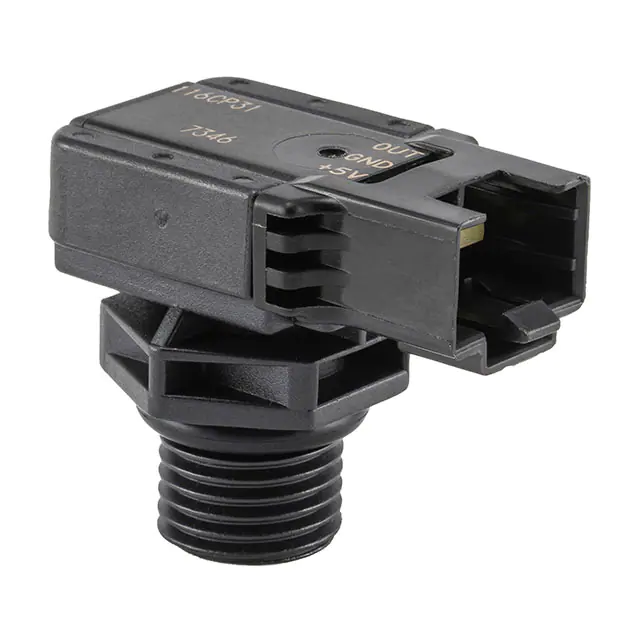

116CP31-M10S3-50SENSOR 150PSIS 1/4" 4.5V |
268 |
|
Ficha técnica |
116CP | Module | Box | Active | Board Mount | Sealed Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 5V | Male - 1/4" (6.35mm) BSPP | Threaded | - | Connector | 300PSI (2068.43kPa) | 2°C ~ 90°C | - | - | - | - |
|
ABPDANT015PGAA5SENSOR 15PSIG 0.08" 4.5V 6DIP |
161 |
|
Ficha técnica |
ABP | 6-DIP Module | Tube | Active | Medical Ventilation | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
SDP31-500PA-TR-1500PCSSENSOR 0.07PSID 0.08" 16BIT 1SMD |
3,218 |
|
Ficha técnica |
SDP3x | 16-SMD Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | I2C | 16 b | ±3% | 3.3V | Male - 0.08" (2.00mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 14.5PSI (100kPa) | -40°C ~ 85°C | - | - | Surface Mount | 16-SMD |
|
SDP816-125PASENSOR 0.018PSID 0.2" 4.5V |
2,041 |
|
Ficha técnica |
SDP800 | Module | Tray | Active | Board Mount | Differential | ±0.018PSI (± 0.125kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 3V ~ 5.5V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | - | 14.5PSI (100kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
SDP810-500PASENSOR 0.07PSID 0.2" 16BIT |
657 |
|
Ficha técnica |
SDP800 | Module | Tray | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | I2C | 16 b | ±3% | 3V ~ 5.5V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | - | 14.5PSI (100kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
SDP810-125PASENSOR 0.018PSID 0.2" 16BIT |
358 |
|
Ficha técnica |
SDP800 | Module | Tray | Active | Board Mount | Differential | ±0.018PSI (± 0.125kPa) | I2C | 16 b | ±3% | 3V ~ 5.5V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | - | 14.5PSI (100kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
SDP33-1500PA-TR-250PCSSENSOR 0.22PSID 0.08" 16BIT 1SMD |
216 |
|
Ficha técnica |
SDP3x | 16-SMD Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Differential | ±0.22PSI (±1.5kPa) | I2C | 16 b | ±6% | 3.3V | Male - 0.08" (2.00mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 14.5PSI (100kPa) | -40°C ~ 85°C | - | - | Surface Mount | 16-SMD |
|
ND030DSENSOR 30PSID 0.08" 16BIT |
178 |
|
Ficha técnica |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 30PSI (206.84kPa) | I2C, SPI | 16 b | ±0.25% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 100PSI (689.48kPa) | -20°C ~ 85°C (TA) | - | - | Surface Mount | - |
|

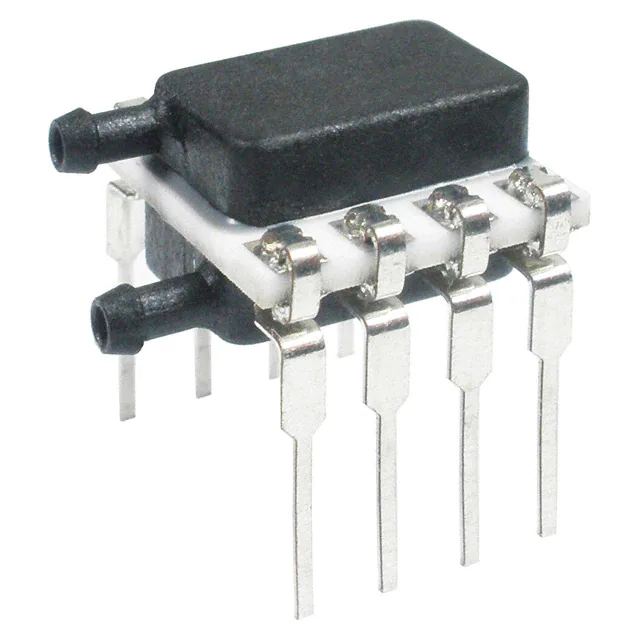

TSCDRRN015PDUCVSENSOR 15PSID 0.08" .0525V 8DIP |
2,069 |
|
Ficha técnica |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tube | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 52.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
NPA-700B-005DSENSOR 5PSID 0.12" 14BIT |
552 |
|
Ficha técnica |
NPA-700 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 5PSI (34.47kPa) | I2C | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
ABPDANT005PGAA5SENSOR 5PSIG 0.08" 4.5V 6DIP |
307 |
|
Ficha técnica |
ABP | 6-DIP Module | Tray | Active | Medical Ventilation | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
ABPMAND001PG2A3SENSOR 1PSIG 0.08" 12BIT 6SMD |
700 |
|
Ficha técnica |
ABP | 6-SMD Module | Tube | Active | Medical Ventilation | Vented Gauge | 1PSI (6.89kPa) | I2C | 12 b | ±0.25% | 3.3V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
|
ABPMANN005PGAA3SENSOR 5PSIG 0.08" 2.97V 6SMD |
326 |
|
Ficha técnica |
ABP | 6-SMD Module | Tube | Active | Medical Ventilation | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.3V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 90PSI (620.53kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
|
5525DSO-DB001DSSENS 1PSID 0.12" 24BIT 14SMD MOD |
2,323 |
|
Ficha técnica |
MS5525DSO | 14-SMD Module | Tube | Active | Board Mount | Differential | 1PSI (6.89kPa) | I2C, SPI | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 20PSI (137.9kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SMD Module |
|
HV110-SM02-RSENSOR 0.36PSID 0.08" 16BIT |
300 |
|
Ficha técnica |
HV | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | ±0.02PSI ~ ±0.36PSI (±0.12kPa ~ ±2.5kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±1.45PSI (±9.97kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
